2014 Civic Coupe Premium Stereo System Upgrade build post

Discussion in 'Audio Setups & Aftermarket Head Units' started by Marc Meyers, Jan 11, 2017.

  1. Marc Meyers

    Marc Meyers Well-Known Member

    Messages:
    48
    Location:
    Ohio
    Vehicle Model:
    Coupe
    Body Style:
    EX
    I finally started upgrading my stereo. It was put on hold until my bathroom remodel was done. That project took me a year and a half. I gutted my bath down to studs and did everything myself.

    I want to thank Hillstones for all the information he contributed to the forum. I took his advise and purchased a JL audio XD700/5 amplifier. I was not crazy about mounting the amp under my seat. I wanted everything to look as factory as possible. So I made a bracket and installed the amp in the same location as the factory. I do plan on painting the bracket black. One of the feet for the bracket uses one of the bolts for the factory amp. The other is under one of the nuts for the accelerator pedal. It fits pretty good I removed the vent blower duct to make room. I think I can just turn it 90 degrees and it will still serve it purpose.

    Here is a pic of the plate and amp:


    Here's a pic with the feet installed:



    with lots of trial and error and rebending the feet, I got it to fit:



    I took the seat out and was on my back for a long time.

    I ran the power wire through the fender, like other DIY show.

    I also,like so many others, did not want to cut into any of the wiring. I plan on putting the original system back into the car when I resell it. I looked and looked and waited and waited, hoping that someone would come out with a plug and play cable for this system, but as everyone knows it does not exist. So I took out my calipers and started taking a lot of measurements of the 24 pin connector at the amp. I drew it up in a program called Sketchup. If anyone is interested it can be found at sketchup.com, it is free and there are many tutorials on how to use it. I basicly taught myself how to use the program as I was drawing up the connector. I found a friend of a friend that had access to a 3D printer, he printed it for me and here is the final product. It turned out pretty good.




    with a little modification I got the pins to fit;


    I did a lot of research and found the pins for the connector that match the factory connector at the amp from the radio. The pins can be purchased from Newark Electronics.

    Here is the link;

    http://www.newark.com/molex/16-02-0117/contact-male-24-22awg-crimp/dp/92B7913?ost=70190984&selectedCategoryId=&categoryNameResp=All+Categories&searchView=table&iscrfnonsku=true

    If you don't want to bother with the connector, you can probably get away with just plugging the pin into the amp connector and using heat shrink tubing to cover the bare parts. Then tape them together. That is all I did with the 18 pin speaker connector to connect the amp to the car speakers. That part is only temporary until I replace the speaker then I plan on running speaker wire.

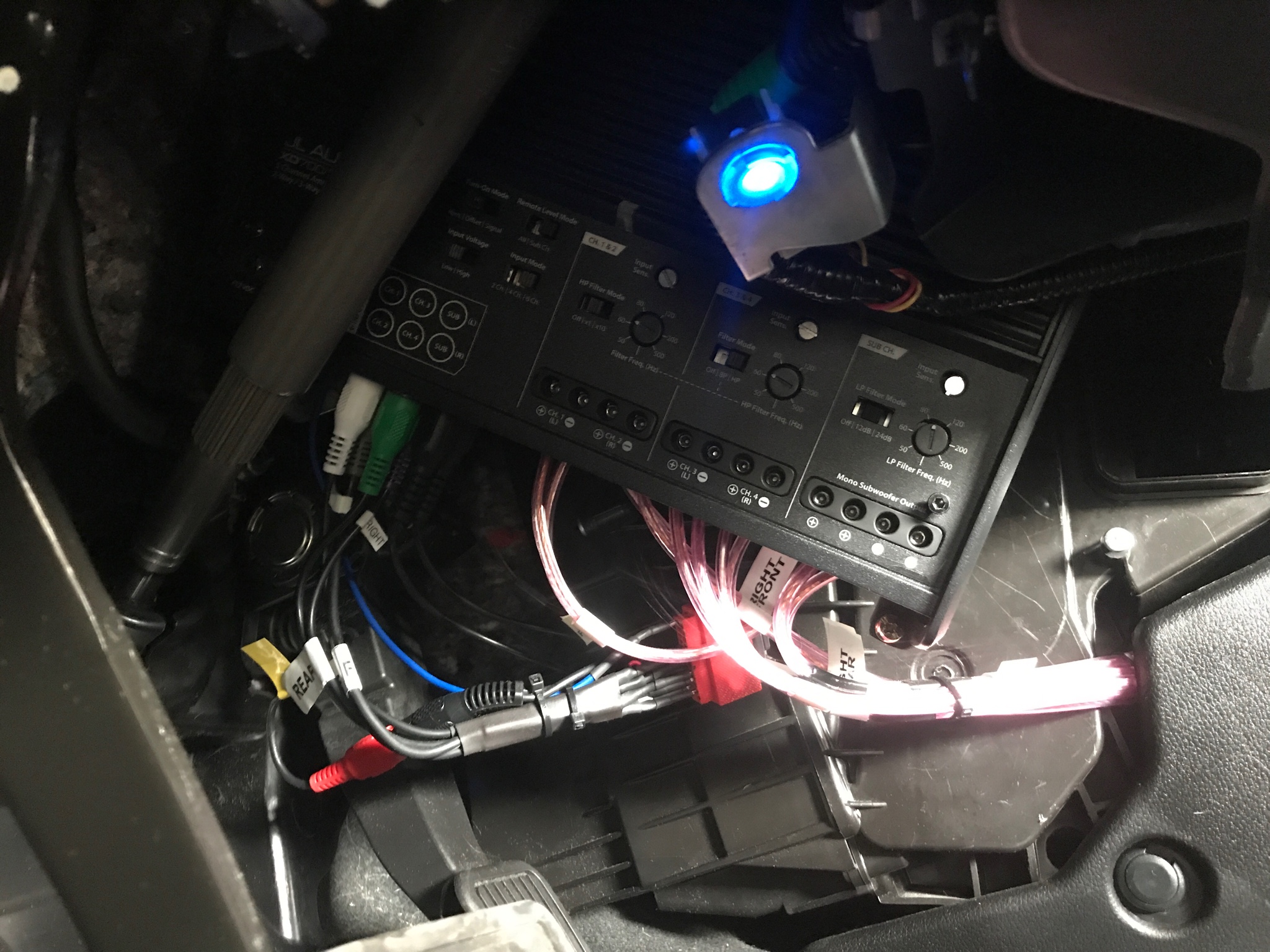

    Here are some pic of the amp wired;




    I followed the pin out from the other post. Pin 13 (blue wire) is the 12V turn on signal for the amp.

    I hope this post helps everyone.

    Last edited: Jan 11, 2017
  2. MadMike

    MadMike Active Member

    Messages:
    42
    Location:
    Inland Empire, California
    Vehicle Model:
    Civic SI
    Body Style:
    Sedan
    Nice work Bro.:thumbsup:

  3. webby
    • Staff
    • 2017 Toys For Tots

    webby Administrator

    Messages:
    47,909
    Unbelievably nicely done! Props on the whole setup including the 3D printing.

  4. Marc Meyers

    Marc Meyers Well-Known Member

    Messages:
    48
    Location:
    Ohio
    Vehicle Model:
    Coupe
    Body Style:
    EX
    Thanks I'm proud of it, took a lot of time, work and research, but forums like this are great


    Sent from my iPhone using Tapatalk

    webby likes this.
  5. Marc Meyers

    Marc Meyers Well-Known Member

    Messages:
    48
    Location:
    Ohio
    Vehicle Model:
    Coupe
    Body Style:
    EX
    Working on the door speakers next


    Sent from my iPhone using Tapatalk

    webby likes this.
  6. Marc Meyers

    Marc Meyers Well-Known Member

    Messages:
    48
    Location:
    Ohio
    Vehicle Model:
    Coupe
    Body Style:
    EX

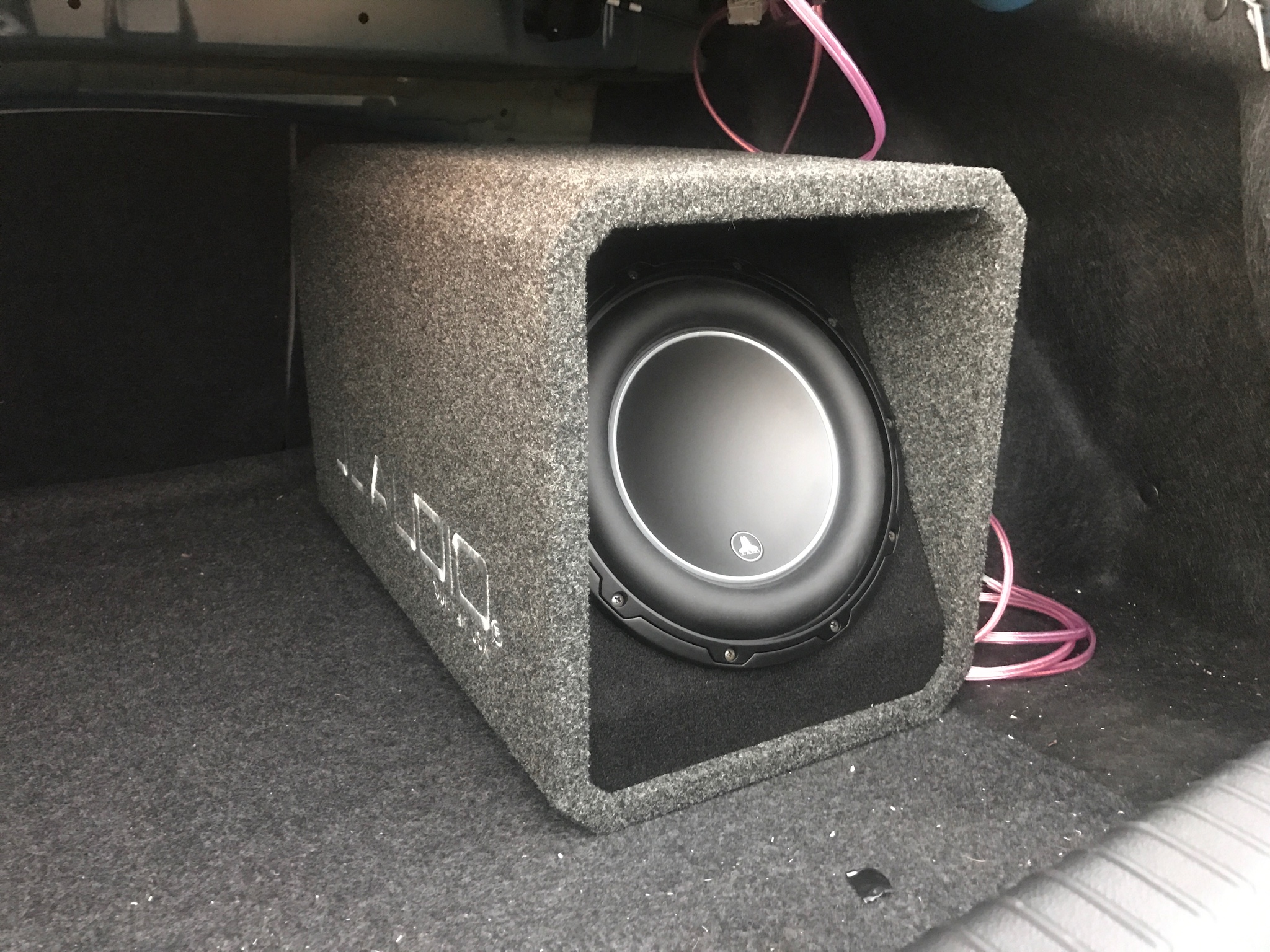

    I installed JL Audio TR-650 CXi in the door and rear, I made speaker adapter rings out of 3/4" MDF. I thinks the rear are too thick, but they work. I'll try and get some pictures later. I also got a JL Audio HO110-W6v3 subwoofer...

    [​IMG]

    after some tweaking of the levels and crossover points. It sound great!


    Sent from my iPhone using Tapatalk


    Attached Files:

    MadMike and webby like this.
  7. Gixxerfool

    Gixxerfool Well-Known Member

    Messages:
    201
    Location:
    Where the weak are killed and eaten
    Vehicle Model:
    Civic
    Body Style:
    Coupe EX
    Nicely done. For the connector I have one from a factory amp I could've given you. It's a clean install though. I mounted my amp under the seat since no one sits behind me anyways. You could have also gotten a mercman harness like I did. Well done all around.

  8. Marc Meyers

    Marc Meyers Well-Known Member

    Messages:
    48
    Location:
    Ohio
    Vehicle Model:
    Coupe
    Body Style:
    EX
    Thanks, I considered getting the one from Mercman, but I also wanted the challenge of making one.


    Sent from my iPhone using Tapatalk

  9. Sarcras
    • 2017 Toys For Tots
    • Supporting Member

    Sarcras Supporting Member

    Messages:
    1,056
    Location:
    North Dakota
    Vehicle Model:
    Civic Si
    Body Style:
    FB6
    Write up is awesome! Very well done.

    Marc Meyers likes this.
  10. Marc Meyers

    Marc Meyers Well-Known Member

    Messages:
    48
    Location:
    Ohio
    Vehicle Model:
    Coupe
    Body Style:
    EX

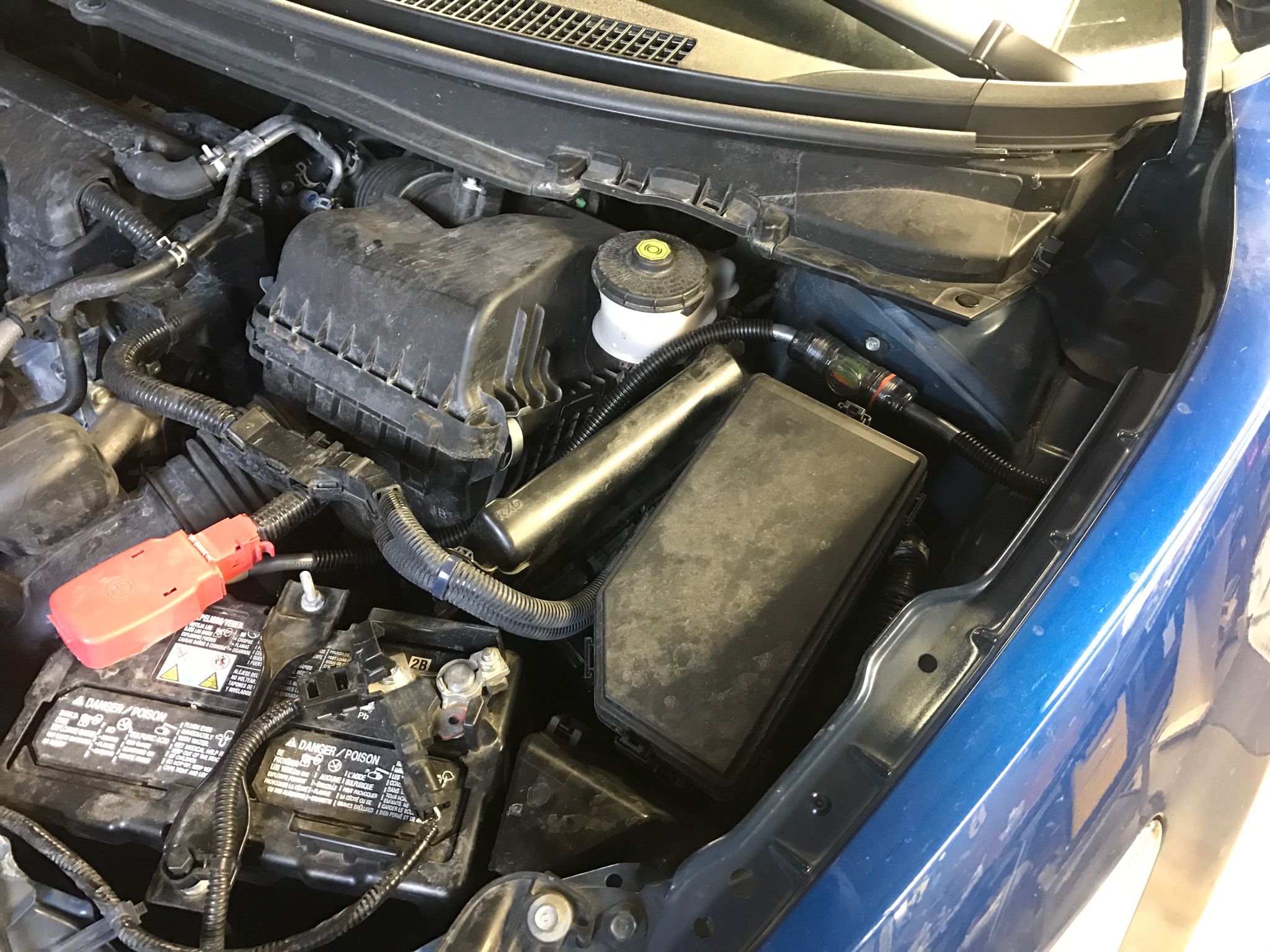

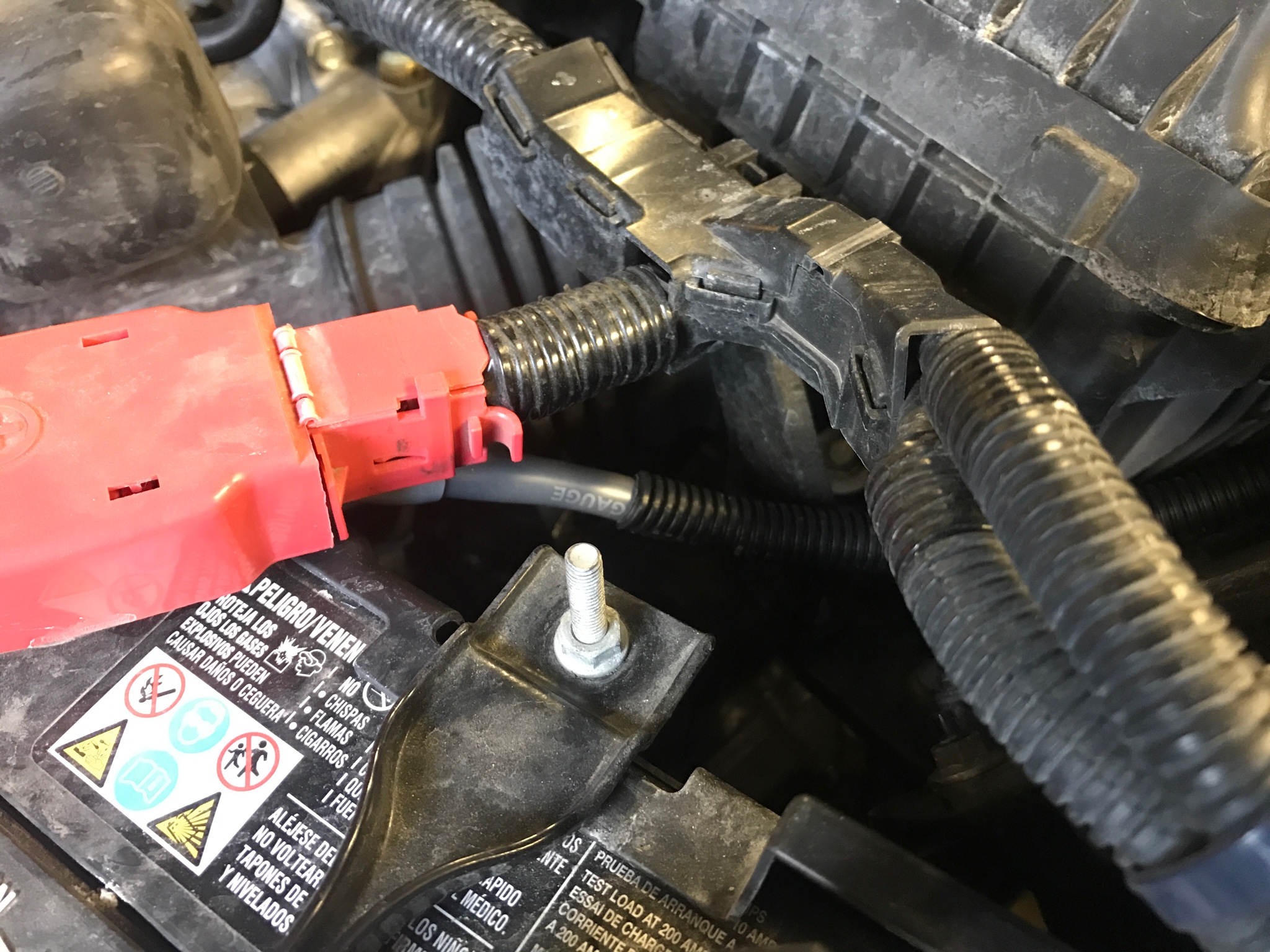

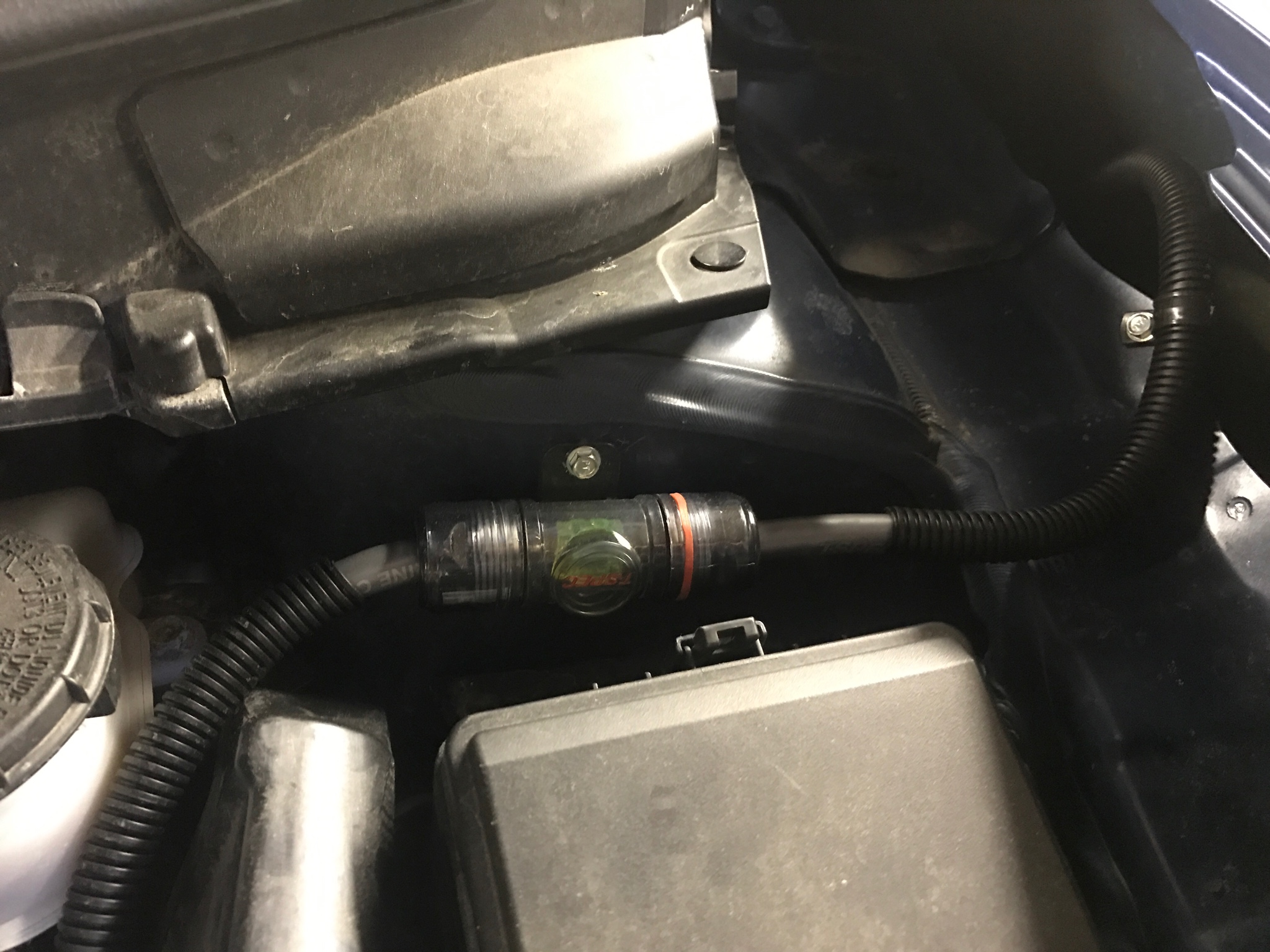

    I finally took picture of the battery hook up.
