    Not as difficult as it may seem.

    Here is a useful PDF file about installing fog lights and I referred to it quite a bit for specific details.

    http://www.collegehillshonda.com/instructions/civic/2012/4dr/foglights.pdf

    Step 1: Take off the bumper.


    View: http://www.youtube.com/watch?v=S45O8Lu9ao4&feature=player_embedded#t=0

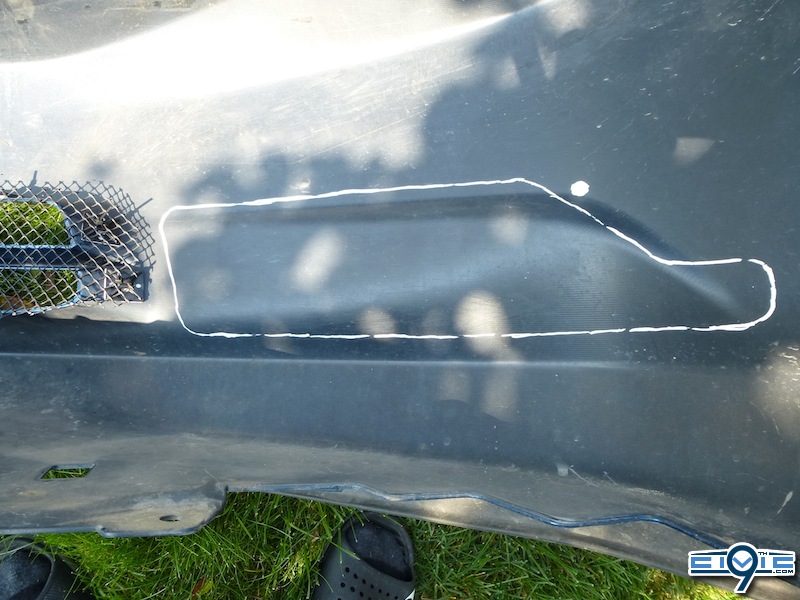

    Step 2: Find markings on inside of bumper. I used a White Out pen to trace lines so i could see them better. You need to cut between the two indicated lines, so I just put my white line between the two. There is also a circle outside of the lines which indicates where you will need to drill a hole.

    [​IMG]

    Step 3: Cut your bumper. A Dremmel drill works really well for this step. I would suggest you wear protective eye glasses because I had a close call with some burning rubber flying off the drill and hitting just under my eyebrow leaving a nice burn mark.

    [​IMG]
    *Note: I had not yet drilled the hole in this photo below.

    [​IMG]
    Here is why you need to drill that hole. This screw opening has to fit through the hole.

    [​IMG]
    Step 4: Screw the inner fog light black bracket to the painted outer cover.

    [​IMG]
    [​IMG]
    Step 5: Screw fog light into place (1 self tapping screw). Make sure you have attached your spring nut onto the cover. See step #24 in the PDF file.

    [​IMG]
    There ya go! :D:D:D

    BEFORE
    [​IMG]

    AFTER
    [​IMG]

    Last edited: Aug 25, 2013
    VNPP, webby, Nix and 4 others like this.
  2. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,170
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    Last edited: Jan 9, 2014
    webby, nat3d, Nix and 1 other person like this.
  3. Nix

    Nix Jötunn Moderator

    Messages:
    10,765
    Location:
    Lew-vul, KY
    Body Style:
    It's A Fast Pig!
    Nice job Pauly. Thanks for including the vids and links too!

    Pauly99to17 likes this.
  4. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,170
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    Maybe a mod should move this DIY to the Lighting section. ??? These are "Accessories" to add, but they are not OEM Honda lights though.

    Last edited: Oct 11, 2013
  5. squiggy
    • Staff
    • 2018 Toys For Tots

    squiggy Cartographer

    Messages:
    10,834
    Location:
    Michiana
    Vehicle Model:
    '12 Civic Si
    Body Style:
    DBP II Coupe
    Done!

    Pauly99to17 likes this.
  6. Daniel Peden

    Daniel Peden Well-Known Member

    Messages:
    189
    Location:
    Dalton, Georgia
    Vehicle Model:
    2012
    Body Style:
    Sedan
    im really wanting to do this to my lx also add the Modulo grill and lip at the same time but im still trying to acquire are the parts so far I have the fog lights and the surround for the bumper.

  7. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,170
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    Makes such a difference. You will love it.

    Daniel Peden likes this.
  8. Daniel Peden

    Daniel Peden Well-Known Member

    Messages:
    189
    Location:
    Dalton, Georgia
    Vehicle Model:
    2012
    Body Style:
    Sedan
    I cant wait to do this but I will have to for now lol but I will by next summer have it completed

  9. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,170
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
  10. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,672
    :thumbsup: great work pauly

    Pauly99to17 likes this.
  11. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
    @Pauly99to17 Did you not have two black plastic thing on the front where they shouldve been before?? I thought they would just screw out in the back or something. You can see them in my avatar, they're the two black plastic pieces, they seem seperate from the bumper. Im thinking about going ahead and getting foglights but was just wondering if the sedans had those things as well, as I'm trying to avoid too much cutting/dremmel. Great DIY!

  12. FB2Chris

    FB2Chris Well-Known Member

    Messages:
    2,804
    There's no cutting involved what-so-ever on a coupe. Pop the black plastic cover off and install your fog lights. DX/LX sedans do not come with fog light cutouts which is why cutting the bumper is required. EX sedans already have the cutouts done.

    Pauly99to17 and VNPP like this.
  13. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
  14. siradoz

    siradoz Well-Known Member

    Messages:
    2
    Location:
    SANTO DOMINGO
    Vehicle Model:
    HONDA CIVIC
    Body Style:
    SEDAN
    @Pauly99to17 hi bro if you can tell me a place to buy this item online
    Honda Part No.: 08V38-TR0-170
    Cover, Foglight *NH737M* (POLISHED METAL METALLIC)

    I Have HONDA CIVIC 2012 SEDAN LX.

  15. Twitch

    Twitch Well-Known Member

    Messages:
    505
    Location:
    Levittown, NY
    Vehicle Model:
    EX
    Body Style:
    Coupe
  16. siradoz

    siradoz Well-Known Member

    Messages:
    2
    Location:
    SANTO DOMINGO
    Vehicle Model:
    HONDA CIVIC
    Body Style:
    SEDAN
  17. Twitch

    Twitch Well-Known Member

    Messages:
    505
    Location:
    Levittown, NY
    Vehicle Model:
    EX
    Body Style:
    Coupe
    Np college hills Honda is a great resource for OEM parts and accessories.

    siradoz likes this.
  18. CC029

    CC029 Member

    Messages:
    35
    thanks for this diy!

  19. Diego Espinal

    Diego Espinal New Member

    Messages:
    3
    Location:
    New York
    Vehicle Model:
    Civic Lx
    Body Style:
    Sedan
    Hey do I need to buy the fog kight bracket even if i dont want to install the fog lights.

  20. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,672
    Please explain what you mean. What do you mean you don’t want to install the fog lights? You’re posting in a thread on how to install fog lights...?
