Help with remote start wiring location

Discussion in 'Navigation, Security Systems, & Electrical' started by Nciolli, Nov 19, 2018.

  1. Nciolli

    Nciolli New Member

    Messages:
    2
    Good afternoon, I have a total noob issue with a remote start kit. The kit continually references tapping wires at a blue 23-pin connector by the driver's side kick panel, but I can't find any 23-pin connector! The wires it says should be present include the "OEM Arm (Pink)", "Lock (Blue)", "OEM Disarm (Brown)", and "Unlock (Gray)". The specific instructions reference "@ Driver Kick Door Harness, Blue 23-Pin Plug".

    Does anyone have a picture or exact location?

    Thanks!

  2. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,587
  3. Nciolli

    Nciolli New Member

    Messages:
    2

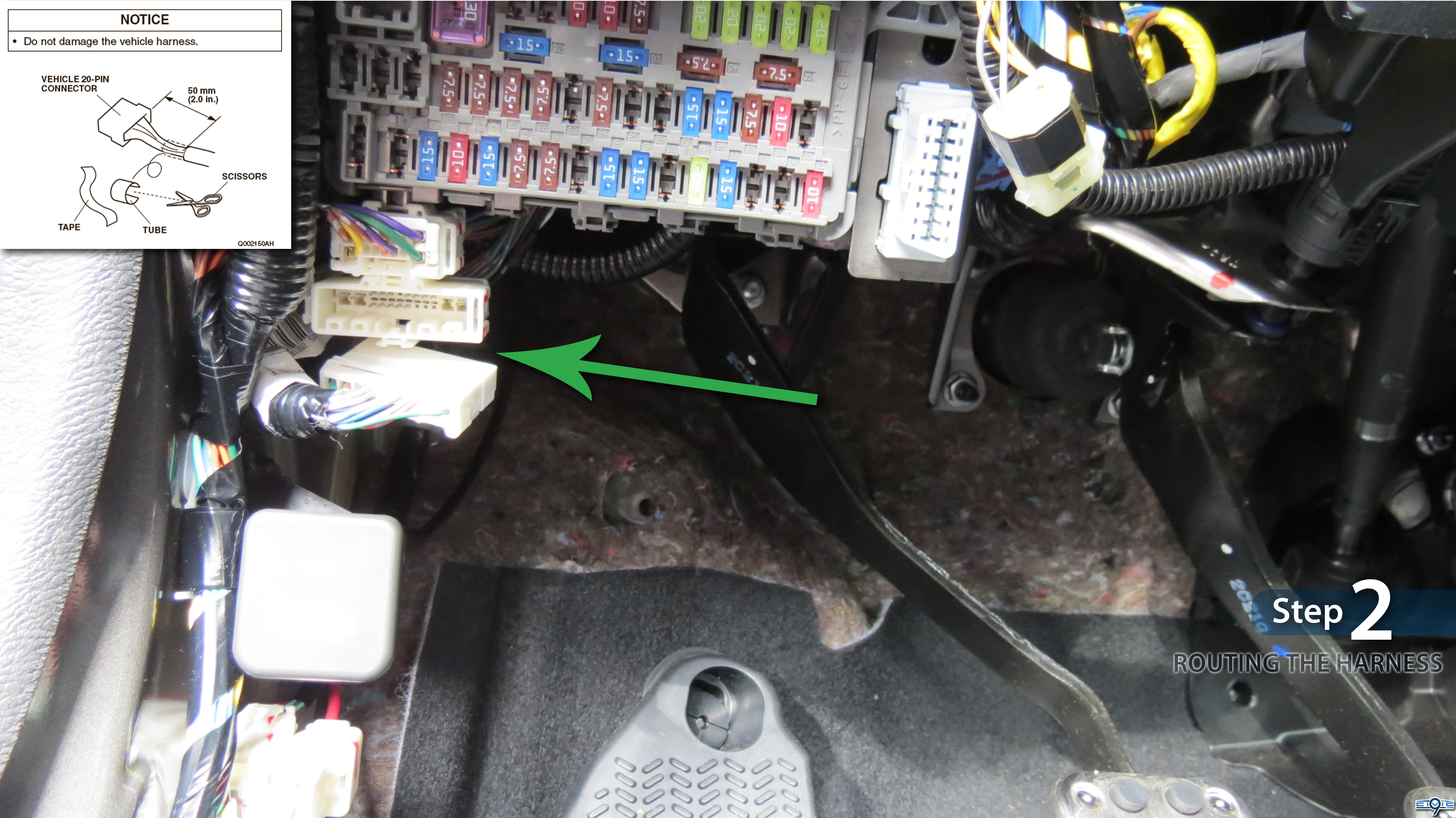

    Thanks Webby, that looks very similar to what I have, just a different color of connector. Can anyone confirm that's where the door lock inputs route?
