Need help: Christmas lights on dash

Discussion in 'Mechanical Problems & Technical Chat' started by SimplicityFB6, Oct 11, 2017.

  1. SimplicityFB6

    SimplicityFB6 Well-Known Member

    Messages:
    101
    Location:
    Houston, Tx
    Vehicle Model:
    Civic
    Body Style:
    Si
    I have a 2013 Honda Civic si I used to own but sold it to my parents.

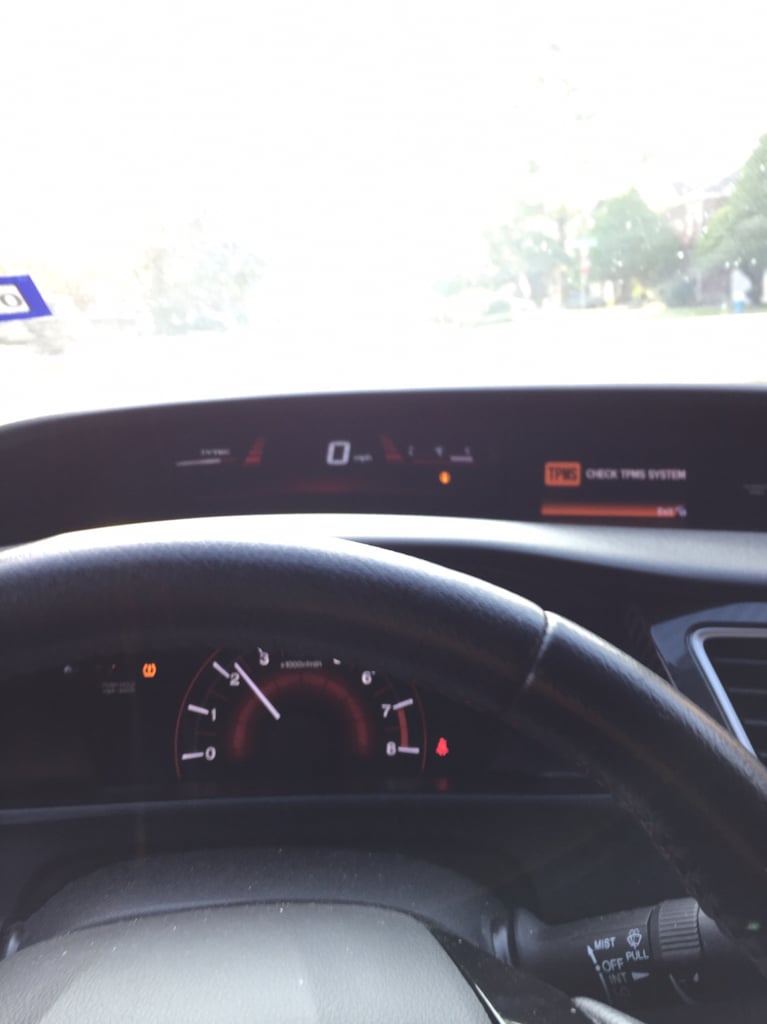

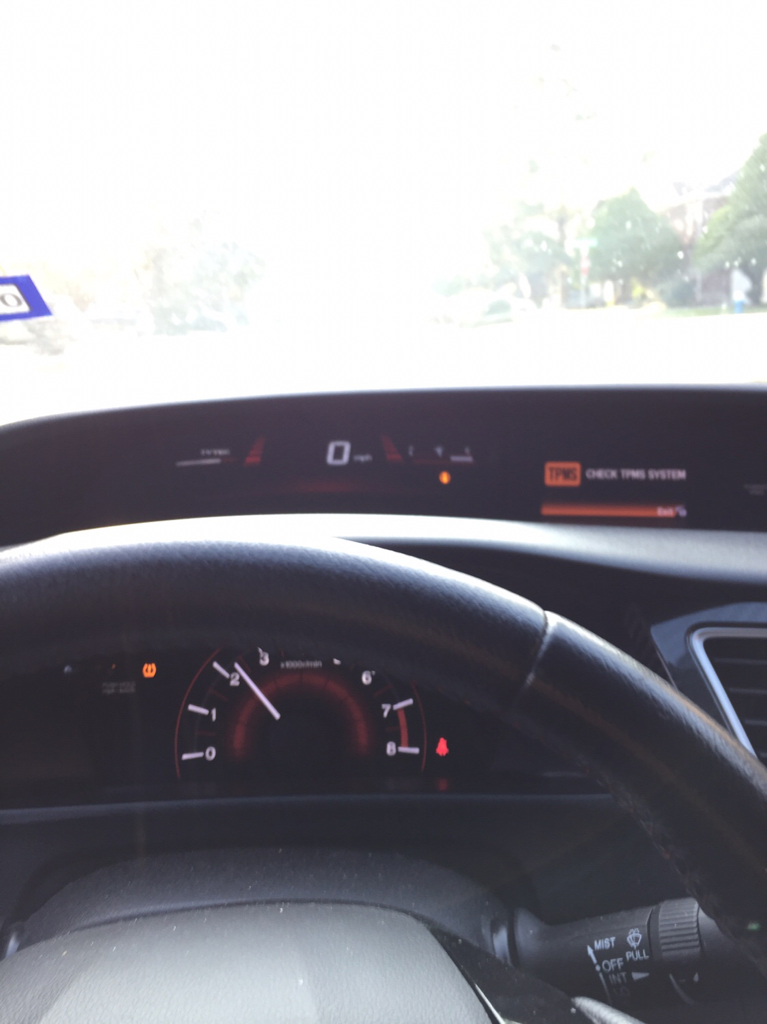

    When I had it, it was fbo, flashpro, and rbc swap. I put all the stock parts back and reset the ecu back to stock. It was doing fine for like the longest time till one day the ps light, check engine light, and tpms light came on. When I drove it, it doesn't even mark how fast I'm going and I also notice that it will not go over 4500rpm and won't engage vtec. Any input why it's doing this???
    Thx[​IMG]


    Sent from my iPhone using Tapatalk

  2. mySIck
    • Supporting Member

    mySIck Supporting Member

    Messages:
    575
    Location:
    FT. Bragg, NC
    Vehicle Model:
    Civic SI
    Body Style:
    Sedan
    for any reason have you checked your MAF?

  3. mySIck
    • Supporting Member

    mySIck Supporting Member

    Messages:
    575
    Location:
    FT. Bragg, NC
    Vehicle Model:
    Civic SI
    Body Style:
    Sedan
    I know mine did it yesterday when I hit a bad speed bump. all I did was removed the Battery for 30 min.

  4. webby
    • Staff
    • 2017 Toys For Tots

    webby Administrator

    Messages:
    46,222
    Try removing the negative on the battery for like 10min and then reconnect/start the car and see if you still have any warning lights. Take it for a drive and let us know.

    bootyluvr and ron v like this.
  5. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    876
    Location:
    fountain, co
    Vehicle Model:
    civic ex
    Body Style:
    coupe
    Check your fuses as well, one may have blown, causing the errors to show up on the car.

    Sent from my SM-N920V using Tapatalk

  6. SimplicityFB6

    SimplicityFB6 Well-Known Member

    Messages:
    101
    Location:
    Houston, Tx
    Vehicle Model:
    Civic
    Body Style:
    Si
    I disconnected the battery for 30 min. Check engine light went away and I can now go over 4500rpm/engage vtec however it still doesn't mark how fast I'm going and tpms light/ ps light still shows.


    Sent from my iPhone using Tapatalk

  7. webby
    • Staff
    • 2017 Toys For Tots

    webby Administrator

    Messages:
    46,222
    When you say it doesn't say how fast you are going, are you saying the speedometer reading is blank when driving? Or it's just showing "0"mph when you're driving around?

  8. SimplicityFB6

    SimplicityFB6 Well-Known Member

    Messages:
    101
    Location:
    Houston, Tx
    Vehicle Model:
    Civic
    Body Style:
    Si
    Yes, it just says 0mph


    Sent from my iPhone using Tapatalk

  9. webby
    • Staff
    • 2017 Toys For Tots

    webby Administrator

    Messages:
    46,222
    Any chance you have warranty? If not:
    Check your fuses under the dash as well as in the engine bay. I know this happened to some others on the 8th gen forums. I know users followed this link below to test.
    Run the self diagnostic mode for the tach without HDS.

    http://civic.hondafitjazz.com/A00/HT...000BBAT20.html

    If you get 'error 3', disconnect the tach wire connector, wiggle the wires, reconnect the plug and retest.

    If you still get 'error 3', check the ground wires and make sure the bolt is tight at G504. Complete the tach self diagnostic test again.



    Since the 9th is different, this procedure could be tested - (I don't have a 9th to verify), but other owners in different countries did this -

    1. turn on headlight
    2. push and hold the odo meter reset button
    3. push start engine button to on position
    4. turn the headlight off->on->off
    5. remove your hand out of the odo meter reset button and push it 3 times immediately

  10. SimplicityFB6

    SimplicityFB6 Well-Known Member

    Messages:
    101
    Location:
    Houston, Tx
    Vehicle Model:
    Civic
    Body Style:
    Si
    [​IMG]

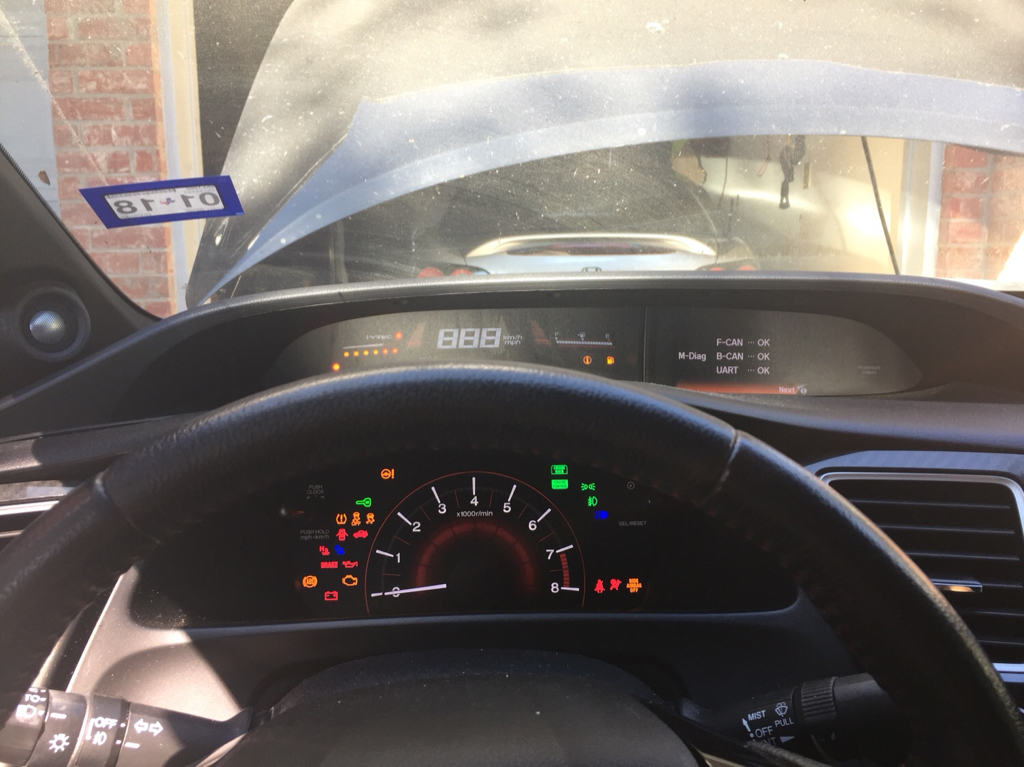

    I checked all the fuses and all are ok and I also tried the diagnostic and everything seems to be ok too. I’m thinking it’s the VSS?



    Sent from my iPhone using Tapatalk

  11. mySIck
    • Supporting Member

    mySIck Supporting Member

    Messages:
    575
    Location:
    FT. Bragg, NC
    Vehicle Model:
    Civic SI
    Body Style:
    Sedan
    have you checked the alternator? how about your grounds? dash wires?

  12. ron v
    • 2017 Toys For Tots
    • Supporting Member

    ron v On incognitus

    Messages:
    1,451
    Location:
    San Diego
    Do u still have the flashpro?
