Official Meaty fitment / Functional thread

Discussion in 'Suspension And Brakes' started by shad2fast4u, Jan 23, 2014.

  1. mazda_lexus

    mazda_lexus Well-Known Member

    Messages:
    204
    I have the stock rims, is this a good size to get since my stock tires are bald af now


    Sent from my iPhone using Tapatalk

  2. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,523
    Yeah. 225/45 or 235/40 are both options if you want a little wider tire.

  3. mazda_lexus

    mazda_lexus Well-Known Member

    Messages:
    204
    Yeah I want wider before I go lower later..better grip I suppose ? I wish I knew more about tires and wheels lol


    Sent from my iPhone using Tapatalk

  4. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,523
    Well stock was 215 wide on the 2012 si.
    215/45-17

    The first number “215” is the width in millimeters.

    215mm or like 8.47 inches wide.
    225mm is 8.86 inches wide
    235mm is 9.25 inches wide

    So going from a 215 tire to a 235 is roughly 3/4” wider in total. Since the tire will center on the rim, you’re essentially 3/8” wider on the inside and 3/8” wider on outside towards the fender.

    You can look at comparisons on sites like
    https://tiresize.com/comparison/

    It’ll let you put in the stock size, and then other sizes to compare widths and diameter. The diameter is the big thing to keep a look at so that the new tires don’t mess up your speedometer reading. A tire too tall or short will make your speedo inaccurate. Those sizes mentioned in my last post would work for you though.

    PainlessCandy, mazda_lexus and ron v like this.
  5. mazda_lexus

    mazda_lexus Well-Known Member

    Messages:
    204
    You’re the best


    Sent from my iPhone using Tapatalk

    webby likes this.
  6. dwmilton

    dwmilton Well-Known Member

    Messages:
    68
    Location:
    El Paso, TX
    Vehicle Model:
    Si
    Body Style:
    Sedan
    I've been doing a lot of thinking about going to a meaty setup for DD, and wanted opinion/guidance about fit. I've got all-seasons on the OE wheels (18x7.5 +47), and some new Conti Extreme Sports on Konig Inception 18x8 +40 wheels for summer/autocross. Both tire sets are 225/40-18.

    I like how the Konigs sit more flush than the OE wheels, but want a much lighter wheel and go to 17" for a little more sidewall, for DD.

    I like the Konig Rennform and Ultraform, from what I've seen; and wonder how a 17x8 +45 would look wrapped in 245/40-17 Conti DWS 06s. I'm thinking these wheels would fall between the OEs and the Inceptions in "flushness", but feel the meaty tire could use the room. I know these will be very slightly shorter overall than the 18s, but I'm not concerned about the difference. Wanting 245/40 over 225/45 for more rubber on the road, and know that's the max a 17x8 can handle safely.

    I'm on Swift Spec-Rs, and have the SPC rear camber arms installed.

    Thought, opinion, guidance from those that have walked this path already?

  7. Safe Gabe

    Safe Gabe Well-Known Member

    Messages:
    323
    Location:
    San Francisco, CA
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    235/40/17 will be best for that setup. I've had all sorts of setups on my car, from 215's all the way to 255's. 235 is the happy middle ground.

    dwmilton and webby like this.
  8. Chambers805

    Chambers805 Well-Known Member

    Messages:
    66
    Location:
    Santa Maria, CA
    Vehicle Model:
    Civic SI
    Body Style:
    Coupe
    Straight MEAT!
    [​IMG]

  9. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,523
    specs of your setup?

  10. Chambers805

    Chambers805 Well-Known Member

    Messages:
    66
    Location:
    Santa Maria, CA
    Vehicle Model:
    Civic SI
    Body Style:
    Coupe
    I'm running Konig Hypergrams in 17x9's +25 offset wrapped in Federal 595RR 255/40's. I also have Godspeed 2 way monomax coilovers running 12kg front and 14kg rear spring rates and progress 24mm RSB. Also all the Sirimoto and FKXRacing strut bars and under chassis braces.

    PainlessCandy, Dar-Dar, ron v and 2 others like this.
  11. dwmilton

    dwmilton Well-Known Member

    Messages:
    68
    Location:
    El Paso, TX
    Vehicle Model:
    Si
    Body Style:
    Sedan
    Gabe, with that said, would +45 or +35 offset work best on a 17x8” wheel?

    Last edited: Dec 25, 2017
  12. dpetro1

    dpetro1 Well-Known Member

    Messages:
    401
    Location:
    Catonsville, MD
    Either should work fine. 235/40 is smaller than stock so you get a little more clearance.

    Sent from my SM-G920V using Tapatalk

    dwmilton likes this.
  13. dwmilton

    dwmilton Well-Known Member

    Messages:
    68
    Location:
    El Paso, TX
    Vehicle Model:
    Si
    Body Style:
    Sedan
    Thanks for that! I’m wondering how the +35 will look...I want close to flush, but no poke, hellaflush, or whatever.

  14. Safe Gabe

    Safe Gabe Well-Known Member

    Messages:
    323
    Location:
    San Francisco, CA
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan

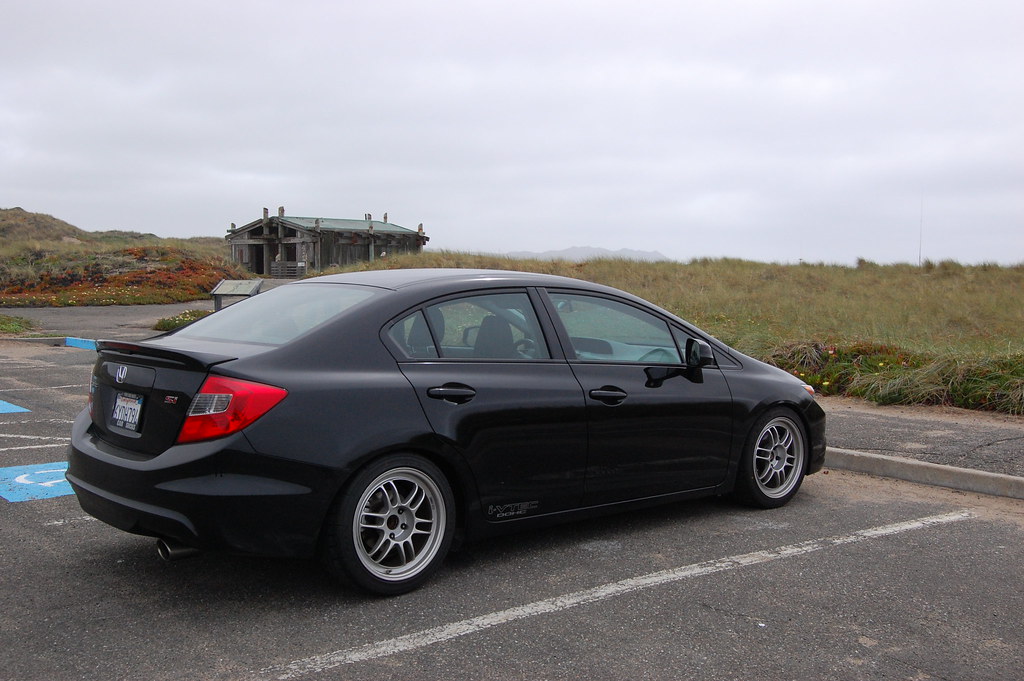

    Here's my car with a 17x8 +35 with a 235/40/17:
    [​IMG]

    Only had remove the upper most fender tab of the front fender liner. No drama in the rear.

    webby, Dar-Dar and dwmilton like this.
  15. dpetro1

    dpetro1 Well-Known Member

    Messages:
    401
    Location:
    Catonsville, MD

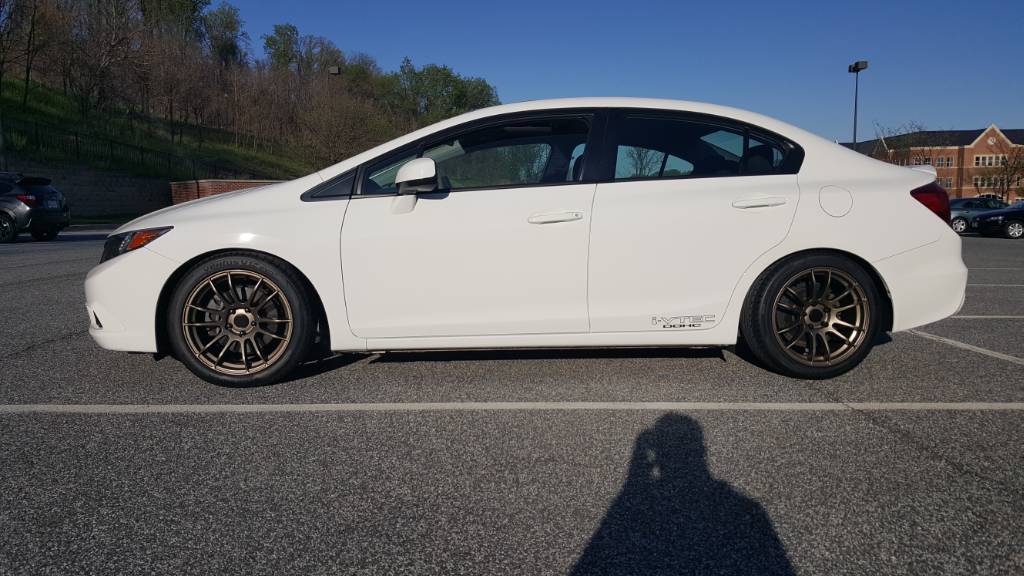

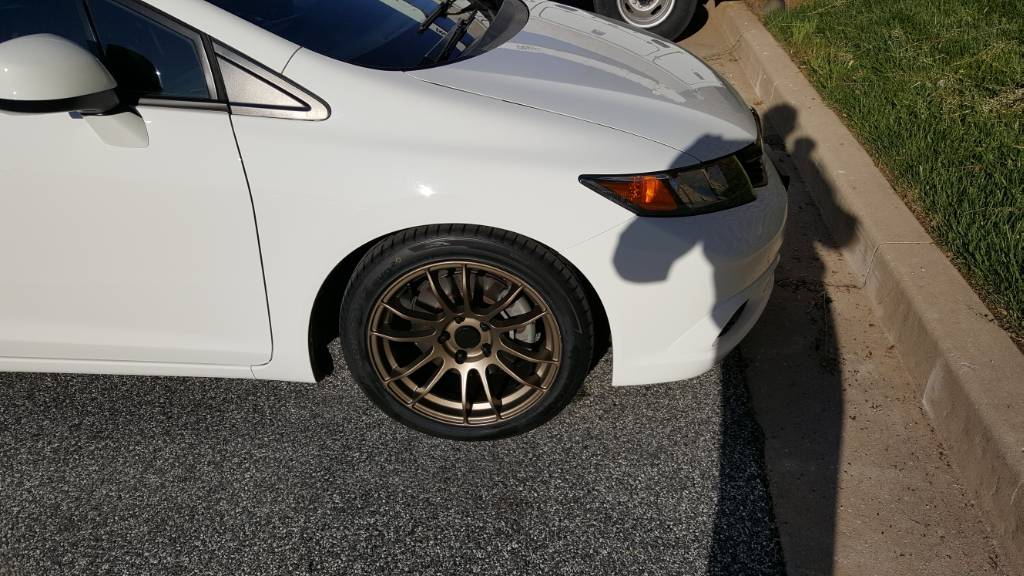

    17x8 +35 225/45 tire[​IMG][​IMG]

    Sent from my SM-G920V using Tapatalk

  16. dwmilton

    dwmilton Well-Known Member

    Messages:
    68
    Location:
    El Paso, TX
    Vehicle Model:
    Si
    Body Style:
    Sedan
    Thanks very much guys! Y’all really help me zero in on what fits the look I want!

    How much are the cars lowered in those photos? I’m only dropped like 1.2” front, and 1” rear (Swift springs).

  17. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,523
    you'd be closer to the white sedan pictured above

    dwmilton likes this.
  18. dpetro1

    dpetro1 Well-Known Member

    Messages:
    401
    Location:
    Catonsville, MD
    Yep, I'm on tein coilovers. Maybe 1.5" drop.

    Sent from my SM-G920V using Tapatalk

    dwmilton likes this.
  19. dwmilton

    dwmilton Well-Known Member

    Messages:
    68
    Location:
    El Paso, TX
    Vehicle Model:
    Si
    Body Style:
    Sedan
    Awesome! Thanks again

  20. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    2,210
    Location:
    fountain, co
    Vehicle Model:
    civic ex
    Body Style:
    coupe
    Has anyone got a picture of say.....a +20 offset on a coupe? I've got some...ideas. I know I'll have to run flares, so I'm ok with that. Just having a hard time finding pics
