Photos Official retrofit thread (pics and specs)

Discussion in 'Lighting, HID's, And Retrofitting' started by MrsJrotax101, Aug 24, 2011.

  1. Nomar06
    • Staff
    • 2018 Toys For Tots

    Nomar06 Super Moderator

    Messages:
    7,412
    Location:
    Charlotte, NC
    Vehicle Model:
    Fiesta ST (FiST)
    Body Style:
    hatch
    image.jpg image.jpg

    Headlights:
    D2S projector from @webby
    Gatling shrouds from TRS
    D2S HID kit and D2S 5k bulbs from TRS

    Fog lamps:
    Ford Fusion projectors
    H11 HID kit from TSR and H11 5k bulbs from online retailer

    iShift_6, A. G. Pym, shekki and 2 others like this.
  2. derekfriedrice

    derekfriedrice Well-Known Member

    Messages:
    341
    Location:
    Mesa, Arizona
    Vehicle Model:
    Civic Si
    Body Style:
    Coupe
    those fogs are awesome!

    Nomar06 likes this.
  3. Nomar06
    • Staff
    • 2018 Toys For Tots

    Nomar06 Super Moderator

    Messages:
    7,412
    Location:
    Charlotte, NC
    Vehicle Model:
    Fiesta ST (FiST)
    Body Style:
    hatch
    They have a great output too.....

  4. dirtybird222

    dirtybird222 Well-Known Member

    Messages:
    268
    Location:
    '
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan

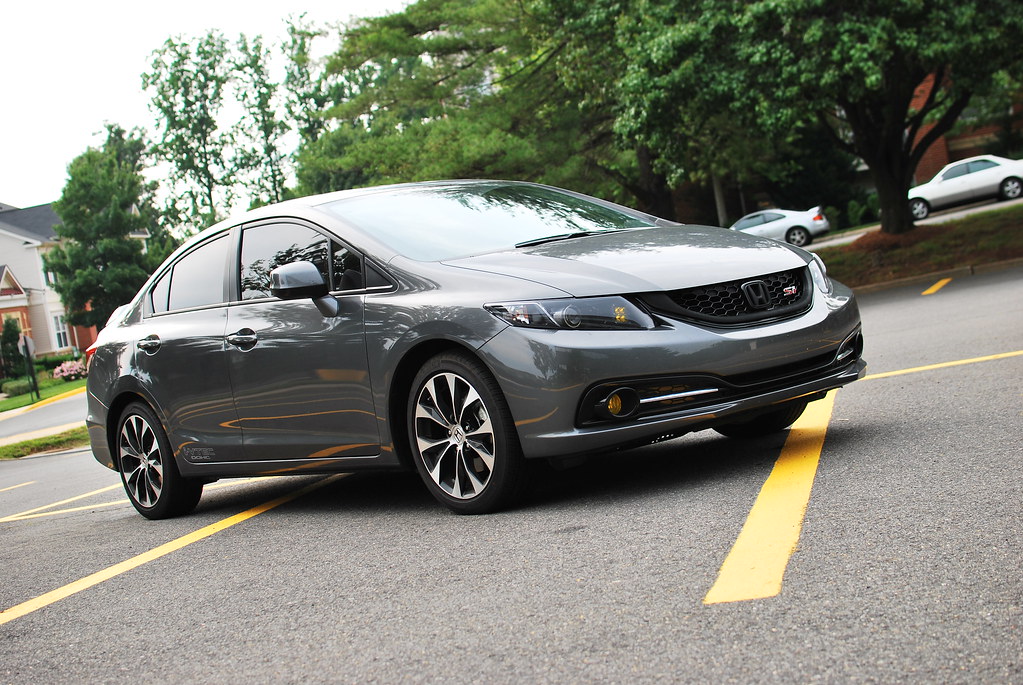

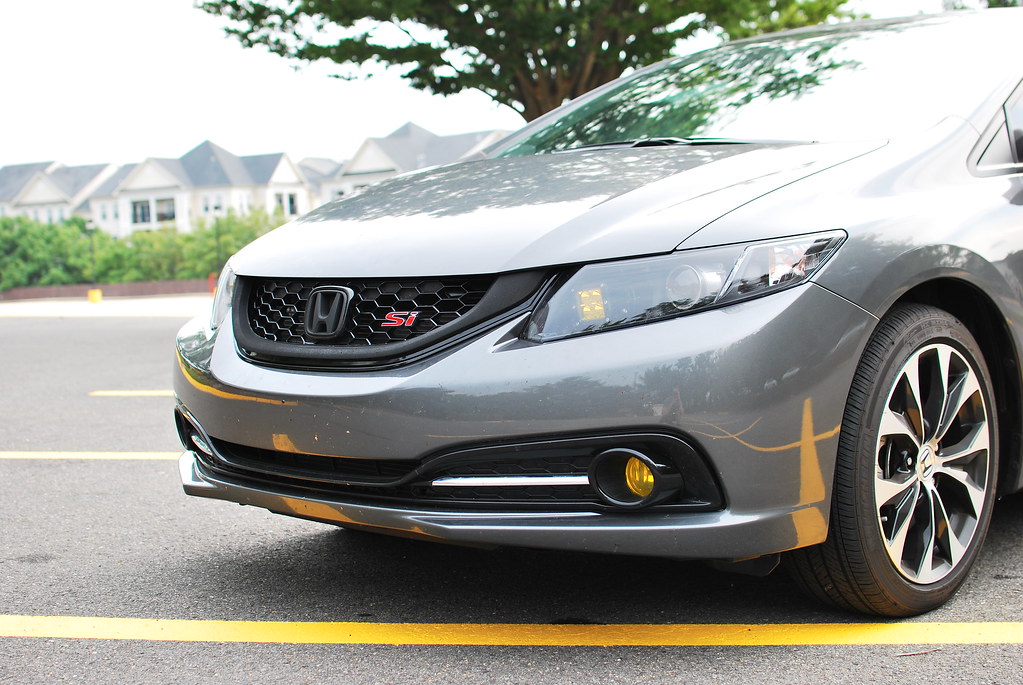

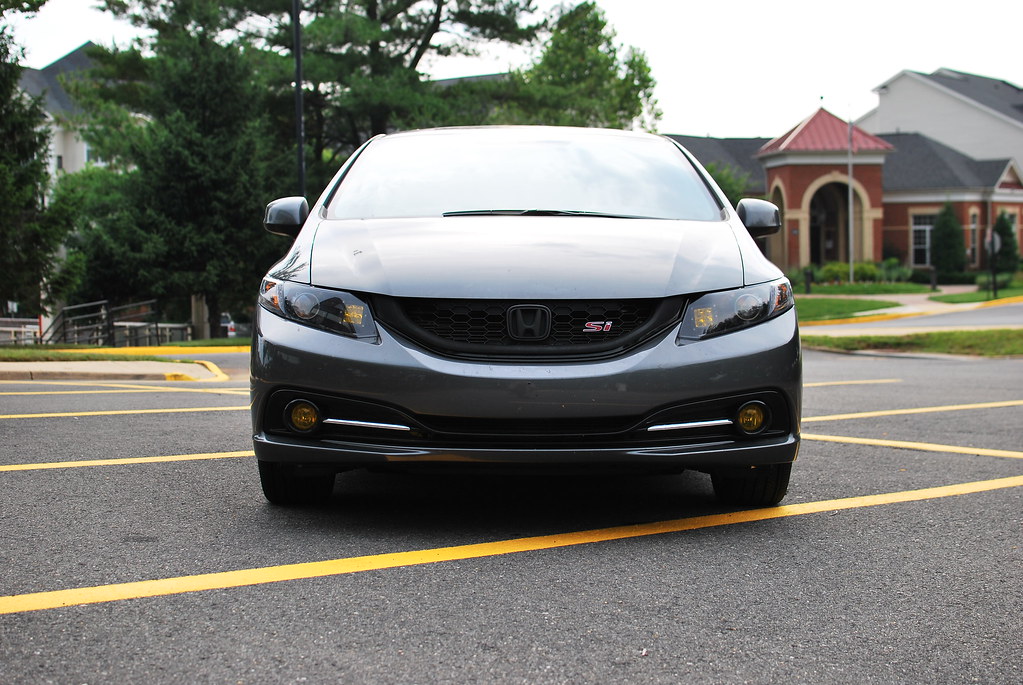

    From my last Si. I went for something weird. They turned out weird but the Duallys were great as fogs without turning the headlights on and the FX-Rs were awesome. Which was great because I wasn't satisfied with the looks haha.
    [​IMG]

    [​IMG]

    [​IMG]

    iShift_6 and shekki like this.
  5. shad2fast4u

    shad2fast4u Well-Known Member

    Messages:
    466
    Location:
    Long Island, NY
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
  6. Kevv_Si

    Kevv_Si Well-Known Member

    Messages:
    1,508
    Location:
    Indianapolis
    Vehicle Model:
    Si
    Body Style:
    FB6
  7. Matsweeper

    Matsweeper Well-Known Member

    Messages:
    280
    Location:
    New Jersey
    Vehicle Model:
    Civic
    Body Style:
    Sedan
  8. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,831
  9. shad2fast4u

    shad2fast4u Well-Known Member

    Messages:
    466
    Location:
    Long Island, NY
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    webby likes this.
  10. Khunter25

    Khunter25 Member

    Messages:
    10
    Question for everyone who has done retro's. My H1M 7.0's just showed up today. I was wondering what everyone is using for their High Beams? Factory or the Projectors?

  11. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,831
    single projector,... most have used the factory high beams that I've seen.

  12. Khunter25

    Khunter25 Member

    Messages:
    10
    Thats what I was thinking. However If I decided to do the LED DRL in the High beams from what I have researched you will loose High Beam function. So I guess I should have rephrased my question to that. Is anyone doing that and if they did how did they tie in the high beam harness to the Projectors while using the the LED DRL?

  13. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,831
    it's not that you lose the high beams, it's just that they aren't comparable in output to stock. You won't really have bright high beams.

  14. Khunter25

    Khunter25 Member

    Messages:
    10
    Well Finally got my retro done. Very pleased with the outcome. Ill get better outside pics after I wash my car.

    [​IMG]

  15. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,831
    looks good

    Khunter25 likes this.
  16. Scuderi

    Scuderi Well-Known Member

    Messages:
    382
    Location:
    Maryland
    Vehicle Model:
    Civic Si
    Body Style:
    Coupe
    Looks OEM nice job!

    Khunter25 likes this.
  17. A. G. Pym

    A. G. Pym Well-Known Member

    Messages:
    71
    EDIT: I'm assuming you're using parts from The Retrofit Source, in which case the projectors come with wires for the solenoids. If you aren't using TRS, this might not apply.

    In case you haven't figured it out yet, the bi-xenon solenoid is fairly easy to wire up. Just splice the positive and ground for the solenoid into the positive and ground for the high beams. Then your projectors will work as both high and lows. Did you have to do much trimming of those shrouds?


  18. wes gasper

    wes gasper Well-Known Member

    Messages:
    62
    Location:
    Tucson, AZ
    Vehicle Model:
    civic si
    Body Style:
    coupe
    hey guys, so i am decdieding to go down the retrofit route for my car finally. just had a quick question before i ordered. im going to be replacing everything with the lights so im ordering the H1 HID bulbs in 5500K. my question for the wiring harness.. would i need to get the HD relay H1/H3 or the HD relay 9006?? i know our stock headlights are 9006. i know its a stupid qustion but i would rather ask than order the wrong part. thanks a lot guys! any help is appreciated! (first time retrofitter)lol

  19. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,168
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan
    you want the 9006 kit, its to connect up to the connectors in your car. The hid bulb base may be h1 but its got standard aftermarket connectors (amp) to hook up to the ballast.

    webby likes this.
  20. Sarcras
    • Supporting Member

    Sarcras Supporting Member

    Messages:
    1,129
    Location:
    North Dakota
    Vehicle Model:
    Civic Si
    Body Style:
    FB6
    Finally finished my retrofit. Absolutely love it! Retrofit Full.jpg Retrofit Low Front.jpg Retrofit Driver off.jpg
