PRL short ram intake - oil breather and hoses from stock airbox?

Discussion in 'Intakes & TB Spacers' started by Dennis Rockholt, Jun 22, 2014.

  1. Dennis Rockholt

    Dennis Rockholt 9k Alll Day

    Messages:
    1,952
    Location:
    Franklin, TN
    Vehicle Model:
    370Z Fairlady aka "Nismo"
    Body Style:
    Coupe

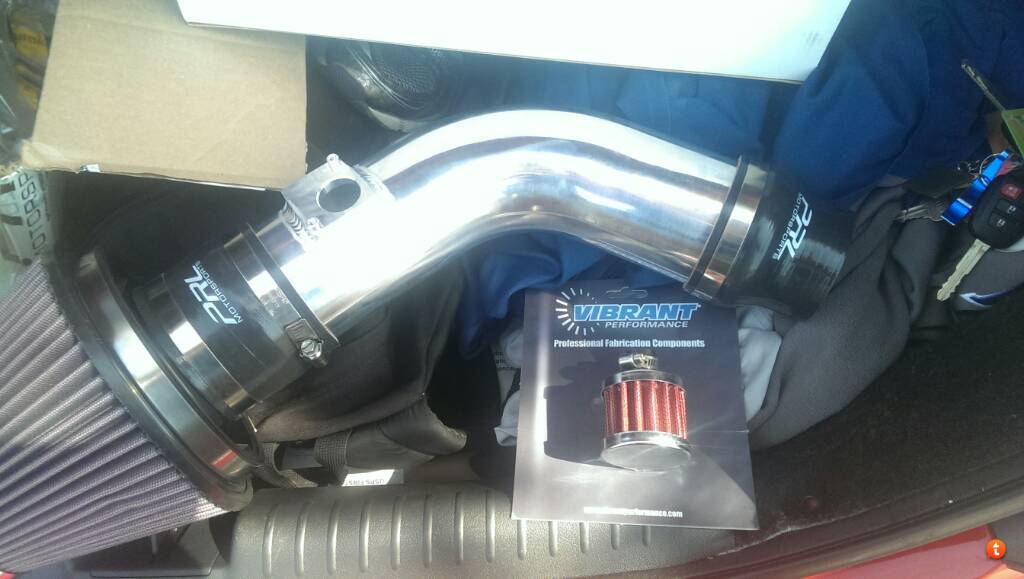

    I have the prl short ram intake with stock throttle

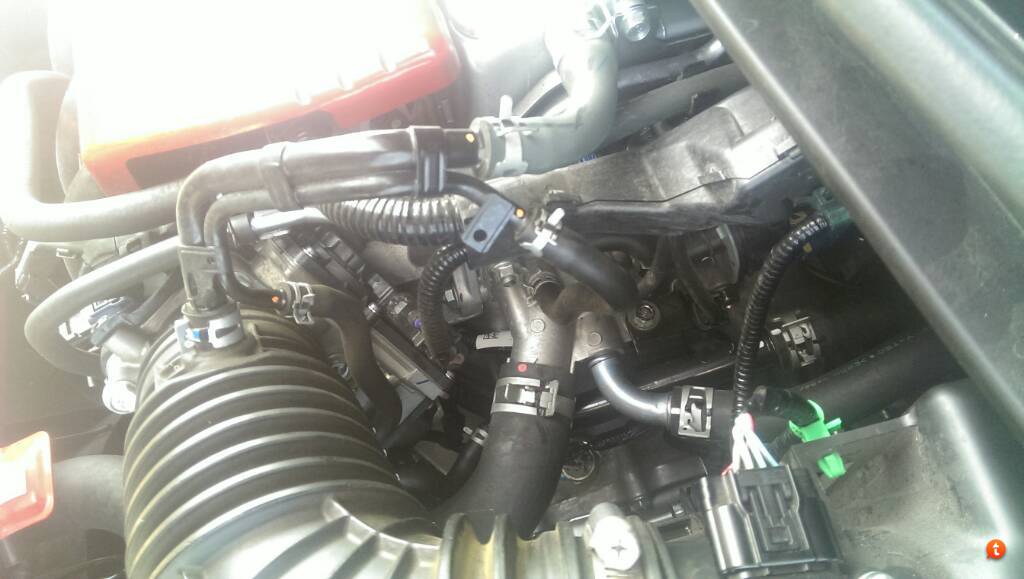

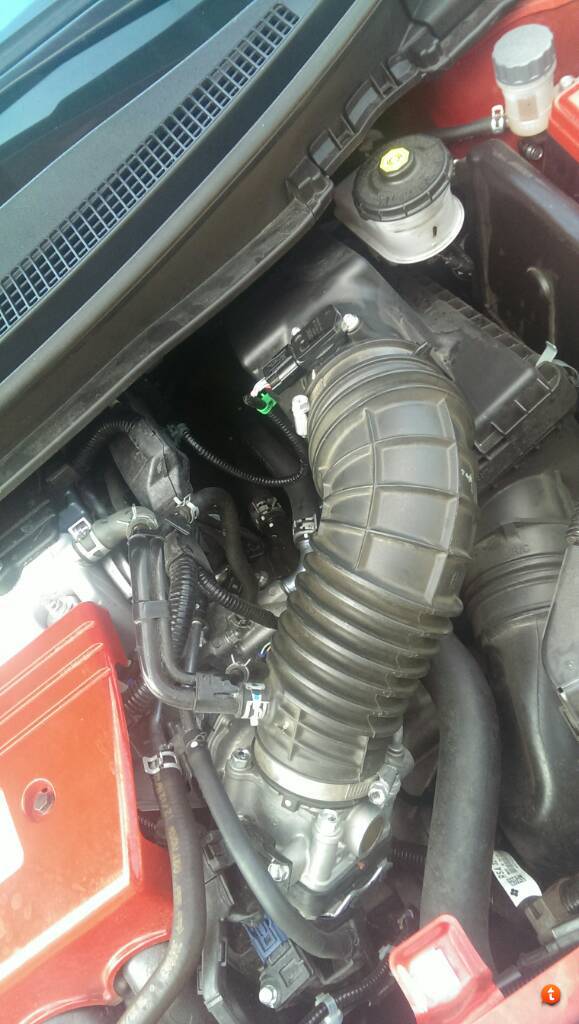

    body, and when I went to install it it came with a crankcase filter (oil breather) but there are hoses on the stock air box that don't have a spot for connection on the intake. Has anyone dealt with this? And what did you do with the hoses? Pics below.... Thanks


    [​IMG]

    [​IMG]

    [​IMG]

  2. bill silvis

    bill silvis Well-Known Member

    Messages:
    81
    Location:
    Latrobe Pa
    Vehicle Model:
    Civic si
    Body Style:
    coupe
    are you saying that all those hoses on the stock box have no where to go on the new intake? if so theres a coolant line going from the tb to under the crankcase breather, the new intake eliminates all the stock hoses except coolant by pass and pcv breather but that filter takes care of that, my intake has a fuel vapor hose going from the tube to the crankcase instead of that breather. thats it. i can post a picture of what i mentioned if youd like

  3. Dennis Rockholt

    Dennis Rockholt 9k Alll Day

    Messages:
    1,952
    Location:
    Franklin, TN
    Vehicle Model:
    370Z Fairlady aka "Nismo"
    Body Style:
    Coupe
    Yeah man that would be great if you could

  4. bill silvis

    bill silvis Well-Known Member

    Messages:
    81
    Location:
    Latrobe Pa
    Vehicle Model:
    Civic si
    Body Style:
    coupe
    First is th pcv breather that little filter eliminates that and these other ones sorry about the quality tough to see are the coolant to the throttle body. The hose in the second picture is the top port on your tb, goes over to a port right under the pcv breather the last picture is just a Better view of where the collab those goes to from the throttle body, hope this helps you man!


    Attached Files:

    Dennis Rockholt likes this.
  5. bill silvis

    bill silvis Well-Known Member

    Messages:
    81
    Location:
    Latrobe Pa
    Vehicle Model:
    Civic si
    Body Style:
    coupe
    Man my auto correct is awful meant to say coolant hose

  6. Abbz8377

    Abbz8377 Well-Known Member

    Messages:
    378
    Location:
    Boston
    Vehicle Model:
    CIVIC
    Body Style:
    SI
    All those hoses in the middle are pretty much useless do a throttle body coolant bypass and you can pretty much eliminate all of them.

  7. Dennis Rockholt

    Dennis Rockholt 9k Alll Day

    Messages:
    1,952
    Location:
    Franklin, TN
    Vehicle Model:
    370Z Fairlady aka "Nismo"
    Body Style:
    Coupe
    Okay, so since .y intake doestn have a plug in for them (like above) I just need to eliminate them? I just was worried about coolant etc

  8. bill silvis

    bill silvis Well-Known Member

    Messages:
    81
    Location:
    Latrobe Pa
    Vehicle Model:
    Civic si
    Body Style:
    coupe
    Yeah the coolant bypass and pcv breather are all that is left after you install the new intake.

  9. Abbz8377

    Abbz8377 Well-Known Member

    Messages:
    378
    Location:
    Boston
    Vehicle Model:
    CIVIC
    Body Style:
    SI
    I am gonna take some pics for you give me 5 minutes you an do a throttle body coolant bypass this will make your life a little easier.

  10. Dennis Rockholt

    Dennis Rockholt 9k Alll Day

    Messages:
    1,952
    Location:
    Franklin, TN
    Vehicle Model:
    370Z Fairlady aka "Nismo"
    Body Style:
    Coupe
    Awesome dude thanks guys! Since this PRL one has no plug on the intake its more confusing than it needs to be

  11. Abbz8377

    Abbz8377 Well-Known Member

    Messages:
    378
    Location:
    Boston
    Vehicle Model:
    CIVIC
    Body Style:
    SI
    Step 1. Remove both tubes from throttle body and put vaccum caps on the TB where the hoses use to be make sure you get caps that are a little tight so they don't come off. photo_2(5).JPG


    Step 2. Run coolant line from where it currently is to the black rail looking piece underneath it and you are good. That's all you need. photo_3(4).JPG


    Attached Files:

  12. Abbz8377

    Abbz8377 Well-Known Member

    Messages:
    378
    Location:
    Boston
    Vehicle Model:
    CIVIC
    Body Style:
    SI
    If you do it that way it will allow the coolant to flow away from the throttle body and slightly reduce heat soak which might help a little more because you have an SRI

  13. Dennis Rockholt

    Dennis Rockholt 9k Alll Day

    Messages:
    1,952
    Location:
    Franklin, TN
    Vehicle Model:
    370Z Fairlady aka "Nismo"
    Body Style:
    Coupe
    Awesome y'all, thanks so much. I'll be doing it next weekend

  14. bill silvis

    bill silvis Well-Known Member

    Messages:
    81
    Location:
    Latrobe Pa
    Vehicle Model:
    Civic si
    Body Style:
    coupe
    im curious to see how it runs with that one im looking at getting a prl intake after hondata and downpipe.

    Dennis Rockholt likes this.
  15. Dennis Rockholt

    Dennis Rockholt 9k Alll Day

    Messages:
    1,952
    Location:
    Franklin, TN
    Vehicle Model:
    370Z Fairlady aka "Nismo"
    Body Style:
    Coupe
    I'll let you know, I have full exhaust and hondata too

  16. Abbz8377

    Abbz8377 Well-Known Member

    Messages:
    378
    Location:
    Boston
    Vehicle Model:
    CIVIC
    Body Style:
    SI
    I have the PRL CAI and it actually sounds like the car is breathing when you hit the gas I know PRL is not cheap but it's really the only way to go on these cars I have tried several different intakes and PRL is hands down worth every penny CAI or SRI.

    Dennis Rockholt likes this.
  17. bill silvis

    bill silvis Well-Known Member

    Messages:
    81
    Location:
    Latrobe Pa
    Vehicle Model:
    Civic si
    Body Style:
    coupe
    thats what im shooting for, i have an n1 now, hondata is next ill try a few basemaps out with the aem i got off @Abbz8377 and downpipe and probably get a prl in the future. once you put it on is there a map for the prl until you get a vit tune?

  18. Dennis Rockholt

    Dennis Rockholt 9k Alll Day

    Messages:
    1,952
    Location:
    Franklin, TN
    Vehicle Model:
    370Z Fairlady aka "Nismo"
    Body Style:
    Coupe
    Nope, the base map doesn't do much. I have the n1 and the full race it sounds great.

  19. bill silvis

    bill silvis Well-Known Member

    Messages:
    81
    Location:
    Latrobe Pa
    Vehicle Model:
    Civic si
    Body Style:
    coupe
    ill get a full race dp as well prefer catted but catless is cheaper haha. and i want to get tuned but im not sure how the car would run with the prl untuned even with hondata its alot of money for me to drop at once

    Dennis Rockholt likes this.
  20. Dennis Rockholt

    Dennis Rockholt 9k Alll Day

    Messages:
    1,952
    Location:
    Franklin, TN
    Vehicle Model:
    370Z Fairlady aka "Nismo"
    Body Style:
    Coupe
    Uhm un-tuned, idk about the intake but with the dp it runs absolutely horrible. Very choppy, rich, and a little unresponsive. Now tuned, its a whole different story. Makes the car a lot of fun.
