Subaru FT-86 Concept named Subaru BRZ

Yeah, I saw those pictures too Webby. I'm not really that happy with the performance numbers. But they did make a good point in everyone is always worried about numbers and how much horsepower the car makes, they don't concentrate on building an all around good car.

"It appears that images of the Toyota FT-86 — or, as we'll be calling it here in the United States, the Scion FR-S — the car the super number one best automaker from the land of the rising sun claims is the spiritual successor to the AE86, have again leaked from the sieve known as Japanese buff books."

Are they legit, ...I don't know for sure

We may have a clearer picture of what the Toyota FT-86 / Scion FR-S will bring to the table when the production version finally arrives. A few scans of a purported Toyota training manual on the vehicle have made their way into the hands of the internet via the FT86Club forum.

If the site's translations are accurate, the vehicle will boast a 2.0-liter flat-four producing 197 horsepower at 7,000 rpm and 150 pound-feet of torque at 6,600 rpm. While not overwhelming numbers, if the handling is as good as we've been hearing, the powertrain should be enough to hustle the 2,667-pound coupe around your favorite twisty road at a respectable pace.

The sheet also reveals that the FR-S will come in two trims, at least in Japan. A higher-spec variant will come with a limited-slip rear differential in both manual and automatic-equipped vehicles, while the lower-spec model will only have the LSD when equipped with a third pedal (which is just fine by us).

Topped-out JDM versions will also have a leather-wrapped steering wheel, LED accent lighting, a six-speaker audio system, sport pedals and white-faced gauges. Models will also be differentiated by wheel size, with higher-trims wearing modest 17-inch rollers and lower models rolling on 16-inch stock.

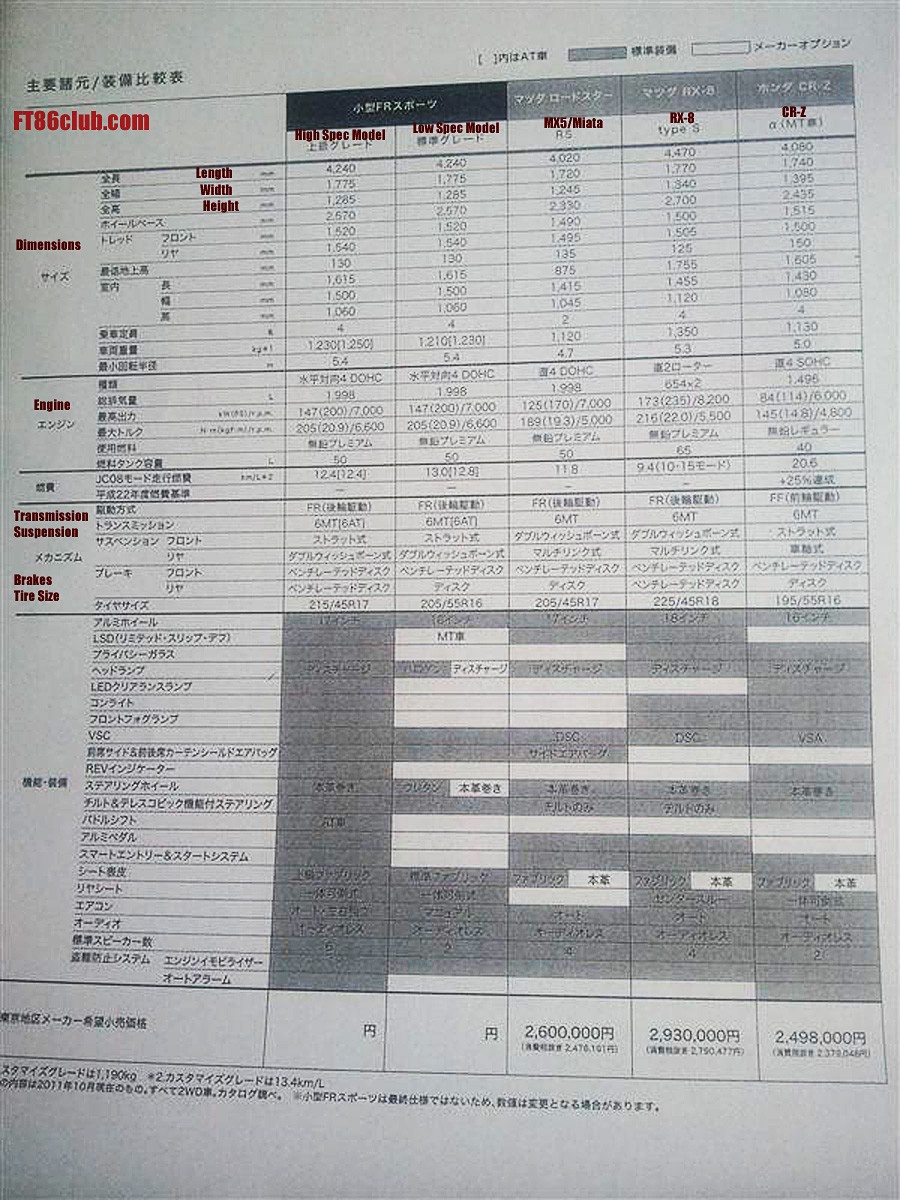

Scans from a training manual

Power/weight:

HP: 147kw (200ps) / 200hp @7000rpm
Torque: 205nm (151 lb/ft) @ 6600rpm
Weight:
  • 2662 ponds (1210kg) for base manual (~ 2580 lbs dry weight)
  • 2706 pounds for higher trim manual

Columns:
First 2 column are for "small FR sport", column 1 is a higher spec model, column 2 is a lower spec model. 3rd column is Mx5/Miata, 4th is RX8 and last is CRZ. It's a comparison chart.

Top Section:
The top section is the dimension in mm, length width height wheelbase, ground clearance then number of seats. Next is weight.
Top spec manual is 1230kg, auto is 1250kg.
Low spec manual is 1210kg, auto is 1230kg.
Then its turning radius.
High spec rides on 17" wheels and low spec on 16.

Second Section:
This section is engine. Boxer 4 DOHC, 1998cc. Output as listed on 1st post above. Drinks unleaded and 50L fuel tank.

Fuel consumption:
13.4 km/l
31.52 mpg
50.72 km/g

Third Section:
This section is front engine/rear drive, transmission type, suspension type, brake then tyre size.

Last Section:
Last section is equipment which is not that easy to understand. First thing I notice is top spec has LSD for manual and auto while low spec only has LSD on manual. I'll post more if I can read more.


More update:

Both spec have VSC, front passenger and front and rear curtain bags. Top spec has front LED, leather steering wheel, 6 speakers audio (low spec has 2 speakers), white rev counter with shift light and sport pedals. Top spec also has "smart entry and start".


Things of note:

Strut front, double wishbone rear suspension
Base halogens, optional HIDs on base trim, standard HIDs on high trim
LSD on all MT cars
Stability control standard
Only 2 speaker audio on base car

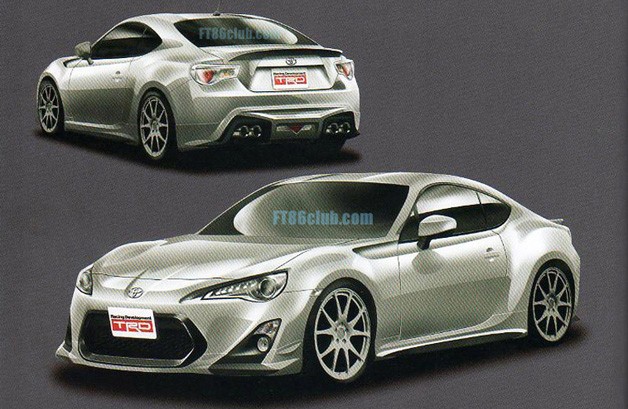

more as images have surfaced on FT86Club of the FT-86 accessorized with parts from Toyota Racing Development (TRD).

subaru teases brz ahead of unveiling

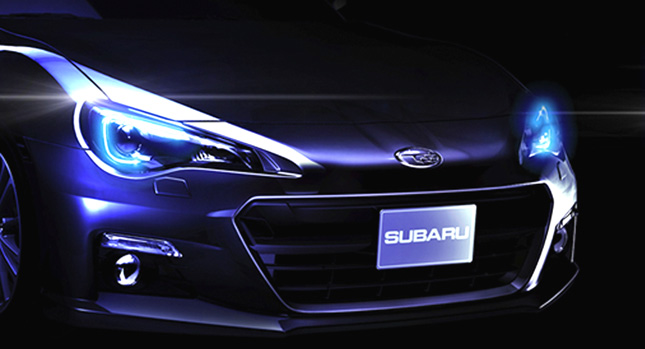

The conceptual BRZ sports coupe that will receive its world premiere at the Los Angeles Auto Show next week, Subaru today gave us a sneak peak of the actual production model that will debut at the 2011 Tokyo Motor Show on November 30.

We only get a look at the 2012 BRZ's front end, but it is enough to spot some minor differences from the near-production study such as the reshaped bumper that drops the lip spoiler and gains more conventional grille bars and a pair of round fog lights under the turning signals, which are located in less prominent air vents.

Judging by these changes, expect the base version of the production BRZ to lose the concept's aero kit and of course obtain regular-size mirrors.
Compared to its Toyota FT-86 sibling, which we've had the chance to see in production trim via a series of leaked images, the main styling differences between the two models appear to be limited to the front and rear bumper designs and the tail lamps.

The Japanese company also confirmed some basic specs of the rear-wheel drive-only 2012 BRZ including its dimensions that are identical to the FT-86 sans the height (the Subaru is slightly taller at 1,300mm vs. 1,288mm), and the 2.0-liter boxer engine that will be offered with both a 6-speed manual gearbox and a 6-speed electronically controlled automatic transmission.

The BRZ, which is Subaru's first rear-wheel drive sports car, will enter series production in spring of 2012.






meh....wish they would of done their own thing on the nose of the car.

Subaru Announces Info On BRZ STI Edition:

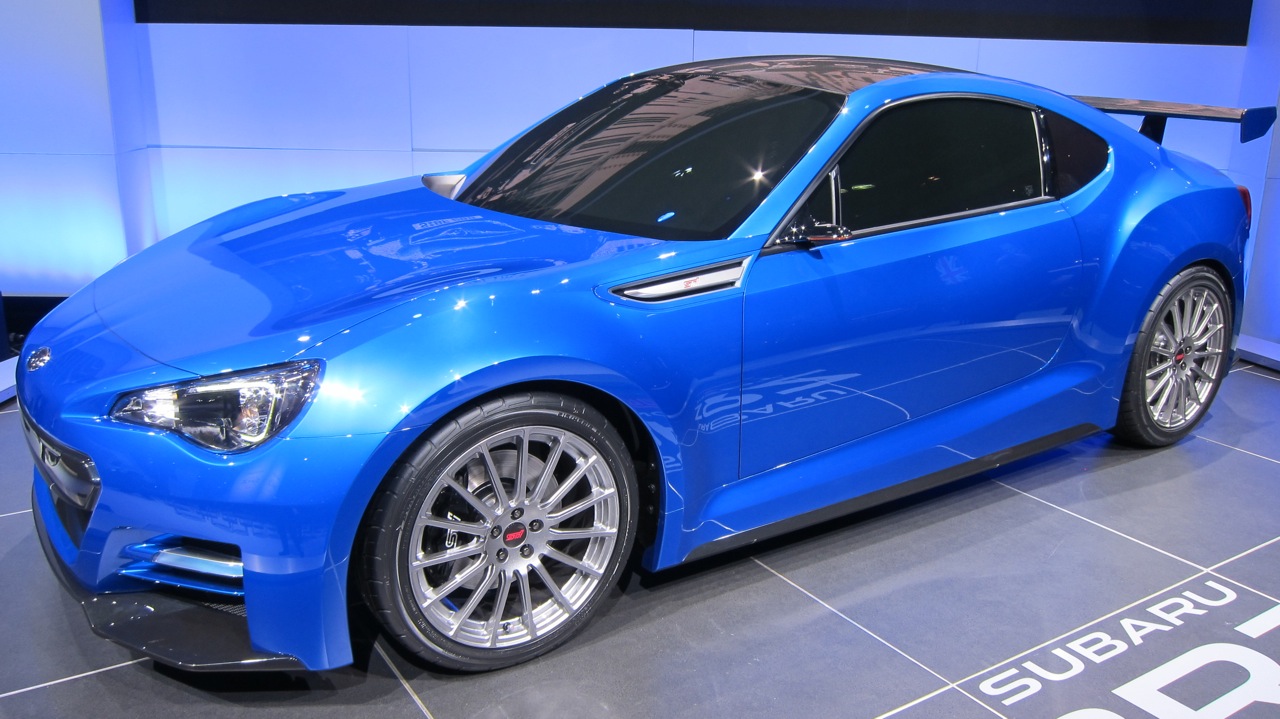

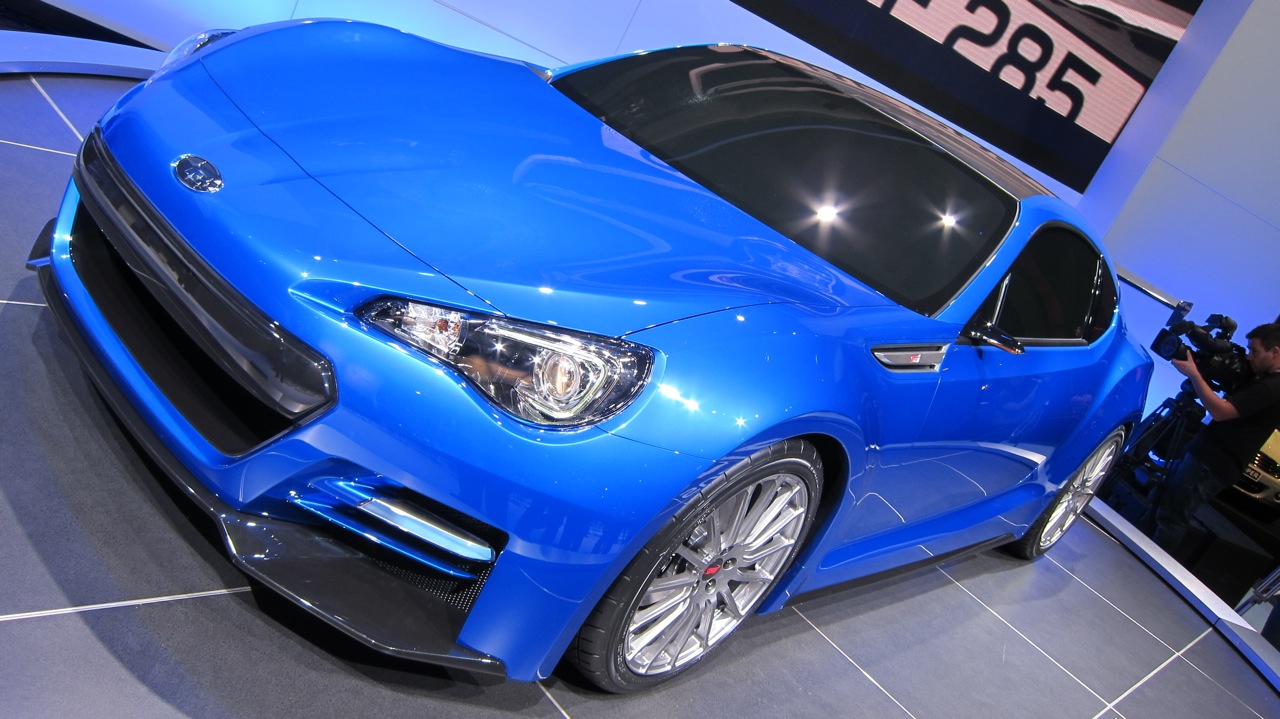

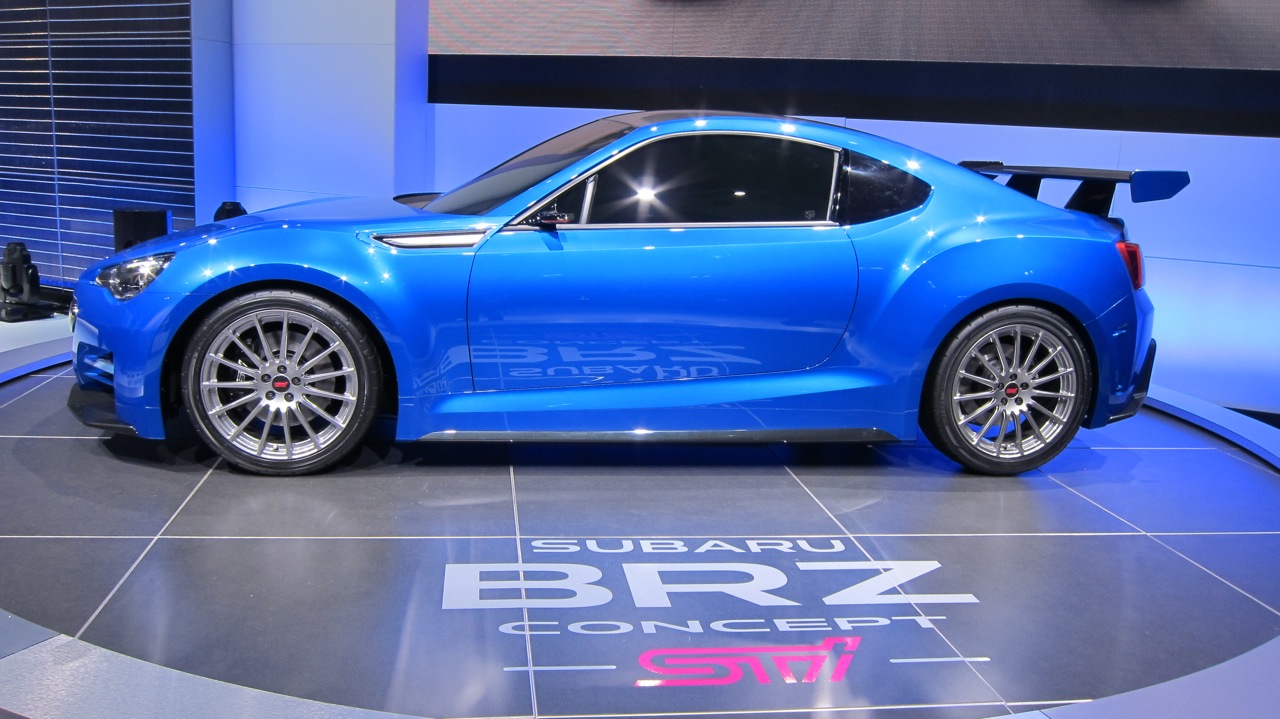

"SUBARU BRZ CONCEPT - STI -" to Debut at Los Angeles Auto Show

Tokyo, November 16, 2011 – Fuji Heavy Industries Ltd. (FHI), the maker of Subaru automobiles, today unveiled the world premiere of "SUBARU BRZ CONCEPT - STI -" at the 2011 Los Angeles International Auto Show. (Press days on November 16 and 17. Open to public from November 18 to 27 in US)

The "SUBARU BRZ CONCEPT - STI -" is a concept car based on the "SUBARU BRZ", an all-new rear-wheel drive (RWD) compact sports car developed from an ongoing joint-project between Subaru and Toyota Motor Corporation. By making full use of the Horizontally-Opposed Boxer, Subaru's core technology, this concept car further pursued a "Pure Handling Delight" driving experience that can be realized by the Boxer engine's low center of gravity. Combined with motifs of Subaru's iconic performance brand "STI", the concept car embodies an ultimate handling performance and symbolizes the possibilities the SUBARU BRZ holds for the future.

Styling
• By installing the Boxer engine as low as possible, the low hood and sleek roofline together compose a sophisticated form. This is also blended with STI performance touches for a Subaru sporting profile.
• A hexagonal lower front grille, hawk eye headlights and fin-shaped fog lamps make the front face instantly recognizable as Subaru.
• STI-made lower front spoiler and rear wing magnify down-force and aerodynamics performance. They allow stable straight driving and excellent handling at high speeds.

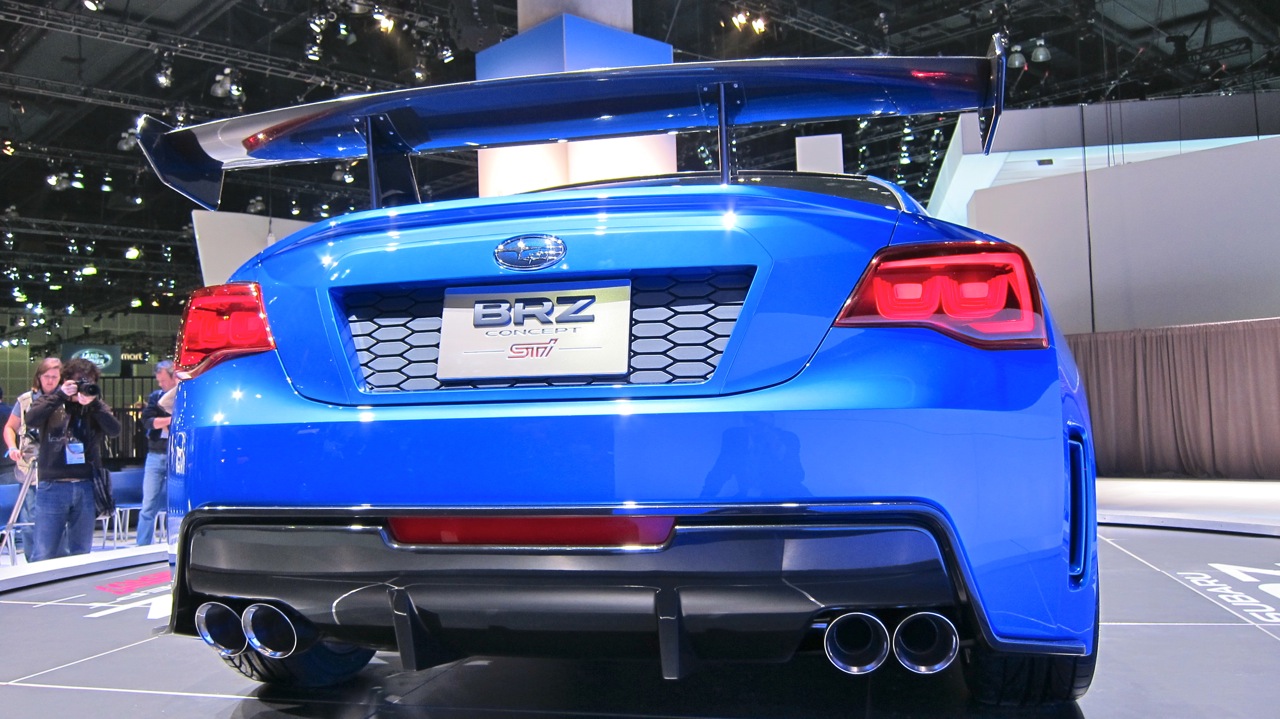

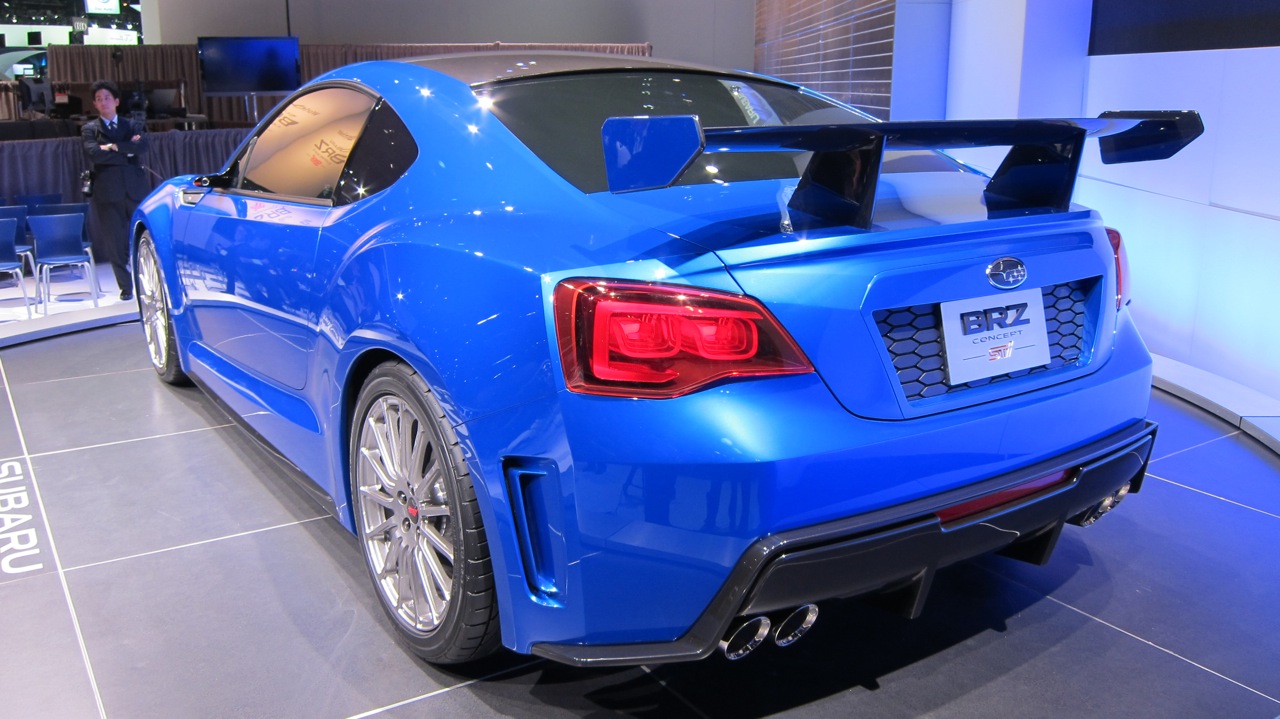

• The rear design with bold rear fender flares, large rear-diffuser, and twin dual tailpipes intensifies the STI performance feel.
• A carbon-fiber roof, already installed in a WRX STI model and highly acclaimed, has been employed by the concept car. With it, extra weight reduction and an even lower center of gravity were achieved, contributing considerably to the ultimate handling performance this concept model aims to offer.
• The lively exterior color "WR Blue Pearl II" is a new generation of the iconic WR blue paint scheme that emphasizes the racing image.

Engine
• The Boxer engine has inherent qualities of light weight, compactness, low center of gravity, and high rigidity – all pointing toward its great potential as a sports car engine. Taking full advantage of these features, a 2.0-liter horizontally-opposed four-cylinder direct fuel-injection gasoline engine has been developed exclusively for BRZ.
• The engine has been designed with a square bore and stroke of 86 X 86 mm. Combined with Toyota's D-4S direct injection technology (fuel injection system), high output and high environmental standards were both attained, both expected of a new generation sports car.

Chassis and Body
• Compared with other Subaru models, the engine in SUBARU BRZ CONCEPT - STI - sits an impressive 120 mm lower and is positioned 240 mm closer to the center of the chassis. As a result, this car has achieved one of the lowest possible center of gravity in cars on the market today.
• By incorporating lightweight parts such as a carbon-fiber roof, the overall weight has been reduced. Subaru has also succeeded in attaining a body structure that is both lightweight and highly rigid in a striking balance. The concept car is the embodiment of pure driving enjoyment only obtainable with a "Boxer sports car".
• Its unique handling performance has been remarkably refined by adopting STI's lightweight 18-inch alloy wheels with performance tires and STI tuned suspension with excellent lateral stiffness.
• Brembo brakes enhance braking performance.

Major Specifications
Overall Length × Width × Height (mm): 4,230 × 1,800 × 1,280 Wheelbase (mm): 2,570
Engine Type: 2.0-liter direct fuel injection naturally-aspirated 4-cylinder
Horizontally-Opposed Boxer engine Tires: 215/45R18 (Front), 225/45R18 (Rear)

so is the scion model NOT going to look like this??


STI could be interesting! The numbers are certainly underwhelming - I would really like something with high 200 HP at least for a car like that.

dentrecords said:
STI could be interesting! The numbers are certainly underwhelming - I would really like something with high 200 HP at least for a car like that.
Click to expand...
Under the hood, there’s a 2.0-liter naturally-aspirated four-cylinder boxer engine which was designed with a square bore and stroke of 86 X 86 mm. Nothing has been said about the vehicle’s final output, but previous rumors suggested that the STI version would deliver up to 300 HP.

They are going to be able to squeeze 300hp out of an na 2liter? I doubt that'll happen, especially considering the base price they are considering for the non-sti price.
