94 M-Edition Miata Build

Discussion in 'Build Threads' started by fg3_colton, Jan 24, 2019.

  1. fg3_colton

    fg3_colton Well-Known Member

    Messages:
    294
    Location:
    Tampa
    Vehicle Model:
    Civic, LX
    Body Style:
    Coupe
    If anyone reading this saw my previous posts, you may be wondering what happened to the 1990 NA I originally purchased. Long story short, I sold the car after realizing how extensive the rust damage was. The entire floor pan would have had to been replaced, so off she went. Shortly after selling the '90 NA, I found a 94 1.8 M Edition for sale and quickly jumped on it.

    Now the fun stuff, I want to daily drive it for a while so I am only rebuilding the head. Thats because the engine had amazing compression on all cylinders (179,180,171,179) for having 185K miles. When I decide to boost it later on, ill go ahead and rebuild the bottom end, but for right now, a simple head job is all she needs. Of course while im in there, ill be replacing the timing belt and other components , water pump, thermostat, ALL the gaskets, valve springs, Oil pump,and what ever else i see thats worn. The interior however, is gonna need a lot of work and to be quite honest, im more concerned about getting the powertrain in good health before moving onto the interior. Ill be updating this thread as I work on it, I look forward to sharing my progress with you all!
    Interior.JPG First day.JPG With Civic (2).JPG


    Attached Files:

    mySIck, ron v, Sarcras and 3 others like this.
  2. fg3_colton

    fg3_colton Well-Known Member

    Messages:
    294
    Location:
    Tampa
    Vehicle Model:
    Civic, LX
    Body Style:
    Coupe
    1/23/19:

    Today marked the start of the tear-down. Had enough time before work to remove the Radiator, intake, cruise control, fuel rail and injectors. Next up is going to be the manifolds followed by the cylinder head itself.
    She doesn't run terribly

    Link to her first startup:
    View: https://www.instagram.com/p/Bsd_tZjAZ9T/?utm_source=ig_web_button_share_sheet , but in a couple months, shes gonna run better than my civic!

    IMG_1095.JPG IMG_1094.JPG

    ron v, Sarcras, Verzerrung and 2 others like this.
  3. webby
    • Staff
    • 2019 Toys For Tots

    webby Administrator

    Messages:
    50,878
    Nice find!

    ron v, bootyluvr and fg3_colton like this.
  4. bfaided1984

    bfaided1984 Well-Known Member

    Messages:
    84
    Location:
    DFW
    Vehicle Model:
    Civic
    Body Style:
    sedan
    In for the progress. Can't wait for updates.

    fg3_colton, ron v and bootyluvr like this.
  5. fg3_colton

    fg3_colton Well-Known Member

    Messages:
    294
    Location:
    Tampa
    Vehicle Model:
    Civic, LX
    Body Style:
    Coupe
    mySIck, ron v, webby and 1 other person like this.
  6. fg3_colton

    fg3_colton Well-Known Member

    Messages:
    294
    Location:
    Tampa
    Vehicle Model:
    Civic, LX
    Body Style:
    Coupe

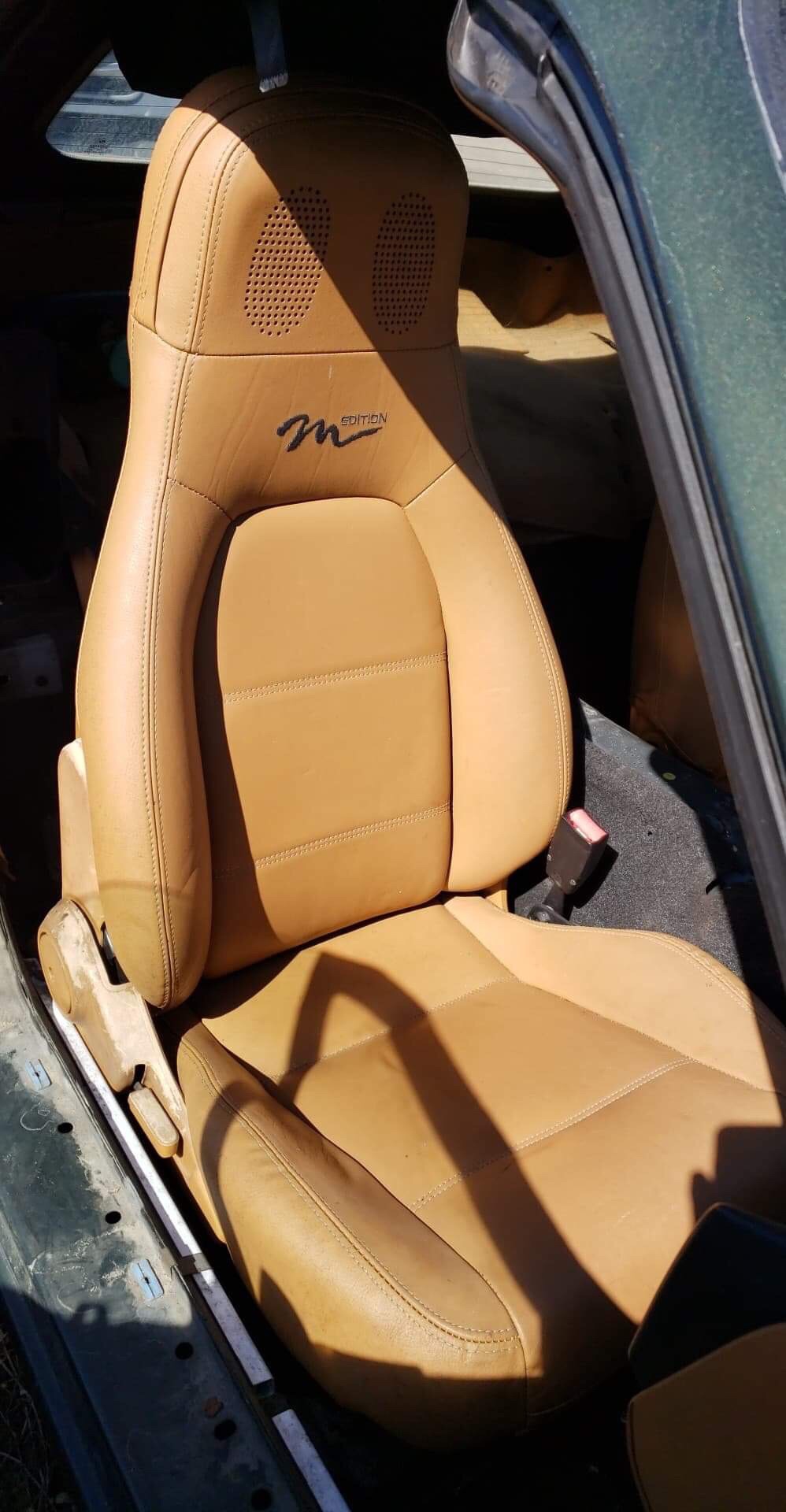

    A lot has happened in the past couple weeks! I recently picked up a MINT set of 97 M Edition seats with tan door cards, as well as black interior carpet. I now have everything I need to restore the interior.

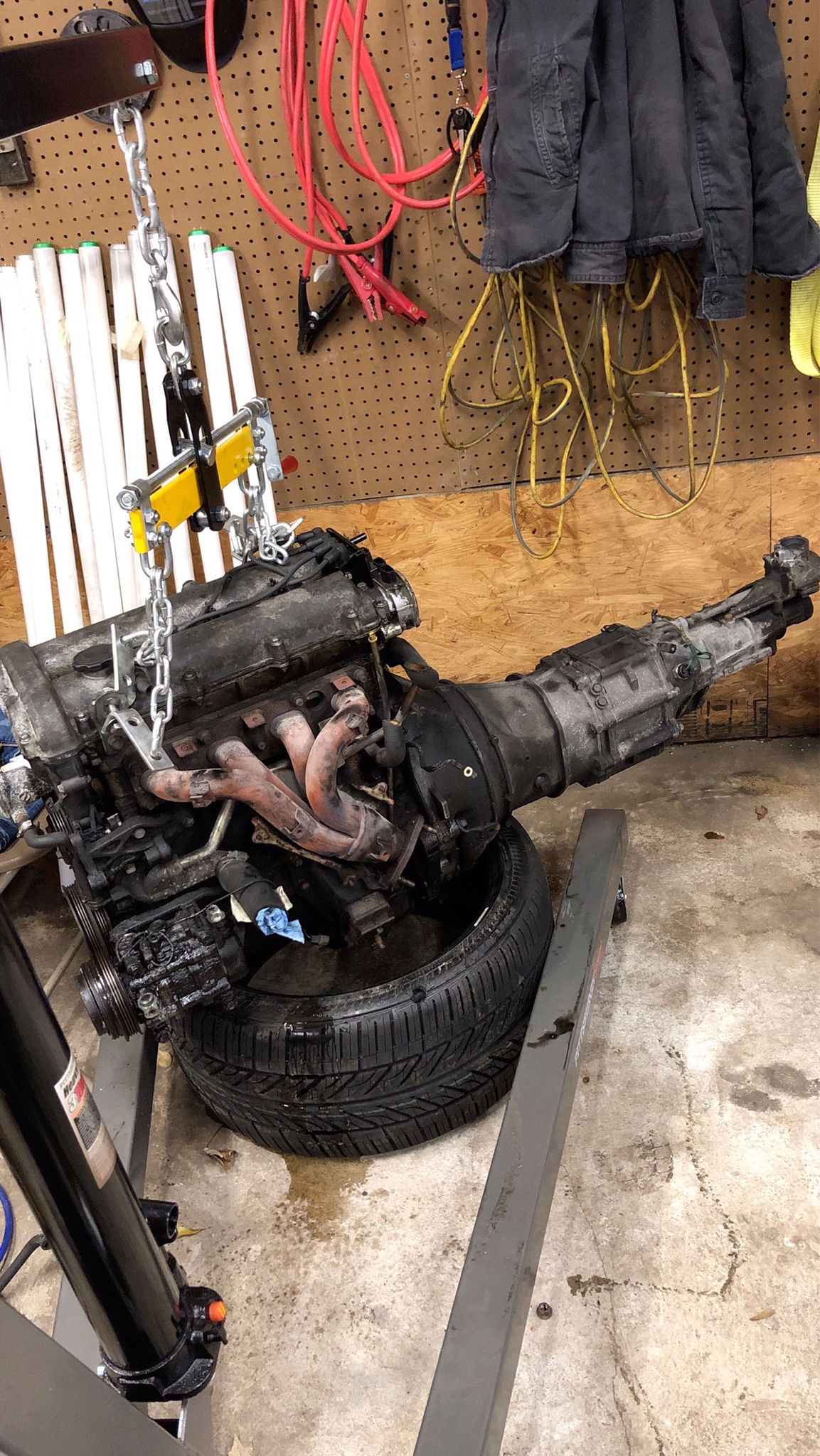

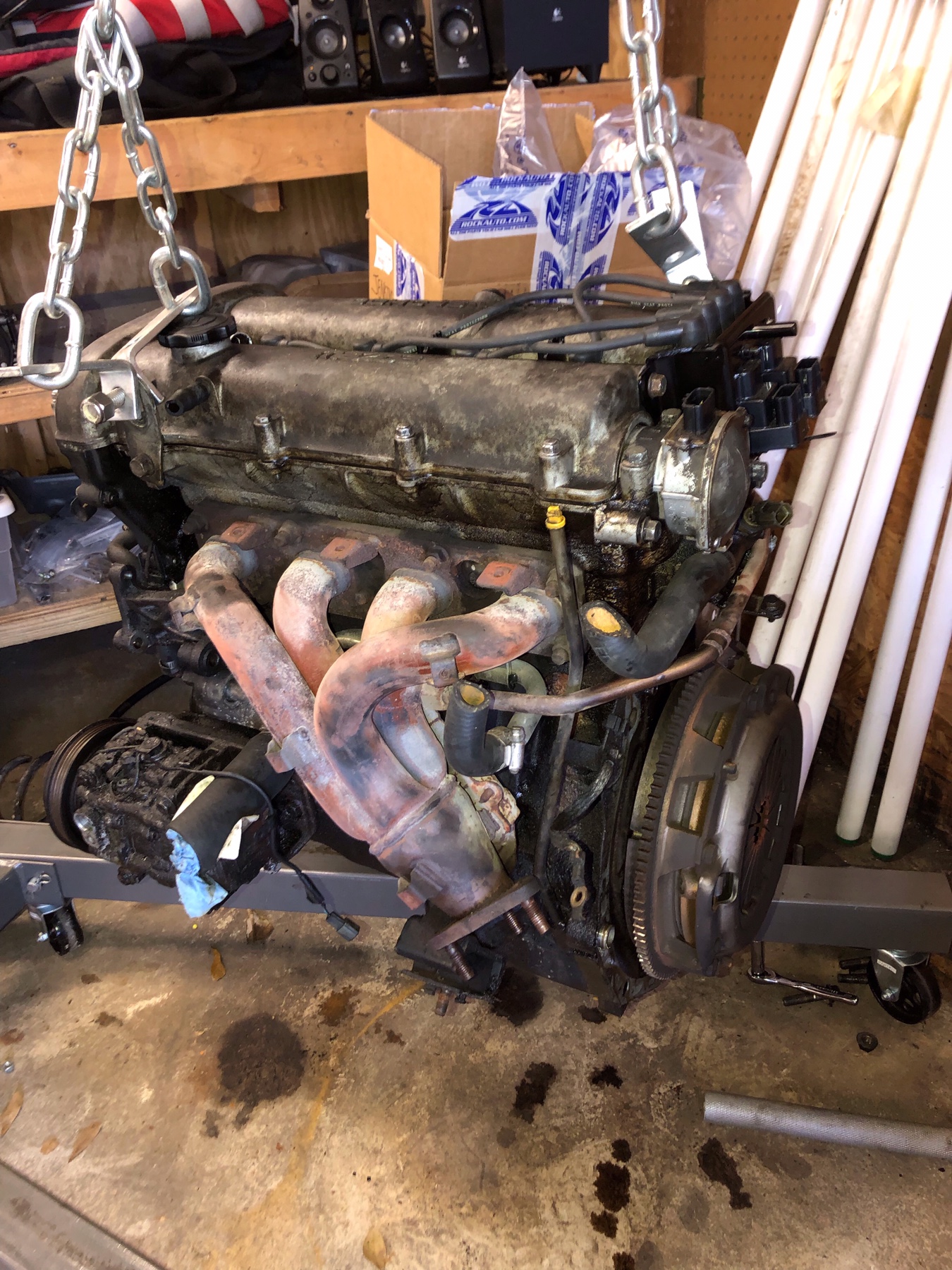

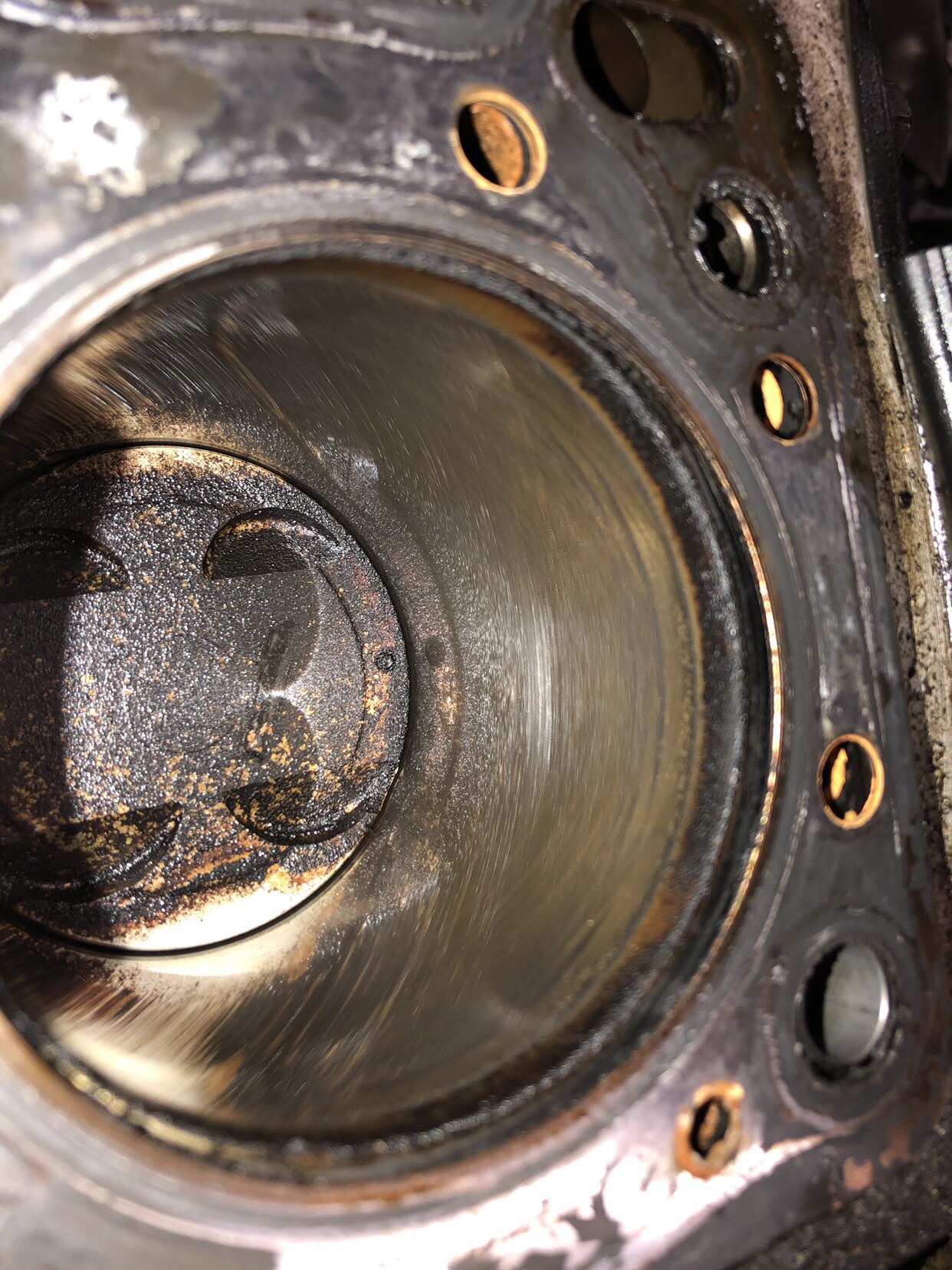

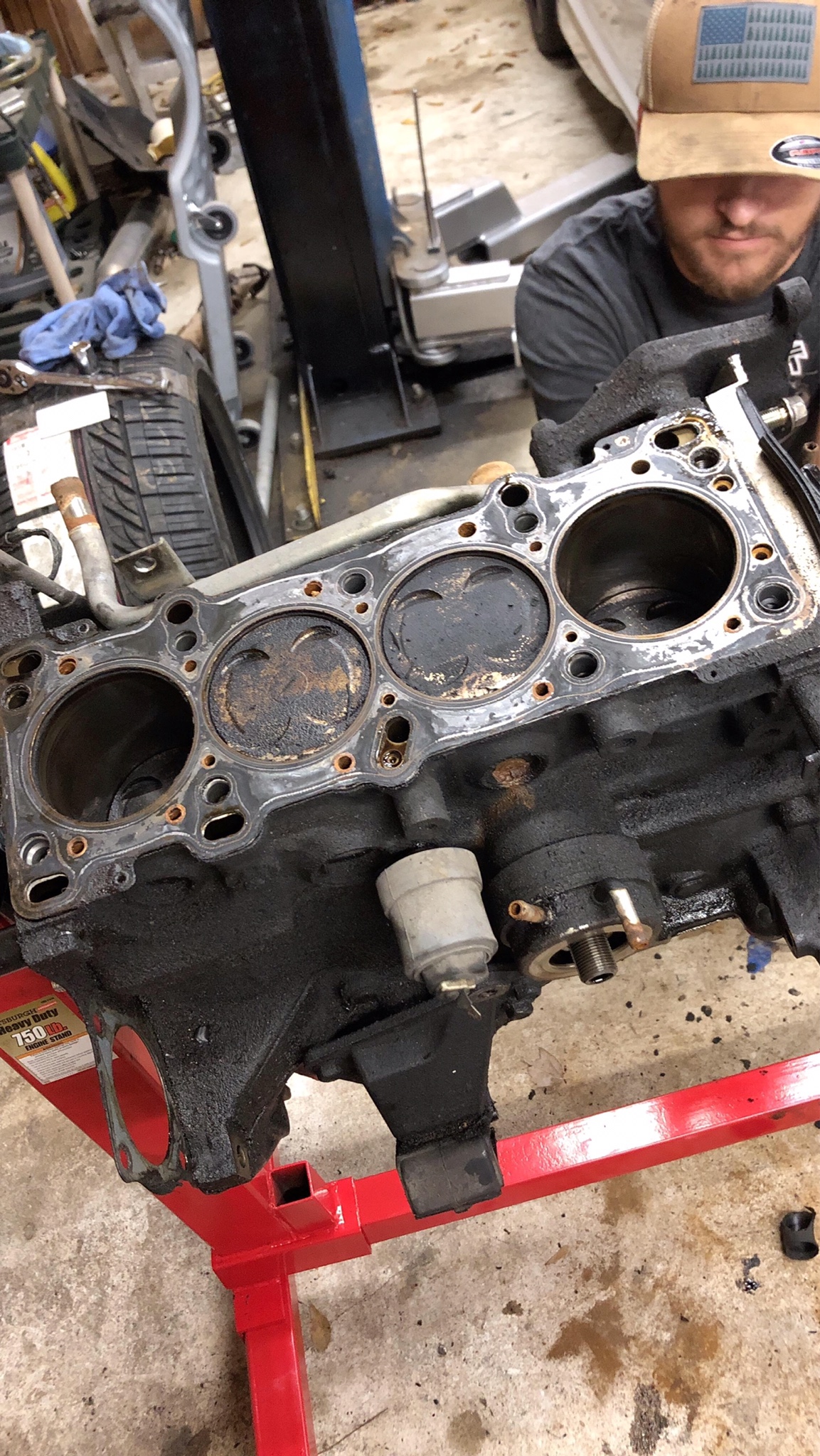

    As for the engine, the other day I removed the head and was genuinely surprised at the condition of the pistons and cylinder walls. Some time this month I’ll be completely disassembling the head for cleaning and resurfacing. I’ve now got all the parts I need to bring the engine back to life, just fighting with my work and school schedule!






    [​IMG][​IMG][​IMG][​IMG][​IMG]


    Sent from my iPad using Tapatalk

    Last edited: Feb 16, 2019
  7. fg3_colton

    fg3_colton Well-Known Member

    Messages:
    294
    Location:
    Tampa
    Vehicle Model:
    Civic, LX
    Body Style:
    Coupe
    I know, its been a long time since ive posted an update, but i promise ill make it up to everyone!

    Ill start right where I left off back in February:

    After pulling apart the head, i had it hot tanked to get off the 25+ years and 185K miles worth of gunk off. When I got the head back, I installed it along with a new Oil pump, Water pump, and timing components.
    bare engine.jpg
    And completed:
    complete engine.jpeg
    A good friend of mine was able to spray the valve cover in a nice wrinkle black, and soon after this picture was taken, i installed the engine without hitting record on my phone.......ANYWAY
    After the engine was in, i battled several issues with it starting replacing pretty much everything ignition related until: (The file type for the video is not allowed)

    https://share.icloud.com/photos/0obLj-Qsm0A5g997aLdLNcXEw

    While it didnt sound the healthiest at the time, it was a start and gave me that extra boost i needed to get her running. After some tinkering, i was able to take her on her first rip:

    https://share.icloud.com/photos/0kHMyD1yYqETpWD85Iol2mMIQ

    After this, the car sat for a while. It did sound good, but i could tell all of the power was not there and i spent weeks trying to figure out why. Replacing the majority of the fuel system, right before i gave up, i decided to take a look at my injector seals which literally disintegrated in my hand. 2 Days later, amazon dropped off new seals, threw those in she was ALIVE! Topped it off with new headers and a Jackson racing high flow cat which brought back all of the power i was so desperately needed. As of right now, the car is currently with a good friend of mine while he is looking for a car to replace his recently wrecked EK hatch. Once i get her back, i can take a lot more pictures to show all the progress this little $700 POS has made
    headers installed.JPG
    miata and civic.jpeg

  8. webby
    • Staff
    • 2019 Toys For Tots

    webby Administrator

    Messages:
    50,878
    Nice progress!

  9. bootyluvr
    • 2019 Toys For Tots
    • Supporting Member

    bootyluvr Supporting Member

    Messages:
    18,280
    Location:
    Baltimore, MD
    Vehicle Model:
    2015 Honda Accord EX-L V6
    Thanks for the update! :woot:

  10. bootyluvr
    • 2019 Toys For Tots
    • Supporting Member

    bootyluvr Supporting Member

    Messages:
    18,280
    Location:
    Baltimore, MD
    Vehicle Model:
    2015 Honda Accord EX-L V6
  11. webby
    • Staff
    • 2019 Toys For Tots

    webby Administrator

    Messages:
    50,878
    He’s been gone from here for 3 months

  12. fg3_colton

    fg3_colton Well-Known Member

    Messages:
    294
    Location:
    Tampa
    Vehicle Model:
    Civic, LX
    Body Style:
    Coupe
    Its been a long, tedious 7 months since my last visit to this site. I have been in and out of different jobs, while trying to finish up my senior year of college. But now that my life has settled down, im glad to report that ill start posting regular updates to this thread. Since the last post, my lovely Miata (aptly named Mary Jane) has been through a lot. After my friend got into an accident with her in mid November, she was parked for a while. Since the case is still ongoing, ill have to refrain from posting pictures of the incident however, the damage was rather significant. The bash bar support was pushed into the condenser and twisted, the already damaged passenger fender, was now bent and prevented the passenger door from opening. The hood and latch had also been eternally mated together and surprisingly the bumper remained mostly intact and is still on the car to this day lol- although i do have a new one to replace it. After the accident, my lovely grandmother offered her garage to MJ, where she stayed for 3 months while I got through the rest of college and settled down. Since the accident, its been nothing but good news. She received a new fender, windshield, starter, hood and even a MINT hard top that i got for an absolute steal. Now that y'all are caught up, ill be sure to keep this thread updated with the many installs i will be doing over the next few weeks! In the meantime, here are some of the most recent pictures of my lovely Mary Jane as she sits today. Hardtop 2.jpeg Hartop.jpeg

  13. ron v
    • 2019 Toys For Tots
    • Supporting Member

    ron v The Forum Idiot

    Messages:
    4,621
    Location:
    Escondido
    Vehicle Model:
    Hot fuego
    Body Style:
    Landscaper Truck
    Good to see you back. Accidents can suck but it looks like your keeping a positive attitude towards the situation. Can’t wait for some updates.

    webby, mySIck and fg3_colton like this.
  14. webby
    • Staff
    • 2019 Toys For Tots

    webby Administrator

    Messages:
    50,878
    Glad to see you back at the build. At least it can still be fixed up

  15. bootyluvr
    • 2019 Toys For Tots
    • Supporting Member

    bootyluvr Supporting Member

    Messages:
    18,280
    Location:
    Baltimore, MD
    Vehicle Model:
    2015 Honda Accord EX-L V6
    You are welcome :thumbsup:

    fg3_colton likes this.
