FAQs
Q: Is this DIY for all civics?
A: This DIY is for all Civic Coupe models but possible variate to Sedan. (Pic at the end of DIY)

Q: How much did this project cost?
A: Depends on how much of the tools you have already. Order the requiring Parts will est to 80$.

Q: Does it come painted?
A: No, the lip does not come painted or primed.

Q: What is the lip made of?
A: Depends which one you purchase, I purchased poly-urethane but there is also ABS which is more flexible.

Q: How long does this project take?
A: From start to finish, took me about 3 hours with complete dedication.

Q: Can I cut the lip before I rivet it on?
A: Yes, but it would be harder to measure exactly where to cut since you are flexing it.

Q: How many rivet/washers do I need for this project?
A: You will need min 17 rivet/washers but get at least 25 if you mess up.

Q: Can you remove the lip anytime?
A: Yes, but it will be at the cost of rivets.

Q: Is there an easy fix to the holes on the side of the bumper?
A: Yes, you can fill it with a little putty and use touch up paint from the dealership.

Q: How strong is the lip when driving?
A: I ran a constant 120 mph with the lip on after 2 weeks and it is still holding without any issues.

Q: How low does it extend downwards?
A: About 2.5 - 3 inches

Q: Does it crack easy or withstand scrapping?
A: With poly-urethane, under normal wear and tear it does really well for scraps and bending while holding it's shape.

Q: Can we use the same method in this DIY for the S204 STI Lip?
A: Yes, but the end mount application will be different.

Tools Required:

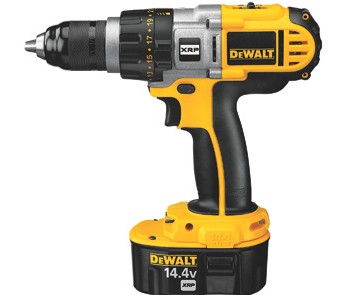

- Hand Power Drill

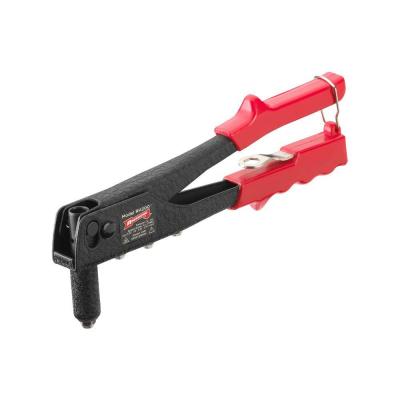

- Riveting Tool [3/16]

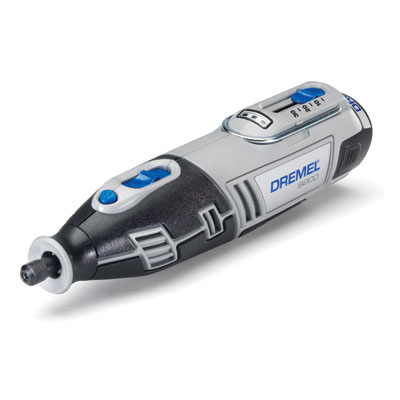

- Dremel

- Phillips screwdriver

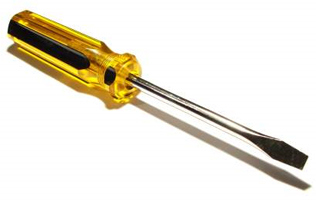

- Flat-tip screwdriver

- 5 mm Hex wrench

- Ruler


- Marker

- Eye protection (recommended)
- Heat gun (optional)
- Clip Removing Tool (optional)
- Bumper stand or boxes (optional)
- Cleaning Alcohol (optional)

Project Parts:

Front Lip - 06-07 STI CS2 Style front bumper lip
Part Link - http://www.ebay.com/itm/SUBARU-IMPREZA-WRX-STI-2006-2007-CS2-URETHANE-FRONT-BUMPER-LIP-SPOILER-/190834172708?pt=Motors_Car_Truck_Parts_Accessories&fits=Make:Subaru&hash=item2c6e9a6324&vxp=mtr
Cost - $59.99 + Free Shipping
Shipping / Receiving Time (48 States) - 7 to 15 business days
Comment(s): There are several sellers of this lip on ebay. If you cant find one then just wait a week or so and it will be restocked. If you paid more than $70 shipped, you paid to much. Average pricing is 64$ and lowest is 59$ I've seen in the past 7 months.
Note: There are 2 lips for 06-07 STI, please make sure you have the CS2 or CS Sports Style and not the S204 Lip.

Rivet - 3/16 Large Head Rivets and Washers (50)
Part Link - http://www.ebay.com/itm/281099996259?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649
Cost - $14.50 + $2.27 Shipping
Shipping / Receiving Time (48 States) - 3 to 10 business days
Comment(s): I used 22 Rivet/Washer on this project including the ones I miss pulled. Actual amount on the bumper is 17. I bought 50 because it was almost the same price as 25 and you have more left for future projects or mispulls.


Prep Work (optional)

Step 1 – Lip Prep

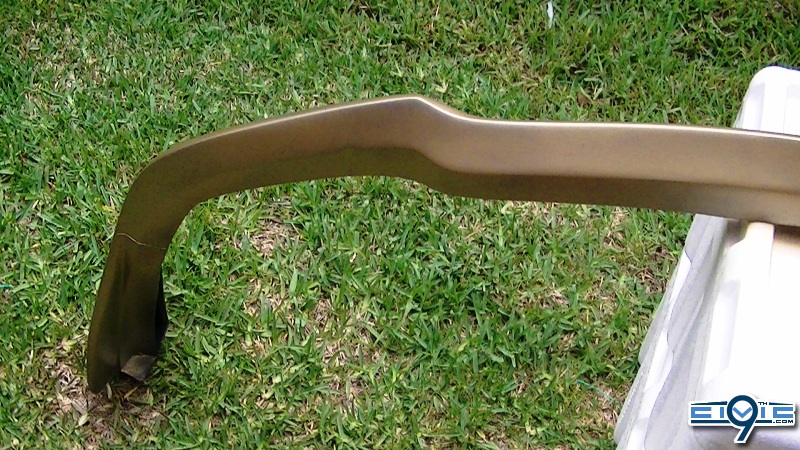

When I got my lip, it was covered in a bit of oil from the manufacturer. I used a bit of rubbing alcohol to clean the entire lip down and made sure there was no cracks or abnormal bends.


Step 2 – Lip Color

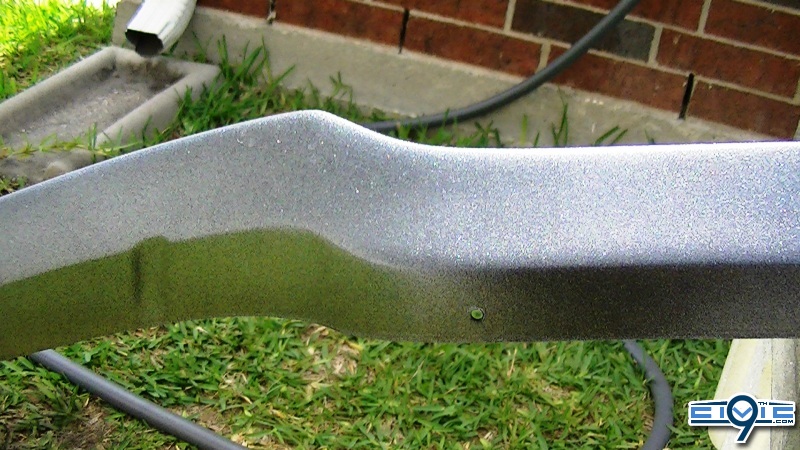

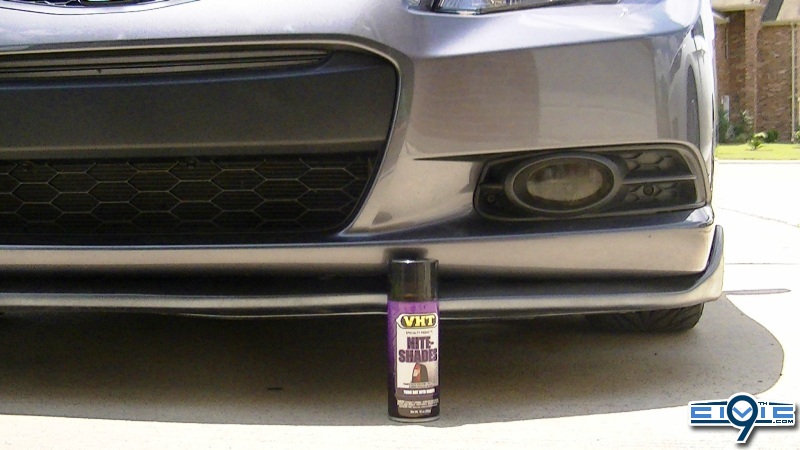

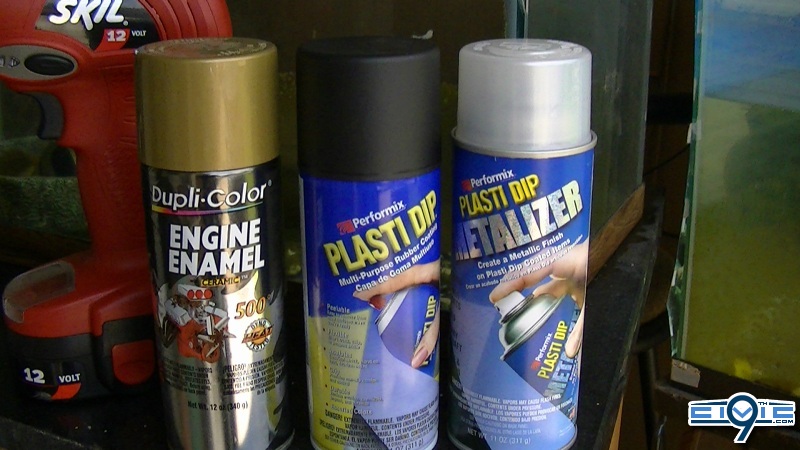

This is a perfect time for you to prime and paint your lip if you want to color match it or just be different. This way you can get it in all angles. I personally used these at the bottom start with primer, then the base coat, metallize etc






Last edited by a moderator:

ADExternal

Lvl: 99 Modifier
1,917
1,535
Houston, Tx
Vehicle Model
Civic Ex
Body Style
Coupe
Installation

Step 1 - Bumper Removal

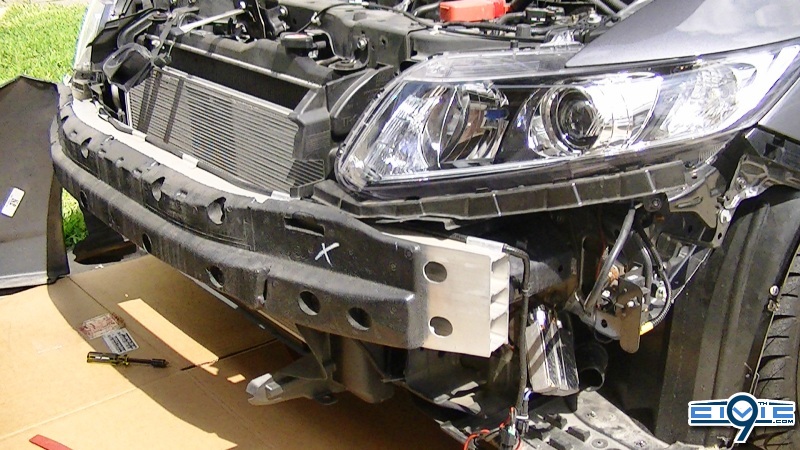

Step 2 - Measuring and Drilling the holes

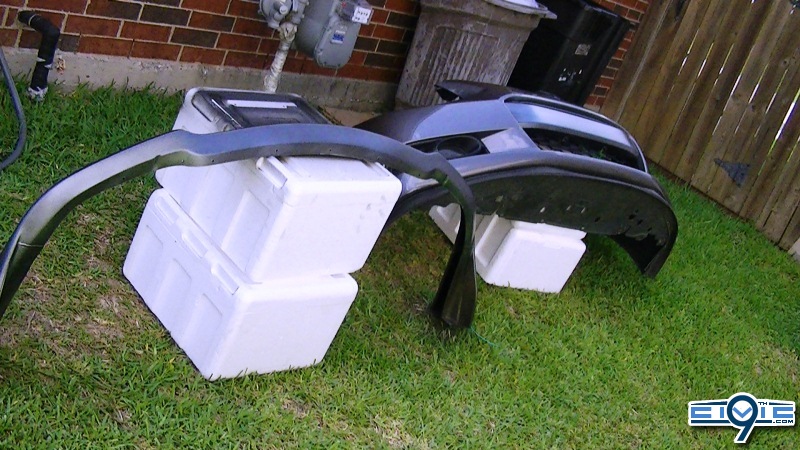

Place the bumper and lip on boxes or stands.


Make sure the bumper bottom area is cleaned off with rubbing alcohol or non oil solvent.

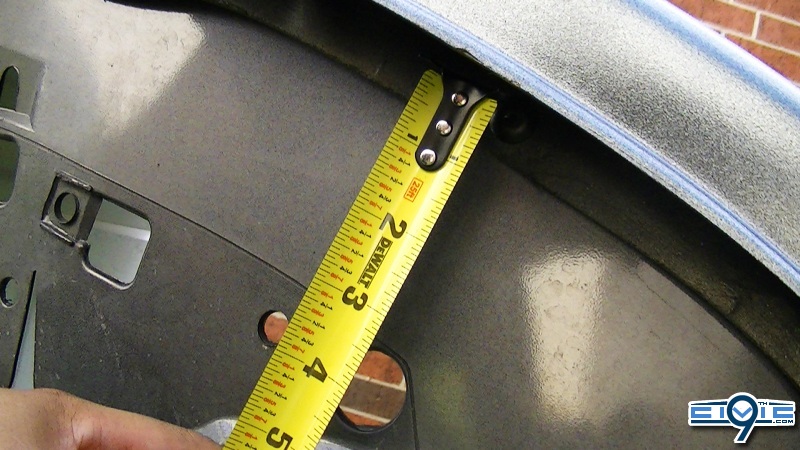

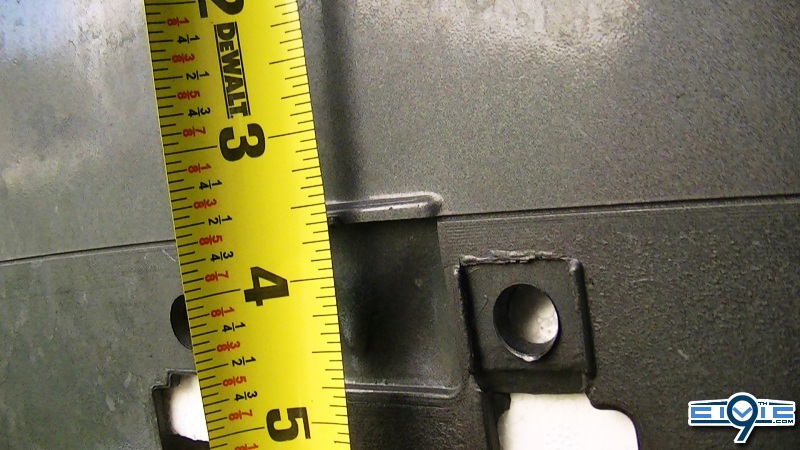

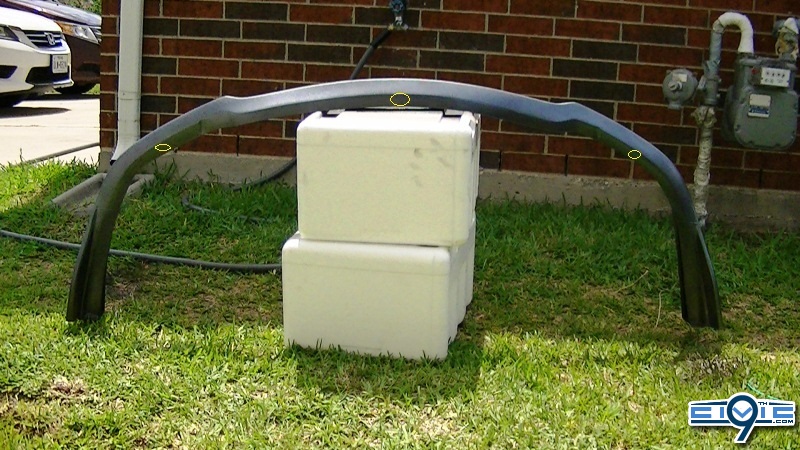

Measure and mark a dot from the center of the bumper notch to the edge about 3.5" or a maximum of 4.5" This will be where you match the center of your lip




Measure and mark a dot from the both sides of the bumper that has the largest hole shown to the lip about 3.25" or a maximum of 4.25" These three measurement will be the mod

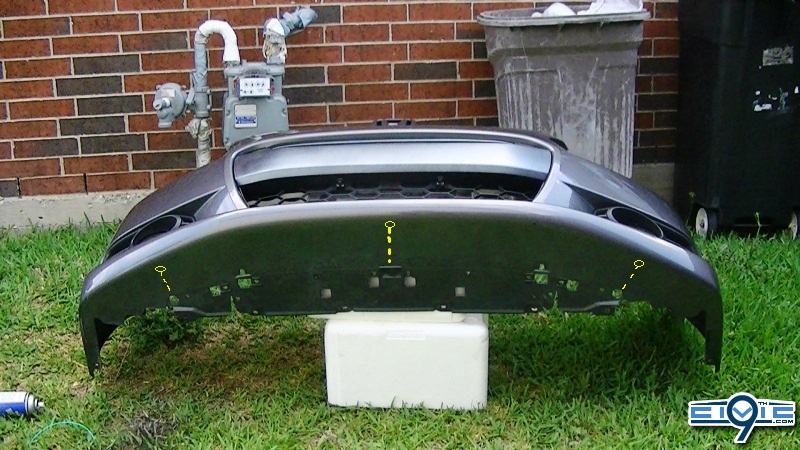

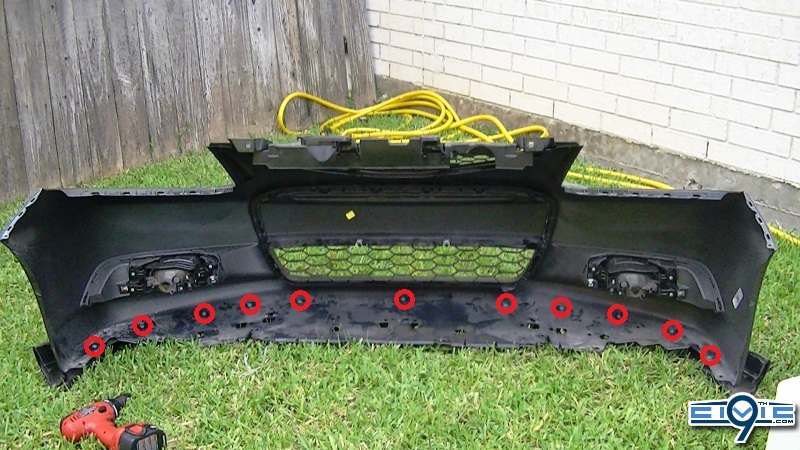

So the marking should be close to this


Then place the lip on making the same marking as close as possible. Advice is to find the center of the lip first and go out from there.

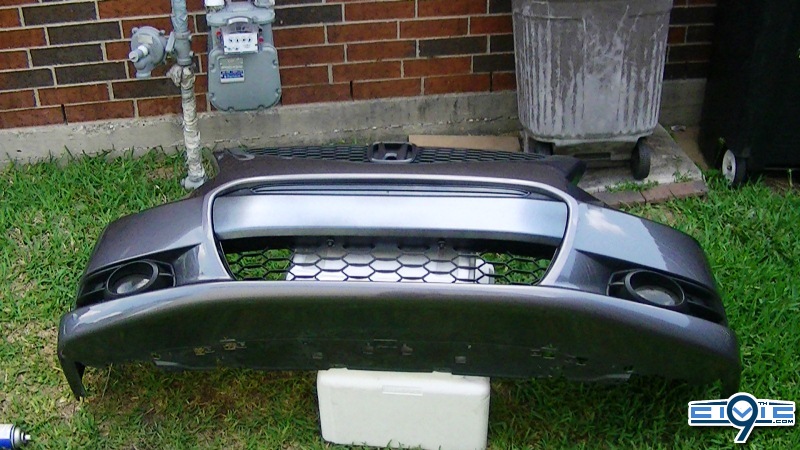

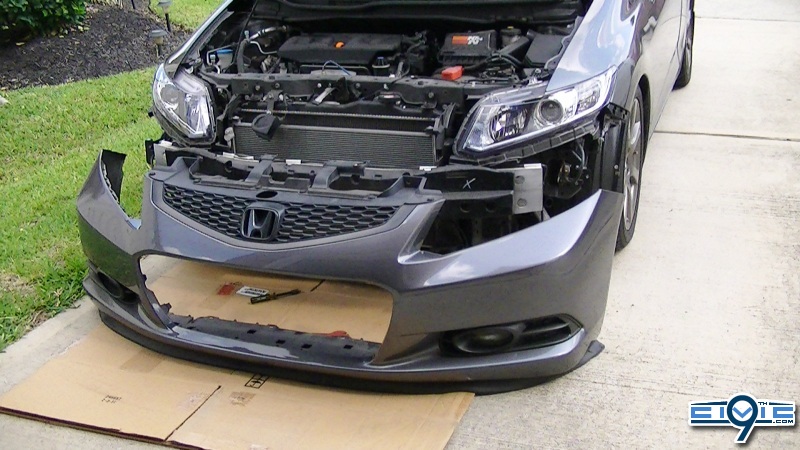

The bumper and lip should look like this in the process.

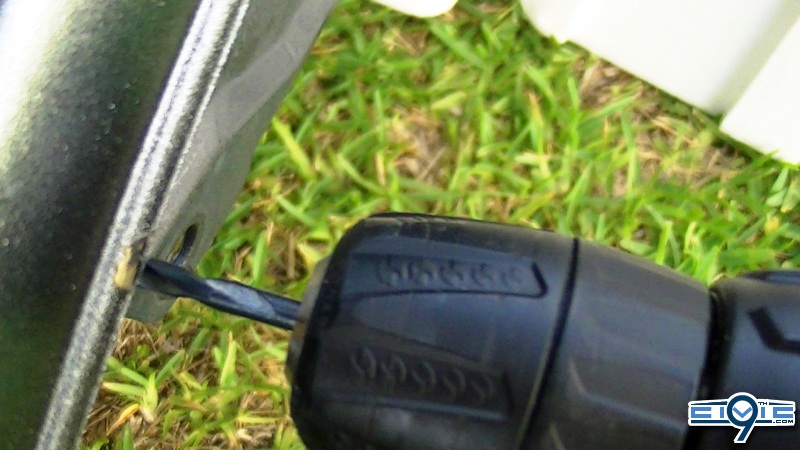

Take the 3/16 drill bit and drill through the lip. You can use different dril bit according to the rivets you buy.


Afterward, drill the marking from the lip, and make sure it hits the second marking on the bumper for best accuracy.

Make sure corresponding target is made. Do no redrill close by is unsatisfied with the hold. Instead move .25" and do another hold.

Last edited by a moderator:

ADExternal

Lvl: 99 Modifier
1,917
1,535
Houston, Tx
Vehicle Model
Civic Ex
Body Style
Coupe
Step 3 - Mounting The Lip On

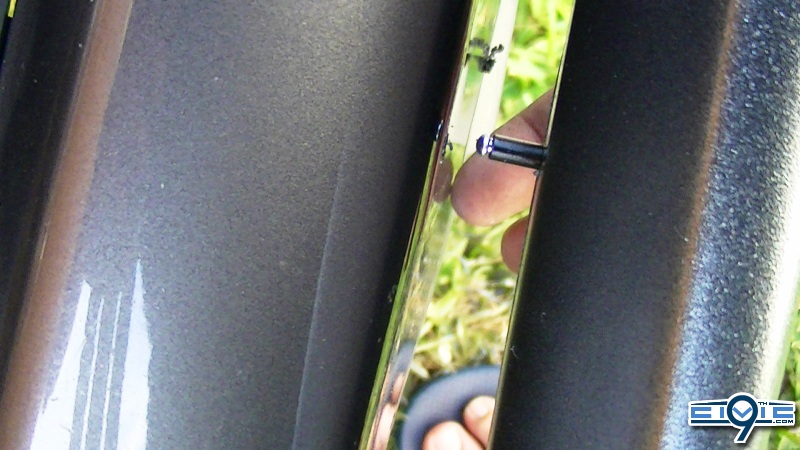

Take the 3/16 rivet and washers your purchased and insert it through the lip.


Look for the corresponding hold and pass it through that as well.


The rivet should stay in place as you get the washer to be placed on the other side.

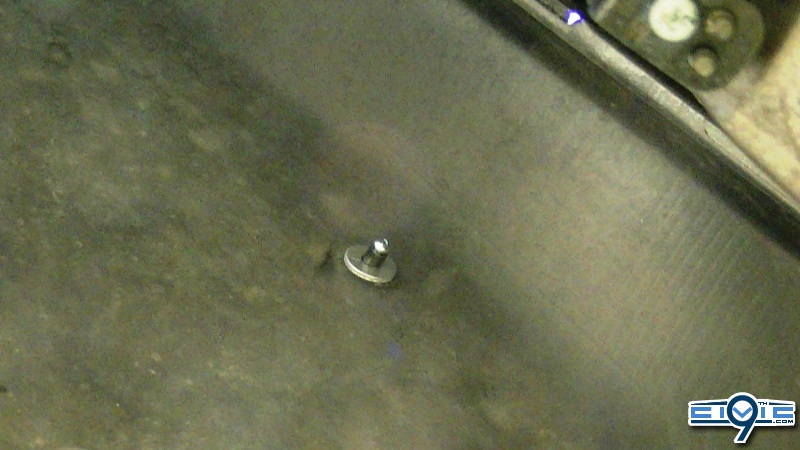

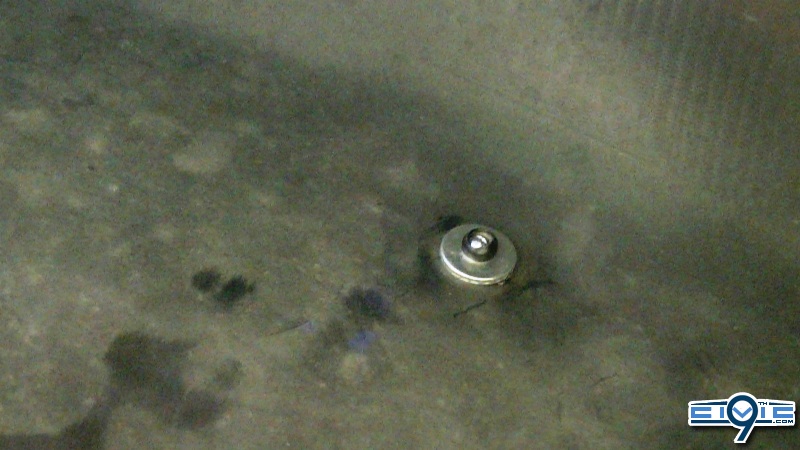

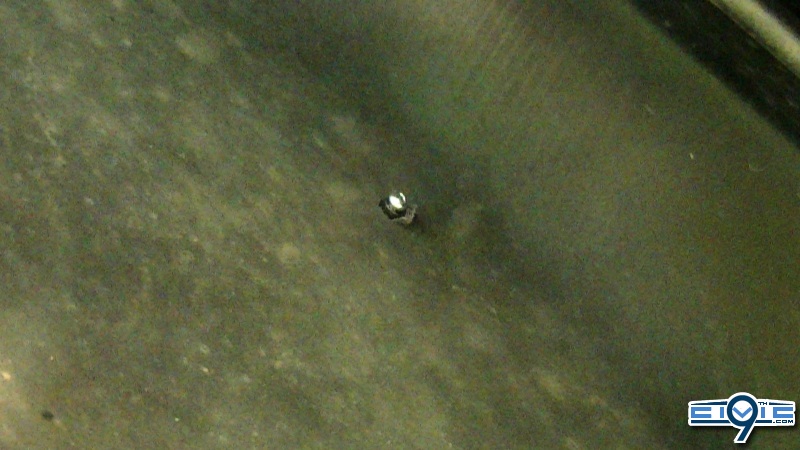

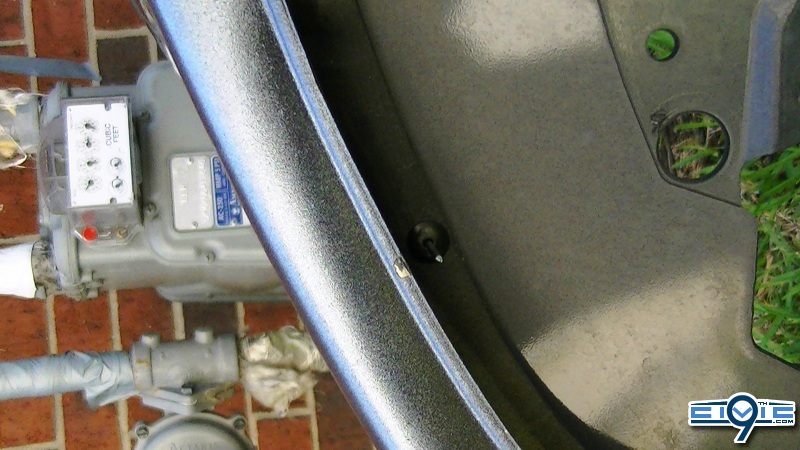

On the other side you see this as the rivet is poking through.


Place the washer making sure it is firmly grounded and no debris or plastic is in the way

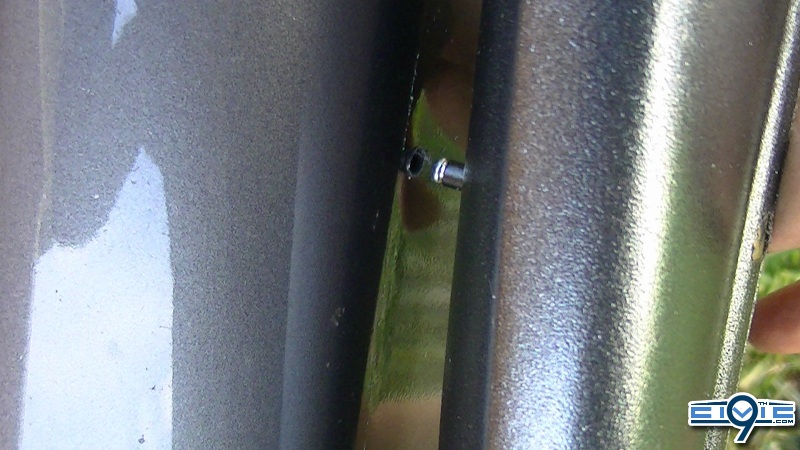

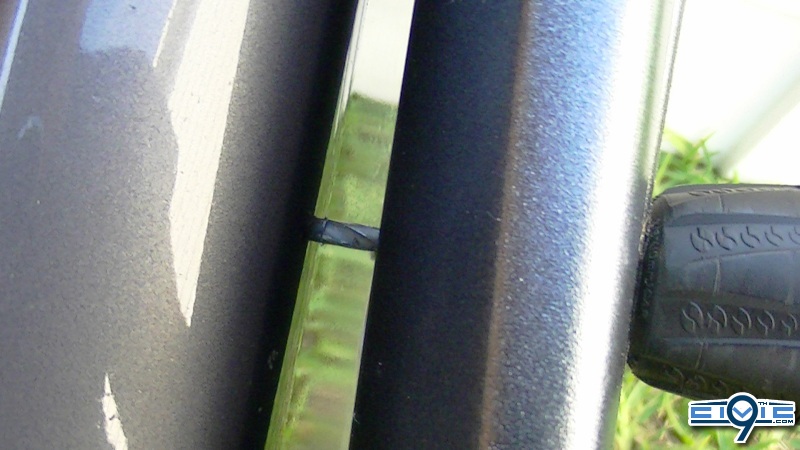

Firmly press the rivet tool on the other side while holding down the washer's edge and cramp/pull the rivet. Video example can be seen in Step 5.

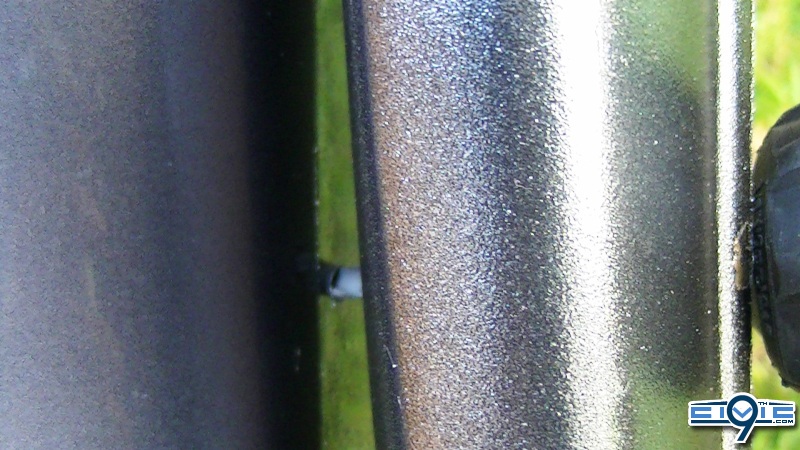

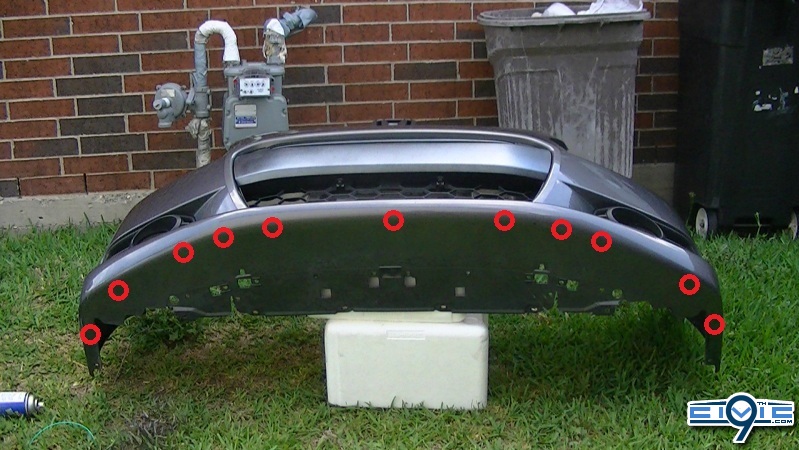

You will soon after repeat and rivet areas that seem loose or should put pressure on. This is what I ended up with after completed rivet fastening the lip.


All the insides should look secure.

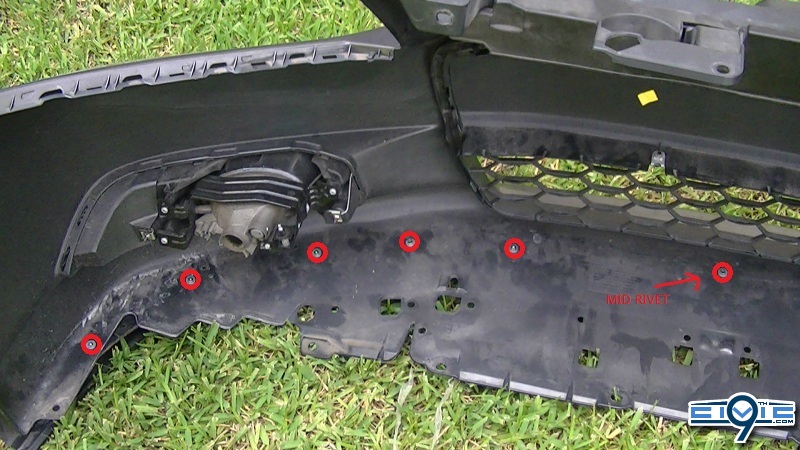

I ended up 5 on each side and one middle for the bottom mount.


Step 4 - Cutting Lip Ends Off


Step 5 - Fastening Lip Sides


Step 6 - Weld Lip Ends

Coming soon...

Step 7 - Reinstall bumper.

Up to now, if everything was followed, you should not need to modify anything to put your bumper back on. So just reverse Step 1.

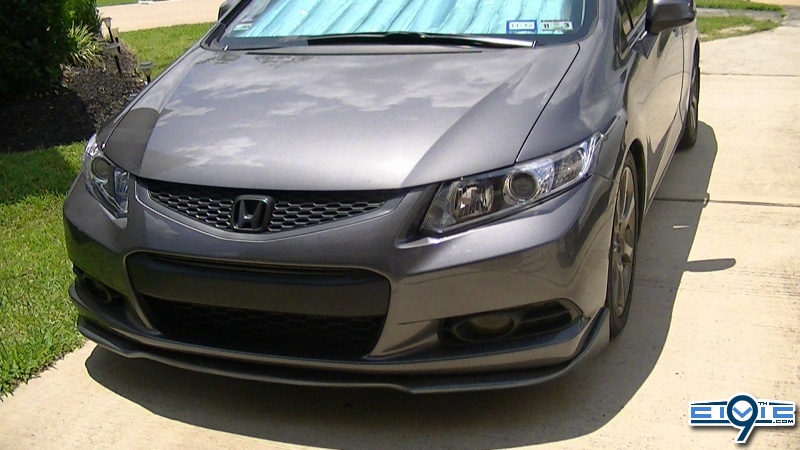

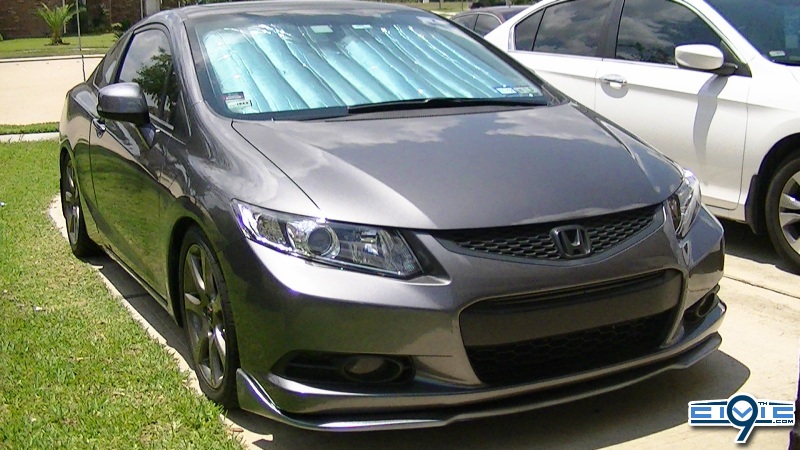

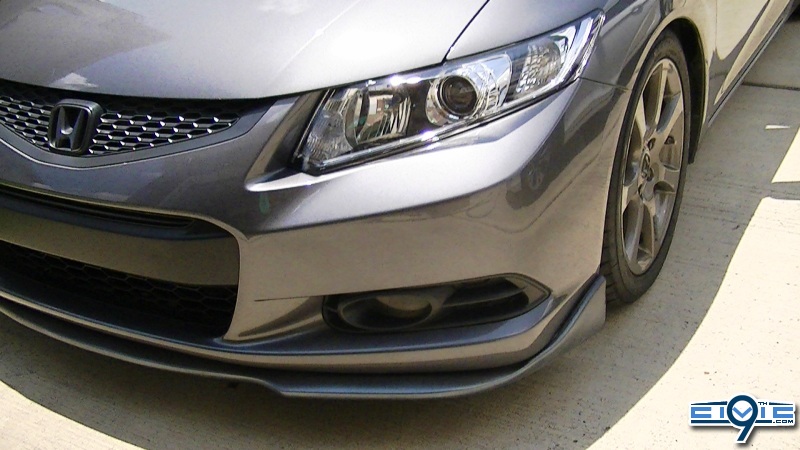

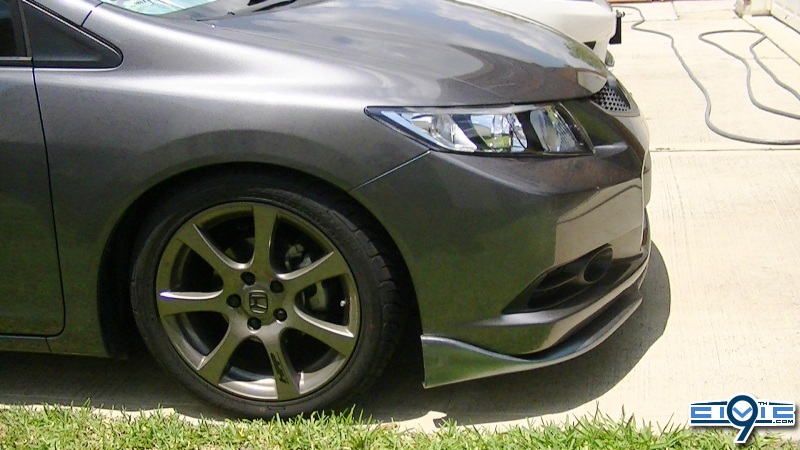

Congrats, you completed your Custom STI CS Style Lip









**End**


Sedan Install CS STI Lip

Photo Credits: @rs1customs


Keep asking questions as I will add them to the FAQ for future references. I hope this was a decent DIY, if so I will do more in the future.
