Ok here's my thoughts, the lane watch system is great, awesome and dandy, but....I don't use it, I just turn my head. This is the thing that would be great, when you push the button on the headlight stem it turns on and off, constant video feed from the camera......how's about splicing a DVD / Video feed into that same feed coming from the camera? Question #2 getting audio from the said source? Question #3 a switch to go back and forth between the input (dvd) and the lane watch. Can't wait to hear some ideas guys, the 7" screen is being waisted and needing some custom touches. Just need some other civic owners expert advice as I've only had it for 2 weeks....

ADExternal

ADExternal

Lvl: 99 Modifier
1,917
1,535
Houston, Tx
Vehicle Model
Civic Ex
Body Style
Coupe
Thanks @Pauly99to17

OP, question 1 - can be done. Question 2 - easiest is through the aux. Question 3 - this might get tricky as you don't know what powers the camera but it can be easy when that is determined.

DarkNight2014

DarkNight2014

Well-Known Member
46
34
Anniston, AL
Vehicle Model
Civic EX
Body Style
Sedan
Thanks guys and definitely read up on both your guys builds, however there is no aux input on the 2014 ex, unless it's hidden from me altogether

Edit: I'll start breaking it down here tomorrow, then I'll have some pics for everyone to look at before I hack into it

DarkNight2014

DarkNight2014

Well-Known Member
46
34
Anniston, AL
Vehicle Model
Civic EX
Body Style
Sedan

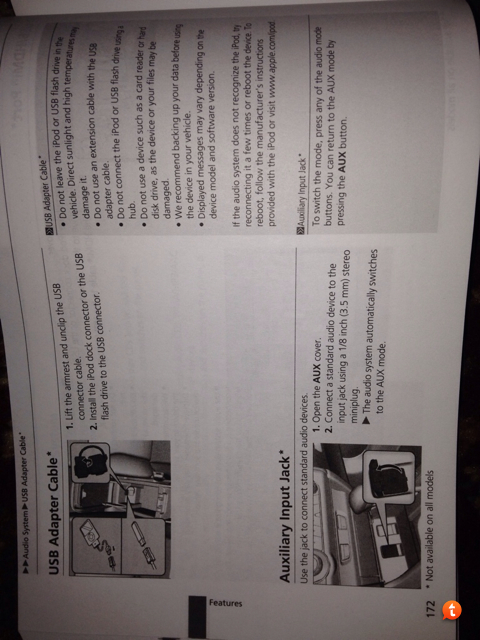

Not included in all models, "models equipped with the display audio system is not applicable with 3.5mm AUX"

Poop....

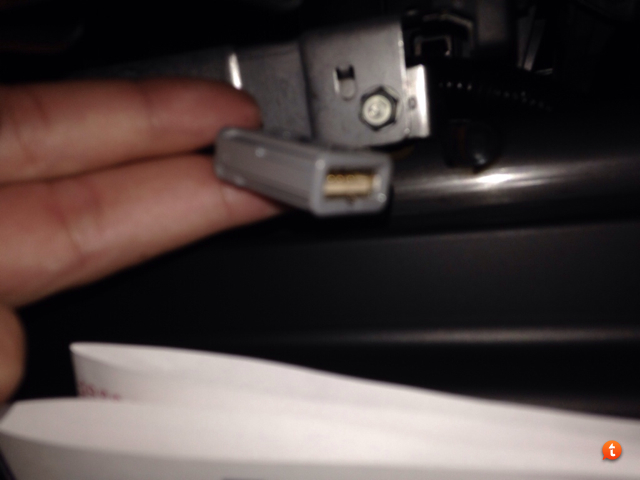

I'm going to see what's on the back of this "display audio" and see what I can find. I'll keep updating.

ADExternal

ADExternal

Lvl: 99 Modifier
1,917
1,535
Houston, Tx
Vehicle Model
Civic Ex
Body Style
Coupe

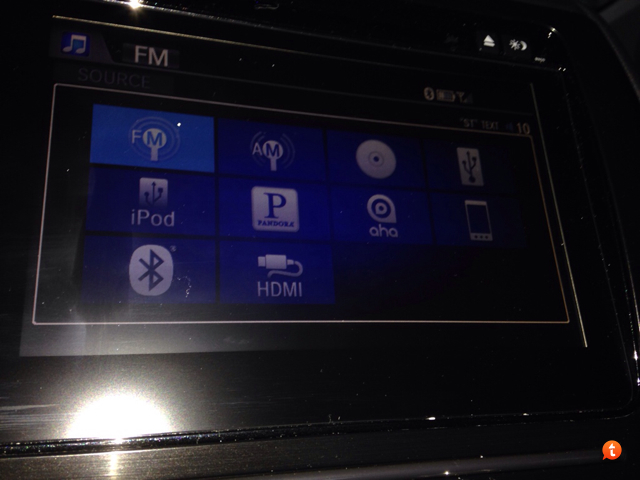

That's really strange if it doesn't have one. I suspect it's in the back of the unit as well. Those that have hdmi didn't get the aux input jack in the tray but should still have aux capabilities since the units are same right?

DarkNight2014

DarkNight2014

Well-Known Member
46
34
Anniston, AL
Vehicle Model
Civic EX
Body Style
Sedan
ADExternal said:
That's really strange if it doesn't have one. I suspect it's in the back of the unit as well. Those that have hdmi didn't get the aux input jack in the tray but should still have aux capabilities since the units are same right?
Click to expand...

That's what I'm thinking, hoping after work today I can get behind it and look, that would make things so much easier than slicing up the speaker outputs, with your work with the I-mid was pretty much everything pop in clips? *speaking of the dash assembly

Hillstones

Hillstones

Well-Known Member
204
136
Valencia, CA
Vehicle Model
Maxima Platinum
Body Style
Sedan

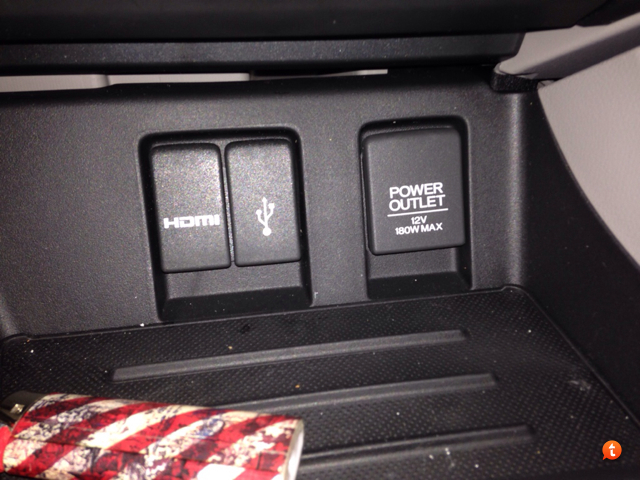

According to the 2014 Spec page at Honda.com, the only Civic with the aux input is the LX, which does not include the DisplayAudio radio. EX and above have DisplayAudio without an Aux input, only USB. So it is likely the stereo does not have firmware to support an Aux. Most probably used the USB port so Honda nixed it on upper models in favor of dual USB ports.

http://automobiles.honda.com/civic-sedan/specifications.aspx

DarkNight2014

DarkNight2014

Well-Known Member
46
34
Anniston, AL
Vehicle Model
Civic EX
Body Style
Sedan
Hillstones said:
According to the 2014 Spec page at Honda.com, the only Civic with the aux input is the LX, which does not include the DisplayAudio radio. EX and above have DisplayAudio without an Aux input, only USB. So it is likely the stereo does not have firmware to support an Aux. Most probably used the USB port so Honda nixed it on upper models in favor of dual USB ports.

http://automobiles.honda.com/civic-sedan/specifications.aspx
Click to expand...
Awesome man, I'm working on configurations now, I've got some extras posted on my build thread too on what to do next
