2013 Civic Premium Sound Navigation Pinout / Diagram

Discussion in 'Audio Setups & Aftermarket Head Units' started by Dom79, Aug 2, 2017.

  1. Dom79

    Dom79 Well-Known Member

    Messages:
    33
    *edit* See post #6 for Pinout / Diagram

    Here is the story... I am swapping out the factory Nav in my 2013 EX-L for a Premium Sound Nav. I plan on using an external 5 channel amp to power the interior speakers and also add a sub to the factory location. I am currently gathering all the parts for this project and managed to grab this headunit off ebay for a very reasonable price.

    Does anyone have a diagram / pinout for a 2013 Premium Sound Nav headunit? This is the one in question

    [​IMG]

    I searched the forums and googled quite a bit but could only find this diagram and corresponding pinouts. It doesn't exactly match up to the headunit in the photo above so I want to make sure that everything is correct going forward.

    [​IMG]

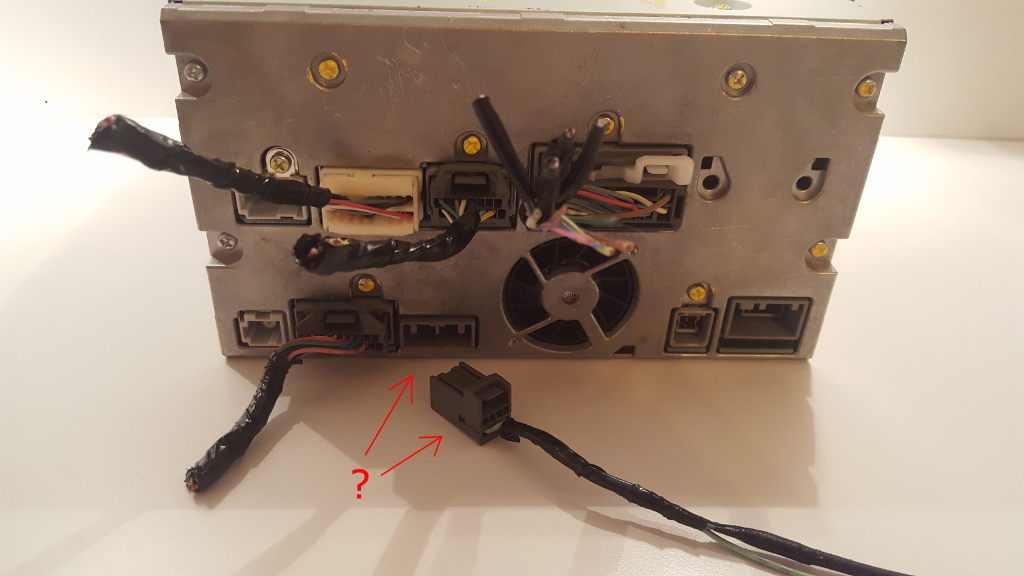

    I dont want to cut into the factory harness so I picked up a set of oem premium sound plugs from a harness off ebay but the 8 pin plug which is supposed to be for the sub output doesn't match up to what I have. Here is a pic for reference. Does anyone know where I could get the correct plug?

    [​IMG]

    Many thanks in advance.

    Last edited: Aug 15, 2017
  2. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,363
    39541-TR0-306
    2012 si nav - Mitsubishi


    39541-TR0-A61
    2013 si nav - Mitsubishi

    Different part numbers. I've not seen anyone post wiring pinouts for it. I've just seen the 2012 pinouts posted which you found.


    You may have to pull diagrams from the Honda service online program. They charge by the day to access info.
    https://techinfo.honda.com/rjanisis/logon.aspx

  3. Dom79

    Dom79 Well-Known Member

    Messages:
    33
    Purchased one day access and was never able to log in due to an error. I was refunded and told to wait before trying again because they were in the process of upgrading which is most likely the issue.

    I will try to get the info as soon as they contact me with the green light to try again.

    webby likes this.
  4. Dom79

    Dom79 Well-Known Member

    Messages:
    33

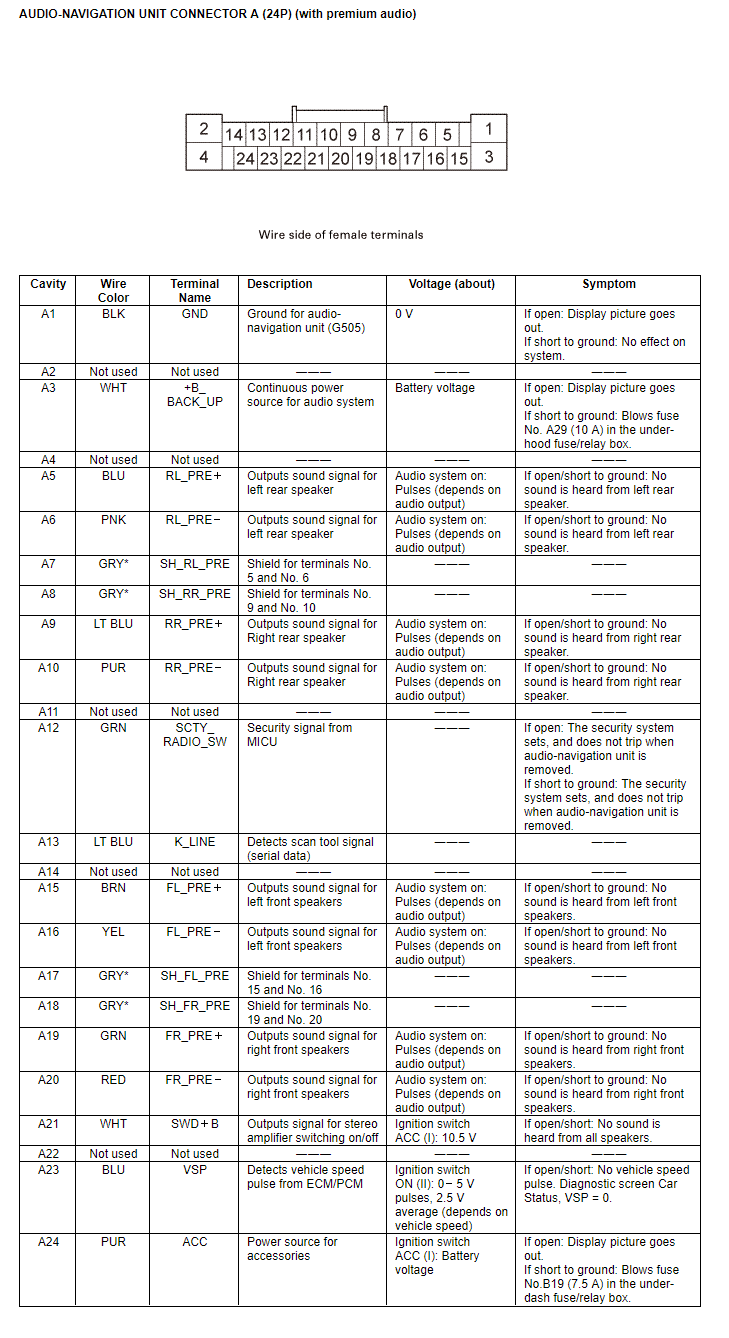

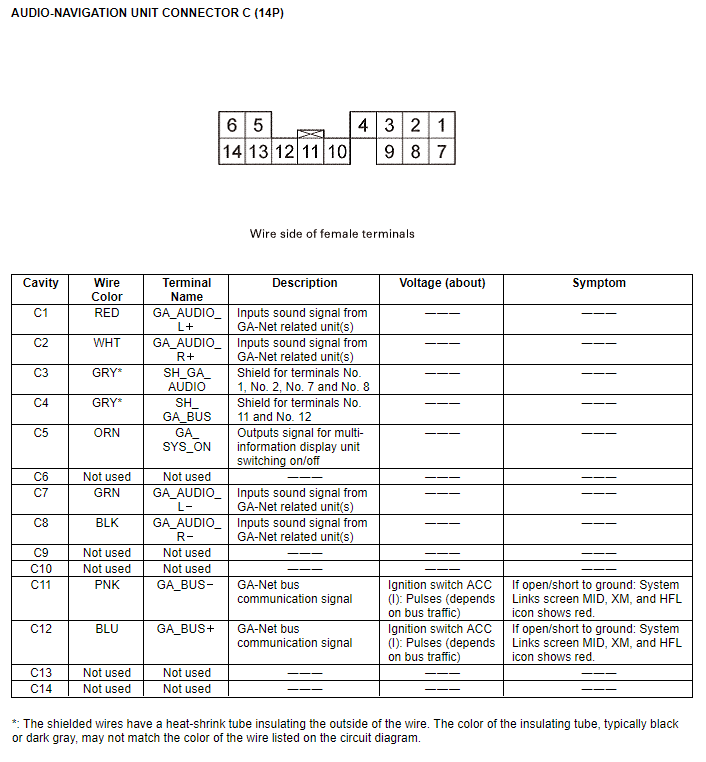

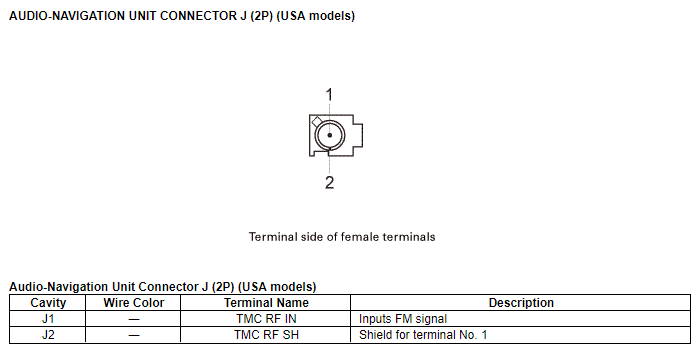

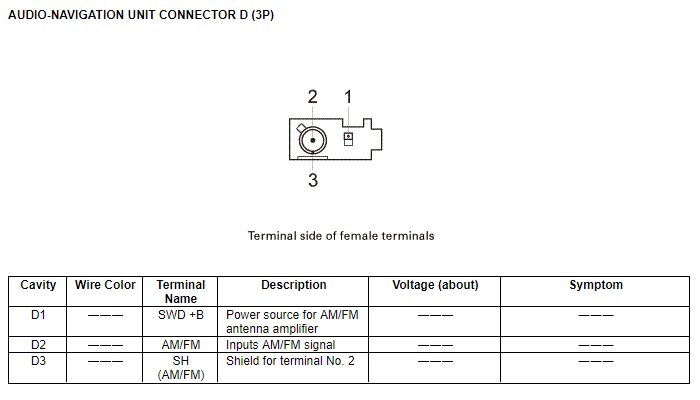

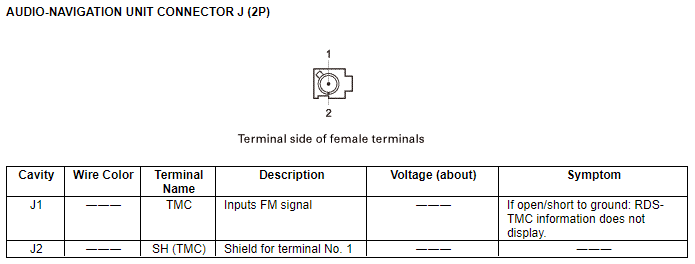

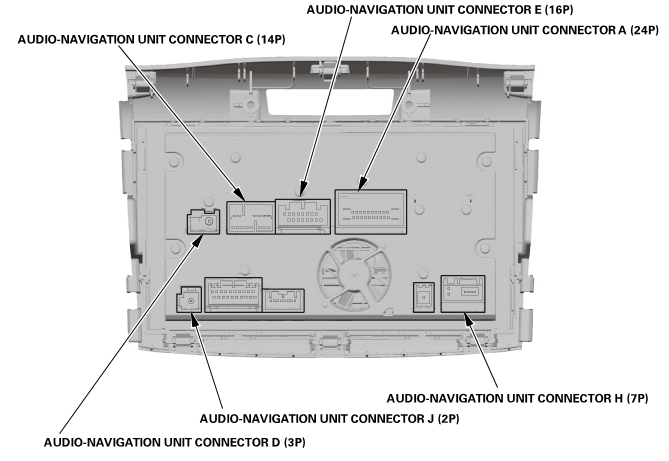

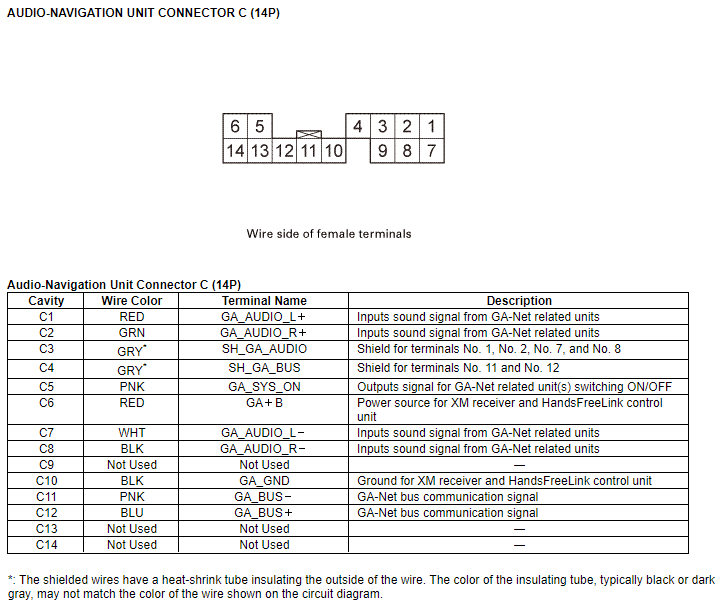

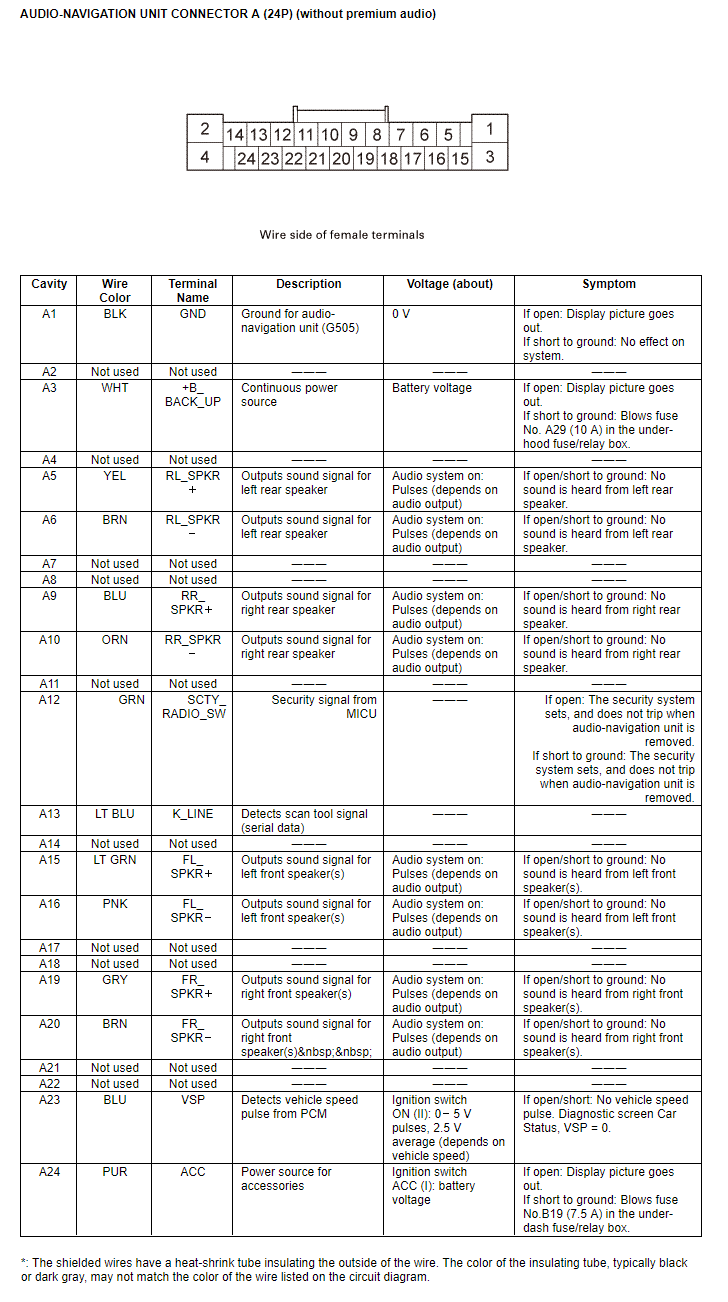

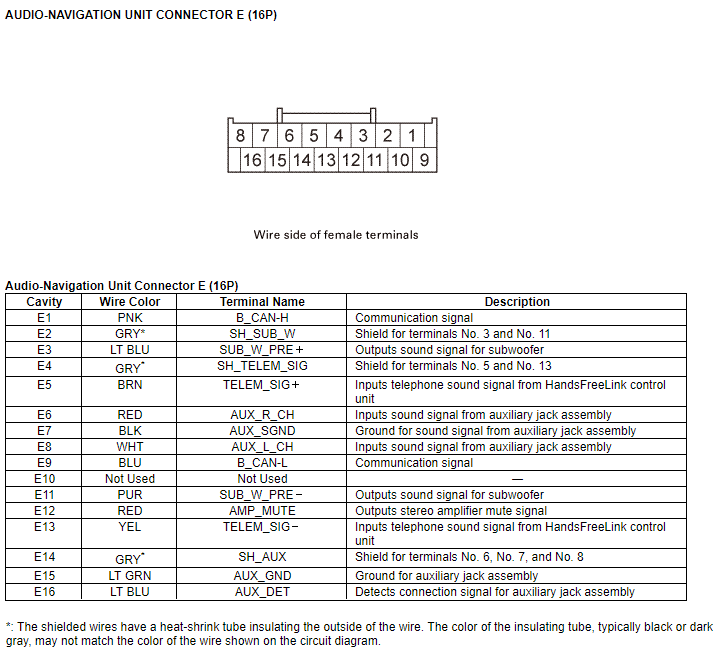

    I believe I found the pinouts. This came from a 2013 CR-V but should be identical. If anyone knows different, please let me know. Hopefully this helps anyone looking for info on this headunit.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  5. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,363
    39542-T0A-A01
    Crv part #.

    The difference may be due to just the faceplate, seeing as how it is included in the "part"?

    Front -

    Rear


    The rear looks really similar. As for the pinouts, I really don't know. I do see it has some labeled for the rear door speakers which the crv has. I just happened to search for the crv part to see what it looked like or what part # it had.

    Dom79 likes this.
  6. Dom79

    Dom79 Well-Known Member

    Messages:
    33

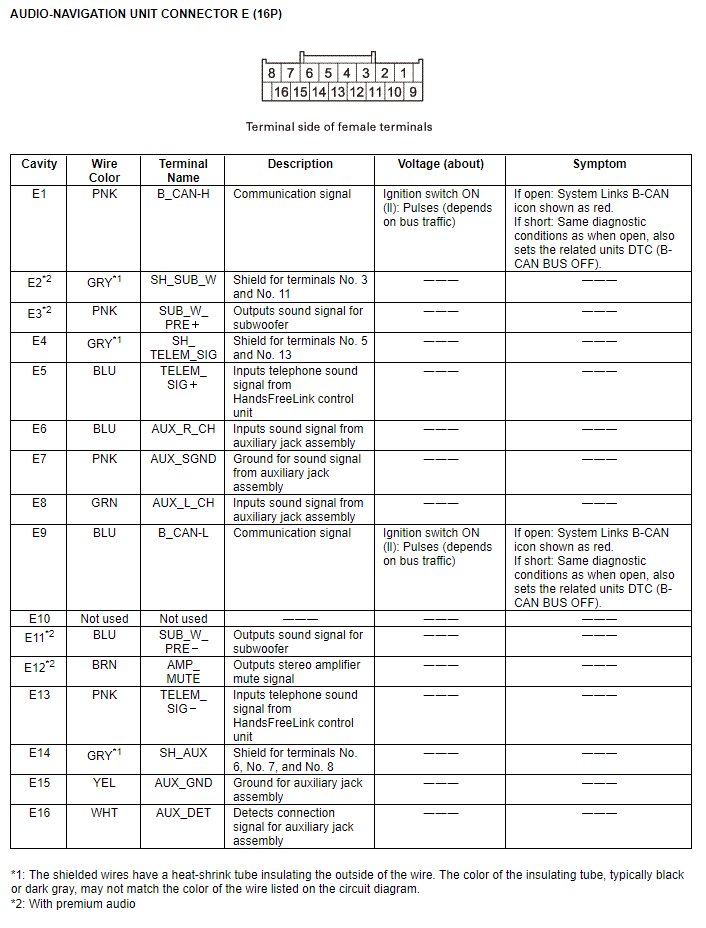

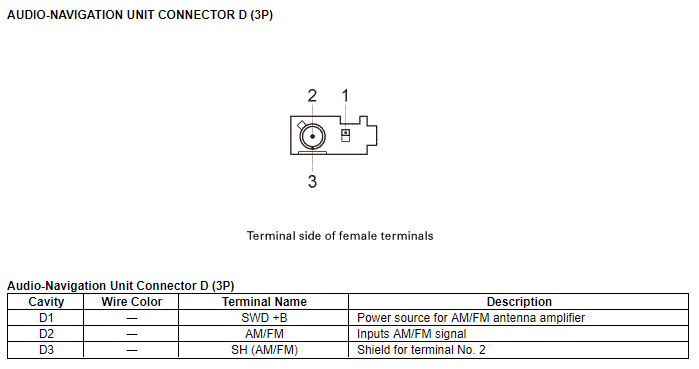

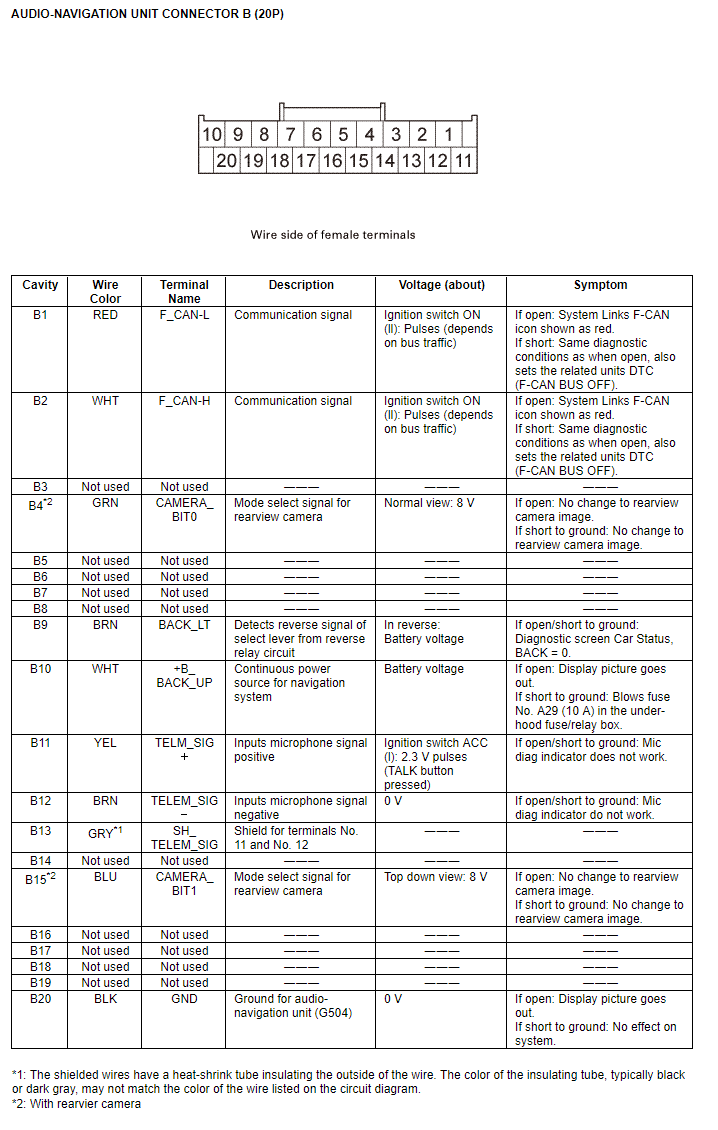

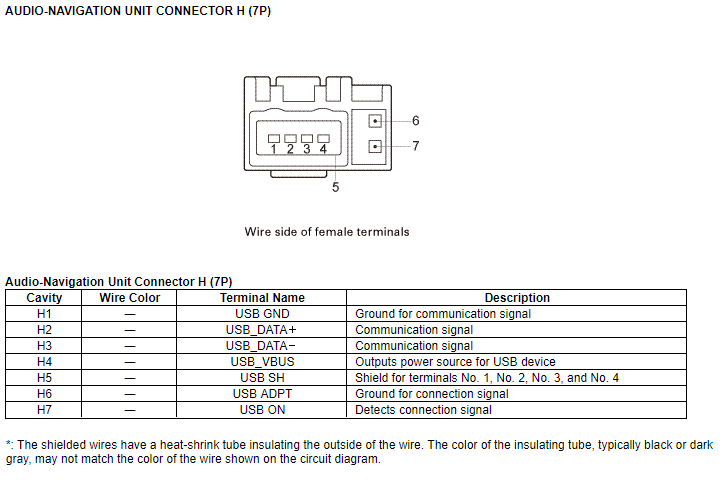

    Here is the pinout for the 2013 Civic Premium Sound Navigation. It is identical to the CRV one posted above but has the additional 7 and 20 pin plugs.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    ron v and webby like this.
  7. MARCEL ALEX PEREIRA

    MARCEL ALEX PEREIRA New Member

    Messages:
    4
    diagram of this?


    Attached Files:

  8. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,363
    as I mentioned in your other thread, we do not have that radio in any trim of the civic in the united states or canada. This site is also for the 2012-2015 civic. There are 10th generation civic forums online as well that could potentially help you. Did you contact a local dealer or honda to see if they have a wiring diagram online for the country of brazil as I suggested? Your car is totally different. Our 10th generation car started in 2016.

    [​IMG]

    [​IMG]

    This is our radio in the US/Canada ^

    This is what you said yours is below. Totally different
    [​IMG]


Share This Page
