My goal was to turn this Civic into something that is a blast to drive and is punishingly fast, while still maintaining a stock motor. More importantly, I want to use parts that are made with both quality and performance in mind. Because if there is one thing I have learned over the 4 years I have had this car, it's that doing it right the first time (or at least trying to lol) pays off in the end.
This build would have been DOOMED without the incredible amounts of help from Mark Abernathy, aka Origin Fabrication (https://www.facebook.com/Originfabrication) and would have been a lot more painful without the help of Geoff at Full-Race and a certain secret squirrel
I owe more thanks to you guys than you know!
Untitled by whitacre.alex, on Flickr
Engine
- K20Z3
- Supertech Dual Springs
- Supertech Ti Retainers
- Supertech Seats
- OEM Pre-'04 Keepers
- Ferrea Competition Valves
- Ferrea Bronze Valve Guides
- ARP Head Studs
- Borg Warner EFR 7670 .83 A/R IWG
- Forge Billet Wastegate Actuator
- Full-Race T3 Tubular Ramhorn Manifold, Ceramic Coated & Heat Wrapped
- Full-Race 3" EFR Downpipe, V-Band Exit, Ceramic Coated & Heat Wrapped
- Full-Race Intercooler and Bumper Beam
- Full-Race 2.5" EFR Charge Piping
- Origin Fabrication true 3" V-Band Titanium Straight Pipe
- DEI Gold Foil (on everything!)
- Hasport 70a Full Mounts
- Omni 4 Bar MAP Sensor
- P2R Thermal IM Gasket
- P2R Thermal TB Gasket
- NGK 2669 Iridium Plugs
Fueling/Tuning
- Fuel Injector Clinic 1050cc SP Injectors
- Deatschwerks 300 Pump
- Crushed FPR
- Hondata Flashpro
- Dyno/Street Tune by Daniel of Church Automotive
Transmission
- Jo Tech Stage 2 Transmission
- Competition Clutch Twin Disc 'A'
- Hybrid Racing Short Shifter
- Hybrid Racing EM1 CMC Kit
- Hybrid Racing Cable Bushings
Suspension
- Full-Race Traction Balls
- Enkei Evo VIII Whels
- Continental DW 245/40/17 tires
- Koni Yellows
- Neuspeed Sport Springs
- Ingalls Camber Bolts/Sliders
- Best Suspenstion-Spec Aggresive Street Alignment
Brakes
- Acura TL-S Brembos
- Acura TL-S BMC
- Brembo Blanks (F) Centric Blanks (R)
- StopTech Pads
- Goodridge Stainless Lines
- ATE SuperBlue Fluid
Interior/Exterior/Looks
- Origin Fabrication Battery Box
- Odyssey PC680 Battery
- Excelerate Gauge Pod V1
- AEM Digital Wideband/Boost Gauges
- Spoon Duracon Shift Knob
- Full-Race Vaccuum Block
- Hybrid Racing Fuel Rail
- Hybrid Racing Fuel Pressure Gauge
- Hybrid Racing Oil Cap
- Hybrid Racing Radiator Hoses
- Seeker Radiator Cap
- K-Tuned Coil Pack Cover
- Red JDM Badges + Red J's Steering Wheel Badge
- GRFXP Red Tail Light Overlays
- Chrome Trunk Piece Painted TW
- Nokya Yellow DRLs
- FD2R Key Fob <---- Baller Status
So this past summer I decided to sell my K20/24 with the intent of doing what I consider the 'holy grail' of Si performance mods, turbocharging. I was able to sell my entire setup for a stock K20 and cash on top. I decided on purchasing a Full-Race EFR kit with the 7670, as I admire Full-Race's quality and the EFR is definitely a unique turbo with a lot to offer. If you want to see pics of the actual install or are interested in going turbo, I highly suggest you read this: http://www.8thcivic.com/forums/turb...our-stock-si-boost-properly.html#post12760257

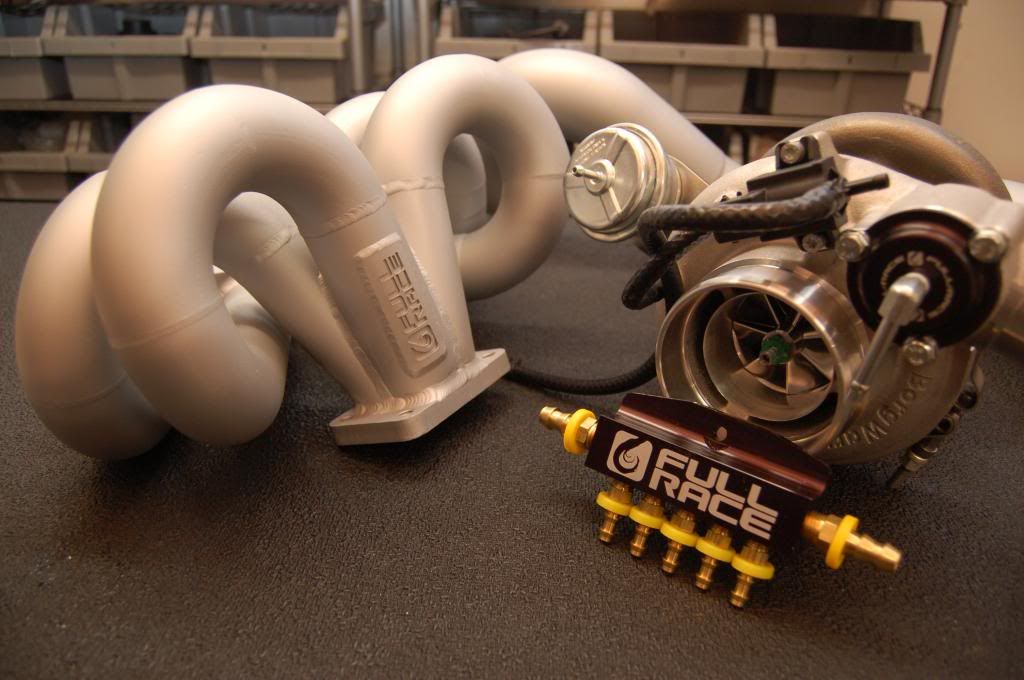

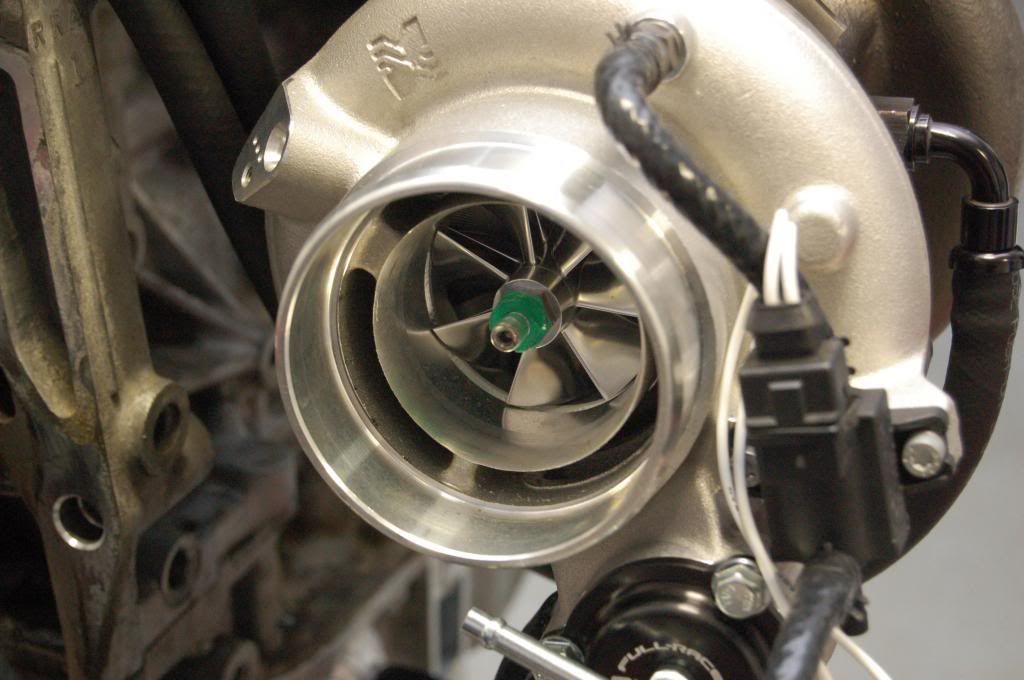

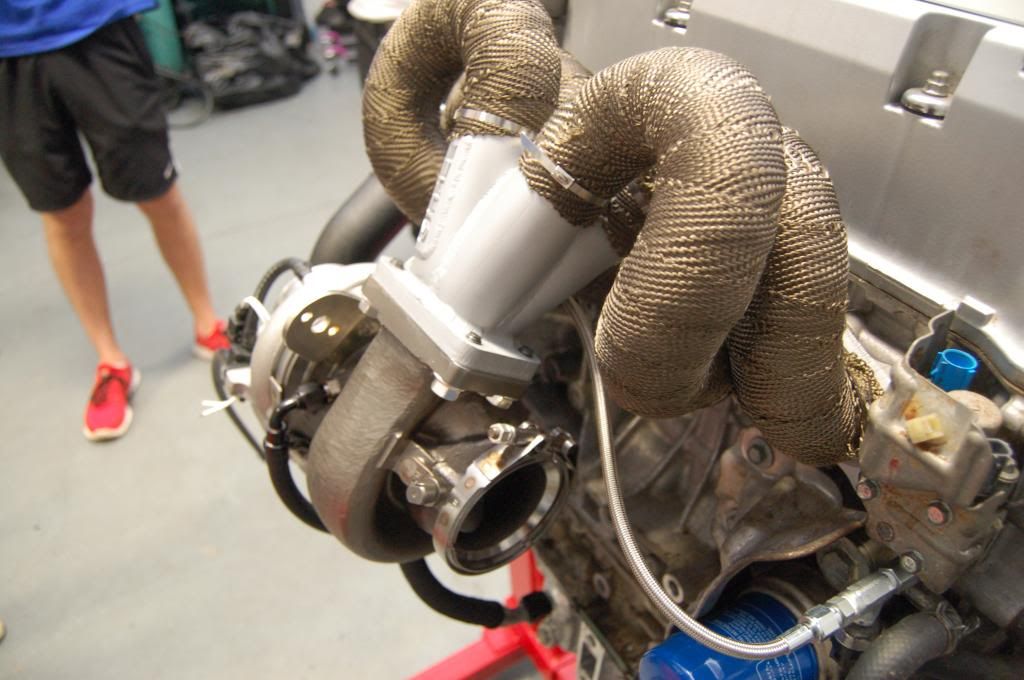

Some Pics of my Manifold and Intercooler

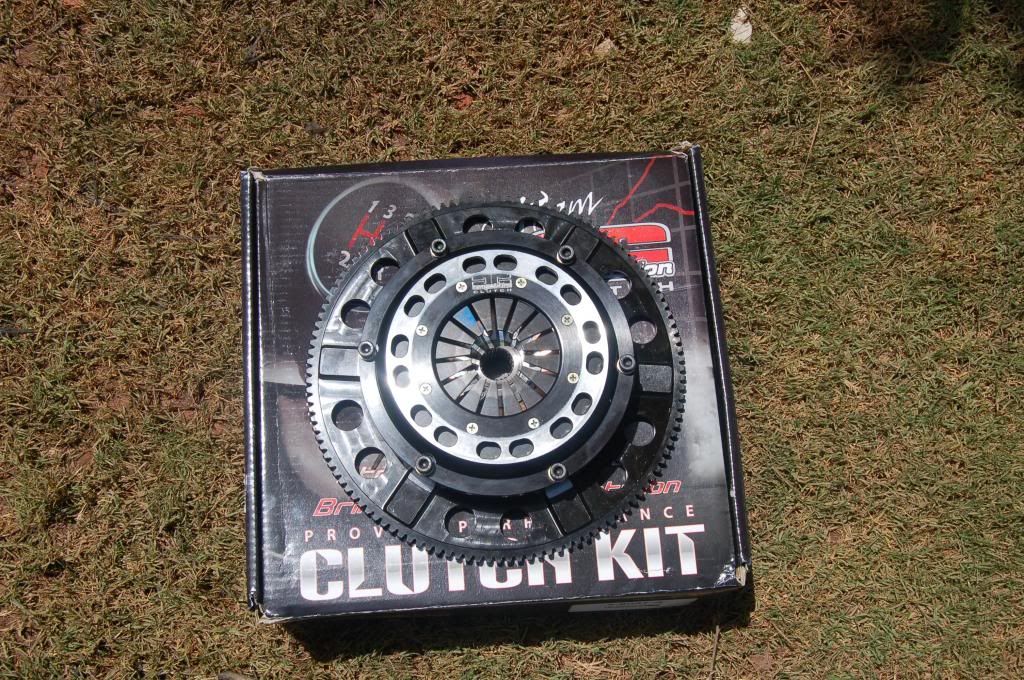

I chose the twin disc because I knew it would never slip, and if I decide to really go nuts with the power I will not need to upgrade again.
Downpipe, welds look great!
After we got the turbo kit on, I realized that I needed an exhaust since I sold my awesome Full-Race unit with my K24. I decided to do something pretty different, and got a custom Origin Fabrication 3" Titanium Straight Pipe. This is probably the most incredible thing on my car from a craft standpoint. It is quieter around town and highway cruising inside the car than the Full-Race was before (thanks to the turbo), and sounds full-on ridiculous at WOT. Not to mention the entire thing weighs 9 pounds! Mark is truly great with Ti. Since some people have asked, here is Origin Fab's facebook page for some weld porn/contact info https://www.facebook.com/Originfabrication
Some Facts:
- All 3" ID American-Made Ti
- All bends pie cut
- Entirely hand welded by Mark Abernathy, aka Origin Fabrication

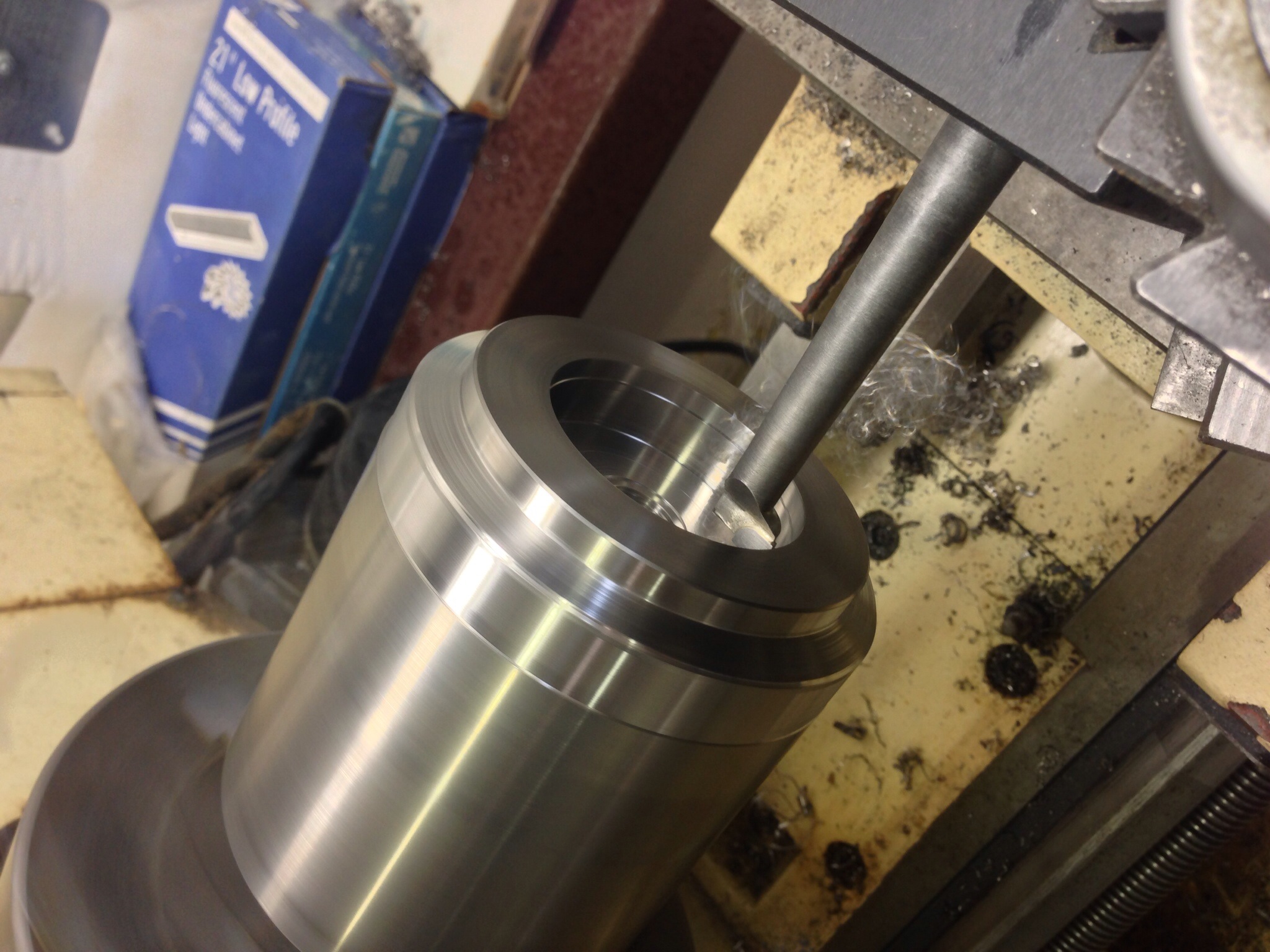

- V-Band flange hand turned out of a solid block of Ti, also by Mark
- took over 25 hours for Mark to complete the exhaust
- I'm trying to decide if I like the turn-down or if a straight tip would be better

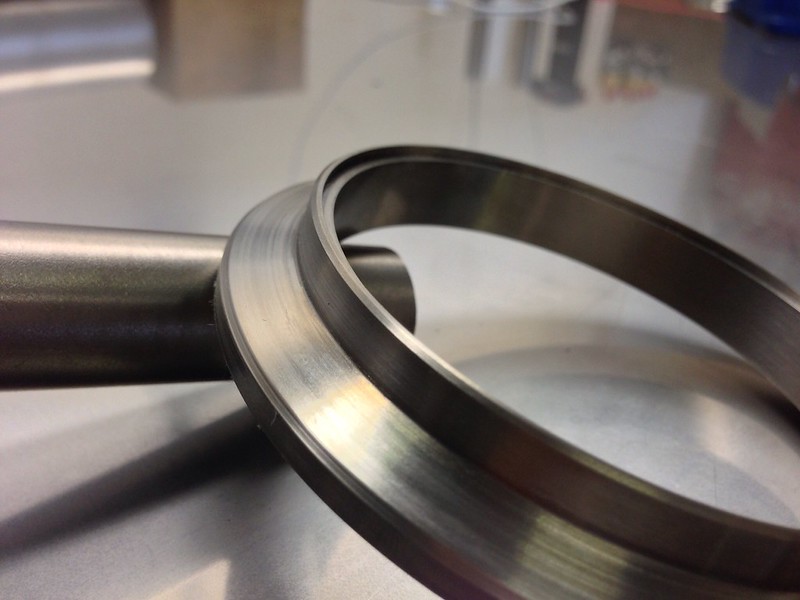

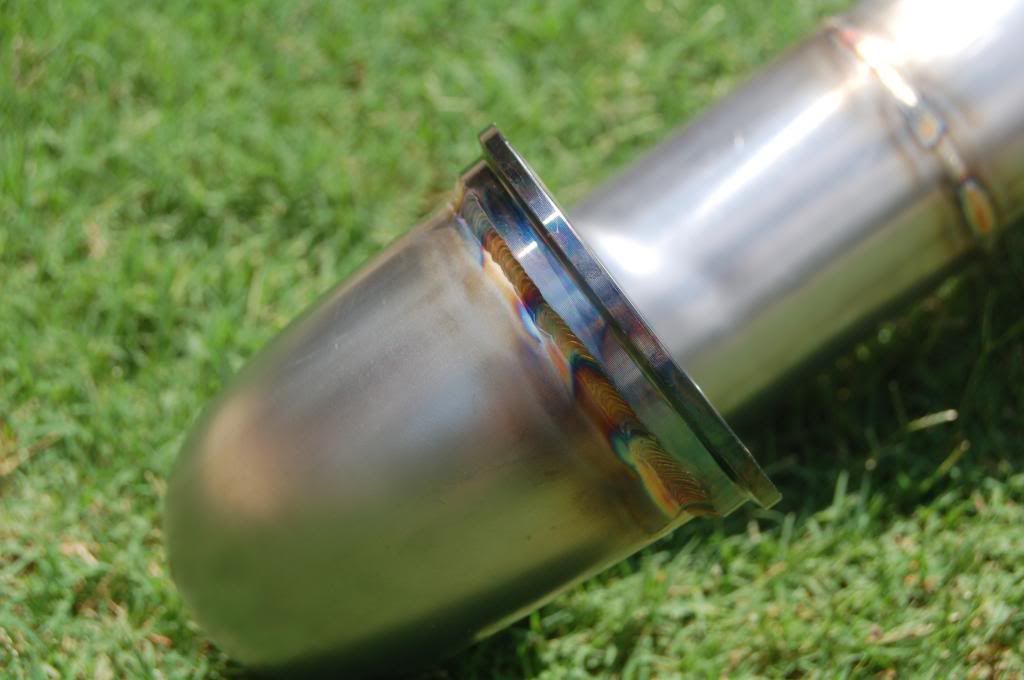

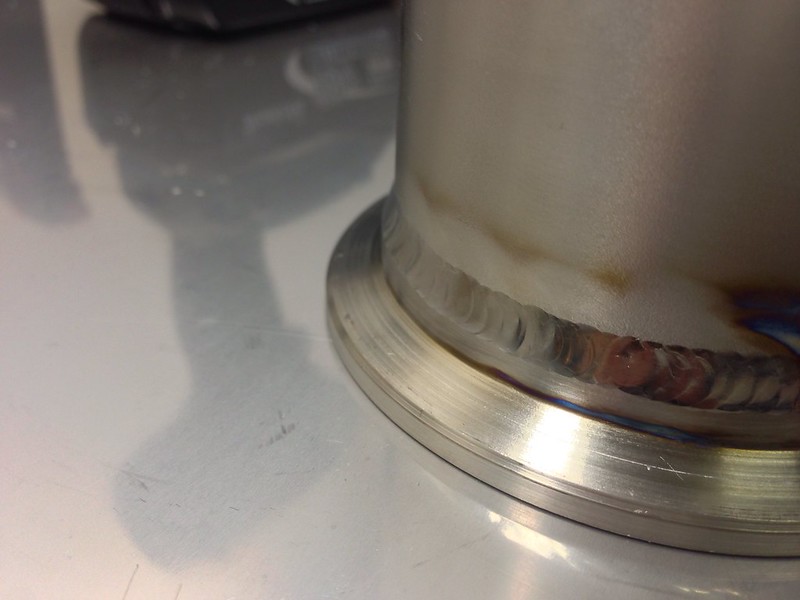

Titanium V-Band flange
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr

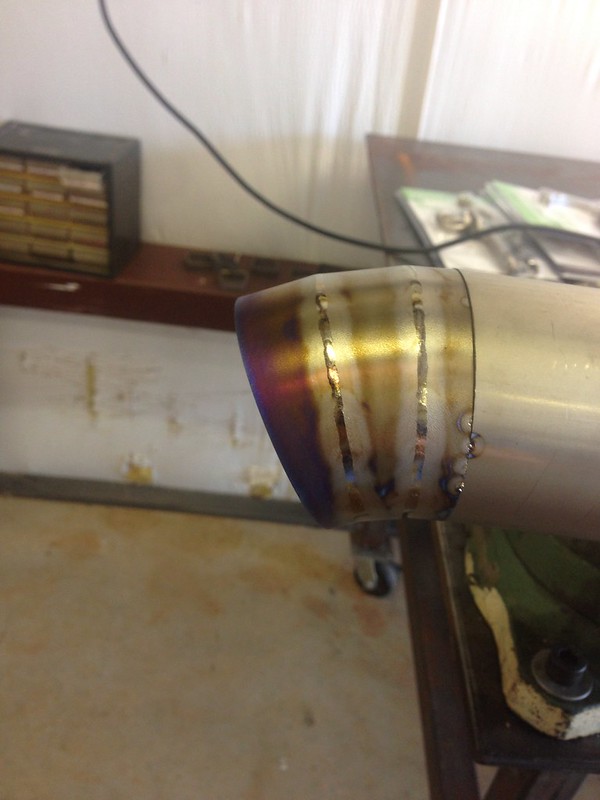

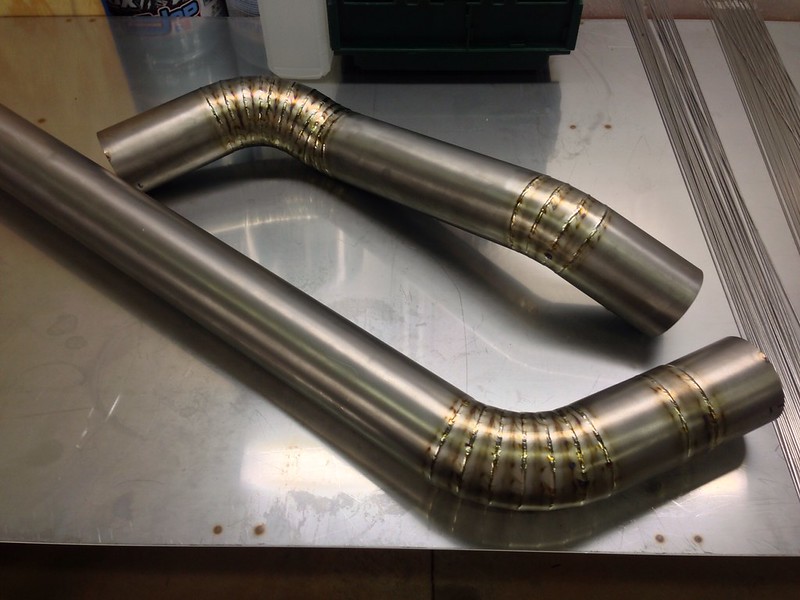

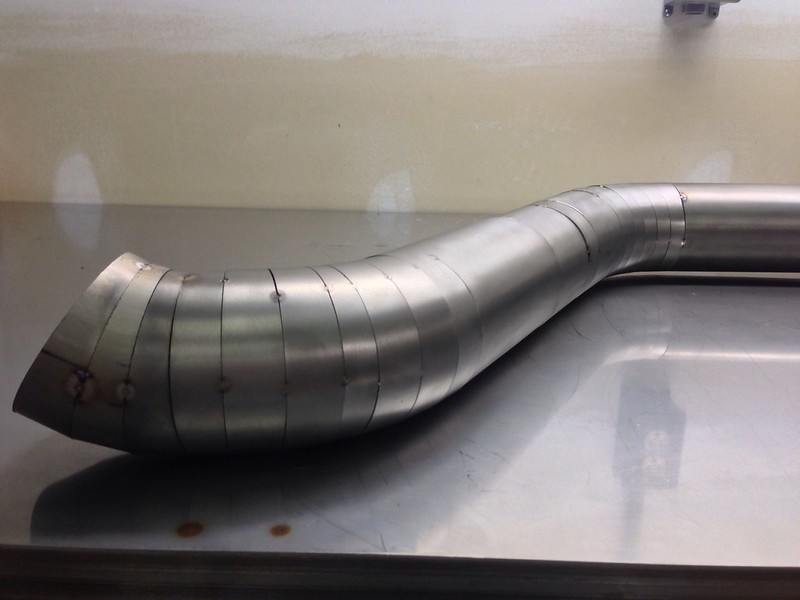

Pies Before Welding
Untitled by whitacre.alex, on Flickr

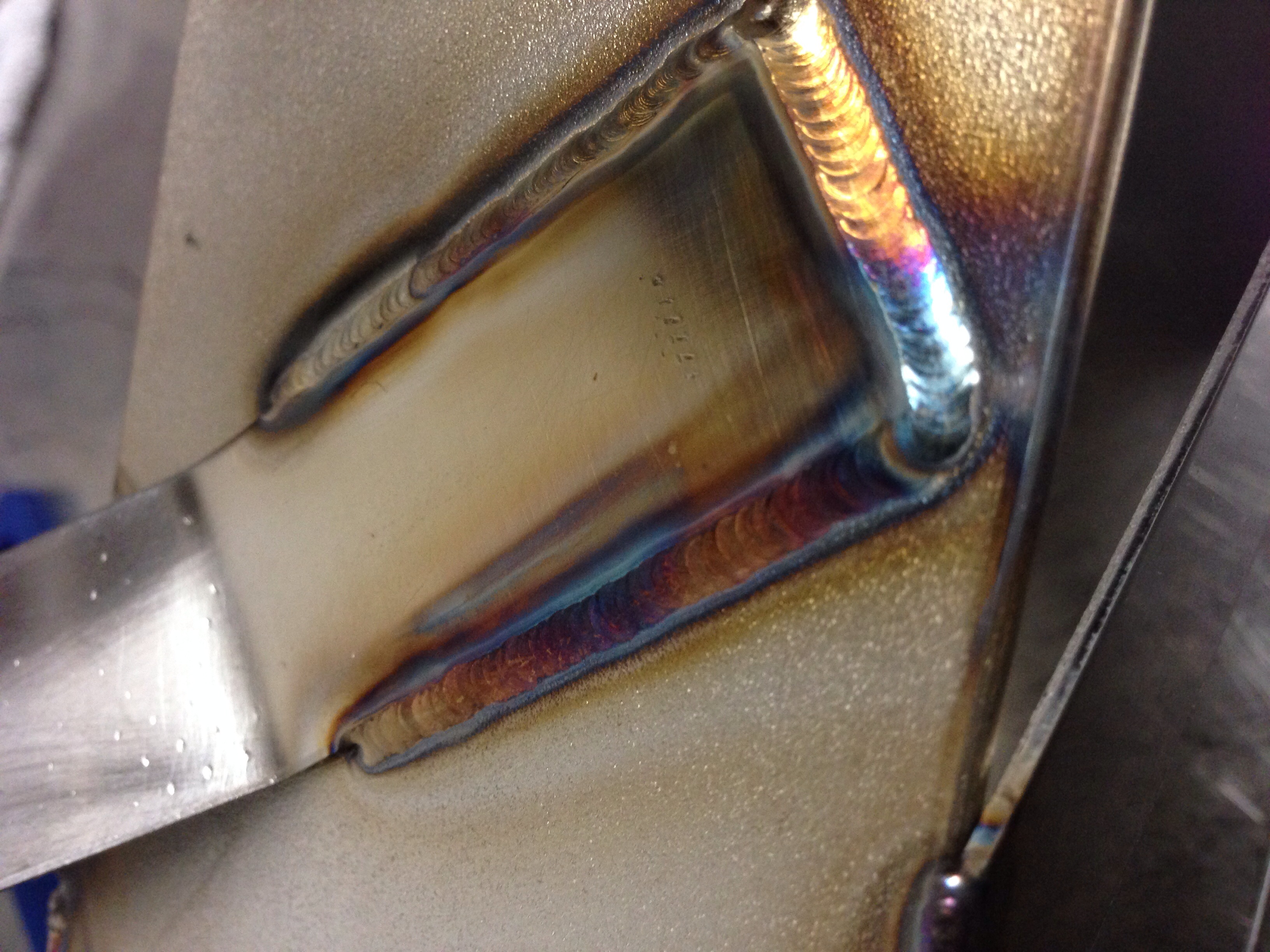

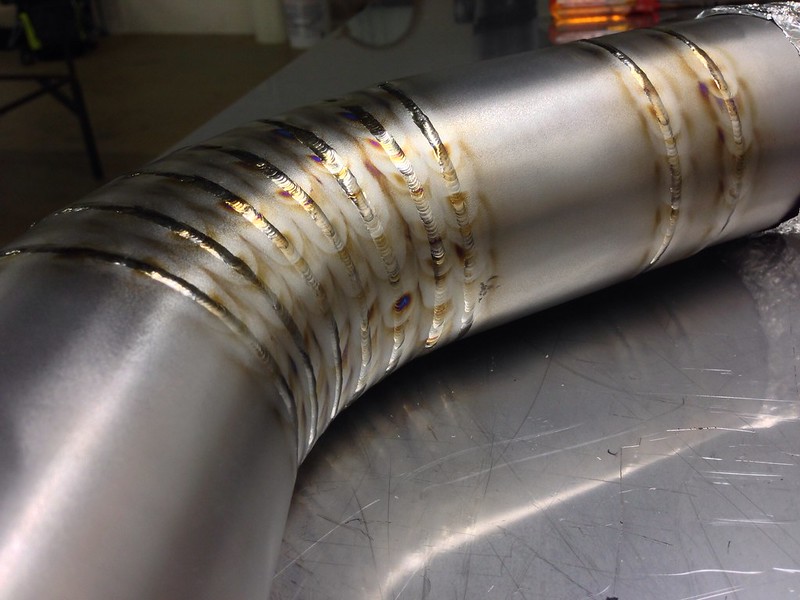

Shots of the welds
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr

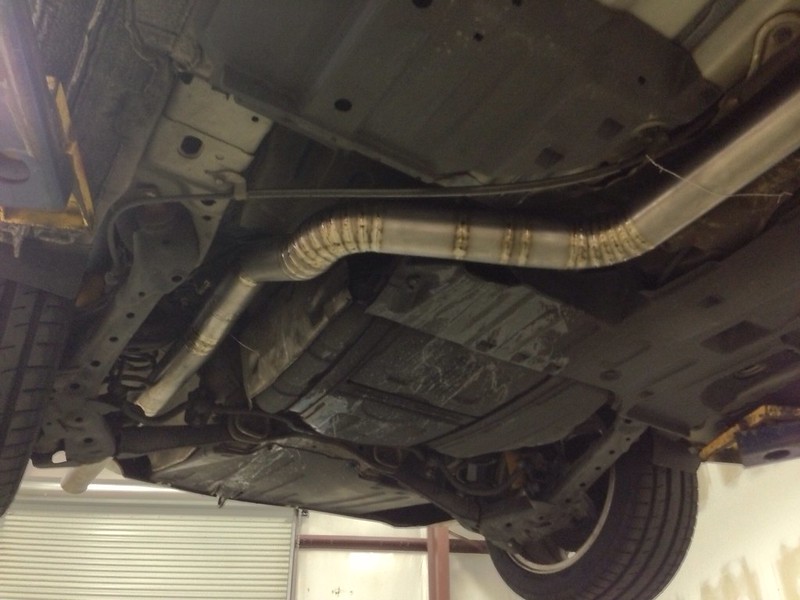

Now on the Car
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr

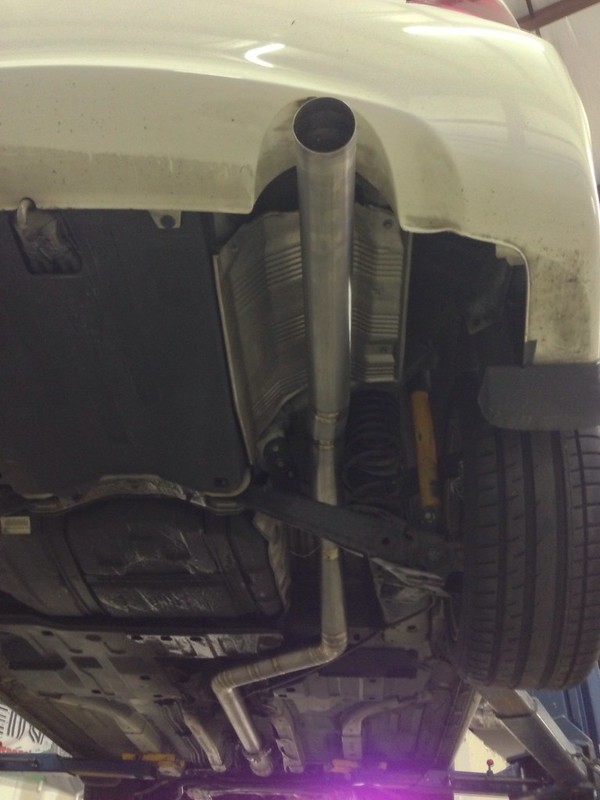

Turn down Tip
Untitled by whitacre.alex, on Flickr

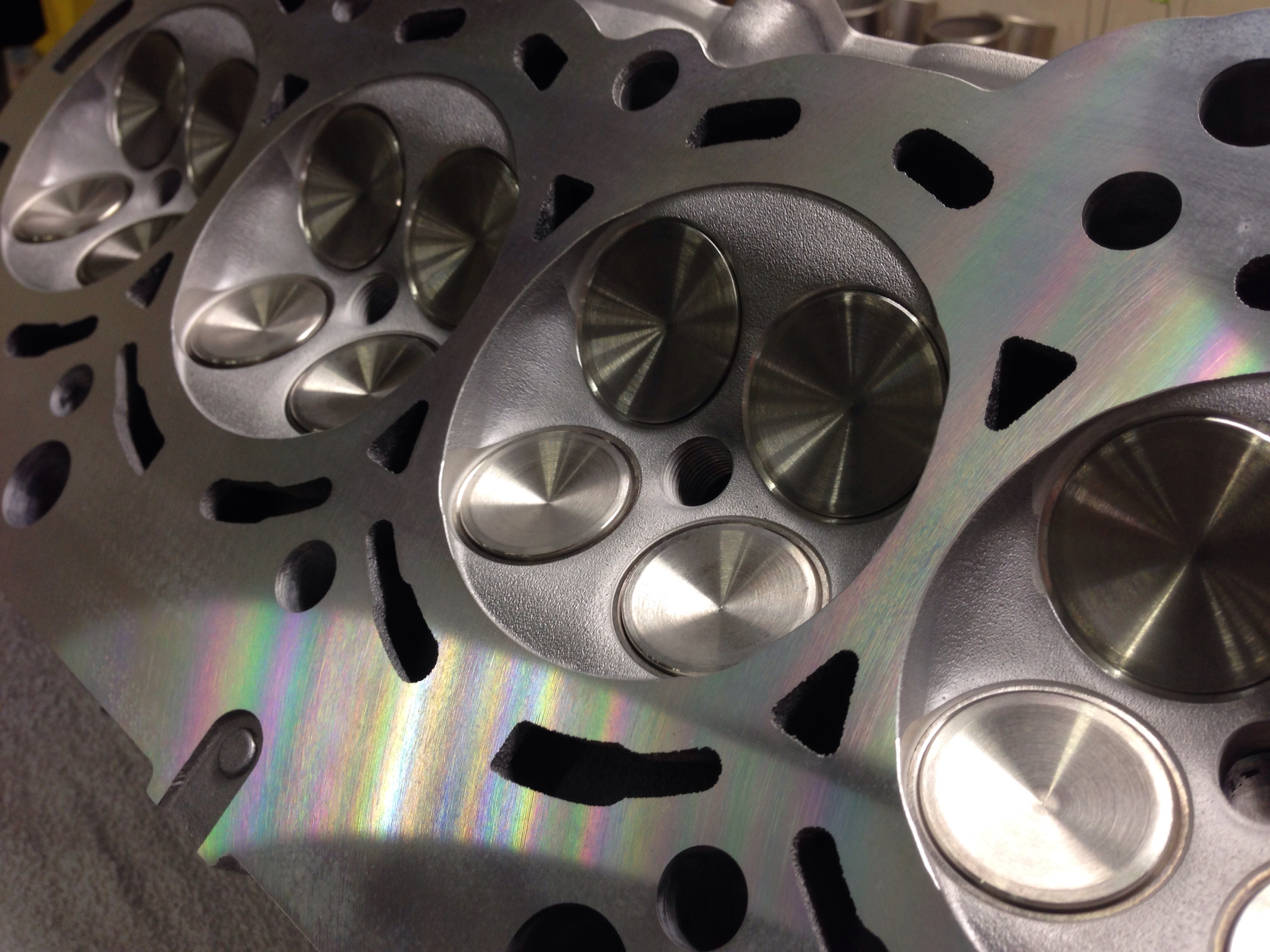

After the exhaust was put on the car, we got set to really trying to work the tune. But before this happened, some bad luck hit. Possibly due to some overheating immediately after install and some curiously loose head studs, my head gasket blew. On top of this, when the head was stripped it was discovered that I was sold the motor with 8 bent exhaust valves. Awesome. So I added new valvetrain to the mod list. Here are some pics of the head when it got back from the machine shop. I think it looks great
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr

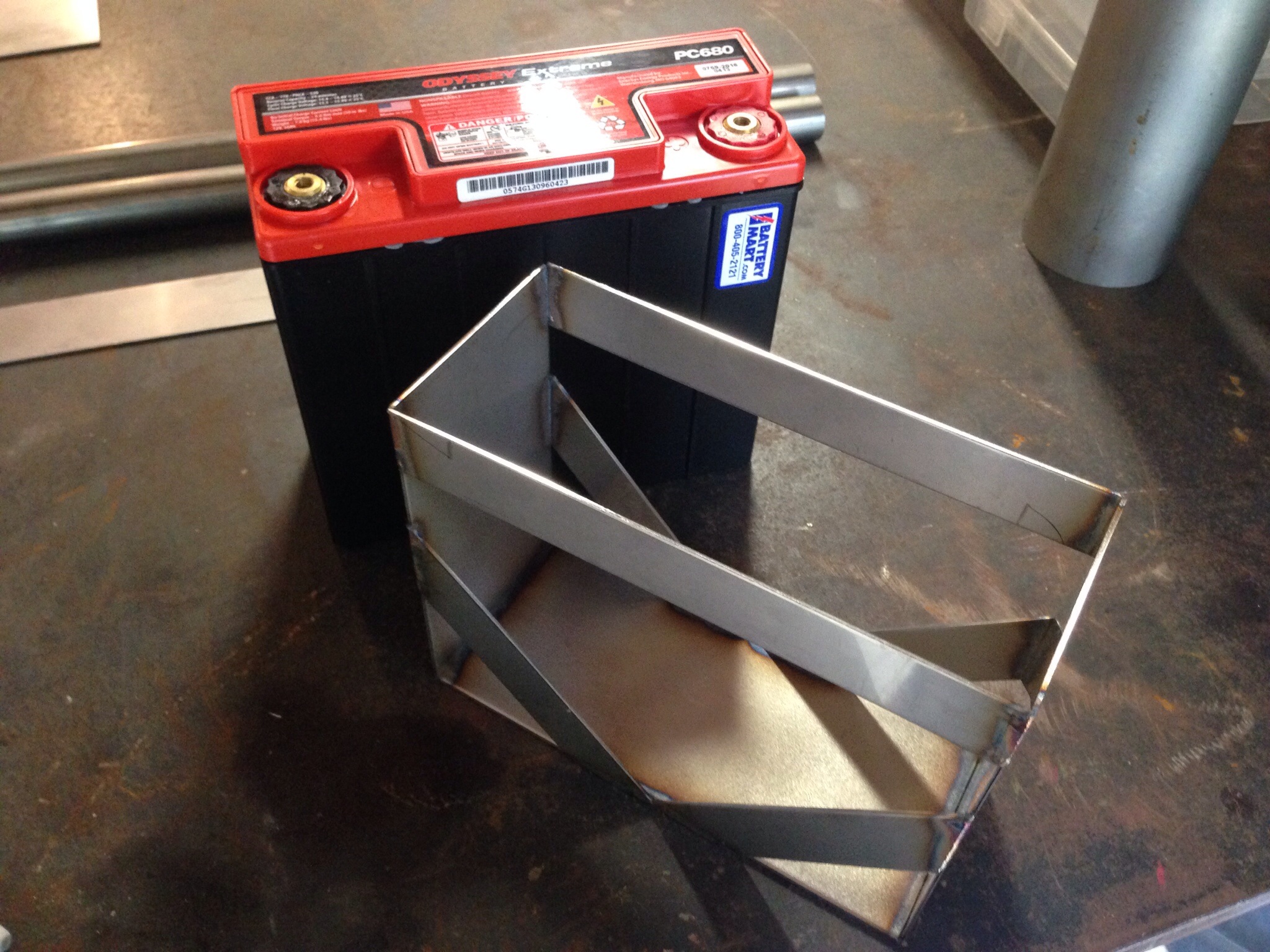

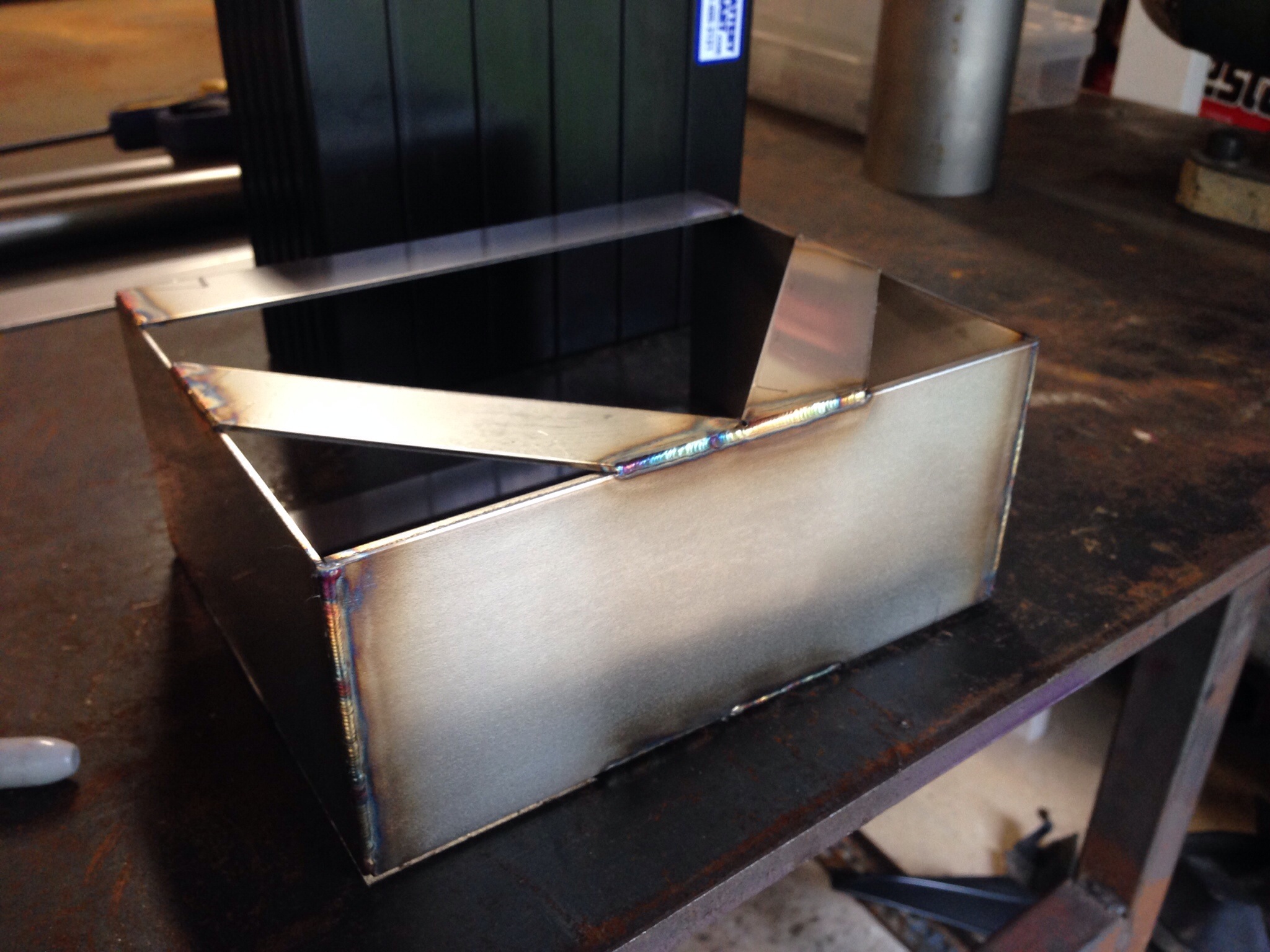

I also had a cute little Origin Fab Stainless Battery Box Made. Nice and Simple.
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr

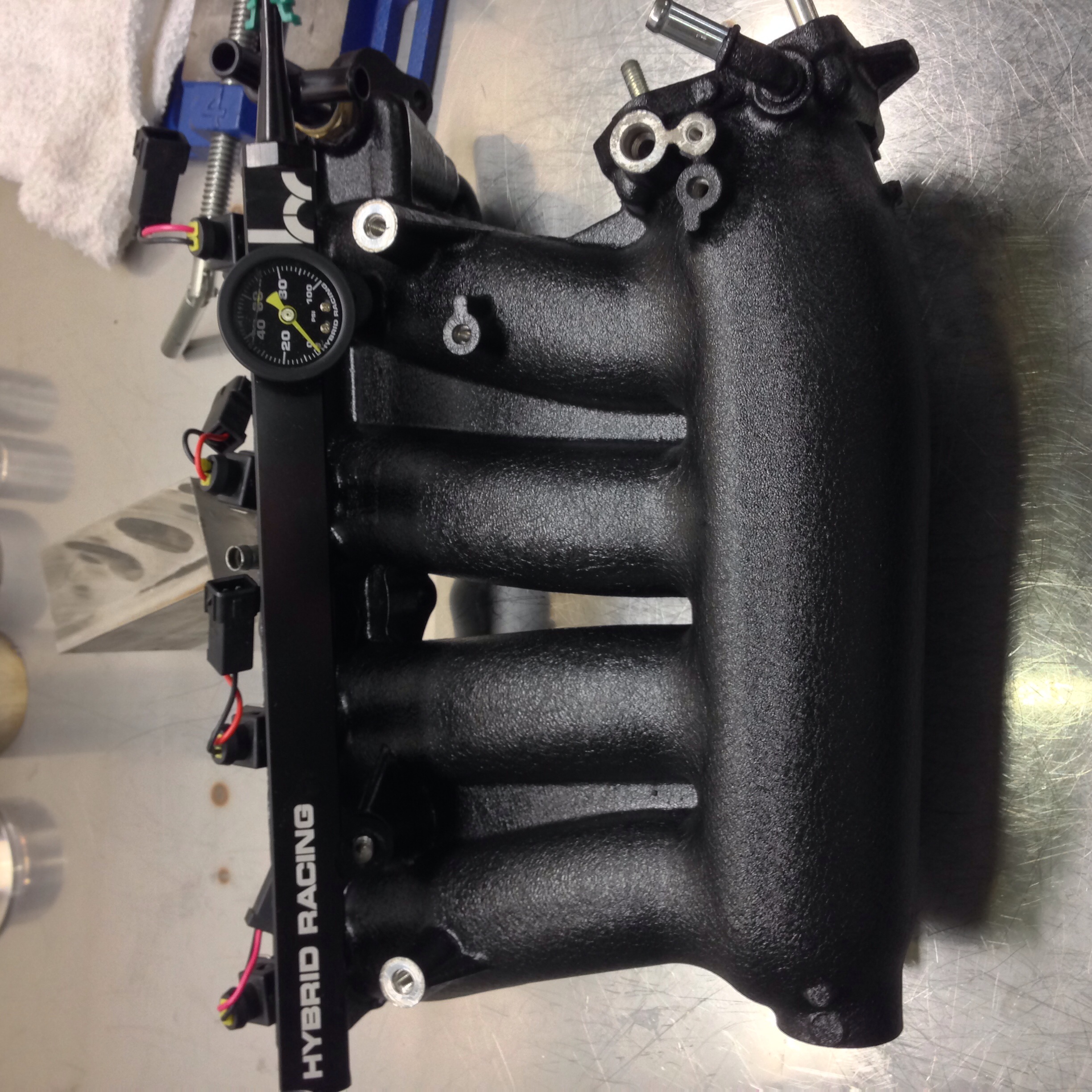

My IM got back from powdercoating today! Wrinkle black just like my charge pipes, the TB will be painted black as well.
I have the black Hybrid Racing oil cap and the black K-Tuned coil pack cover, and I want to have my valve cover powdecoated either candy white, gloss white or matte white. Any opinions?
Untitled by whitacre.alex, on Flickr

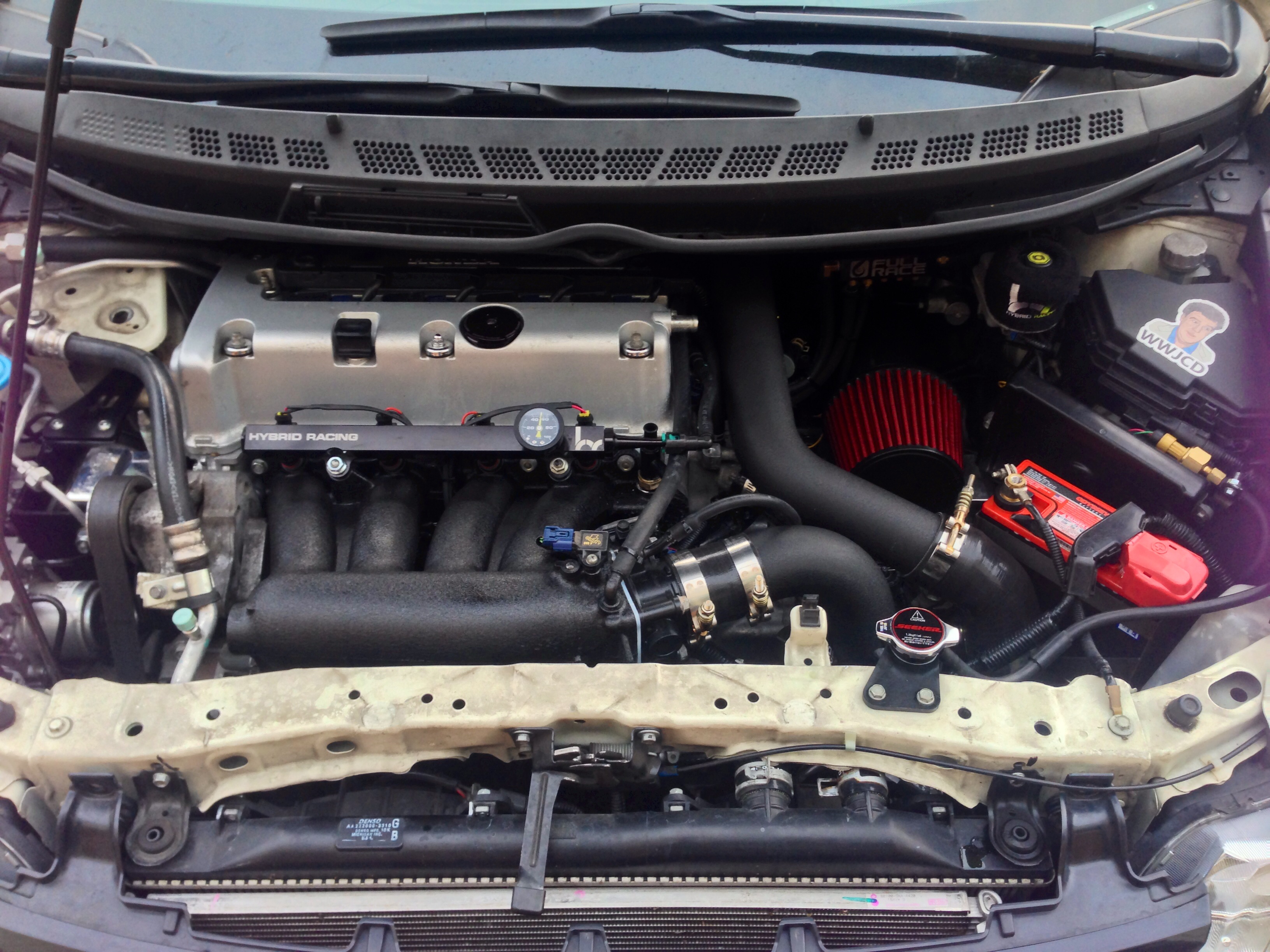

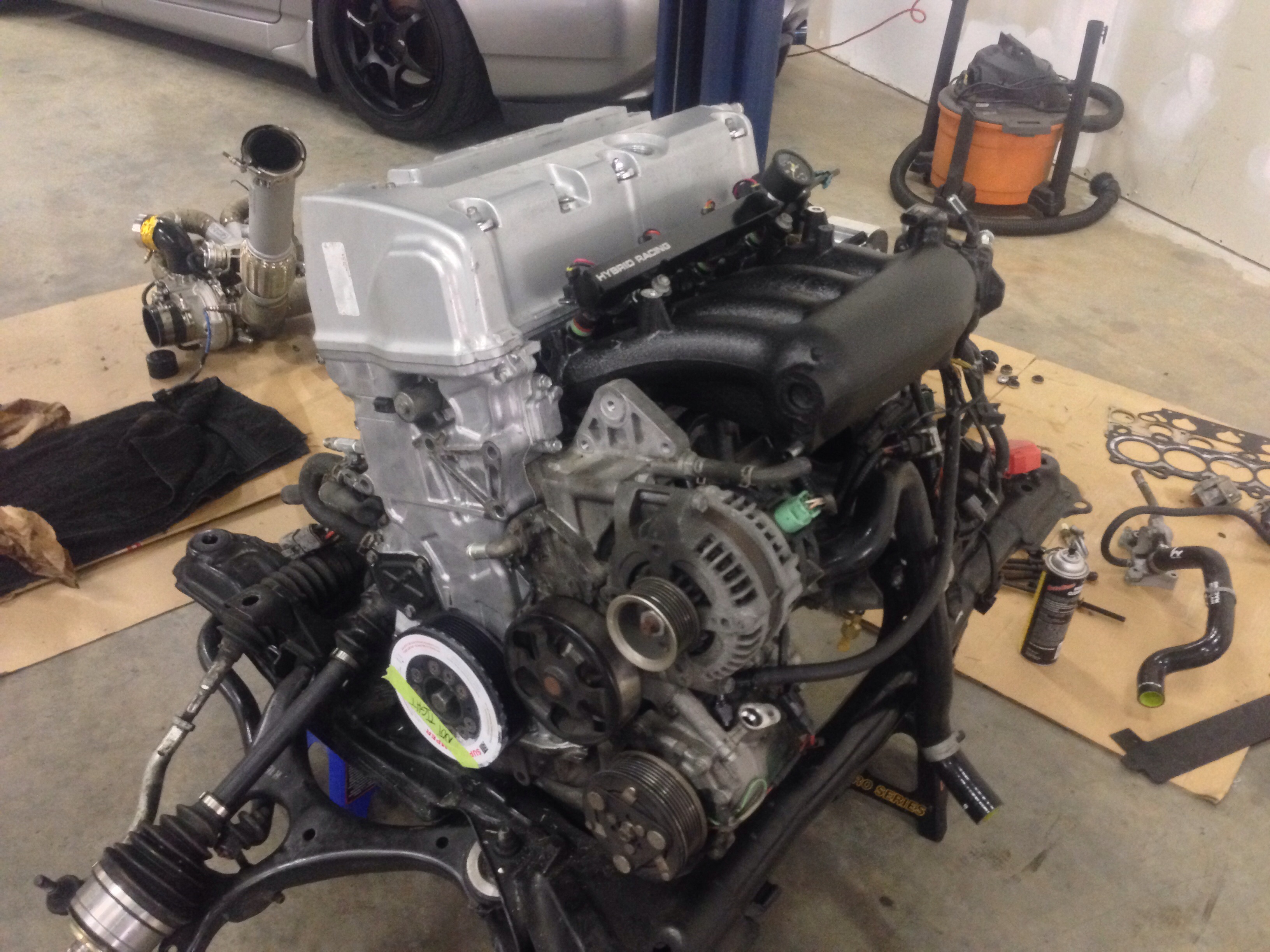

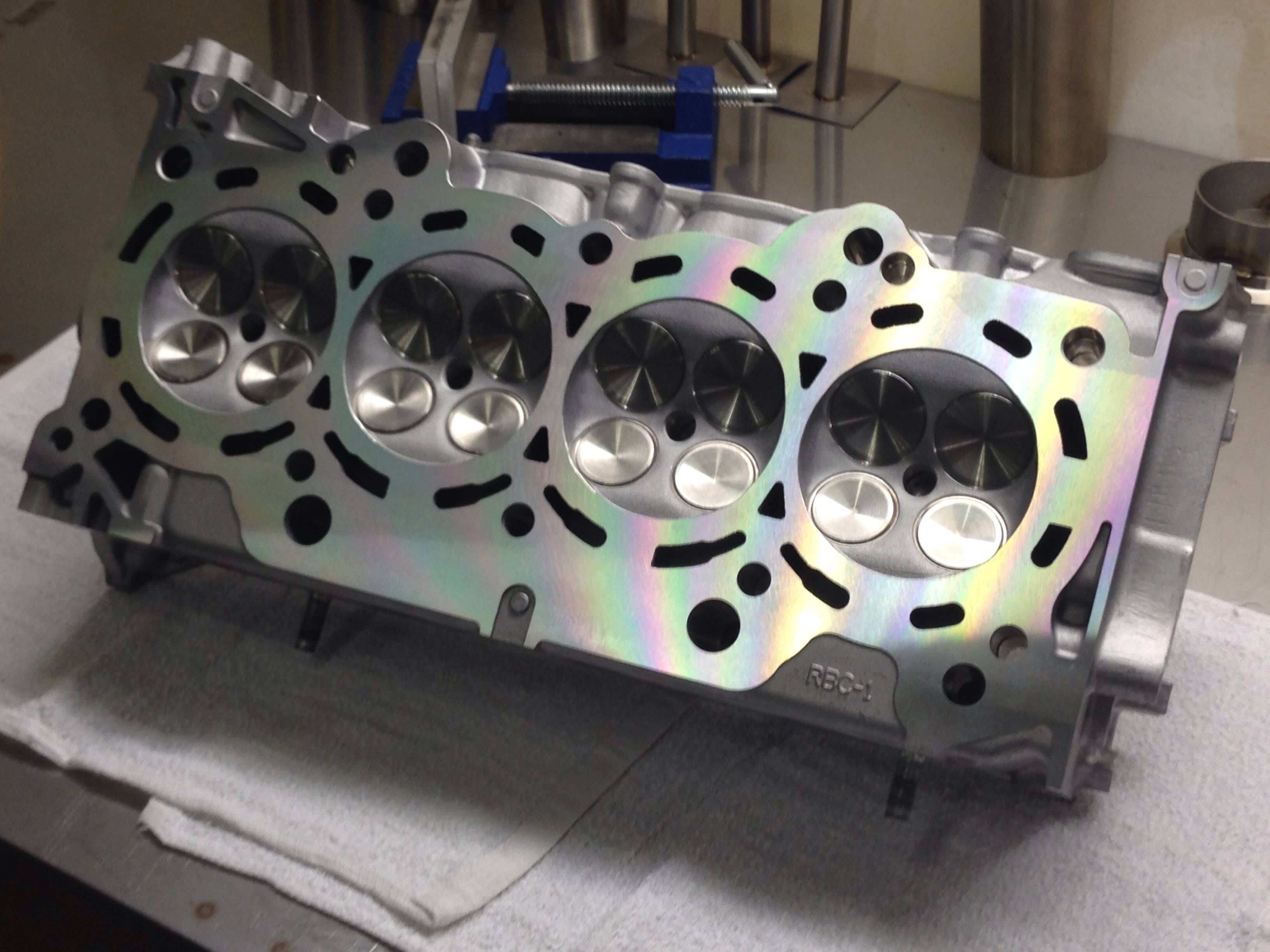

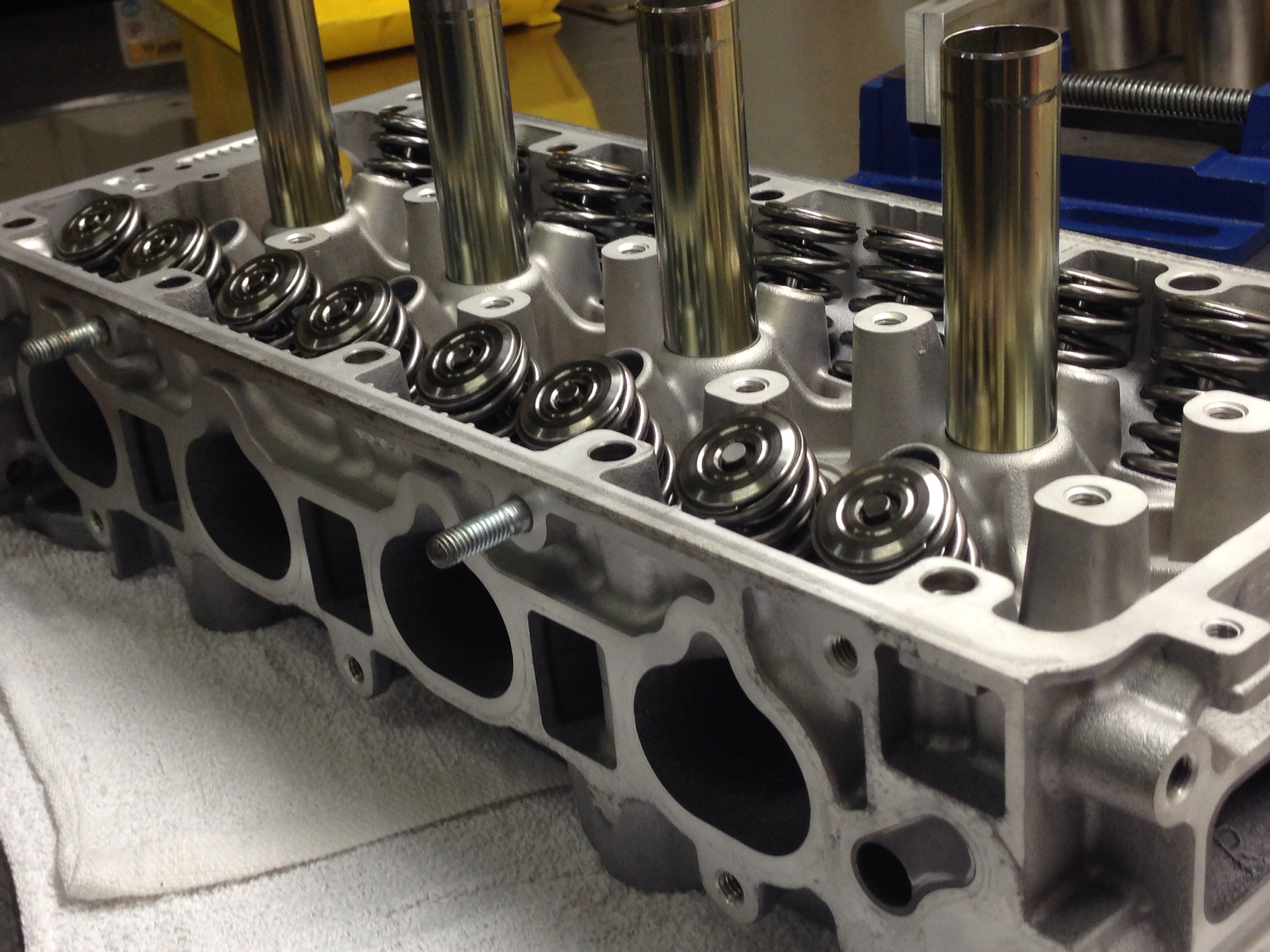

Progress! Motor is now totally assembled
Untitled by whitacre.alex, on Flickr
When the motor goes back into the car we will be tuning to a safe place. Stay tuned for vids and numbers
This build would have been DOOMED without the incredible amounts of help from Mark Abernathy, aka Origin Fabrication (https://www.facebook.com/Originfabrication) and would have been a lot more painful without the help of Geoff at Full-Race and a certain secret squirrel
I owe more thanks to you guys than you know!Current Mods/How It Sits
Untitled by whitacre.alex, on Flickr
Engine
- K20Z3
- Supertech Dual Springs
- Supertech Ti Retainers
- Supertech Seats
- OEM Pre-'04 Keepers
- Ferrea Competition Valves
- Ferrea Bronze Valve Guides
- ARP Head Studs
- Borg Warner EFR 7670 .83 A/R IWG
- Forge Billet Wastegate Actuator
- Full-Race T3 Tubular Ramhorn Manifold, Ceramic Coated & Heat Wrapped
- Full-Race 3" EFR Downpipe, V-Band Exit, Ceramic Coated & Heat Wrapped
- Full-Race Intercooler and Bumper Beam
- Full-Race 2.5" EFR Charge Piping
- Origin Fabrication true 3" V-Band Titanium Straight Pipe
- DEI Gold Foil (on everything!)
- Hasport 70a Full Mounts
- Omni 4 Bar MAP Sensor
- P2R Thermal IM Gasket
- P2R Thermal TB Gasket
- NGK 2669 Iridium Plugs
Fueling/Tuning
- Fuel Injector Clinic 1050cc SP Injectors
- Deatschwerks 300 Pump
- Crushed FPR
- Hondata Flashpro
- Dyno/Street Tune by Daniel of Church Automotive
Transmission
- Jo Tech Stage 2 Transmission
- Competition Clutch Twin Disc 'A'
- Hybrid Racing Short Shifter
- Hybrid Racing EM1 CMC Kit
- Hybrid Racing Cable Bushings
Suspension
- Full-Race Traction Balls
- Enkei Evo VIII Whels
- Continental DW 245/40/17 tires
- Koni Yellows
- Neuspeed Sport Springs
- Ingalls Camber Bolts/Sliders
- Best Suspenstion-Spec Aggresive Street Alignment
Brakes
- Acura TL-S Brembos
- Acura TL-S BMC
- Brembo Blanks (F) Centric Blanks (R)
- StopTech Pads
- Goodridge Stainless Lines
- ATE SuperBlue Fluid
Interior/Exterior/Looks
- Origin Fabrication Battery Box
- Odyssey PC680 Battery
- Excelerate Gauge Pod V1
- AEM Digital Wideband/Boost Gauges
- Spoon Duracon Shift Knob
- Full-Race Vaccuum Block
- Hybrid Racing Fuel Rail
- Hybrid Racing Fuel Pressure Gauge
- Hybrid Racing Oil Cap
- Hybrid Racing Radiator Hoses
- Seeker Radiator Cap
- K-Tuned Coil Pack Cover
- Red JDM Badges + Red J's Steering Wheel Badge
- GRFXP Red Tail Light Overlays
- Chrome Trunk Piece Painted TW
- Nokya Yellow DRLs
- FD2R Key Fob <---- Baller Status
So this past summer I decided to sell my K20/24 with the intent of doing what I consider the 'holy grail' of Si performance mods, turbocharging. I was able to sell my entire setup for a stock K20 and cash on top. I decided on purchasing a Full-Race EFR kit with the 7670, as I admire Full-Race's quality and the EFR is definitely a unique turbo with a lot to offer. If you want to see pics of the actual install or are interested in going turbo, I highly suggest you read this: http://www.8thcivic.com/forums/turb...our-stock-si-boost-properly.html#post12760257
Some Pics of my Manifold and Intercooler
I chose the twin disc because I knew it would never slip, and if I decide to really go nuts with the power I will not need to upgrade again.
Downpipe, welds look great!
After we got the turbo kit on, I realized that I needed an exhaust since I sold my awesome Full-Race unit with my K24. I decided to do something pretty different, and got a custom Origin Fabrication 3" Titanium Straight Pipe. This is probably the most incredible thing on my car from a craft standpoint. It is quieter around town and highway cruising inside the car than the Full-Race was before (thanks to the turbo), and sounds full-on ridiculous at WOT. Not to mention the entire thing weighs 9 pounds! Mark is truly great with Ti. Since some people have asked, here is Origin Fab's facebook page for some weld porn/contact info https://www.facebook.com/Originfabrication
Some Facts:
- All 3" ID American-Made Ti
- All bends pie cut
- Entirely hand welded by Mark Abernathy, aka Origin Fabrication
- V-Band flange hand turned out of a solid block of Ti, also by Mark
- took over 25 hours for Mark to complete the exhaust
- I'm trying to decide if I like the turn-down or if a straight tip would be better
Titanium V-Band flange
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Pies Before Welding
Untitled by whitacre.alex, on Flickr
Shots of the welds
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Now on the Car
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Turn down Tip
Untitled by whitacre.alex, on Flickr
After the exhaust was put on the car, we got set to really trying to work the tune. But before this happened, some bad luck hit. Possibly due to some overheating immediately after install and some curiously loose head studs, my head gasket blew. On top of this, when the head was stripped it was discovered that I was sold the motor with 8 bent exhaust valves. Awesome. So I added new valvetrain to the mod list. Here are some pics of the head when it got back from the machine shop. I think it looks great
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
I also had a cute little Origin Fab Stainless Battery Box Made. Nice and Simple.
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
Untitled by whitacre.alex, on Flickr
My IM got back from powdercoating today! Wrinkle black just like my charge pipes, the TB will be painted black as well.
I have the black Hybrid Racing oil cap and the black K-Tuned coil pack cover, and I want to have my valve cover powdecoated either candy white, gloss white or matte white. Any opinions?
Untitled by whitacre.alex, on Flickr
Progress! Motor is now totally assembled
Untitled by whitacre.alex, on Flickr
When the motor goes back into the car we will be tuning to a safe place. Stay tuned for vids and numbers
But once things are running as they should I want to come to more Atlanta meets if you have them.
