DIY Clutch Delay valve Removal

Discussion in 'Engine DIY' started by Mikex18, Aug 11, 2013.

  1. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    2,583
    Location:
    Fayetteville, NC
    Vehicle Model:
    civic ex
    Body Style:
    coupe
    Has anyone attempted this without taking the assembly out of the car? Is there any reason you need to other than a possible space issue? Just don't have anyone to help bleed the clutch, so if I can do it without removing it would be a big help to me...

    Sent from my SM-N920V using Tapatalk

  2. squiggy
    • Staff

    squiggy Cartographer

    Messages:
    10,922
    Location:
    Michiana
    Vehicle Model:
    '12 Civic Si
    Body Style:
    DBP II Coupe
    No way in hell you are getting the C clip out without taking the assembly out of the car. Order a speed bleeder so you can bleed the clutch yourself.

    JonnyRotten and Sarcras like this.
  3. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    2,583
    Location:
    Fayetteville, NC
    Vehicle Model:
    civic ex
    Body Style:
    coupe

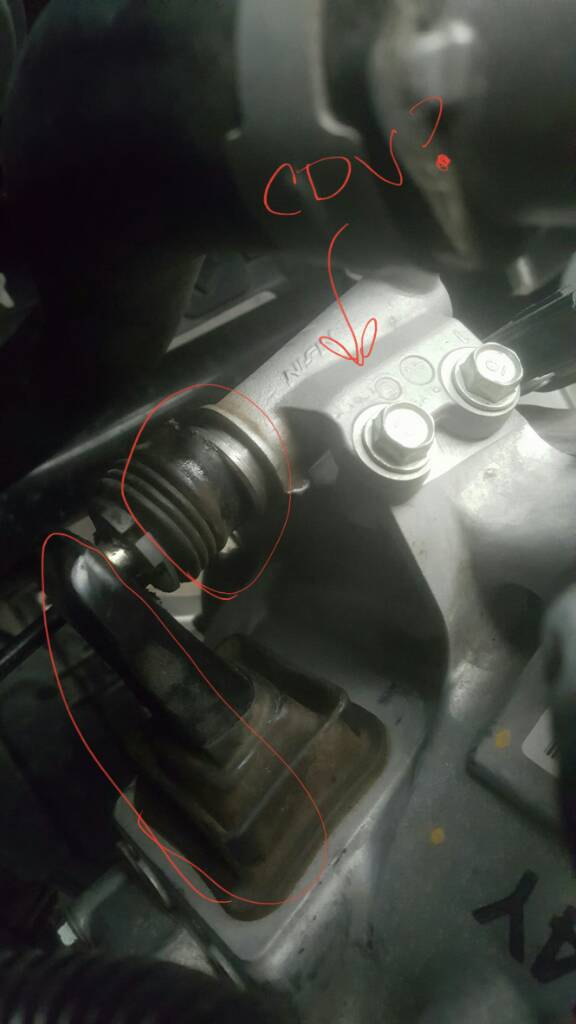

    Damn...guess this project will have to wait until I get back. Got a question about this picture though. This is my cdv, right? How do I disconnect the two pieces to even get the cdv off? Don't wanna break anything.

    Sent from my SM-N920V using Tapatalk

  4. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    2,583
    Location:
    Fayetteville, NC
    Vehicle Model:
    civic ex
    Body Style:
    coupe
    [​IMG]
    Sorry, this was the picture I was referencing above.

    Sent from my SM-N920V using Tapatalk

  5. dpetro1

    dpetro1 Well-Known Member

    Messages:
    414
    Location:
    Catonsville, MD
    those two pieces are not attached to each other. you will see once you remove the bolts. the slave cylinder pushes out on the release fork when you shift.

    bauer311 likes this.
  6. ron v
    • 2019 Toys For Tots

    ron v The good, the bad, and the booty

    Messages:
    3,911
    Location:
    Escondido
    Vehicle Model:
    Hot fuego
    Body Style:
    Landscaper Truck
    Cdv is on the very right of that pic. Those 2 bolts hold the sc on I'm thinking. once u get in there with more room it'll make sense to u.

    bauer311 likes this.
  7. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    2,583
    Location:
    Fayetteville, NC
    Vehicle Model:
    civic ex
    Body Style:
    coupe
    Thanks @dpetro1 and @ron v. Just wanted to make sure I'm not trying **** up. May get after this after all, doesn't seem too complicated. Now I gotta find a speed bleeder....prolly got them at pep boys or something.

    Sent from my SM-N920V using Tapatalk

  8. dpetro1

    dpetro1 Well-Known Member

    Messages:
    414
    Location:
    Catonsville, MD
    should be m8x1.25 on the bleeder

  9. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    2,583
    Location:
    Fayetteville, NC
    Vehicle Model:
    civic ex
    Body Style:
    coupe
    So, I was being stubborn and took the valve body apart only to discover there's no c clip, white thing or black thing like the pics at the beginning of the build thread show. I was able to pull out the "cylinder" and behind it was a spring, that's it. Are maybe the ex's different than the si's?

    Sent from my SM-N920V using Tapatalk

    ron v likes this.
  10. zrksi

    zrksi Well-Known Member

    Messages:
    22
    Bro I remember reading in a thread that the CDV for non-si's are located in the master cylinder, not the slave. It's not the same. I'll try to find the post, but its not in the same location

    PainlessCandy likes this.
  11. zrksi

    zrksi Well-Known Member

    Messages:
    22
    found it
    Posted by another member on page 13

    If the '12 EX is similar to the '12 Fit, they included the CDV inside the Clutch Master Cylinder (not in a separate slave cylinder like the Si). If this is the case, the only way to do the CDV delete is to replace the entire CMC with one that does not have a CDV inside, like from an older model Civic. I personally have not seen anyone try to do the CDV delete in anything but an Si, but here is a Fit forum thread where they had to replace the entire CMC. Doesn't look too difficult, just a matter of finding the right replacement parts.
    http://www.fitfreak.net/forums/fit-diy-repair-maintenance/76598-clutch-delay-valve-delete-diy.html

    ron v and dpetro1 like this.
  12. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    2,583
    Location:
    Fayetteville, NC
    Vehicle Model:
    civic ex
    Body Style:
    coupe
    Thanks for the info brotha. Guess I can skip those plans for a while, lol

    Sent from my SM-N920V using Tapatalk

  13. ron v
    • 2019 Toys For Tots

    ron v The good, the bad, and the booty

    Messages:
    3,911
    Location:
    Escondido
    Vehicle Model:
    Hot fuego
    Body Style:
    Landscaper Truck
    My lil cousin came into town and begged and pleaded for me to do his. Funny. This one took me less then an hour start to finish.


    PainlessCandy and JonnyRotten like this.
  14. mazda_lexus

    mazda_lexus Well-Known Member

    Messages:
    204
    Myyy turrrrnnnnnnnnnnnnn


    Sent from my iPhone using Tapatalk

    ron v likes this.
  15. bauer311
    • Supporting Member

    bauer311 Supporting Member

    Messages:
    2,583
    Location:
    Fayetteville, NC
    Vehicle Model:
    civic ex
    Body Style:
    coupe
    The experience from doing yours must have sped up the process @ ron v

    Sent from my SM-N920V using Tapatalk

  16. ron v
    • 2019 Toys For Tots

    ron v The good, the bad, and the booty

    Messages:
    3,911
    Location:
    Escondido
    Vehicle Model:
    Hot fuego
    Body Style:
    Landscaper Truck
    I'm leaving town next weekend but I can probably do it Friday afternoon like 330-4. Besides that I won't be able to do it for a while. U come up here too. I'm not battling that traffic. Lol.

    And a disclaimer. I'm not a master certified pro mechanic nor do I claim to be. I just like to work on cars. So with that in mind, let me know.

    mazda_lexus likes this.
  17. ron v
    • 2019 Toys For Tots

    ron v The good, the bad, and the booty

    Messages:
    3,911
    Location:
    Escondido
    Vehicle Model:
    Hot fuego
    Body Style:
    Landscaper Truck
    I think I have an extra speed bleeder too

    mazda_lexus likes this.
  18. mazda_lexus

    mazda_lexus Well-Known Member

    Messages:
    204
    When'll you be available next? I probably can do Friday. Where are you located


    Sent from my iPhone using Tapatalk

  19. JonnyRotten

    JonnyRotten Well-Known Member

    Messages:
    1,673
    Location:
    Mississauga, Ontario, Canada
    Vehicle Model:
    Civic Si
    Body Style:
    coupe
    I just placed my order with Speed Bleeder for the F/R brakes and the master cylinder.
    Thanks @jsyn77 for the part numbers.

  20. JonnyRotten

    JonnyRotten Well-Known Member

    Messages:
    1,673
    Location:
    Mississauga, Ontario, Canada
    Vehicle Model:
    Civic Si
    Body Style:
    coupe
    Can someone please confirm the sizes of the Speed Bleeders for our cars.
    I ordered a bunch of Speed Bleeders based on the info @jsyn77 posted and it's wrong :mad:

    I'm thinking that @trustdestruction has the proper information because it looks like he did some research.

    The part numbers in @jsyn77 post are definitely wrong.

    I need to know the sizes for both the front and rear brake callipers and the clutch slave cylinder.
    I don't want to get into these projects only to find out that I have the wrong bleeders and make a whole bunch more work for myself unnecessarily.

    @webby can you help?
