Flights 97 Ex build thread

Discussion in 'Build Threads' started by Flightmaster127, Sep 13, 2014.

  1. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    50,003
    so just the wilwood up front I'm guessing... since you just did the rear rotors?

  2. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    yeah its just the front kit. they make a big brake kit for the rear but i thought that was a bit overkil.

  3. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan

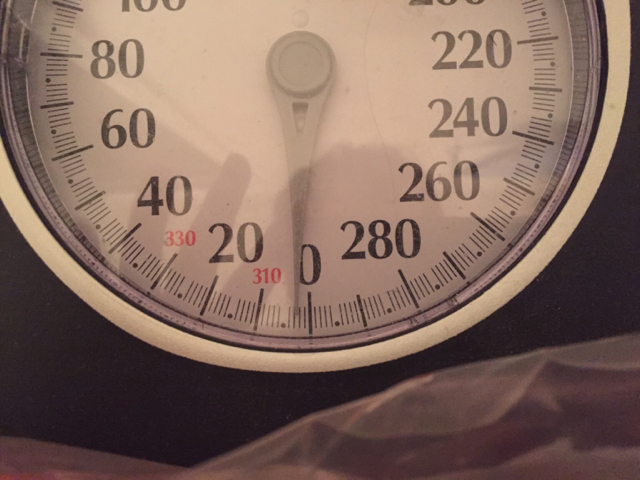

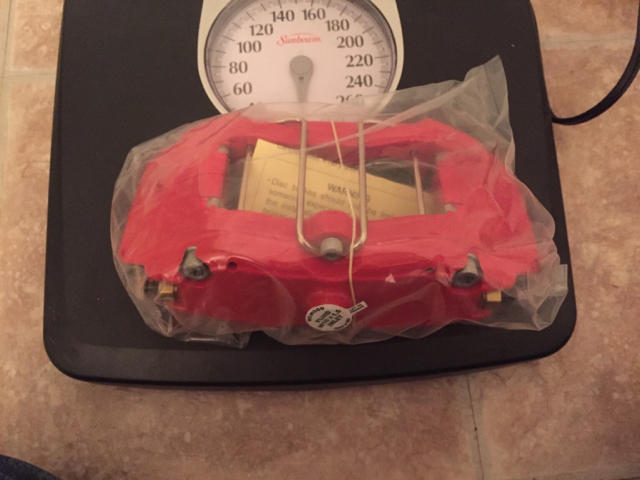

    Calipers came in. I got the chance to weigh one of the new ones last night. Looks like there about 2.5-3lbs each. I will weigh the stock one when I get it off the car.
    [​IMG][​IMG]

    Dar-Dar, Nix, webby and 1 other person like this.
  4. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    [​IMG]
    [​IMG]
    [​IMG]

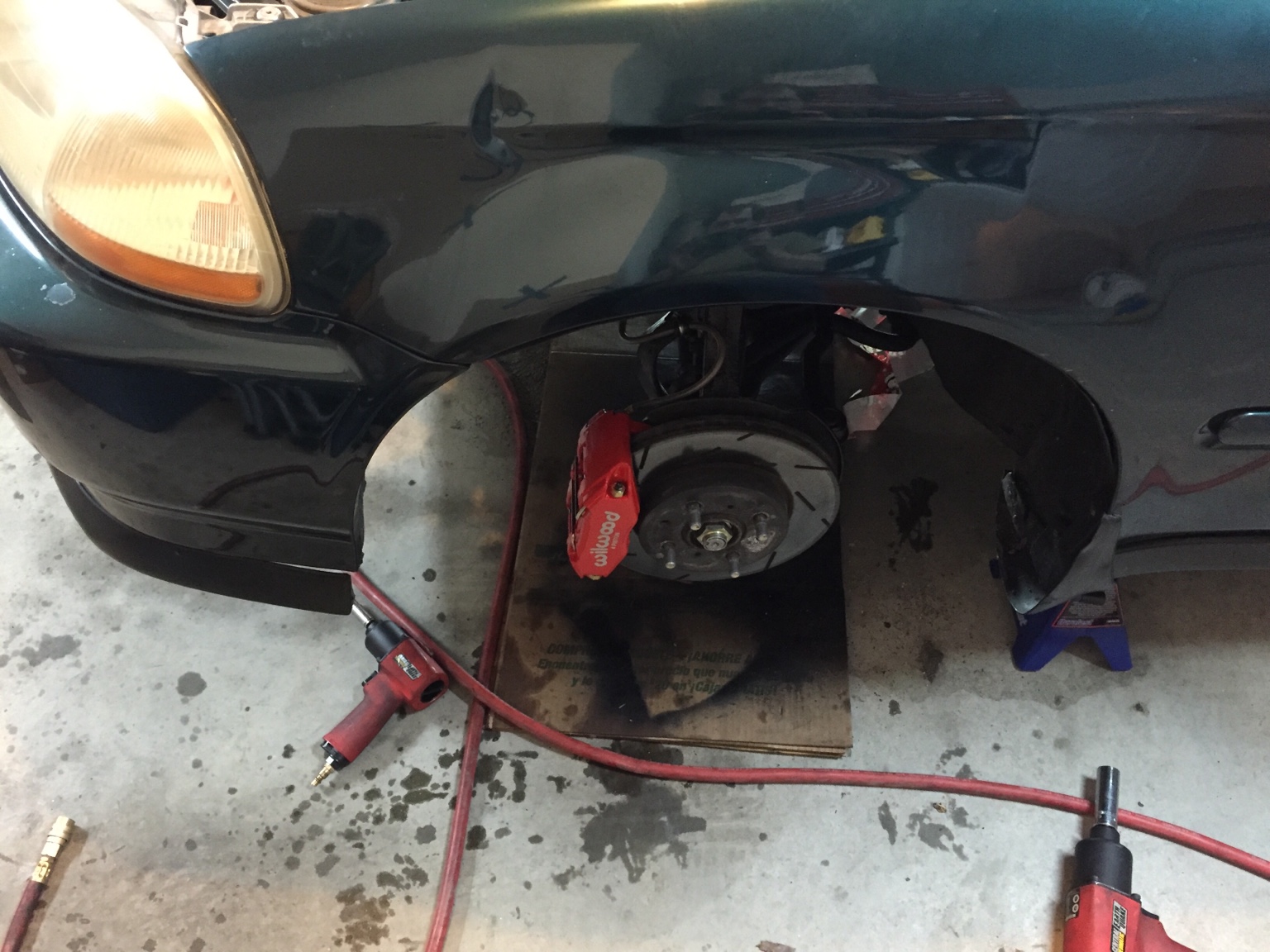

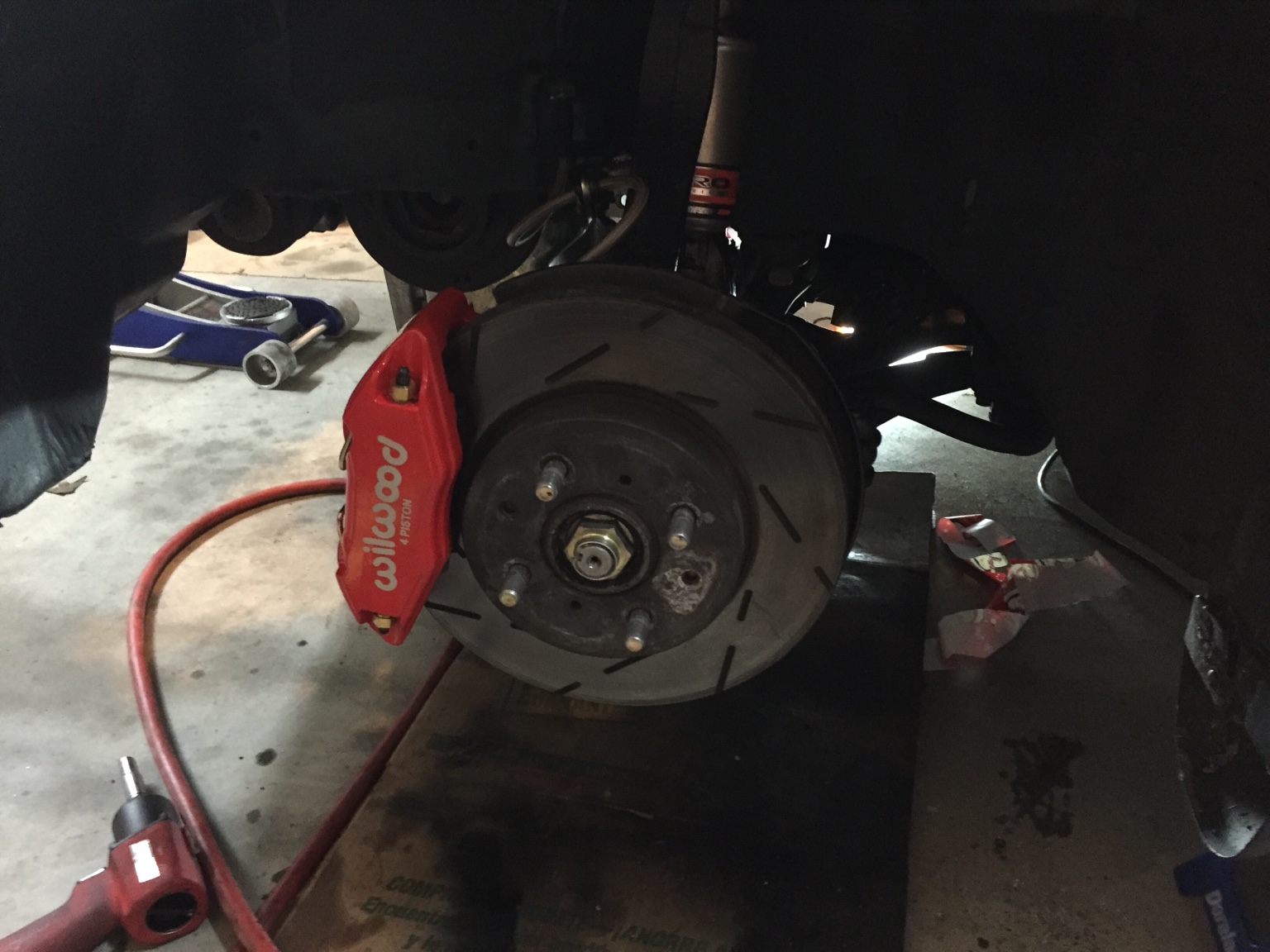

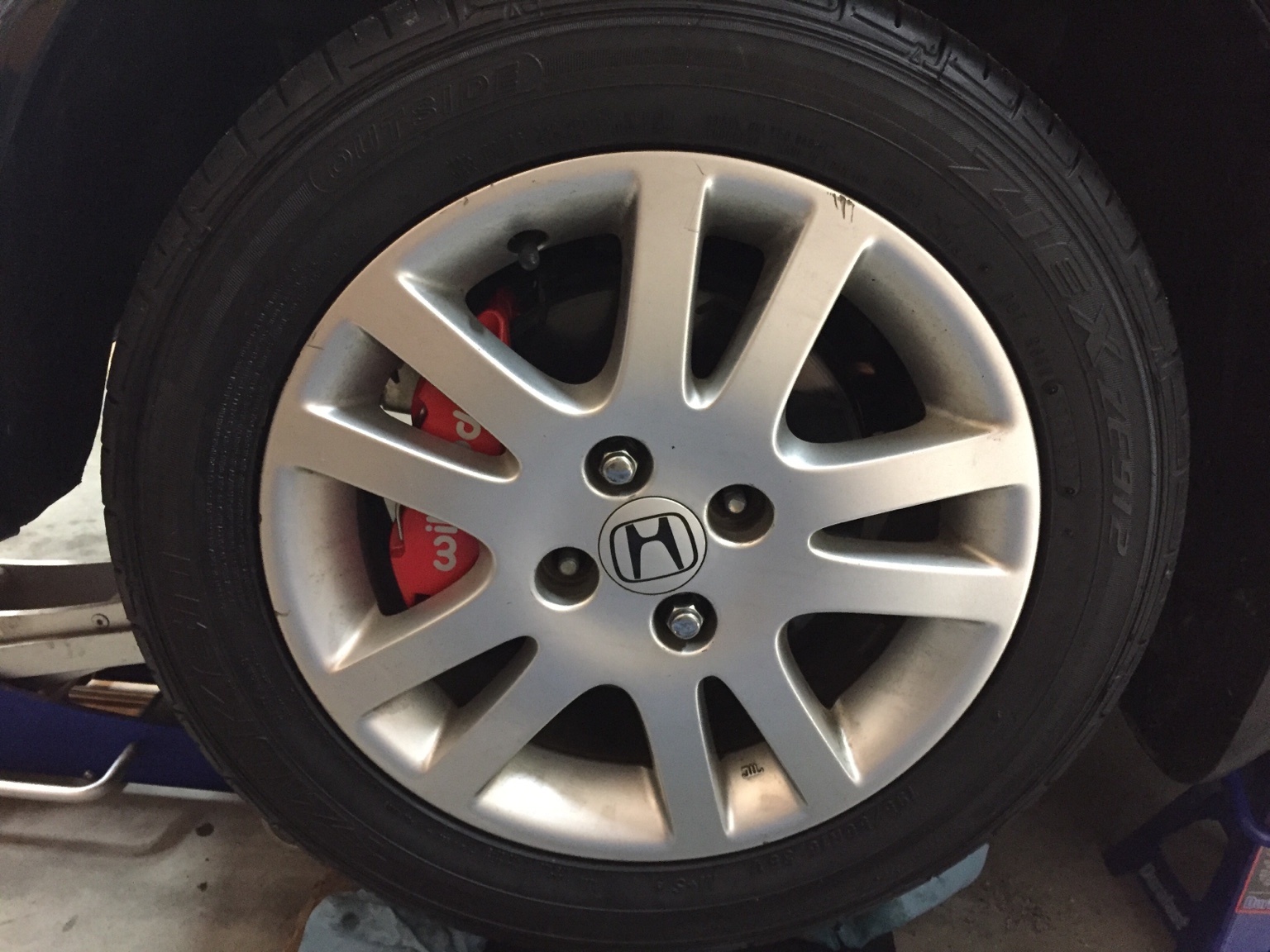

    These found their way on the car over my extended weekend. Also replaced the rear wheel bearings since I wasn't happy with them.

    f.martin, Nix, Christian12 and 2 others like this.
  5. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    [​IMG]
    Got and installed a set of Skunk2 Pro series plus front control arms since doing some at home measurement as best I could tell I was running over -3° all around. Made a cheap camber measuring tool using a scrap piece of wood and some screws and did a home alignment to get things back to a more reasonable range.

    Currently sitting around -1.5° in the front and -2.0° in the rear. wanted to pull more camber out of the rear but I'm afraid if I do the back tires will rub since the fenders are not rolled.

    Haven't had a chance to drive the car after install to see if it feels better since I don't want to drive all of my nice new parts through all the melting snow and heaps of salt.

  6. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Finally got around to replacing my bent power steering pump pulley and replacing the belt. It was some random belt we found off a Mitsubishi eclipse that we had laying around that just happened to fit.

    Now I'm trying to figure out why the car looses battery charge over the course of 2 weeks. Struggling to figure out if its a voltage draw even when the car is off, which would be odd since I didn't have the issue before and I haven't changed anything electrical recently, or if the failing alternator caused the battery to go bad as well. Current battery is 3 years old.

    Unfortunately I don't think the car will be ready for the first autocross of the season next month. I don't have anywhere near enough money saved to get the car tuned and I don't know enough about Hondata or engine tuning to take a preliminary crack at it myself.

    Nix likes this.
  7. Nix

    Nix Jötunn Moderator

    Messages:
    10,765
    Location:
    Lew-vul, KY
    Body Style:
    It's A Fast Pig!
    Check the interior lights for current draw. Had a friend recently with an older accord that was eating batteries. Turned out be a short in one of the visor mirror lights that didn't work anymore.

    Kickass progress though man!

  8. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Only interior light is the dome light, which doesn't work anymore unless you physically turn the switch on. I'll still hit it with the multimeter though.

  9. Michal006

    Michal006 Well-Known Member

    Messages:
    9,565
    Location:
    PA
    Vehicle Model:
    Tacoma TRD Sport 4x4 6MT
    Body Style:
    Access Cab
  10. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Turns out battery was just junk. Replaced with an optima yellow top. Car is pretty much just waiting to be tuned at this point.

  11. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan

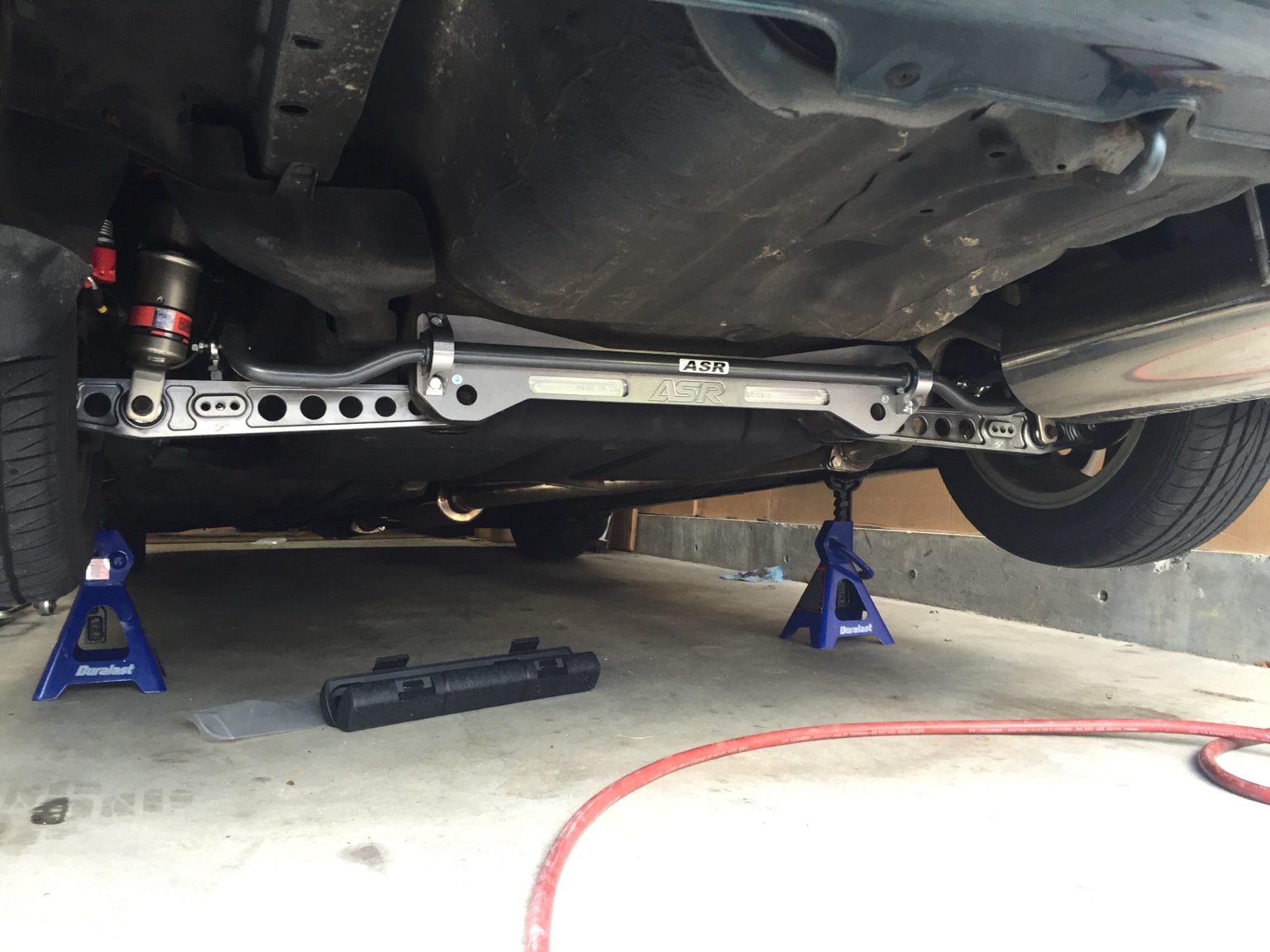

    Some new parts got installed over the weekend. ASR subframe brace and 24mm bar.
    [​IMG]

    Old stock 14mm integra bar for comparison.
    [​IMG]

  12. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    wow its been a minute since i posted an update in here.

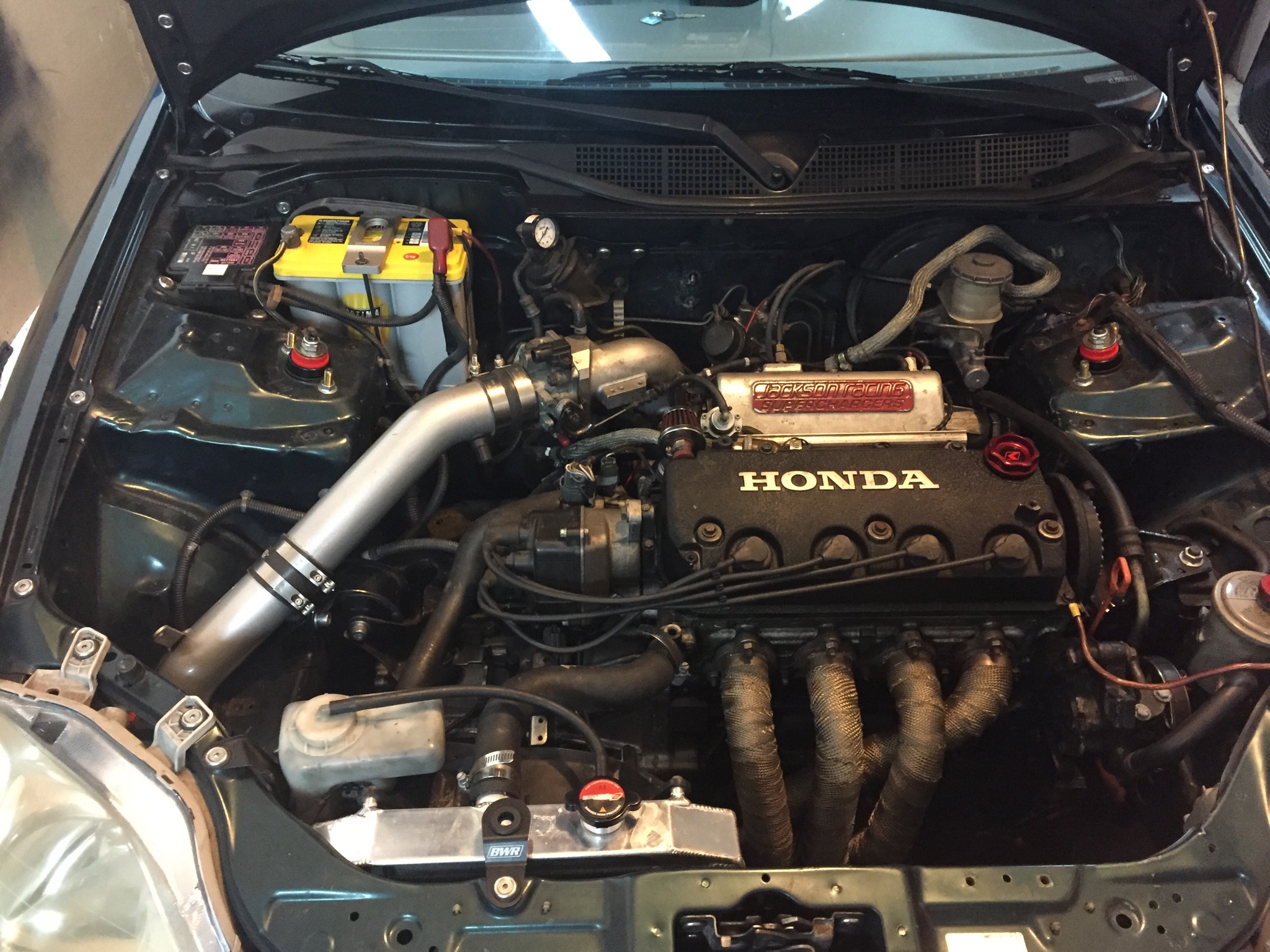

    Spent some time and revised my intake design to get the air filter out of the engine bay. Waiting on word back from a tuning shop but it looks like professional tuning is finally in this things future.
    [​IMG]

    webby and bootyluvr like this.
  13. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Also installed some aftermarket goodies to keep me planted when i do finally get this thing to an autocross.


    webby, Nix, Dar-Dar and 1 other person like this.
  14. ron v

    ron v The good, the bad, and the booty

    Messages:
    3,603
    Location:
    Escondido
    Vehicle Model:
    Hot fuego
    Body Style:
    Coupe and hatch
    I'm pm'n u question. Forgot u had a thread. Lol.

  15. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
  16. Flightmaster127
    • Supporting Member

    Flightmaster127 Supporting Member

    Messages:
    3,535
    Location:
    Delaware
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Waiting on the tuning shop to finish up with some last minute issues we ran into, then I should have some numbers and maybe a graph.

    r18-power, ron v and bootyluvr like this.
  17. ron v

    ron v The good, the bad, and the booty

    Messages:
    3,603
    Location:
    Escondido
    Vehicle Model:
    Hot fuego
    Body Style:
    Coupe and hatch
    Good to see an old civi on the dyno.

  18. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    50,003
    :waiting:

  19. Dar-Dar

    Dar-Dar Mordorator

    Messages:
    19,329
    Location:
    North NJ
    Vehicle Model:
    Civic Si
    Body Style:
    Fiji Blue Pearl Coupe Coolest Member Since: May 15, 2011
  20. Nix

    Nix Jötunn Moderator

    Messages:
    10,765
    Location:
    Lew-vul, KY
    Body Style:
    It's A Fast Pig!
    :iorun:results? nope... now? nope... check back in a minute... oh man come on! Where's it at!!!

    rbruno727 likes this.
