DIY Adjustable Camber Arm Bushing Reinforcement

F

FB2Chris

Well-Known Member
2,804
1,627
I took a different approach to @Dar-Dar 's solution to reinforcing the GodSpeed camber arm bushings. His thread can be found here: http://9thcivic.com/forum/threads/godspeed-camber-arm-owners-beware.9011/
Note: Either method can be used for other camber arm brands as well (e.g., Skunk2)

After going to several hardware stores in the area I could not find the correct size metal washer, so here's what I did:

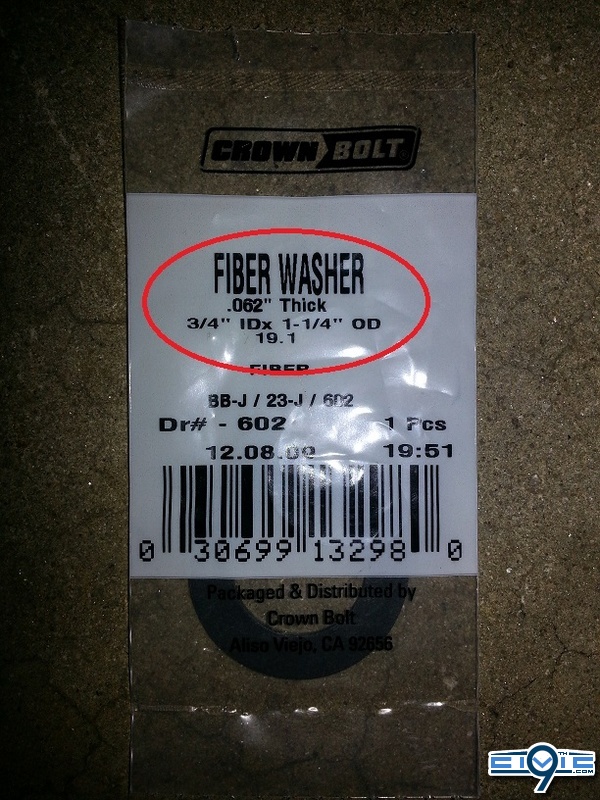

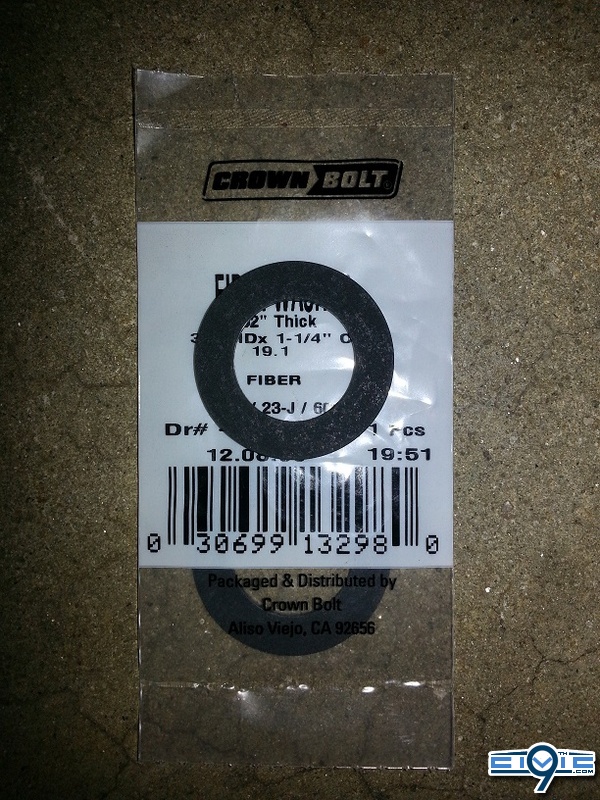

I bought four fiber washers, two for each arm ($0.72ea from Home Depot). Measurements: 0.062" (1.5748mm) thick, 3/4" inner diameter, 1 1/4" outer diameter.



The inner diameter was not wide enough to fit over the metal insert in the bushing, so I used a deburring tool to increase the diameter. A few rotations within the inner diameter is all you need, literally .25mm. Repeat this process for the second washer and then move on to the other side of the car.

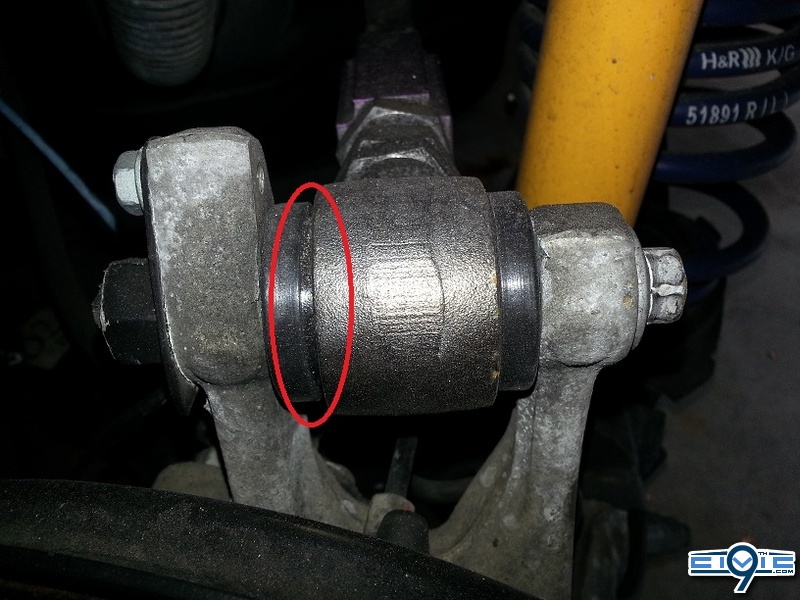

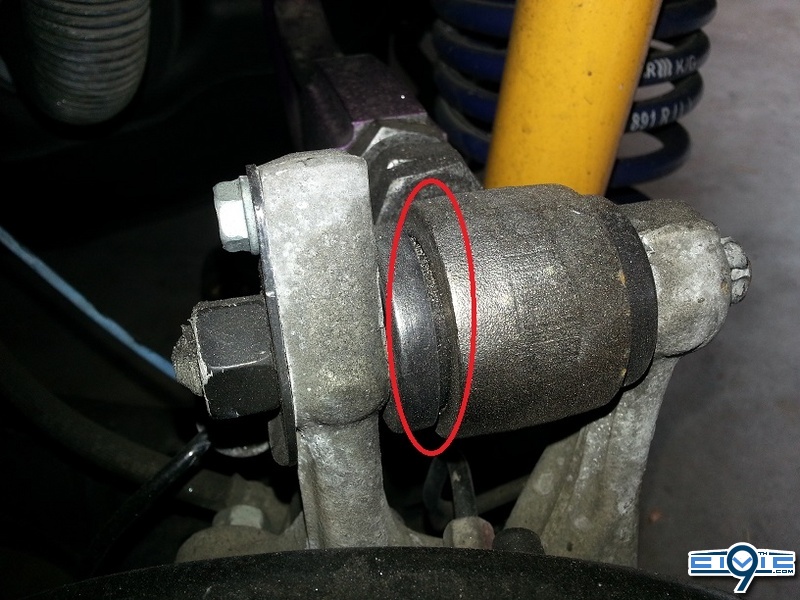

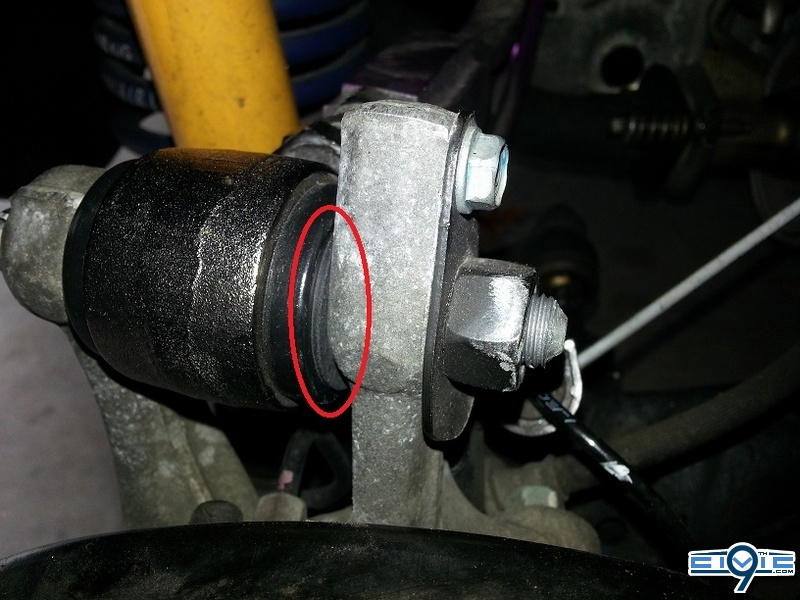

Before (noticeable gaps):

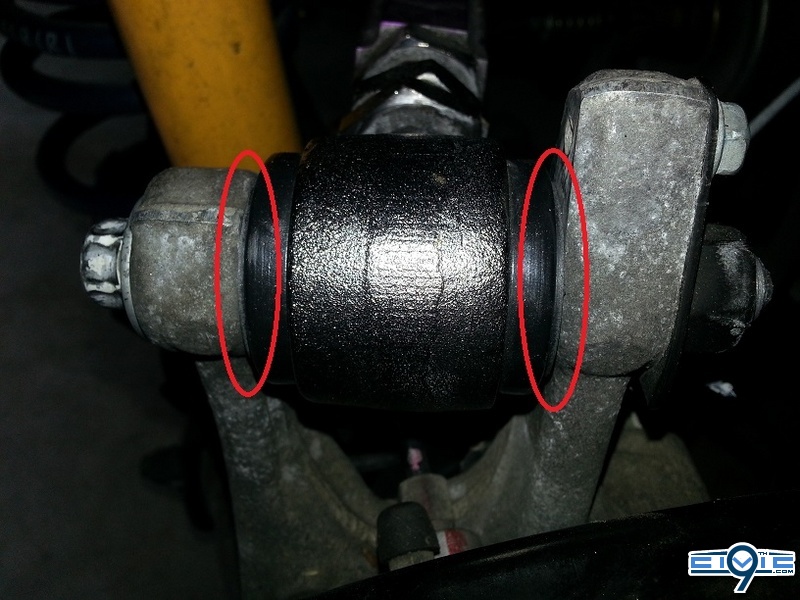

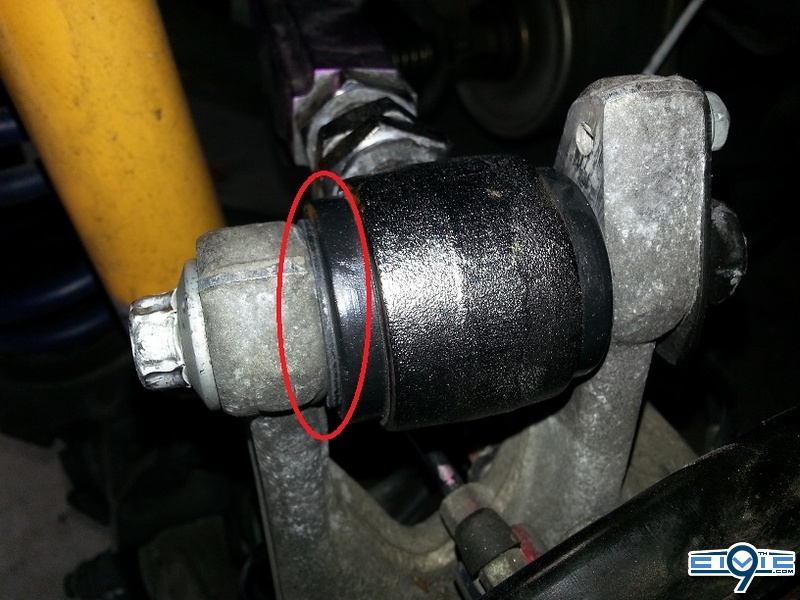

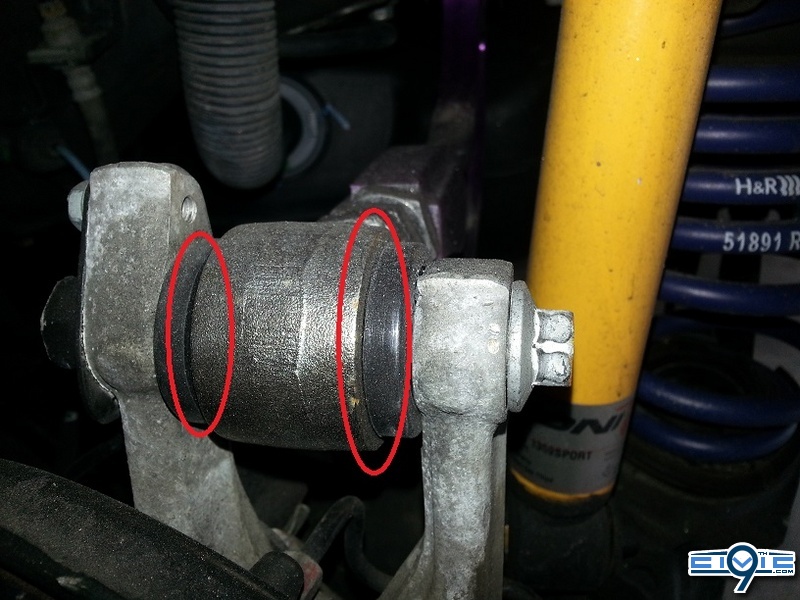

After (closed gaps and no more noise from the arms):





DISCLAIMER: Complete at your own risk. I am not responsible for any damage done to yourself OR your vehicle.

Last edited:
:thumb: :clapping:

The gaps you had initially were exactly like mines. It's good you found the hardware to fix your issue.

How did the bushings look from the inside? And did you notice the same noise/sound?

Dar-Dar said:
How did the bushings look from the inside? And did you notice the same noise/sound?
Click to expand...

The bushings looked normal inside and yeah, I was hearing the same type of noise from the rear. The noise began shortly after installing the arms so I knew the cause was from that area.

I don't think these will break, unless the gaps get bigger/loose which I doubt will happen.

These fiber washers, also known as sheet gaskets, come in a variety of sizes and offer more vibration and compression resistance. They are made from non-conductive fiber and are round with a hole in the middle. Commonly used in automotive applications with bolts and for light sealing where ferrous washers are not preferred.
Click to expand...

d_u_a_n_e said:
Would these b used in place of the metal ones they send with?
Click to expand...
If you're getting the extra washers from GSP directly, you'll be okay with those. The fiber ones that @FB2Chris got are really good alternatives which does the same purpose.

d_u_a_n_e said:
Would these b used in place of the metal ones they send with?
Click to expand...

The metal c-clip that's included is used at the other end of the arm. The bushing that @Dar-Dar and I reinforced became loose over time due to not being secured in place like the other with the c-clip. Unless GodSpeed is sending you some washers as well?

FB2Chris said:
The metal c-clip that's included is used at the other end of the arm. The bushing that @Dar-Dar and I reinforced became loose over time due to not being secured in place like the other with the c-clip. Unless GodSpeed is sending you some washers as well?
Click to expand...
Gotcha, mine came with 4 very thin rings, n 4 washers the size of the fiber ones but metal.

d_u_a_n_e said:
Gotcha, mine came with 4 very thin rings, n 4 washers the size of the fiber ones but metal.
Click to expand...

Ah, yeah. They must have included some washers for you since you mentioned the issue to them (if that was you, I can't remember).
