Dar-Dar's 1995 Avus Blue E36 M3 Project Car

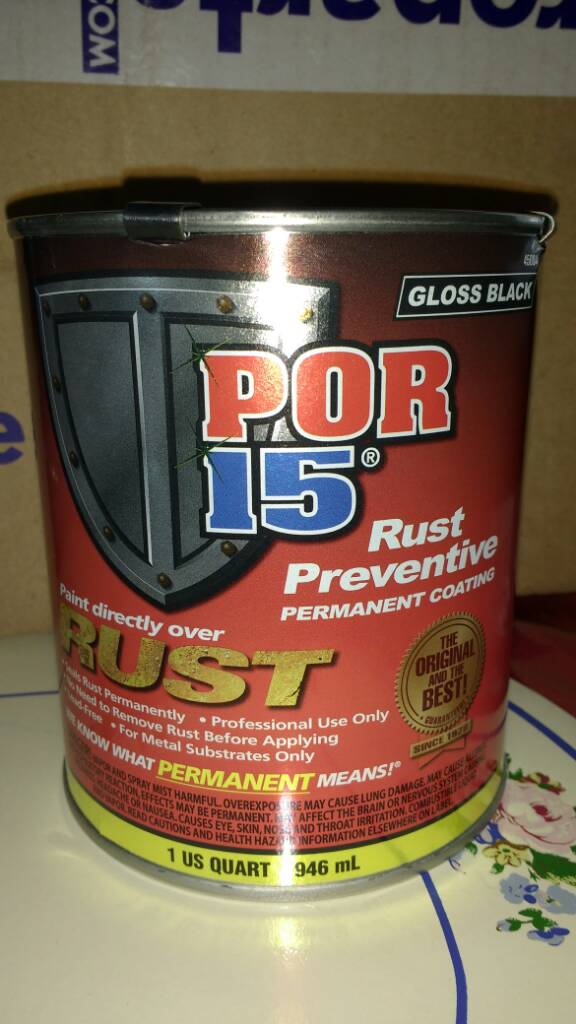

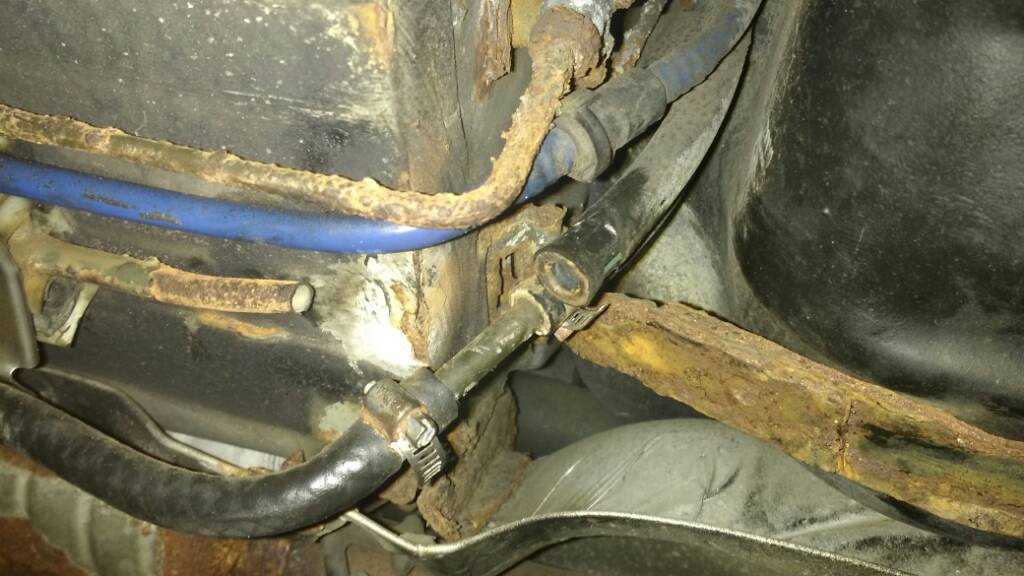

I also bought a can of POR15. I noticed some parts of the frame that needs some anti-rust coats.

Sent from my MotoG3 using Tapatalk

Oil pan removal. Part two:

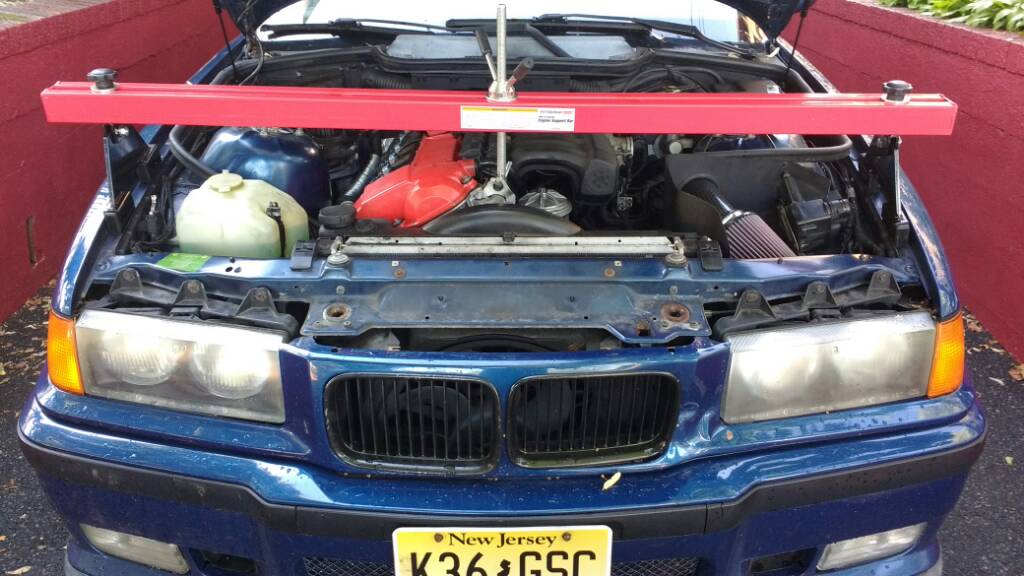

This engine support from harbor freight is pretty good.

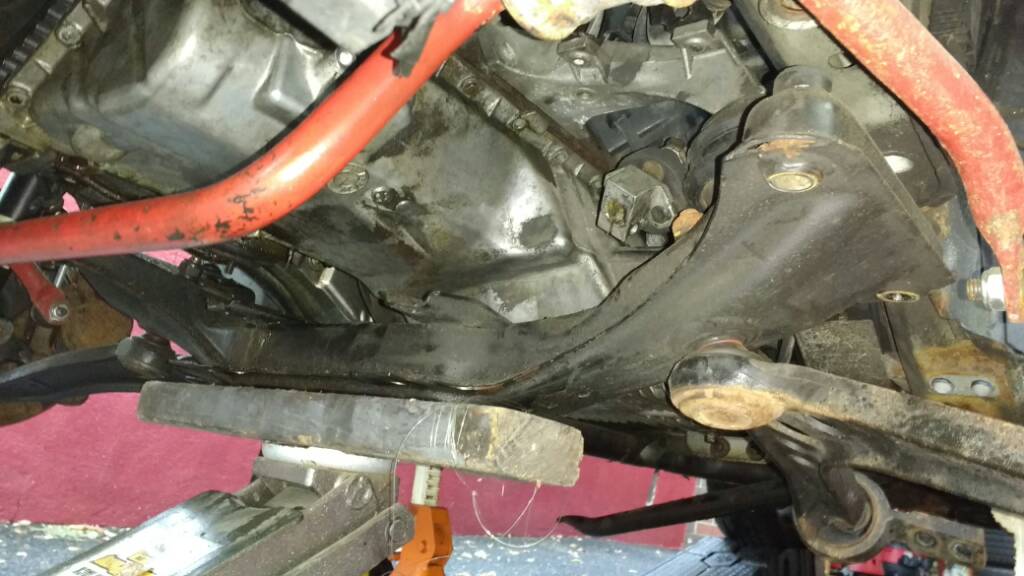

Slowly lowering the cross member.

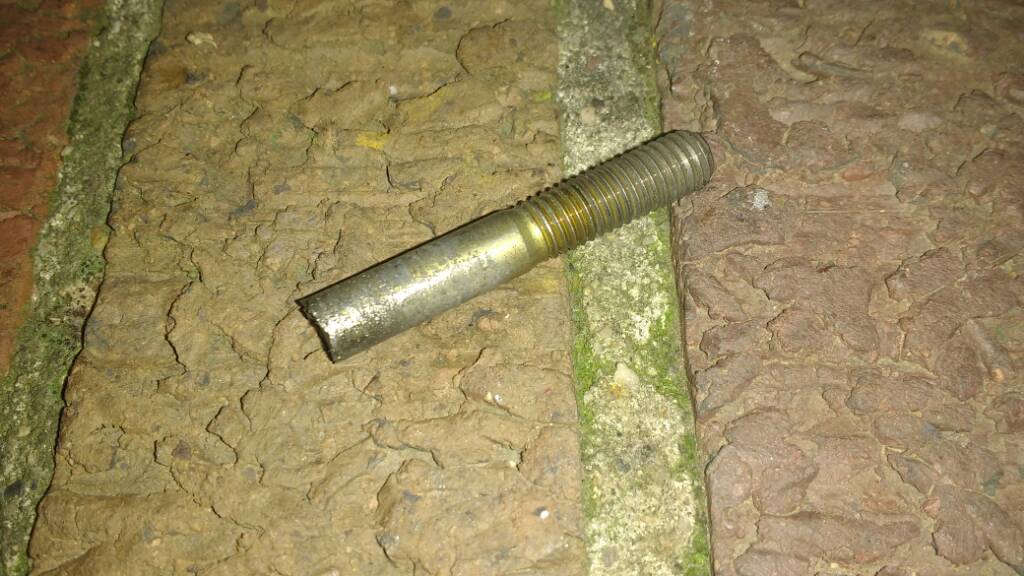

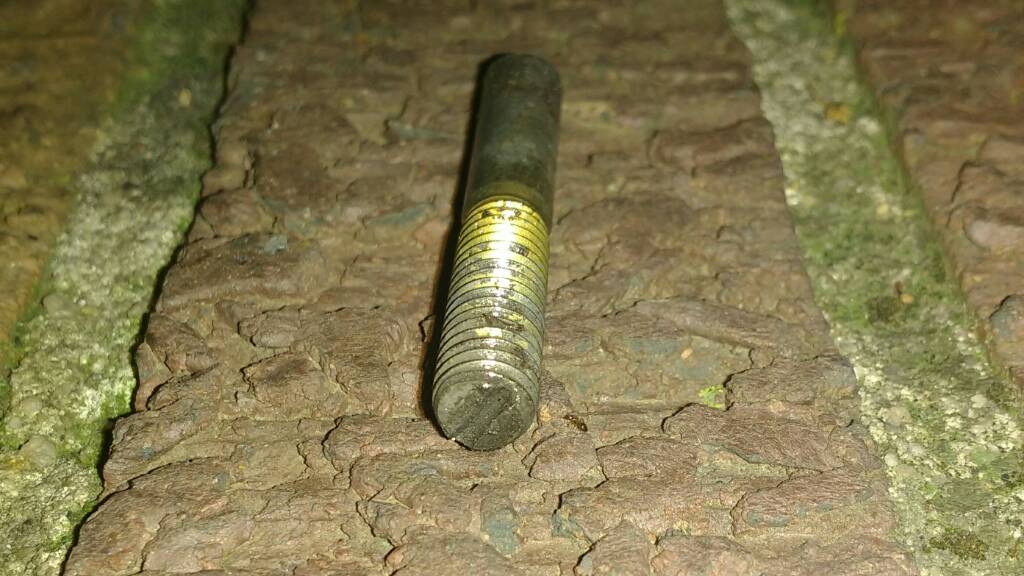

One of the bolts holding the pan from the transmission had the head rounded out. So I cut the head off with a dremel. I also cut a line on the other end of the bolt to unscrew it out. Lol.

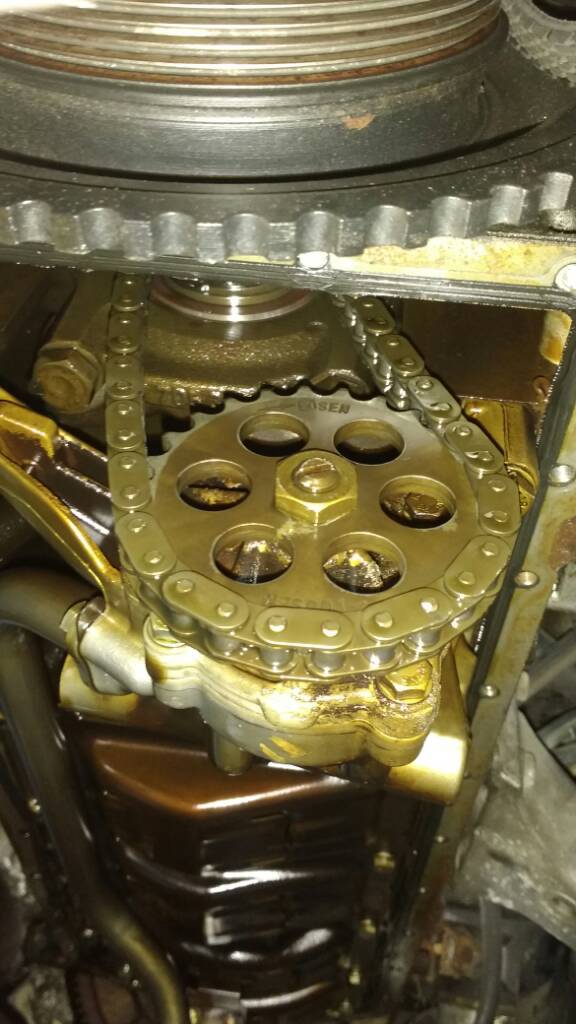

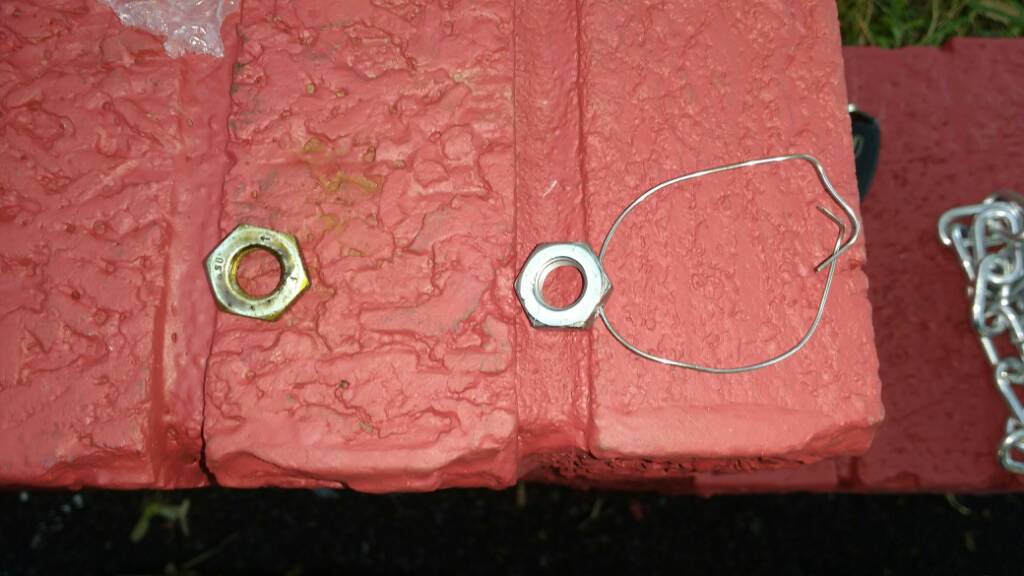

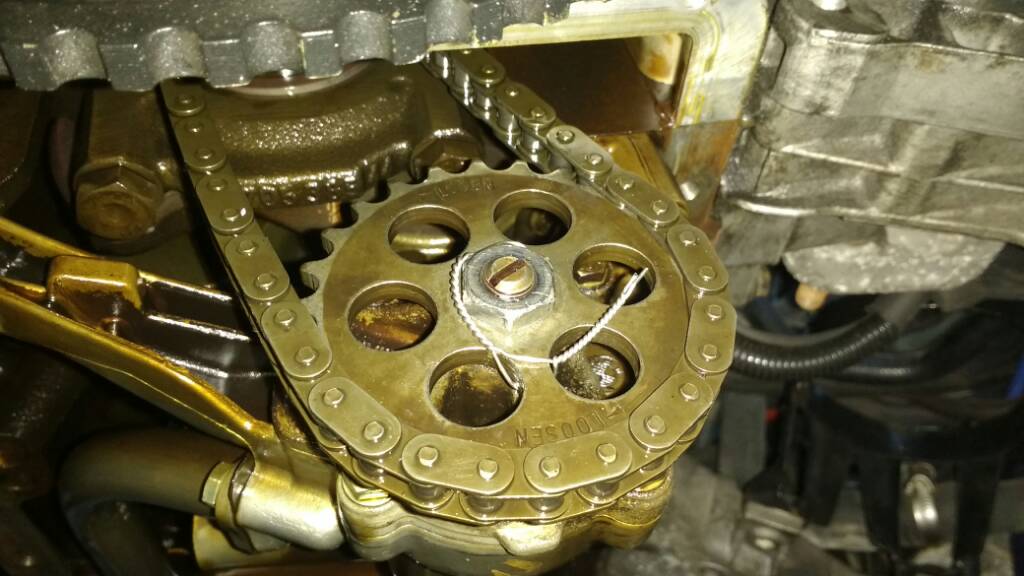

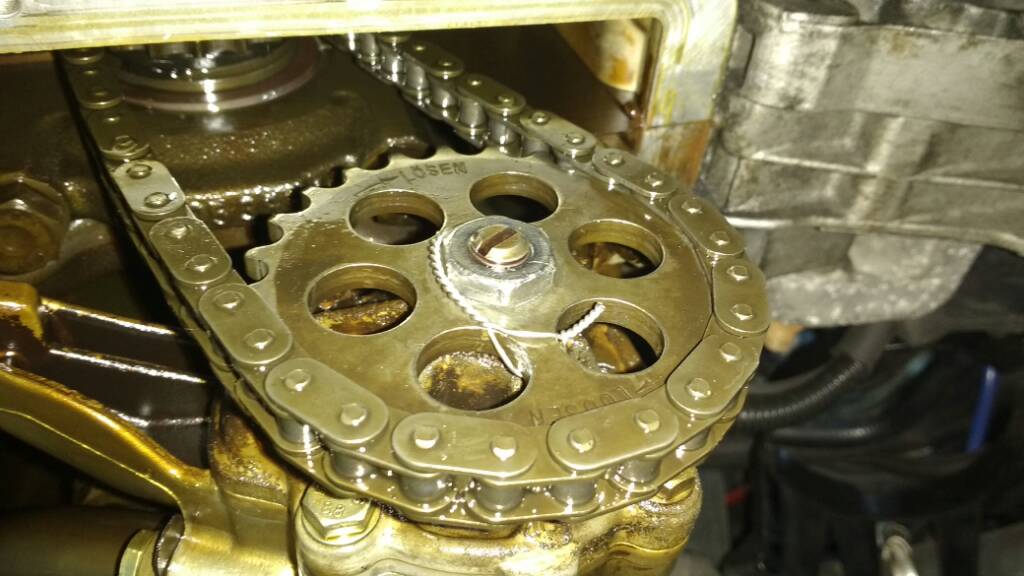

I replaced the oil pump nut with the modified one. It was my first time using a safety wire. I think it is wired well. Lol. I also put thread lock on the nut just to be safe.

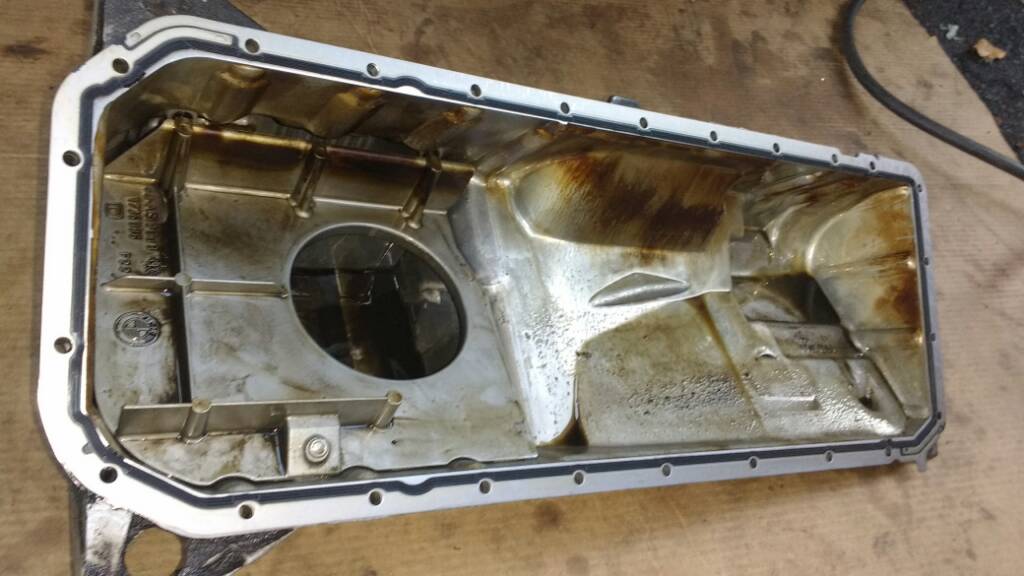

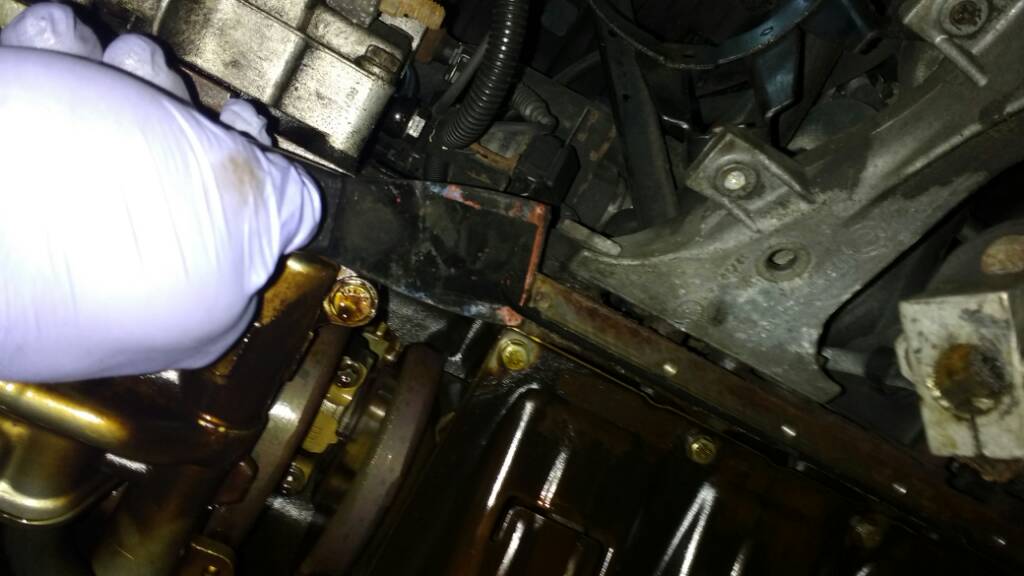

I scraped off the excess old gasket material.


And the new gasket is installed.


I still need to install the steering rack and power steering pump.

Sent from my MotoG3 using Tapatalk

Improvements are always a great feeling to get accomplished, well done. I'm amazed at some of the results from the rust converter they have now, used some on a 64 bug years ago that was pretty toasty but ended up looking pretty good in the end.

It looks like I won't have time tonight to work on the car. I'll fill the engine with oil on Sunday.

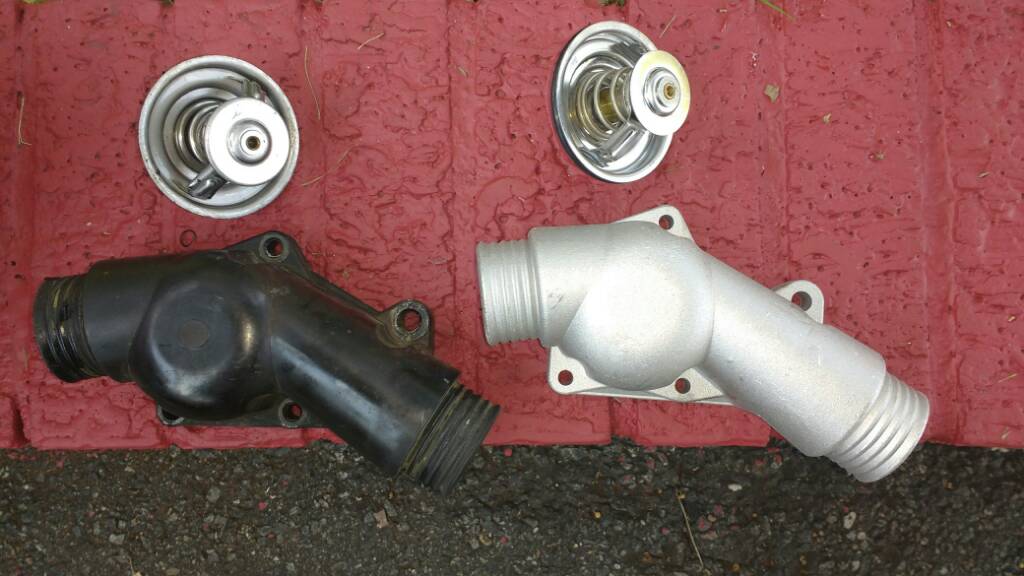

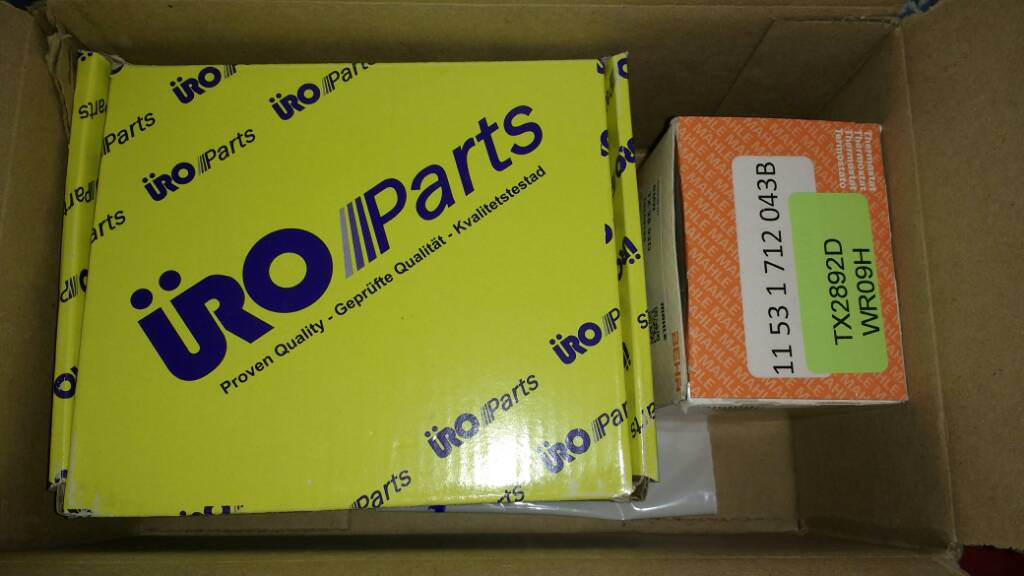

These just came in today. Thermostat, aluminum thermostat housing, and the can of POR15.


I didn't realize that I had to change the thermostat when I replaced the water pump. Thats probably the reason why the car was getting weird temp readings when I was driving it after the water pump change.

Sent from my MotoG3 using Tapatalk

Even though at work we can get away with not changing a thermostat with a water pump R&R or coolant exchange, I always try to do it on my personal vehicles but I'm no saint to that I promise you lol

Even though at work we can get away with not changing a thermostat with a water pump R&R or coolant exchange, I always try to do it on my personal vehicles but I'm no saint to that I promise you lol
It was stupid of me. It's pretty easy to flush out the system at least. I won't flush all of it since the coolant is still fresh.

Sent from my MotoG3 using Tapatalk

Just a time consuming re-do no biggie :badger:
It should be quick the second time. :giggle: Plus, I have to install new serpentine belts.

Sent from my MotoG3 using Tapatalk

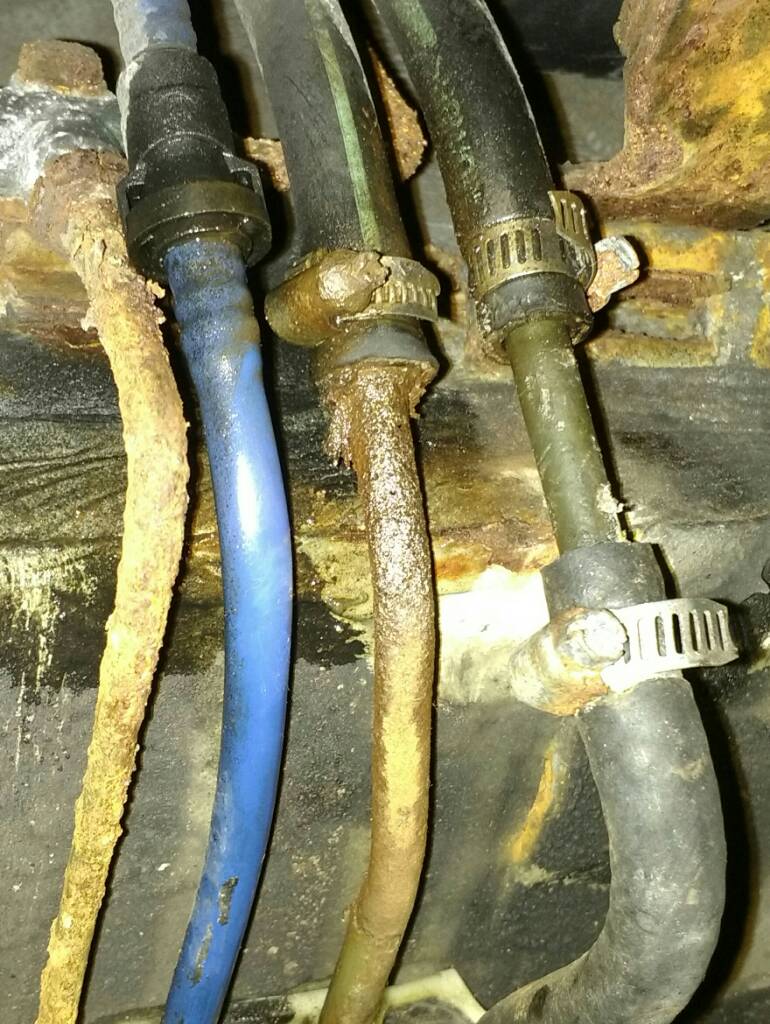

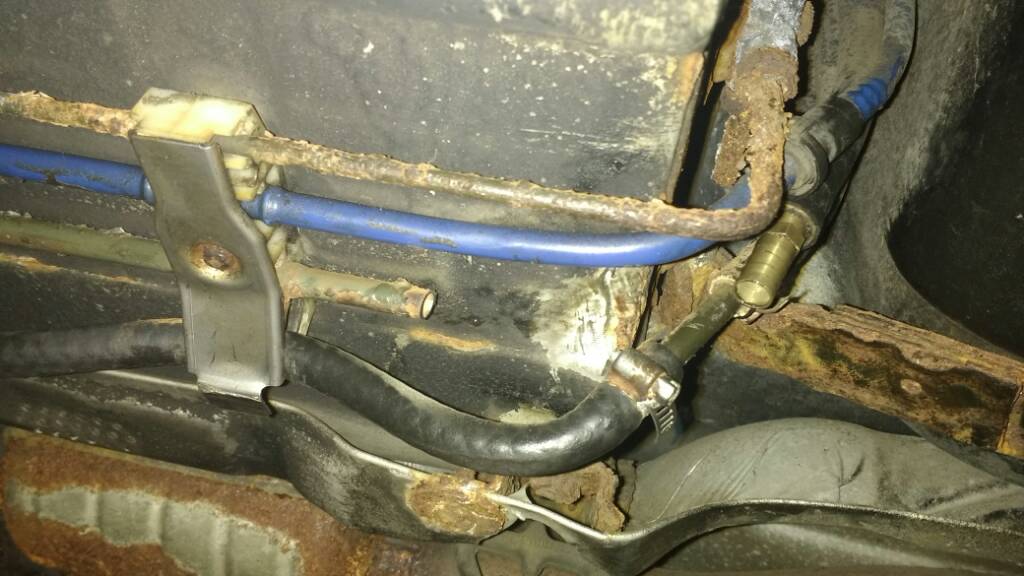

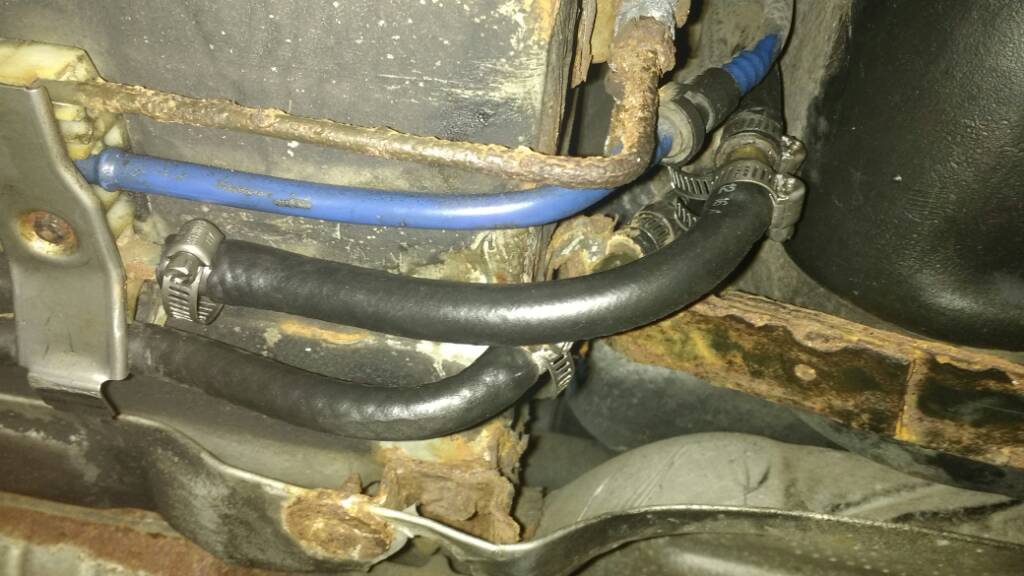

I fixed the fuel leak issue by cutting out the fuel pipe with the pin hole. I then added a fuel hose that connected to the end of the fuel hose using a double sided barb.





Sent from my MotoG3 using Tapatalk

Last edited:

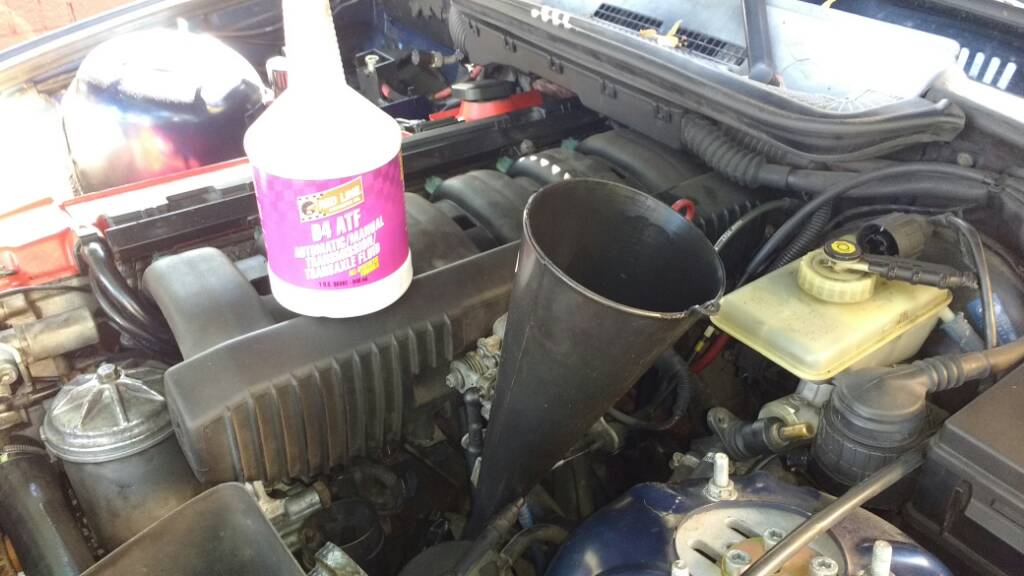

I filled the power steering reservoir with fresh Redline ATF.

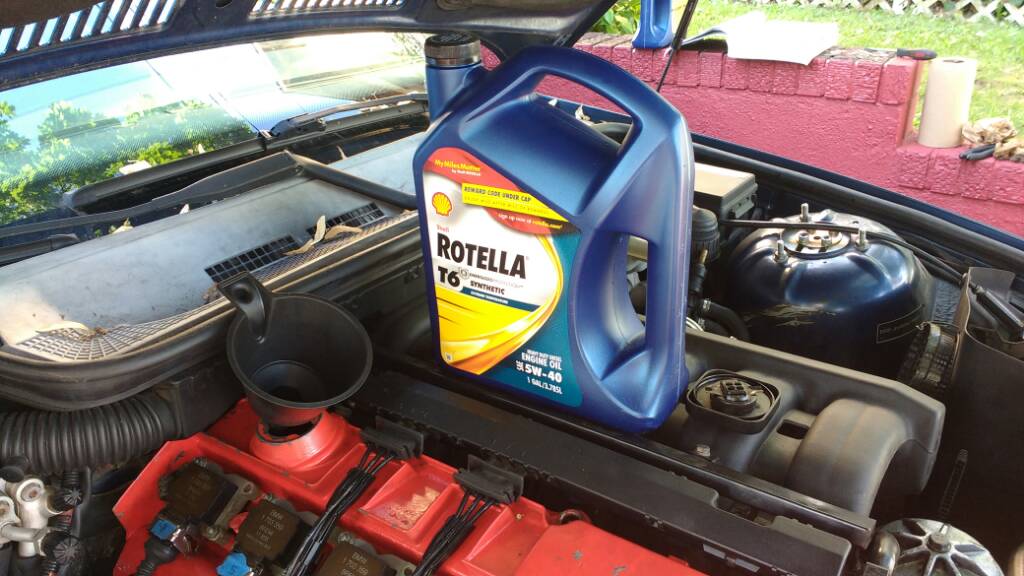

I also added Rotella 5w-40.

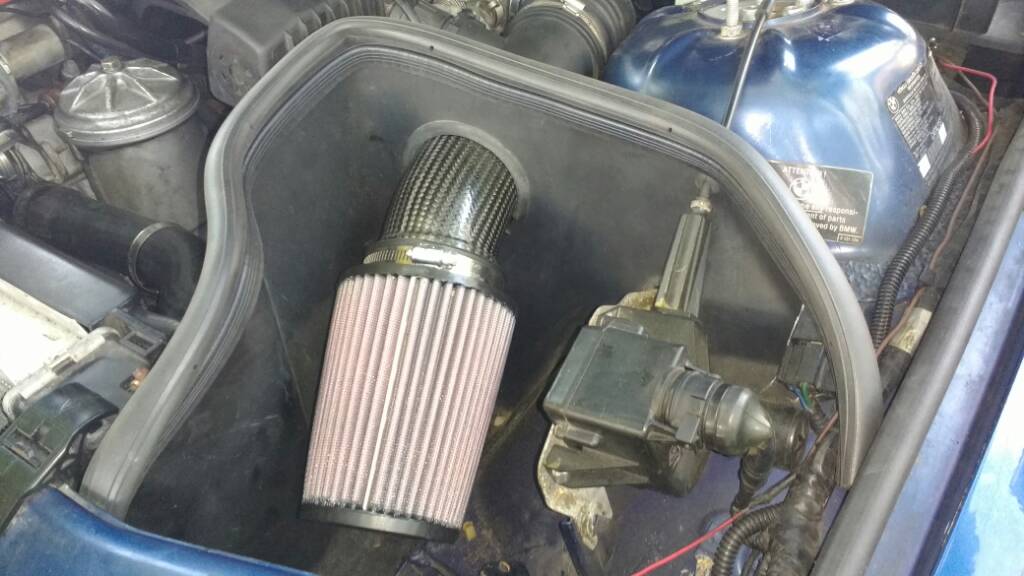

The heat shield did not have weather stripping so I put one.

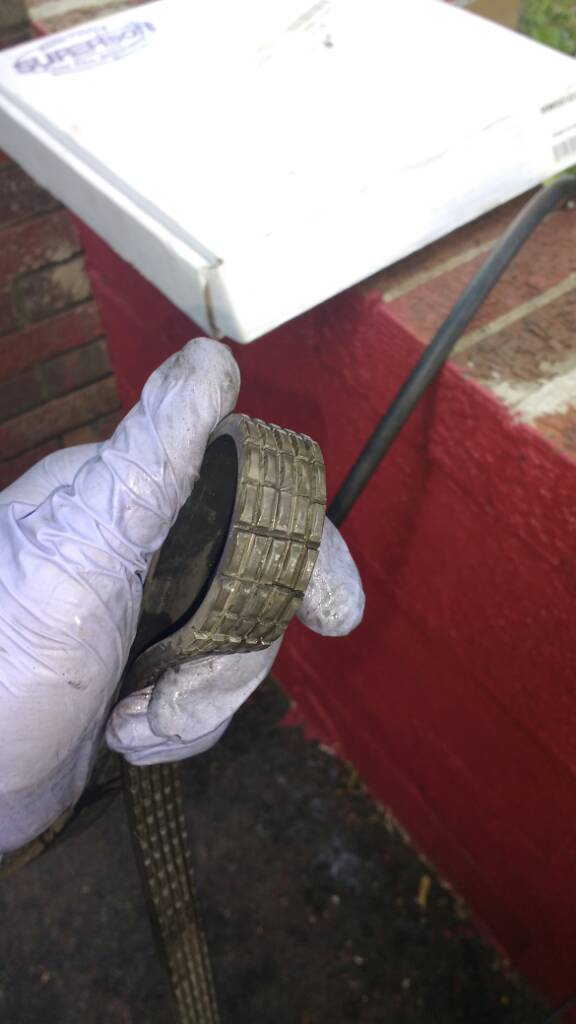

The belts were changed since the old ones were cracking.

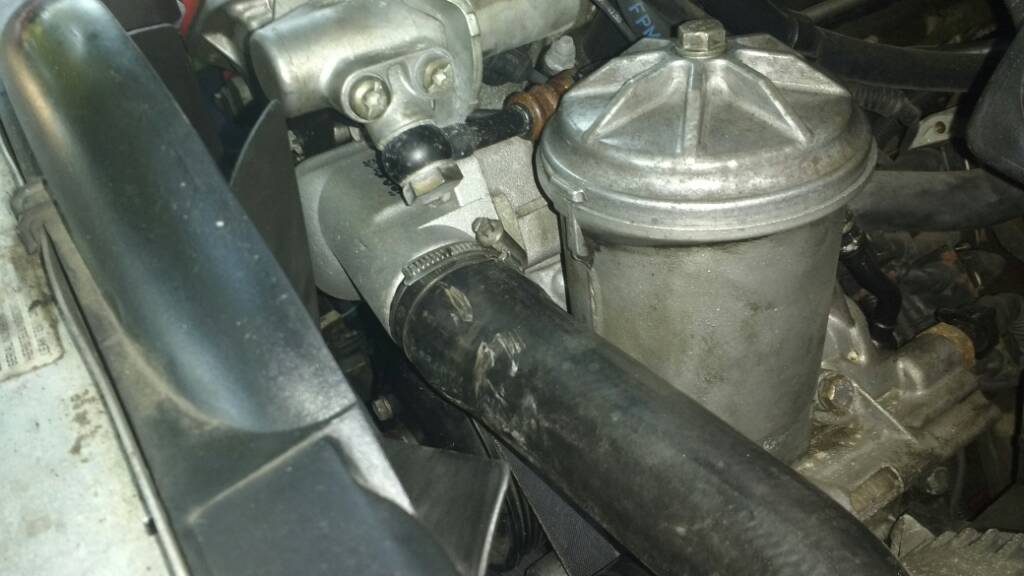

And the thermostat and thermostat housing were changed. I didn't have to flush out the cooling system and only removed the clutch fan to install the thermostat/thermostat housing. It was easier than I thought.


I did a good amount today.

I still need to change the MTF, brake fluid, and gear oil.

Sent from my MotoG3 using Tapatalk

I purchased a grille molding and two kidney grilles. The molding was only $26 on Rockauto.

The front end molding is banged up (not worth repairing) and the kidney grills have tabs that are falling apart.

I'll be painting the molding with matched paint from automotivetouchup.com. I also have a few cans of 2K clear coat laying around in the garage. I love painting car parts.
