DIY DIY - Better Interior Ambient Lighting

Discussion in 'Lighting DIY' started by AlienPrime, Jan 17, 2013.

  1. AlienPrime

    AlienPrime Well-Known Member

    Messages:
    3,058
    Location:
    Sudbury, Ontario, Canada
    Vehicle Model:
    Civic Si HFP
    Body Style:
    2 door Coupe
    Hey guys just got the kit now at lunch! Just thought to post what the kit comes with for those of you who are interest...

    The kit comes with:
    - Double sided 3M tape
    - 1/8" screws for hardmounting
    - Four 9" 18LED tube lights
    - 4' of wire for each tube light

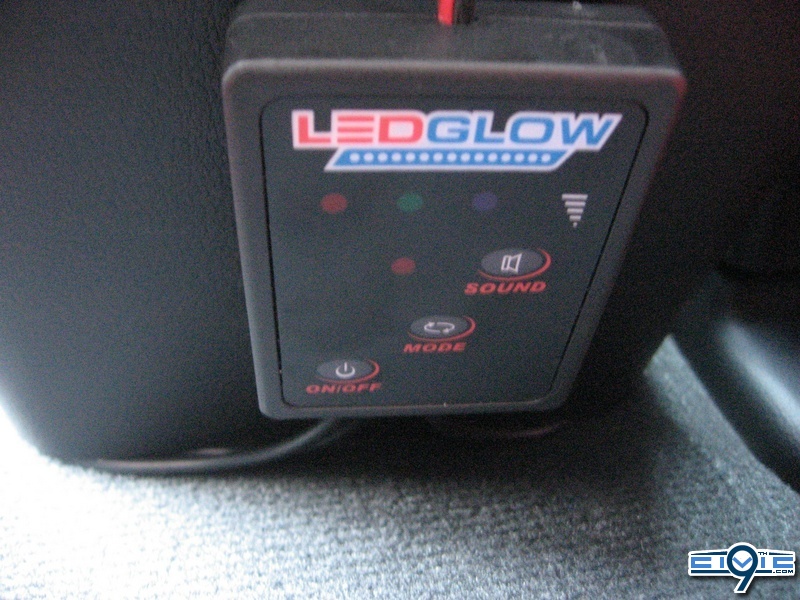

    - 1.5" x 2.5" Controller (for color changing, sound, constant-on, pulse, etc etc..)
    - And a little manual telling you that you've bought LED's if your that dumb...

    I would also suggest getting add-in circuits
    [​IMG]
    You can order those HERE

    The source I got them from is LED GLOW... You can order from them by clicking the hyper link i added HERE

    Service rep i spoke with (Justin) Suggested the 9" tubes because he said for the 2012 2 door civic it would look best doing the footwells, and under the seats for full light coverage.. that's why i when with them

    I know there a little bit expensive for LED's but this company makes quality ****... just felt as though it was worth the little extra

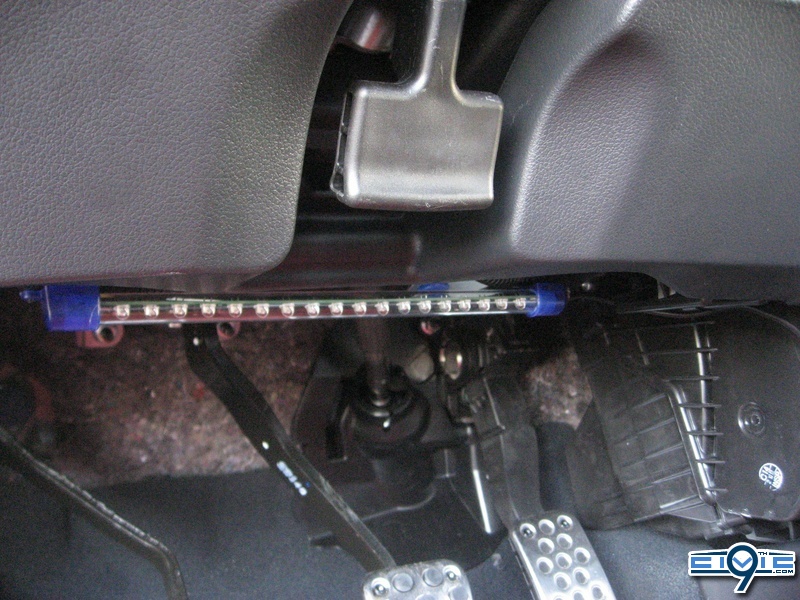

    Here we are! About two hours for a full installation! Looks phenomenal!!!! Don't take my word for it tho, see for yourselves
    I'm a big computer hardware guy, and cable management is utmost important to me! I took panels apart, slid wires, and drilled holes to make this mod PERFECT!!

    For reference sake, the system is supposed to be soldered to a 10A circuit, i only used the 15A circuit in this case because it was easiest for me to take the two 24 gauge wires, solder them, then have them marette'd to the lighting systems wiring. LED glow used standed AWG #24 as you can see, so i just got AWG #24 stranded as well

    As for grounding, you can use any bare metal in the call. I used the bolts used to fasten the seat belts in the rear seat because i ran 12v to the rear of the car for a plug and for my trunk lighting

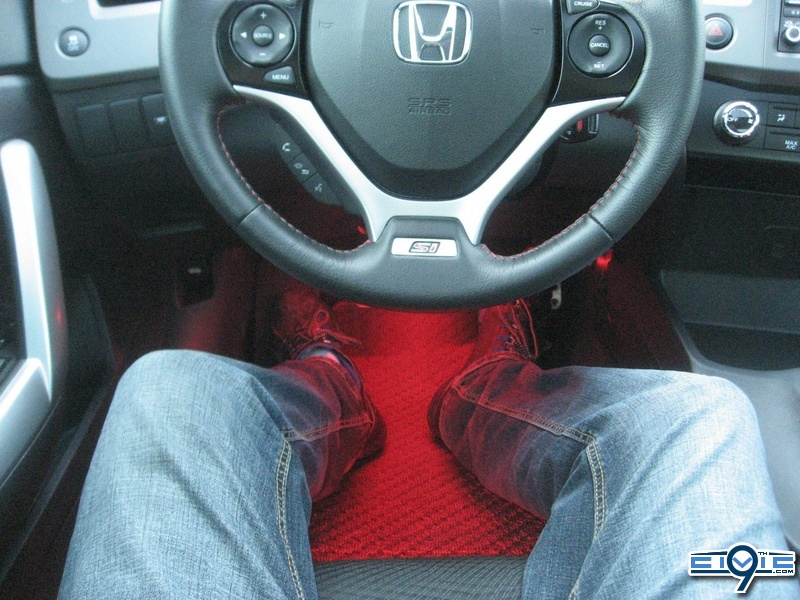

    Tell me what you think! Keep in mind these pictures are taken in BROAD DAYLIGHT (PIC #9 you can really tell), so it'll look a lot better tonightt :D

    [​IMG]
    Just wanted to add, your wiring into fuse slot 23

    [​IMG]
    [​IMG]

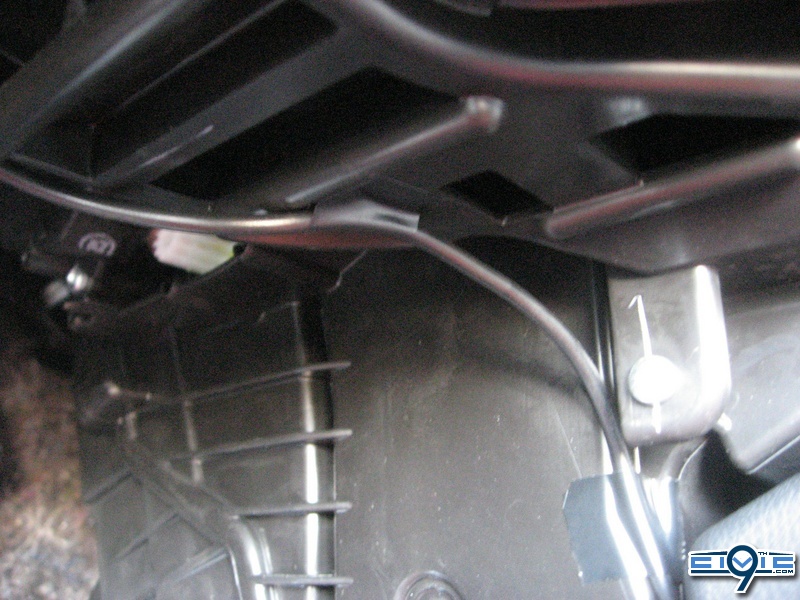

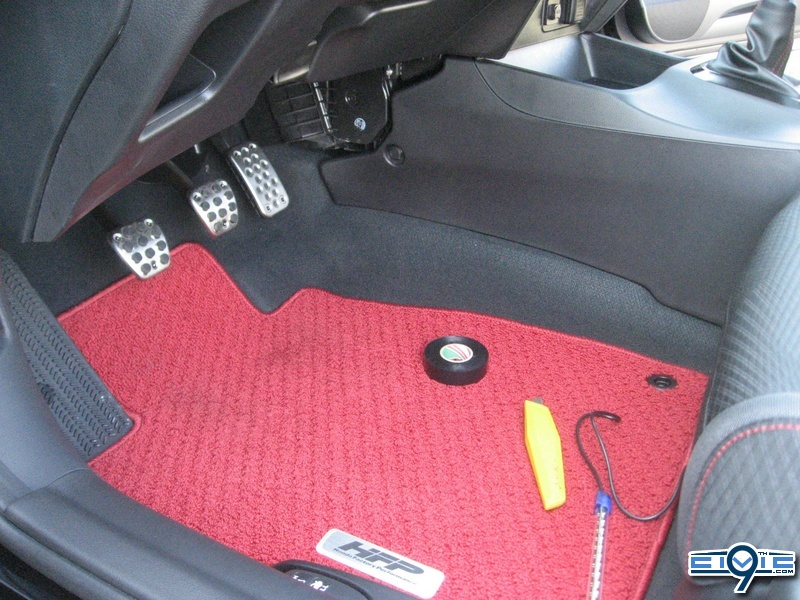

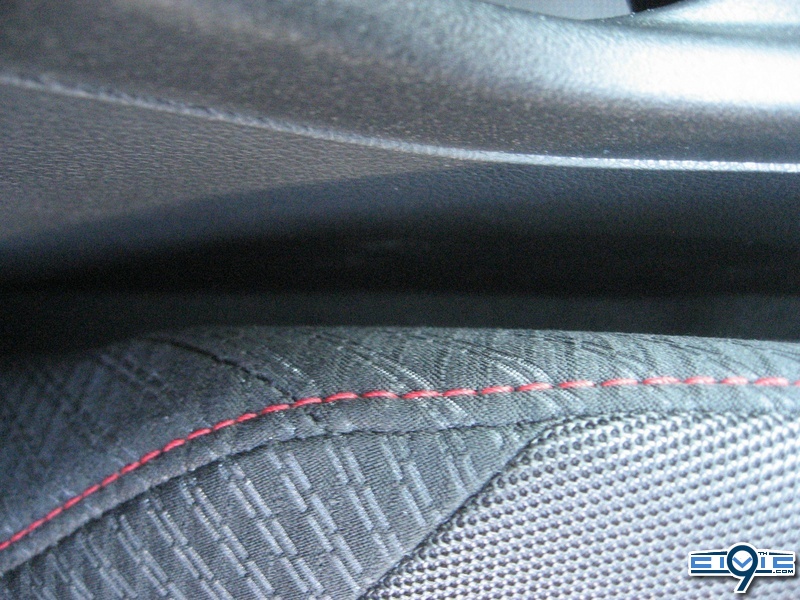

    Can't even tell there are wires there! Use of black electrical vinyl tape :)
    [​IMG]
    [​IMG]
    Not a Wire in sight! Serious cable management skillz! :p
    [​IMG]

    [​IMG]

    [​IMG]

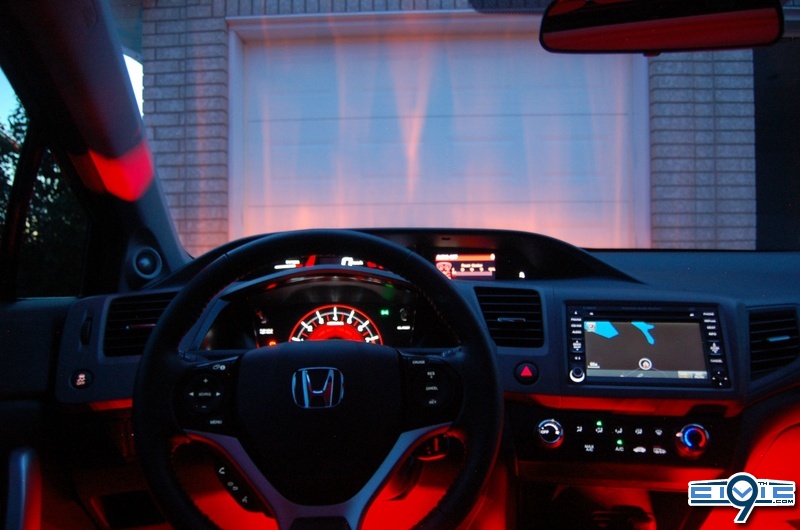

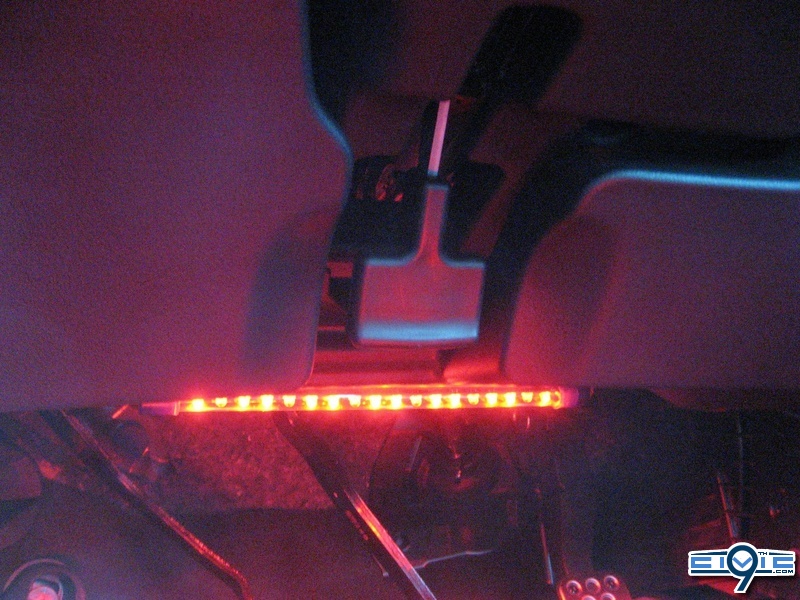

    Night Shots!!

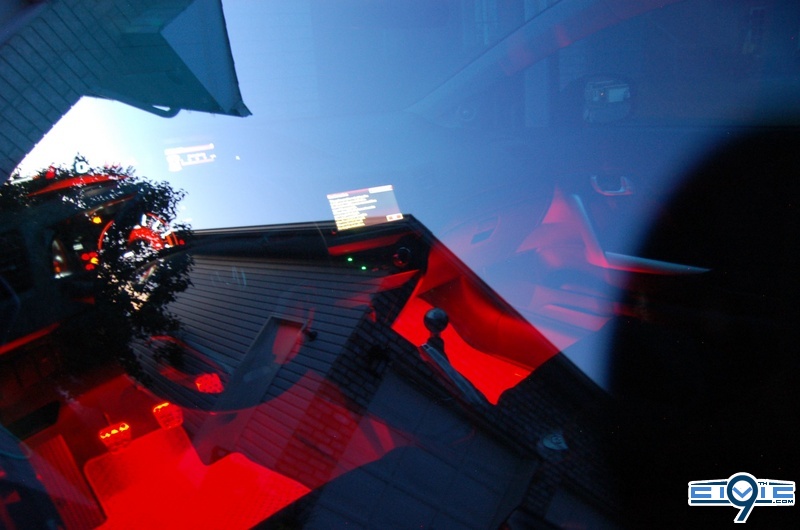

    What you'd see on from a shiney windows :p
    [​IMG]

    Litterally took me like a hundred tries for this... but this is a passenger wide angle shot :)

    [​IMG]

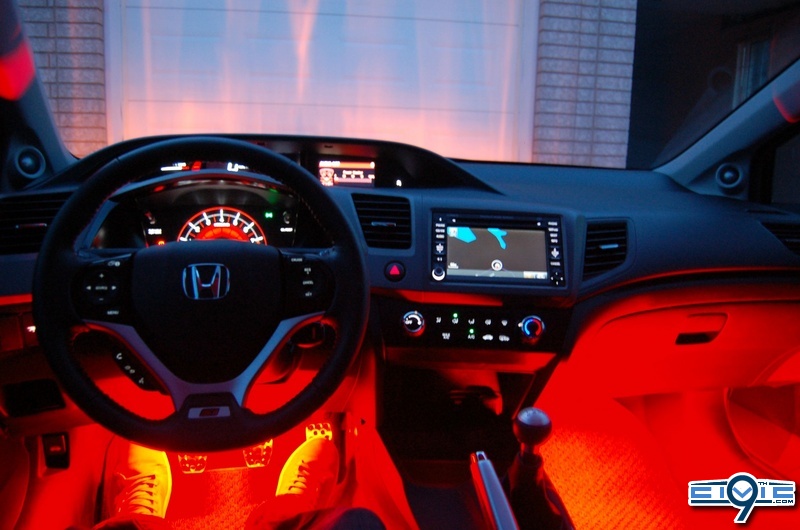

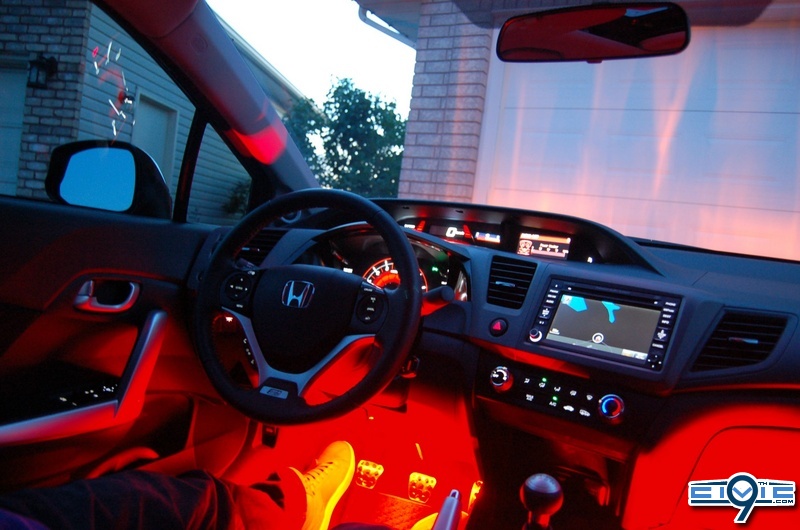

    Drivers view..
    [​IMG]

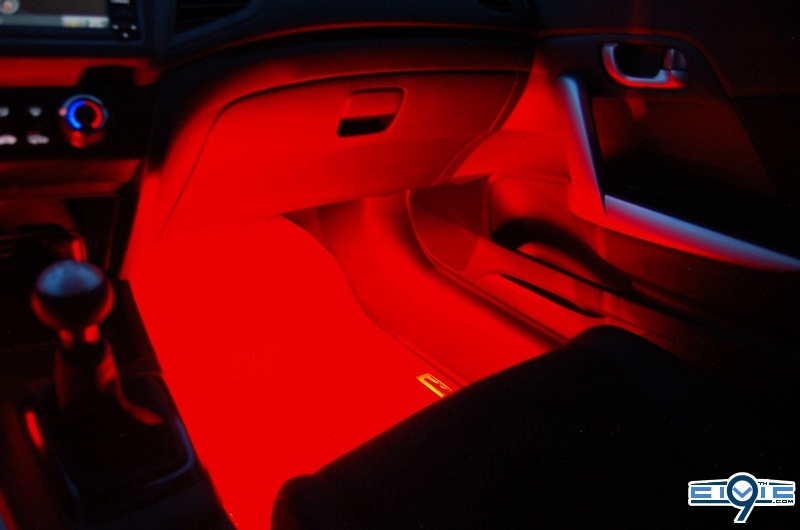

    So much light its hard for the camera to focus... This is the passenger side flooring
    [​IMG]

    This is the widest angle this lens can achieve but it gives you a good idea of the light spread throughout the cabin in near completely dark lighting...
    [​IMG]



    Any Questions?? Feel free to ask

    Last edited: Jan 31, 2013
  2. webby
    • Staff
    • 2020 Toys For Tots

    webby Administrator

    Messages:
    52,102
    your feet are in lava! :omg: That is seriously bright! I wonder if black mats would tone it down a bit

  3. AlienPrime

    AlienPrime Well-Known Member

    Messages:
    3,058
    Location:
    Sudbury, Ontario, Canada
    Vehicle Model:
    Civic Si HFP
    Body Style:
    2 door Coupe
    This kit actually is adjustable between 40% and 100%of course the shown pictures are at full light output

  4. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,176
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    AP likes his red. :flame:

    AlienPrime likes this.
  5. AlienPrime

    AlienPrime Well-Known Member

    Messages:
    3,058
    Location:
    Sudbury, Ontario, Canada
    Vehicle Model:
    Civic Si HFP
    Body Style:
    2 door Coupe
    Baahahaha! All Red and black make AP look evil :fistpump:

    Monk likes this.
  6. iluvmycsx
    • Supporting Member

    iluvmycsx Mr Csx

    Messages:
    3,216
    Location:
    Regina - The City That Rhymes with Fun
    Vehicle Model:
    Acura Csx
    Body Style:
    Sedan
  7. AlienPrime

    AlienPrime Well-Known Member

    Messages:
    3,058
    Location:
    Sudbury, Ontario, Canada
    Vehicle Model:
    Civic Si HFP
    Body Style:
    2 door Coupe
    thanks man means a lot. one of my better ones... that and fuseable trunk lighting :)

  8. Dar-Dar

    Dar-Dar Mordorator

    Messages:
    19,329
    Location:
    North NJ
    Vehicle Model:
    Civic Si
    Body Style:
    Fiji Blue Pearl Coupe Coolest Member Since: May 15, 2011
  9. AlienPrime

    AlienPrime Well-Known Member

    Messages:
    3,058
    Location:
    Sudbury, Ontario, Canada
    Vehicle Model:
    Civic Si HFP
    Body Style:
    2 door Coupe
    Will be brighter this summer :)

  10. webby
    • Staff
    • 2020 Toys For Tots

    webby Administrator

    Messages:
    52,102
    brighter? passenger cars will think the interior of your car is on fire at night

    Pauly99to17 likes this.
  11. AlienPrime

    AlienPrime Well-Known Member

    Messages:
    3,058
    Location:
    Sudbury, Ontario, Canada
    Vehicle Model:
    Civic Si HFP
    Body Style:
    2 door Coupe
  12. KennyGS

    KennyGS How may I help?

    Messages:
    11,644
    Location:
    Keystone State
    Love the DIY!

  13. AlienPrime

    AlienPrime Well-Known Member

    Messages:
    3,058
    Location:
    Sudbury, Ontario, Canada
    Vehicle Model:
    Civic Si HFP
    Body Style:
    2 door Coupe
    Especially the fuseable ones :D But thanks man! Appreciate all the support on my DIY, they aren't that good, but better ones are soon to come :)

  14. 9CIvic

    9CIvic Well-Known Member

    Messages:
    7
    wow, so bright! nice! :love1:

  15. Brooksie365

    Brooksie365 Well-Known Member

    Messages:
    820
    Location:
    Worcester, Ma
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    just ordered mine thanks !

  16. Brooksie365

    Brooksie365 Well-Known Member

    Messages:
    820
    Location:
    Worcester, Ma
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    just installed very simple! having the black all weather mats definitely toned it down

    Last edited: Mar 6, 2013
  17. JDMR18A2

    JDMR18A2 Member

    Messages:
    3
    Location:
    Rialto
    Vehicle Model:
    Honda civic Lx
    Body Style:
    Sedan
    wow, that looks amazing:) i want to do that for my 2013 honda civic lx sedan but i cant find a kit or im just not searching right -__-

  18. Brooksie365

    Brooksie365 Well-Known Member

    Messages:
    820
    Location:
    Worcester, Ma
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    He posted a link I bought mine from
    ledglow.com

  19. Beeshabo

    Beeshabo Well-Known Member

    Messages:
    169
    Thanks to AlienPrime for the DYI, I had this on my Sentra SE-R, but it was a lot harder...with this LEDGlow kit and the add-a-circuit, it's a BREEZE!!

    [​IMG]

    RAGordy, Pauly99to17 and Brooksie365 like this.
  20. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,176
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    Lookin' great!
