DIY DIY LED LICENSE PLATE AND REVERSE LIGHTS- 2013 civic si sedan

Discussion in 'Lighting DIY' started by RedRocket_Si13, Aug 2, 2013.

  1. RedRocket_Si13

    RedRocket_Si13 Active Member

    Messages:
    85
    Location:
    annapolis,md
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    MOD DIFFICULTY 1/10

    LED LICENSE AND REVERSE LIGHTS

    What I used:
    Flat head (for the trunk carpet clips)
    Philips screw driver (for middle screw on trunk carpet)
    (4) zone tech 8smd T-10 168,194,2825 w5w white(comes in a pack of 8 so I used the rest for the map & done light
    Lastly your hands

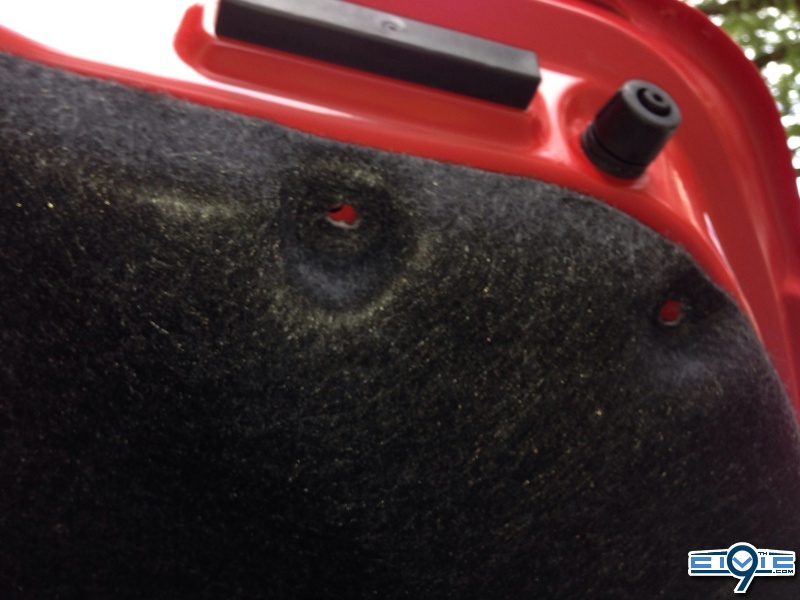

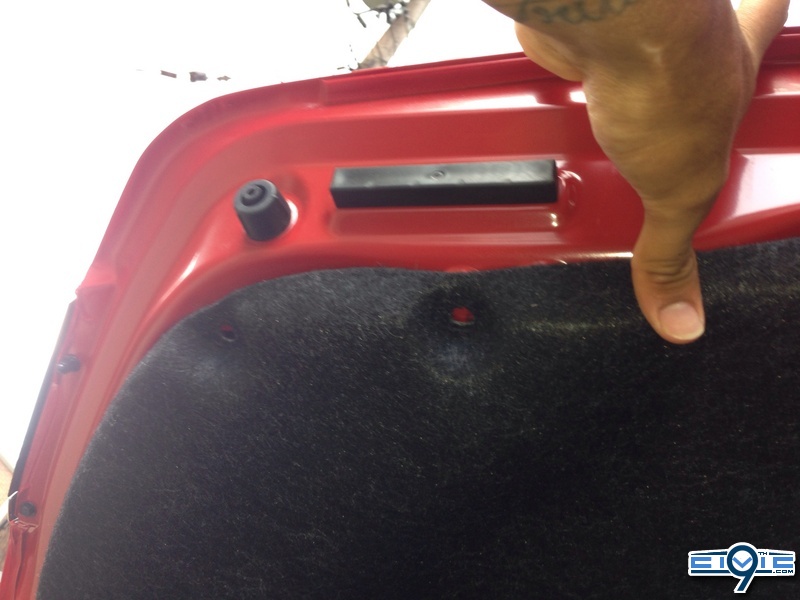

    First you have to un clip these clips 2 on each side
    [​IMG]

    [​IMG]

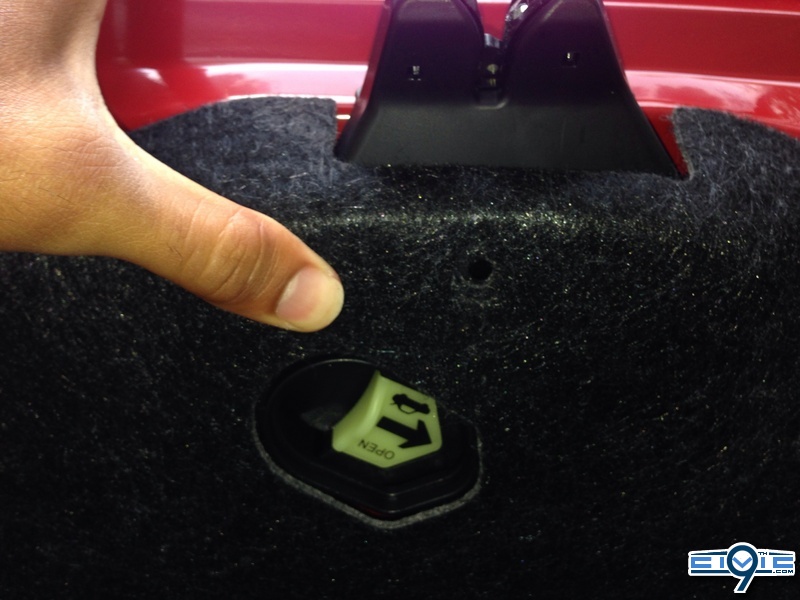

    then the Phillis screw in the middle

    [​IMG]

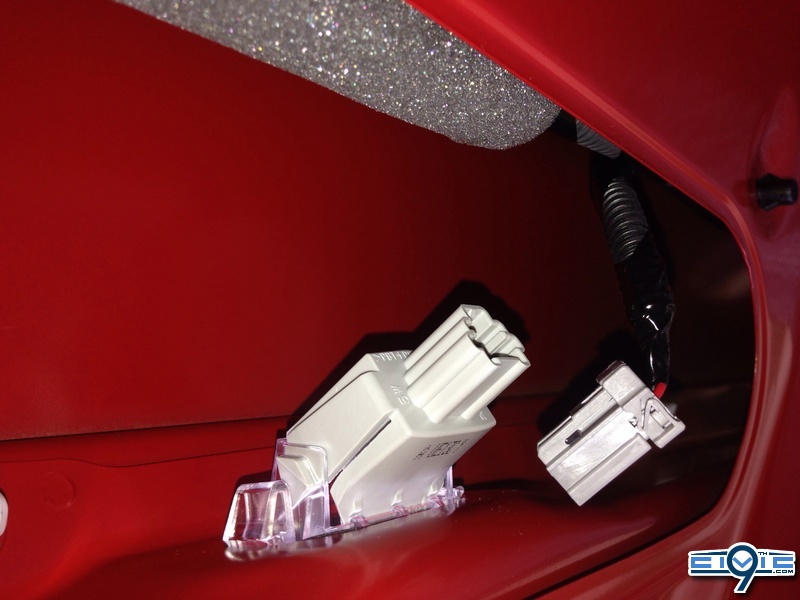

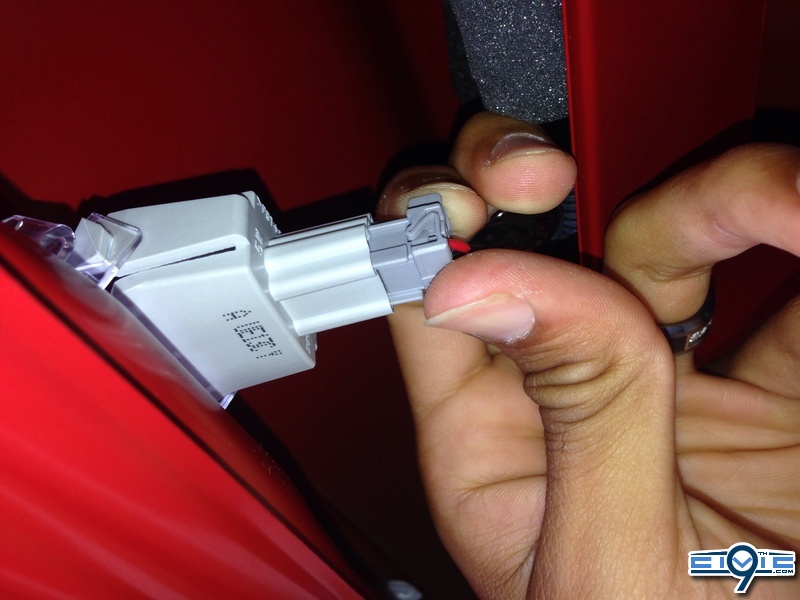

    then you want to move that carpet out your way and unclip these wire clips on both side

    [​IMG]
    TADA!!
    [​IMG]

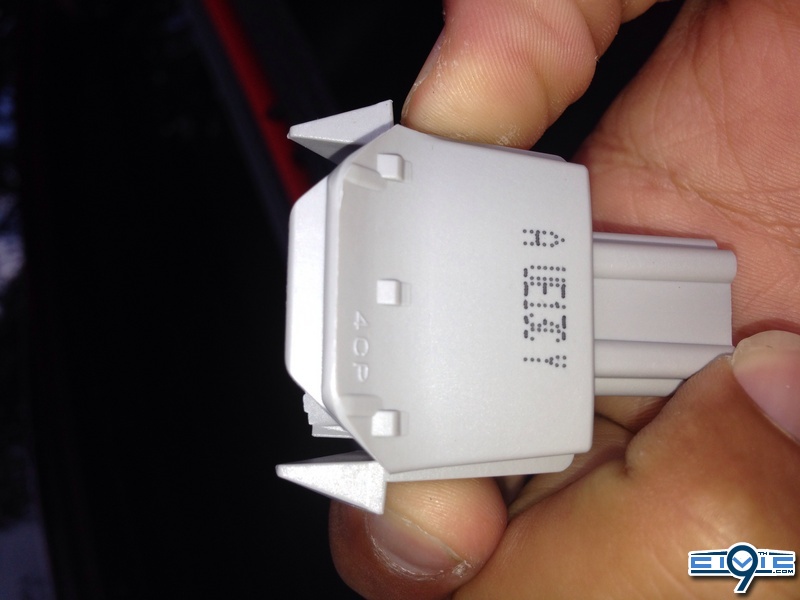

    then you have the bulb housing you want to pinch both sides like so

    [​IMG]

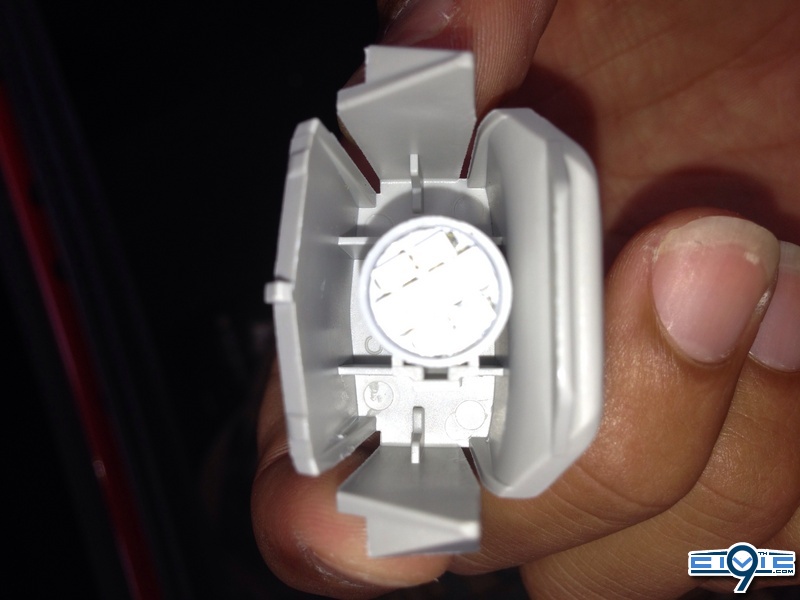

    take out the old bulb and replace with led bulb

    [​IMG]
    then just clip everything back on the same way

    While you have that carpet down might as well do you reverse light which are just as easy

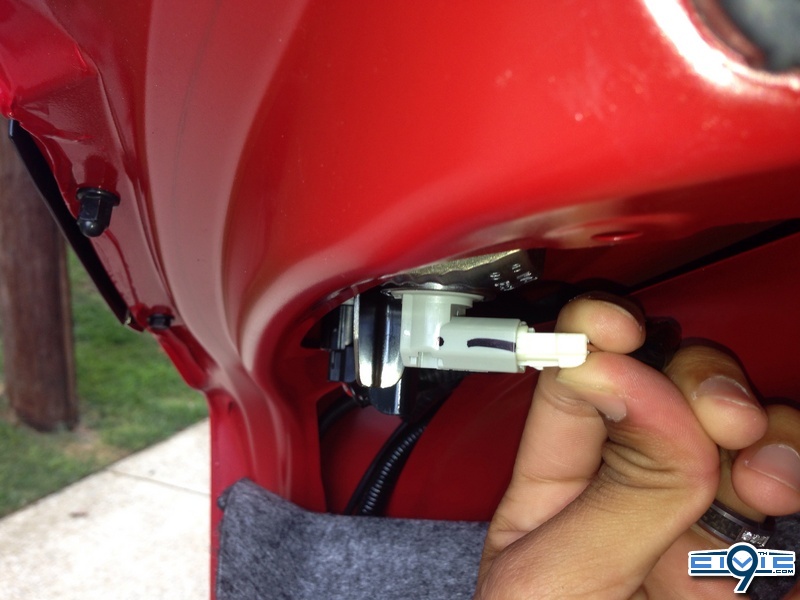

    Unclip the wire

    [​IMG]

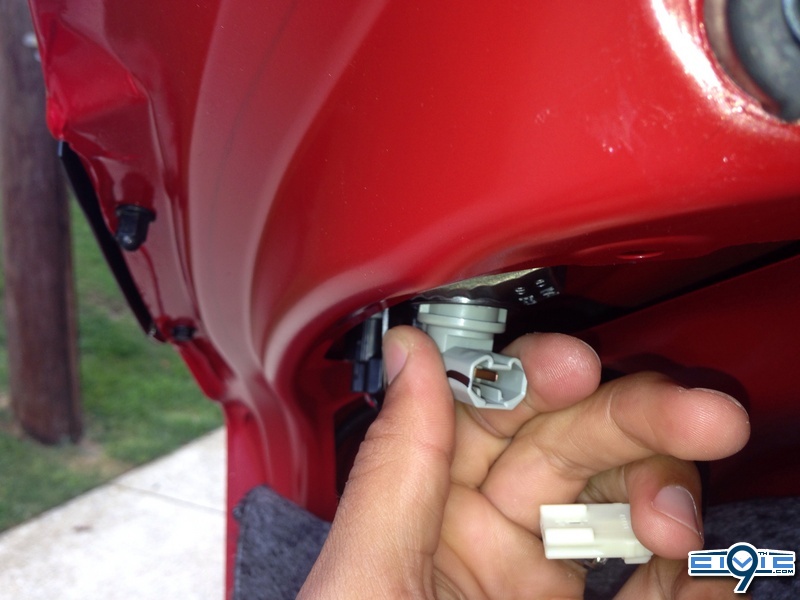

    and turn the bulb housing clockwise towards yourself and pull down like so

    [​IMG]
    then take off your old bulb insert the lED, insert the housing back in the hole and turn counter clock wise and insert cable again then just do the other side the same way

    Last edited by a moderator: Aug 2, 2013
  2. Dar-Dar

    Dar-Dar Mordorator

    Messages:
    19,329
    Location:
    North NJ
    Vehicle Model:
    Civic Si
    Body Style:
    Fiji Blue Pearl Coupe Coolest Member Since: May 15, 2011
  3. RedRocket_Si13

    RedRocket_Si13 Active Member

    Messages:
    85
    Location:
    annapolis,md
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    thanks figured I would make one and contribute to the site as many of you guys have helped me out as well in the past

    Pauly99to17 likes this.
  4. RedRocket_Si13

    RedRocket_Si13 Active Member

    Messages:
    85
    Location:
    annapolis,md
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    will take pics at night to show the end job

    Dar-Dar likes this.
  5. webby
    • Staff
    • 2019 Toys For Tots

    webby Administrator

    Messages:
    51,950
    thanks for the diy :thumb:

    RedRocket_Si13 likes this.
  6. RedRocket_Si13

    RedRocket_Si13 Active Member

    Messages:
    85
    Location:
    annapolis,md
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Ok here's the pics at night

    License plate LED's solo image.jpg license plate and reverse LED's image.jpg map light view #1 image.jpg view #2 image.jpg and dome light with me in it lol image.jpg

    webby likes this.
  7. webby
    • Staff
    • 2019 Toys For Tots

    webby Administrator

    Messages:
    51,950
    reverse lights really look great

  8. tmkpres

    tmkpres Well-Known Member

    Messages:
    118
    Location:
    Los Angeles
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Ok so I'm lost, you need 4 t10 bulbs and the 168,194,2825 w5w bulbs ?

  9. RedRocket_Si13

    RedRocket_Si13 Active Member

    Messages:
    85
    Location:
    annapolis,md
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    No just the t10 bulbs the other numbers are car part numbers

  10. tmkpres

    tmkpres Well-Known Member

    Messages:
    118
    Location:
    Los Angeles
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Oh I see, so the aftermarket t10 number replaces all the oem numbers

  11. RedRocket_Si13

    RedRocket_Si13 Active Member

    Messages:
    85
    Location:
    annapolis,md
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Yup

  12. Nikhil S

    Nikhil S Well-Known Member

    Messages:
    17
    Location:
    Worcester, MA
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    great writeup! I tried to switch out my license and reverse lights to LEDs today. THe reverse lights were easy, but I couldn't get the bulbs out of the holder for the license lights (any tips on this, I tried a rubber band too but I can't get the bulb out!) so I only ended up switching the reverse lights right now. Turns out, though, that they don't even turn on lol. Will try to switch them out with two different LEDs tomorrow, but if that doesn't work the originals are going to go back in. Which LEDs did you order? Could you share a link? Thanks!!

  13. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,176
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    Yes, also would like to know reverse lightbulb options. Are these the brightest LEDs out there?

    Last edited: Aug 26, 2013
  14. Dar-Dar

    Dar-Dar Mordorator

    Messages:
    19,329
    Location:
    North NJ
    Vehicle Model:
    Civic Si
    Body Style:
    Fiji Blue Pearl Coupe Coolest Member Since: May 15, 2011
  15. RedRocket_Si13

    RedRocket_Si13 Active Member

    Messages:
    85
    Location:
    annapolis,md
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Just copy paste this >>>> zone tech 8smd T-10 168,194,2825 w5w white into Amazon and they will come up

  16. Nikhil S

    Nikhil S Well-Known Member

    Messages:
    17
    Location:
    Worcester, MA
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Lights were in backwards! (weird, right??). Anyways, got all the lights + map/dome lights replace. Looks great (and my parents agree hahahah)! Just had to tug/wiggle the license lights a little more and they eventually popped off the socket. Will post pics when I get a chance ;)

    Also - the phillips head plug for the trunk didn't unscrew itself off at all so i just took out all the other plugs and gave it a nice tug and pushed down on it from the other side and it just popped out.

    Thanks again @RedRocket_Si13! Next step: brighter LEDs for my reverse lights are probably a good idea :p

    RedRocket_Si13 likes this.
  17. bobshur

    bobshur Well-Known Member

    Messages:
    1,300
    Location:
    Atlanta
    Vehicle Model:
    2012 Civic si
    Body Style:
    Coupe
    Question... Are the led reverse lights brighter than stock? I know the look better but I got to see at night in reverse.

  18. RedRocket_Si13

    RedRocket_Si13 Active Member

    Messages:
    85
    Location:
    annapolis,md
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    He's most definitely

  19. Nikhil S

    Nikhil S Well-Known Member

    Messages:
    17
    Location:
    Worcester, MA
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Depends on how cheap the ones you buy are lol

  20. Daniel Bivona

    Daniel Bivona Well-Known Member

    Messages:
    178
    Location:
    Pompton Plains, NJ
    Vehicle Model:
    Si
    Body Style:
    FB6
    Can you purchase the LED bulbs for the license plate at an actual store instead of online?
