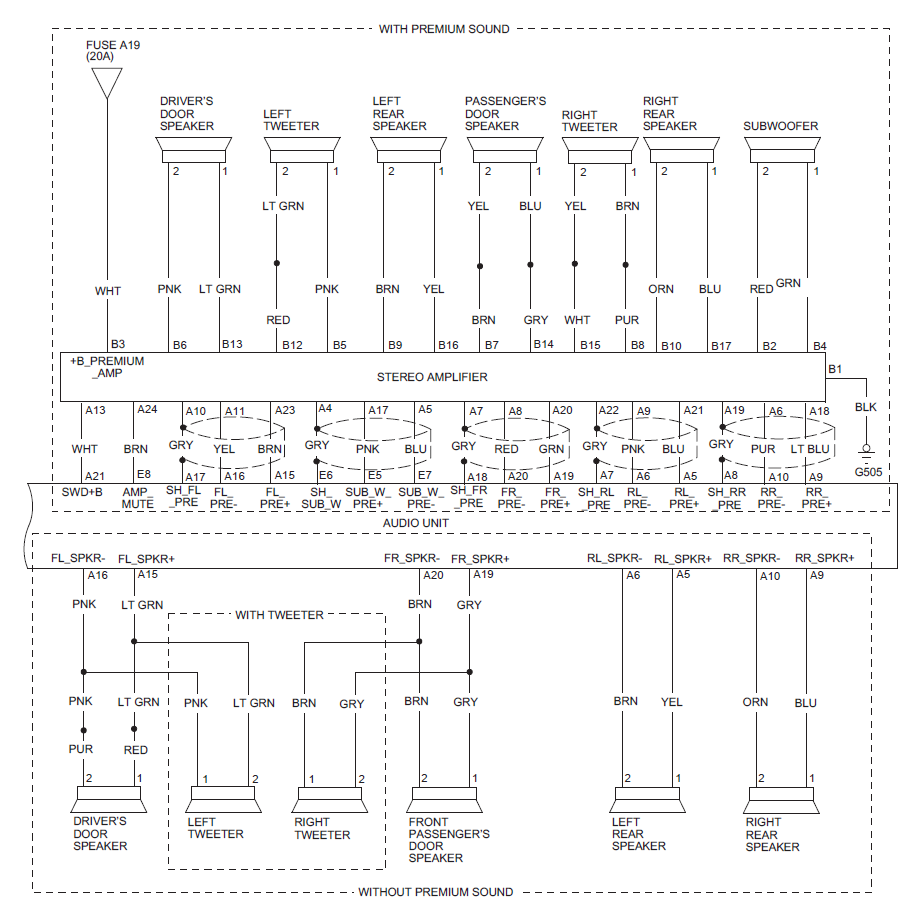

2012 Civic Audio Wiring Guide & Pinouts For Factory Radio

[immajackuup]

===

====

===

====

====

===

====

====

Non-premium audio pinouts and diagrams
http://9thcivic.com/forum/threads/2...uts-for-factory-radio.5916/page-6#post-418712


2014+ audio pinouts and diagrams
http://9thcivic.com/forum/threads/2014-civic-display-audio-pinouts.16304/



[webby]

made this a sticky & backed up images - huge thank you!



[immajackuup]

i post imd later



[Bulkybear]

Yes thank you for this!



[bad fishy]

Very awesome resource. Big thanks!!



[immajackuup]



[webby]

thank you!



[AlienPrime]

Thanks Bro! So happy you have an account here! Would have missed your postings so much hahah!



[immajackuup]

Thanks Bro! So happy you have an account here! Would have missed your postings so much hahah!

im trying to make people come to this forum instead of 9thgen due to lack of activity here. mod here are kool as fuckk comparing to stuck up 9thgen



[ADExternal]

I never thanked you for posting this up jack, this is what Im using to set up my new sound system with oem system



[immajackuup]

I never thanked you for posting this up jack, this is what Im using to set up my new sound system with oem system

attach loc after head unit only.



[Nery]

Anyone knows where is the factory amp located on the honda civic 2012 sedan. I got trouble finding it.



[ADExternal]

I was told that its in the passenger right foot wall



[Mephist0]

Wow this is incredible! Now I know exactly which wires I need to splice into for the subwoofer preouts.



[hotshot]

Anyone knows where is the factory amp located on the honda civic 2012 sedan. I got trouble finding it.

It's under the driver footwell. Under the steering wheel



[Driversound]

attach loc after head unit only.

Does it lose signal integrity that much? I attached the loc at the rear speakers and signal was weak and thinking of attaching to front speakers instead as it seems like front speakers sounds way louder/better than the rears.



[immajackuup]

nope,tap into back of head unit on rear speaker wire.



[Driversound]

That means I have to pull the HU again. For those who has a 2013, it's a little different than the 2012. The HU face is all one piece that holds the vent and HVAC controls. It doesn't just pull out as there are two screws holding it. There are six screws to be removed total. The first two is when you open the little compartment right below the HU, unscrew that and pull it towards you and you'll find another two screws underneath it. Unscrew that and at this time you should have a view directly underneath the HU, there are two bolts/screws holding the whole thing.



[webby]

if you do it again, I'm sure users would love pics/diy info on how to do it. Just a suggestion



[Driversound]

I'll tear it apart again and take pictures this time around.
