Any chance you know if the ILX LEDs are smaller/narrower than the MDX one?

Would love to squeeze in the ILX headlight with the LED DRL strip one day, after I win the lotto. A co worker has the new ILX and I'm jelly of the headlights.


ethlar

Grumpy Moderator
Super Mod
4,361
3,384
Philly
Vehicle Model
TLX 3.5 SH-AWD Tech
Body Style
Sedan
i think the front of the ILX and TLX headlights are narrower, but i dont know if they made the heat sinks smaller too. the ILX has reflectors for the high beam emitters too instead of the lenses last i looked


Nomar06

Super Moderator
Super Mod
7,826
4,938
Charlotte, NC
Vehicle Model
Fiesta ST (FiST)
Body Style
hatch
It looks like the individual LED lenses are smaller, but that could be the pic.....





ethlar

Grumpy Moderator
Super Mod
4,361
3,384
Philly
Vehicle Model
TLX 3.5 SH-AWD Tech
Body Style
Sedan
i think the ILX DRL is also a switch back turn signal, or the upper light bar is the turn signal


iShift_6

Well-Known Member
91
159
Sitting in Traffic
Vehicle Model
Civic Si
Body Style
Sedan
Those look AWESOME!.

Can't wait to see them on the car.
Updated control module print coming this weekend if you need it.

Where is the LED Driver mounted on those.


ethlar

Grumpy Moderator
Super Mod
4,361
3,384
Philly
Vehicle Model
TLX 3.5 SH-AWD Tech
Body Style
Sedan

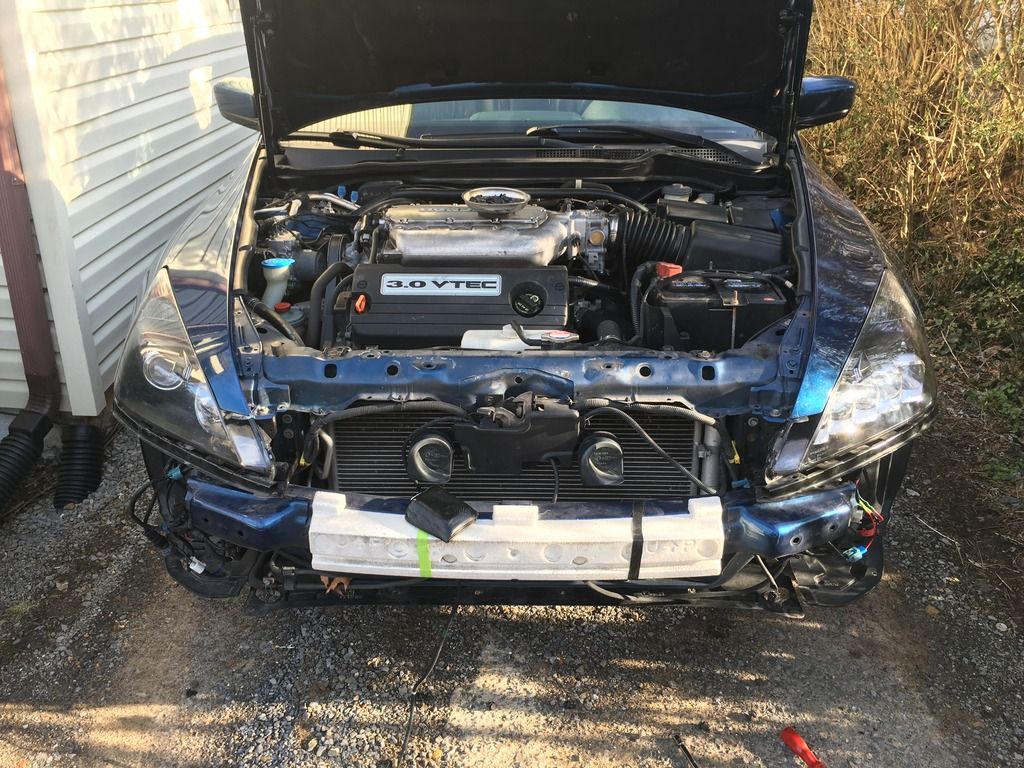

It will be a bit to get them on the car, the frankensteined headlight hits the front radiator support and crash frame structure, so i need to do a little reshaping on the headlight to make it clear


ethlar

Grumpy Moderator
Super Mod
4,361
3,384
Philly
Vehicle Model
TLX 3.5 SH-AWD Tech
Body Style
Sedan
Those look AWESOME!.

Can't wait to see them on the car.
Updated control module print coming this weekend if you need it.

Where is the LED Driver mounted on those.

the driver is mounted to the back where the low beam would have been, the harness comes through its grommet in the bottom of the light


ethlar

Grumpy Moderator
Super Mod
4,361
3,384
Philly
Vehicle Model
TLX 3.5 SH-AWD Tech
Body Style
Sedan
Like you're sending them back to him, or you're going to mod it somehow?

i think its just a corner i need to see if i can take it off and jbweld over myself


ethlar

Grumpy Moderator
Super Mod
4,361
3,384
Philly
Vehicle Model
TLX 3.5 SH-AWD Tech
Body Style
Sedan
maybe, i was thinking of using foil tape and caulk to make a flexible patch over the areas and let me free up most of the way to the heat sink


Nix

Jötunn Moderator
10,765
8,162
Lew-vul, KY
Body Style
It's A Fast Pig!

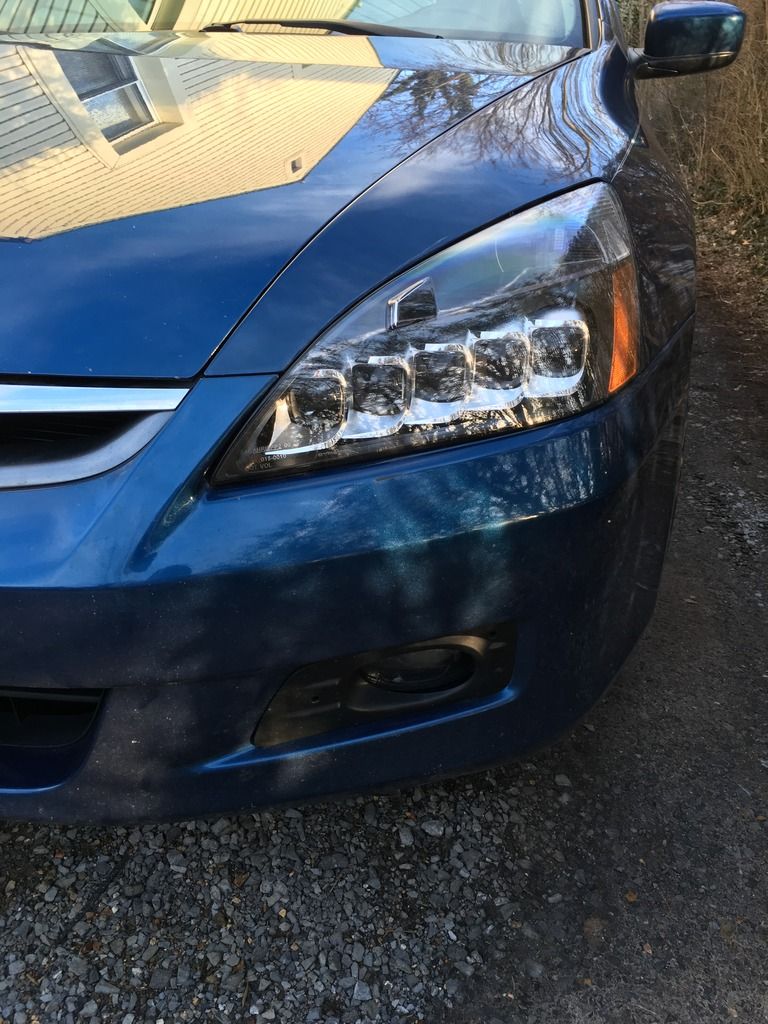

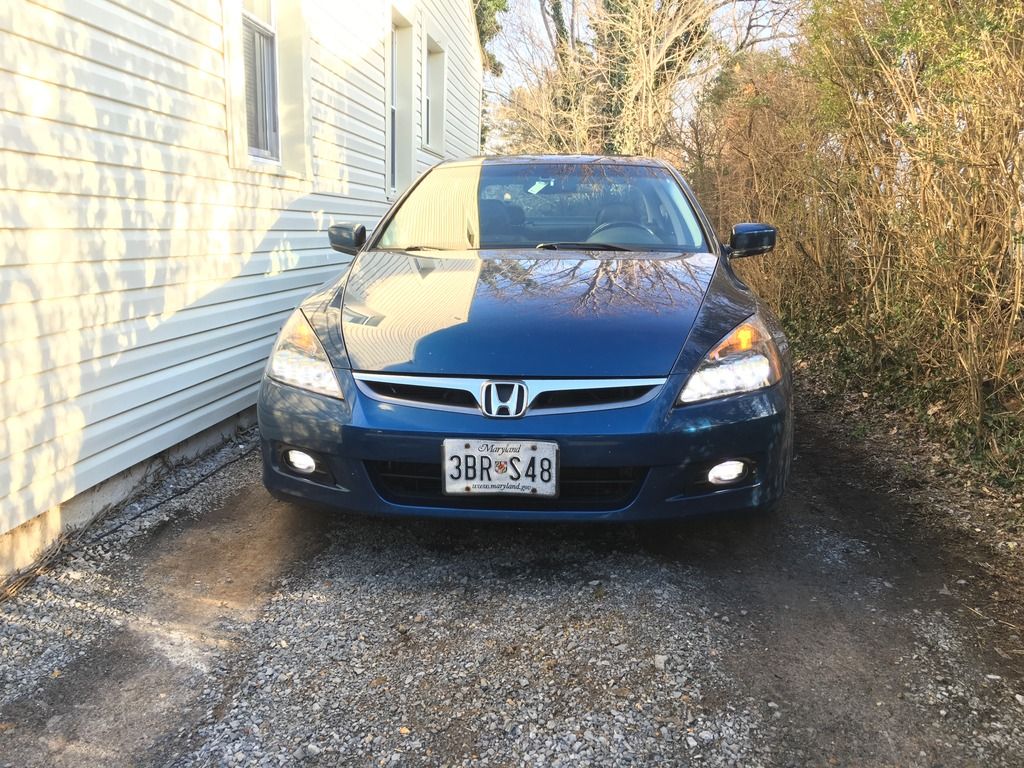

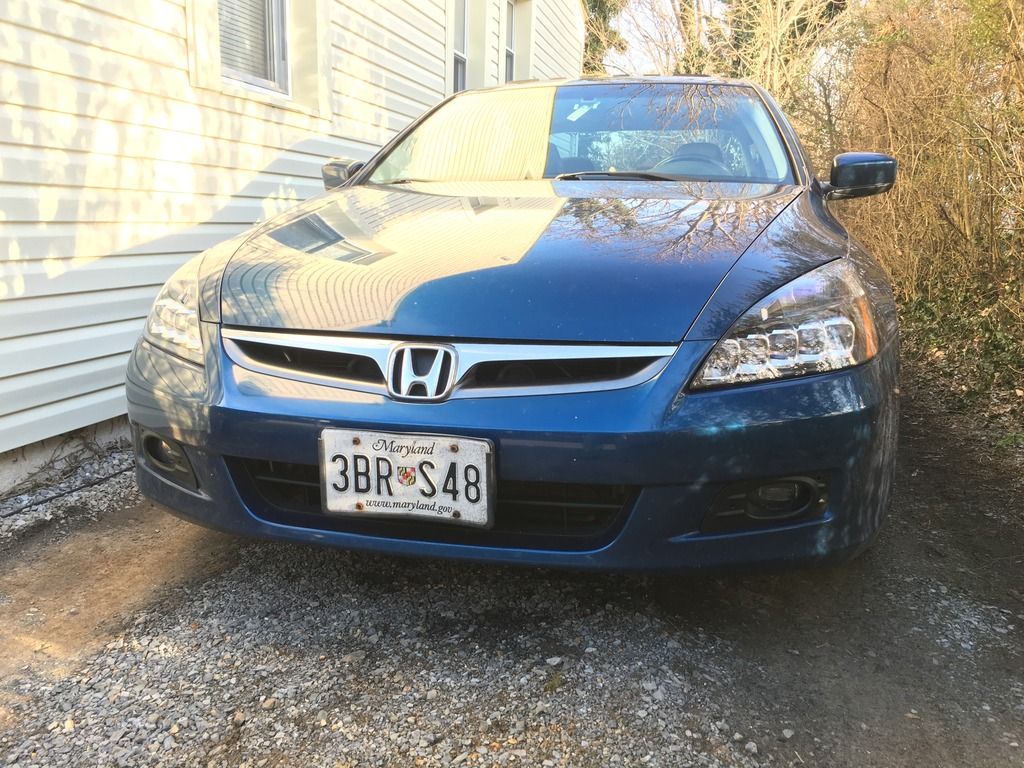

Wow, those look awesome. Car has a much more angry look to it, like the eyes are narrowed to slits.


ethlar

Grumpy Moderator
Super Mod
4,361
3,384
Philly
Vehicle Model
TLX 3.5 SH-AWD Tech
Body Style
Sedan
now if only she could keep up with you on the dragon, imagine that in your rear view the whole way


iShift_6

Well-Known Member
91
159
Sitting in Traffic
Vehicle Model
Civic Si
Body Style
Sedan

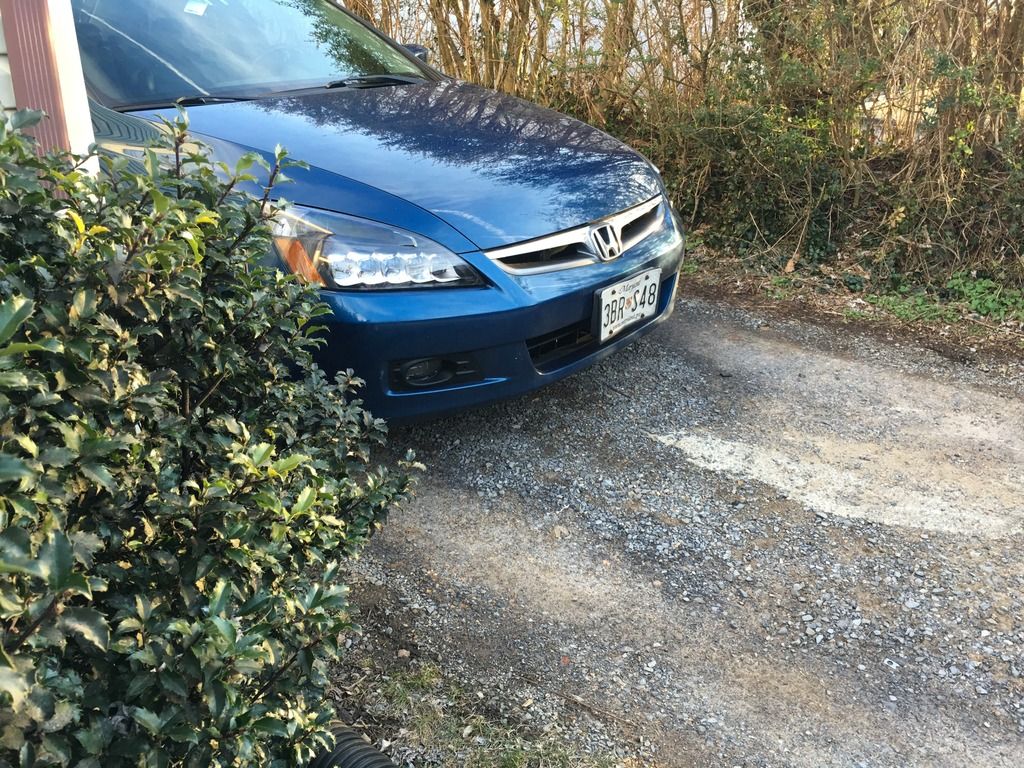

Those look awesome. I love how the silver of the MDX shroud falls inline with the grille. Makes for a great look.
Really wish I could have used the chrome trim from the TLX ones on mine.
Again looks awesome.
