    Any chance you know if the ILX LEDs are smaller/narrower than the MDX one?

    Would love to squeeze in the ILX headlight with the LED DRL strip one day, after I win the lotto. A co worker has the new ILX and I'm jelly of the headlights.

  2. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,153
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan
    i think the front of the ILX and TLX headlights are narrower, but i dont know if they made the heat sinks smaller too. the ILX has reflectors for the high beam emitters too instead of the lenses last i looked

  3. Nomar06
    • Staff
    • 2018 Toys For Tots

    Nomar06 Super Moderator

    Messages:
    7,403
    Location:
    Charlotte, NC
    Vehicle Model:
    Fiesta ST (FiST)
    Body Style:
    hatch
    It looks like the individual LED lenses are smaller, but that could be the pic.....

    [​IMG]

    [​IMG]

  4. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,153
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan
    i think the ILX DRL is also a switch back turn signal, or the upper light bar is the turn signal

  5. Nomar06
    • Staff
    • 2018 Toys For Tots

    Nomar06 Super Moderator

    Messages:
    7,403
    Location:
    Charlotte, NC
    Vehicle Model:
    Fiesta ST (FiST)
    Body Style:
    hatch
    I believe the upper is the turn signal.

  6. chirp the 1-2

    chirp the 1-2 Well-Known Member

    Messages:
    32
    those headlight are crazy, never forget the first time I saw them on the lot

  7. iShift_6

    iShift_6 Well-Known Member

    Messages:
    91
    Location:
    Sitting in Traffic
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Those look AWESOME!.

    Can't wait to see them on the car.
    Updated control module print coming this weekend if you need it.

    Where is the LED Driver mounted on those.

    ethlar likes this.
  8. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,170
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    Wow. Very impressive work. The guy who did them is obviously talented. Also anxious to see those on your car.

  9. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,153
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan
    It will be a bit to get them on the car, the frankensteined headlight hits the front radiator support and crash frame structure, so i need to do a little reshaping on the headlight to make it clear

  10. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,153
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan
    the driver is mounted to the back where the low beam would have been, the harness comes through its grommet in the bottom of the light

  11. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,170
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    @xXCiviXx
    Not sure if you have seen these lights.

    xXCiviXx likes this.
  12. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,523
    Like you're sending them back to him, or you're going to mod it somehow?

  13. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,153
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan
    i think its just a corner i need to see if i can take it off and jbweld over myself

  14. Nomar06
    • Staff
    • 2018 Toys For Tots

    Nomar06 Super Moderator

    Messages:
    7,403
    Location:
    Charlotte, NC
    Vehicle Model:
    Fiesta ST (FiST)
    Body Style:
    hatch
    Could you heat up the plastic and bend/shape the area you need to clear?

  15. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,153
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan
    maybe, i was thinking of using foil tape and caulk to make a flexible patch over the areas and let me free up most of the way to the heat sink

  16. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,153
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan

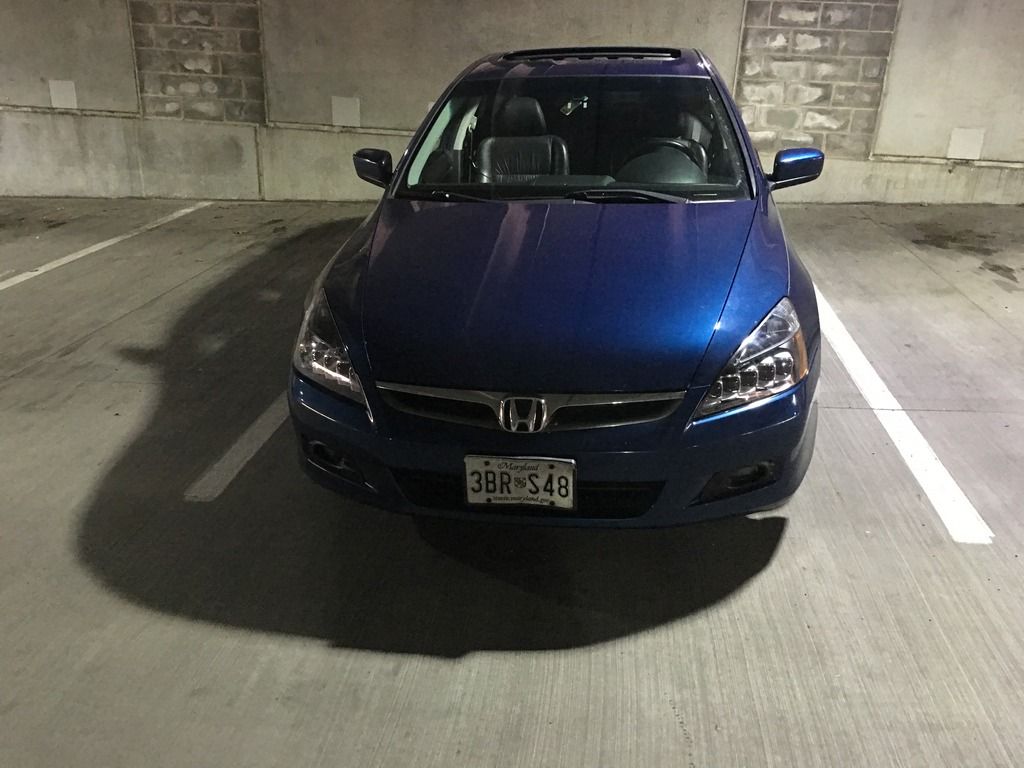

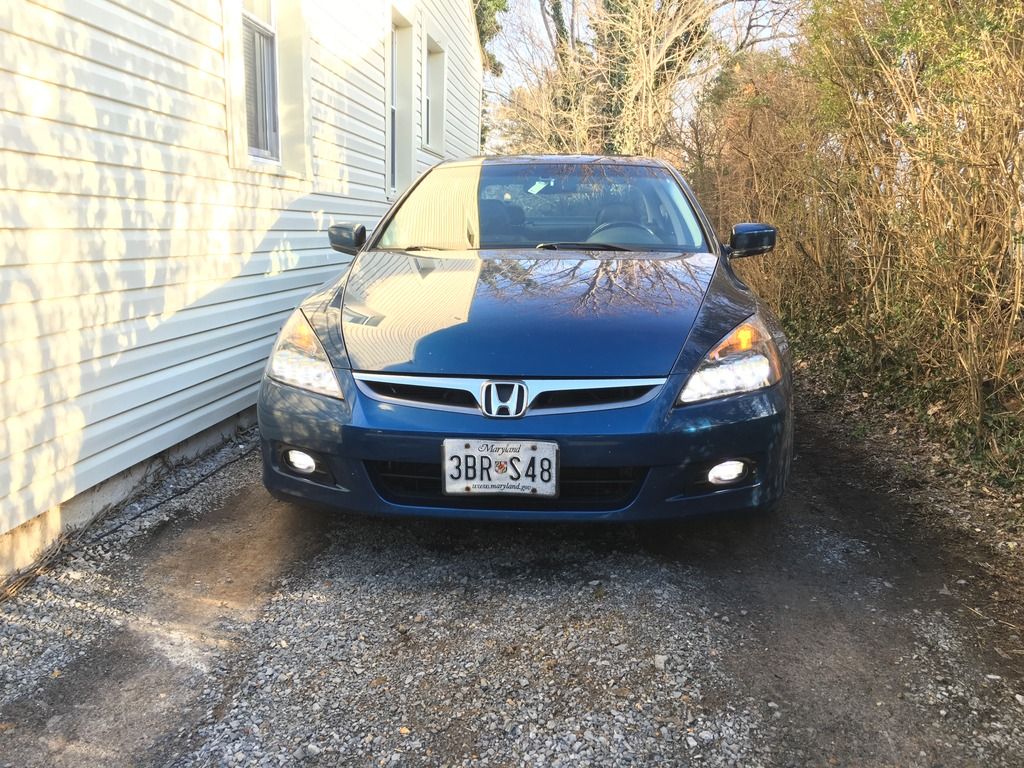

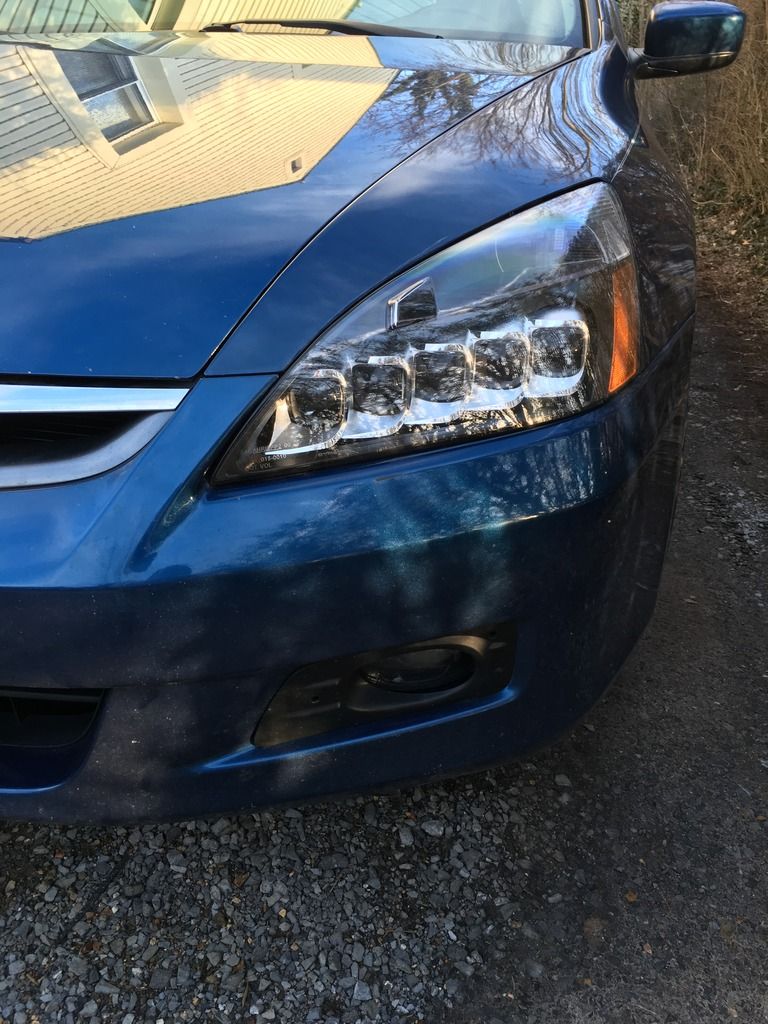

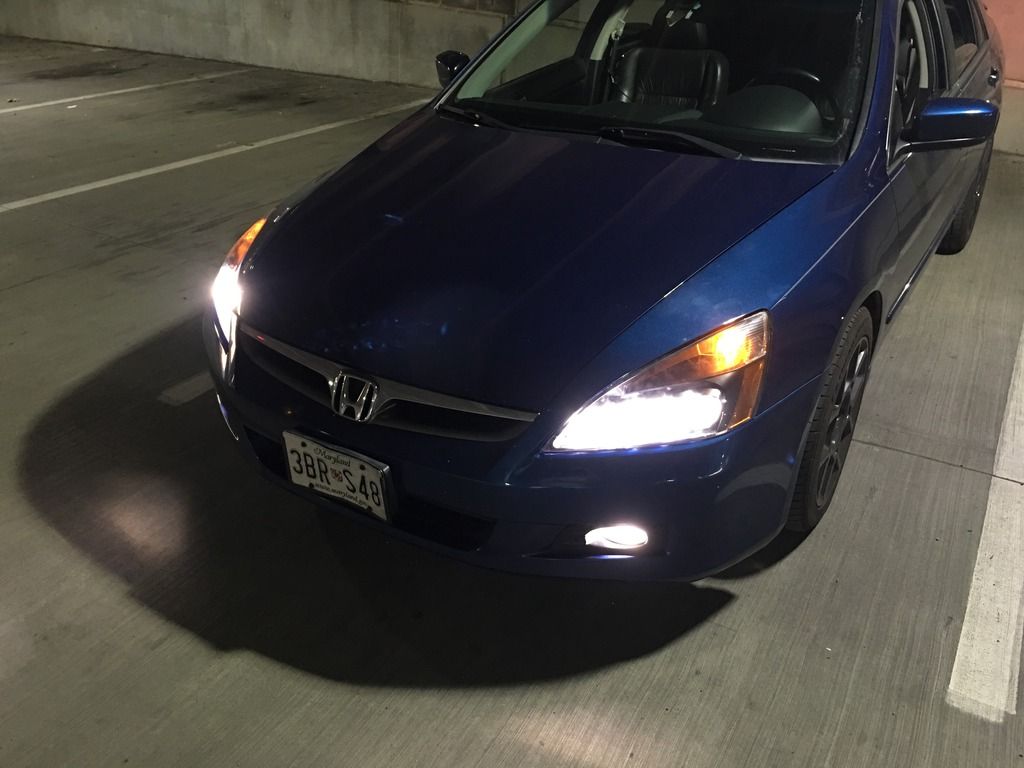

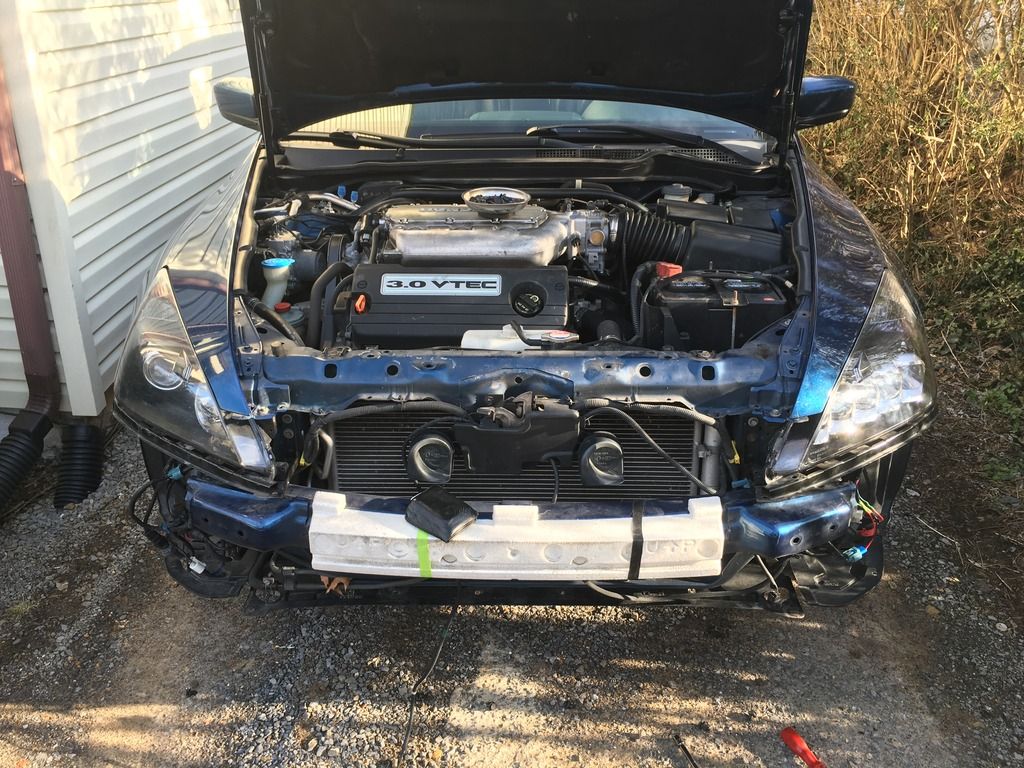

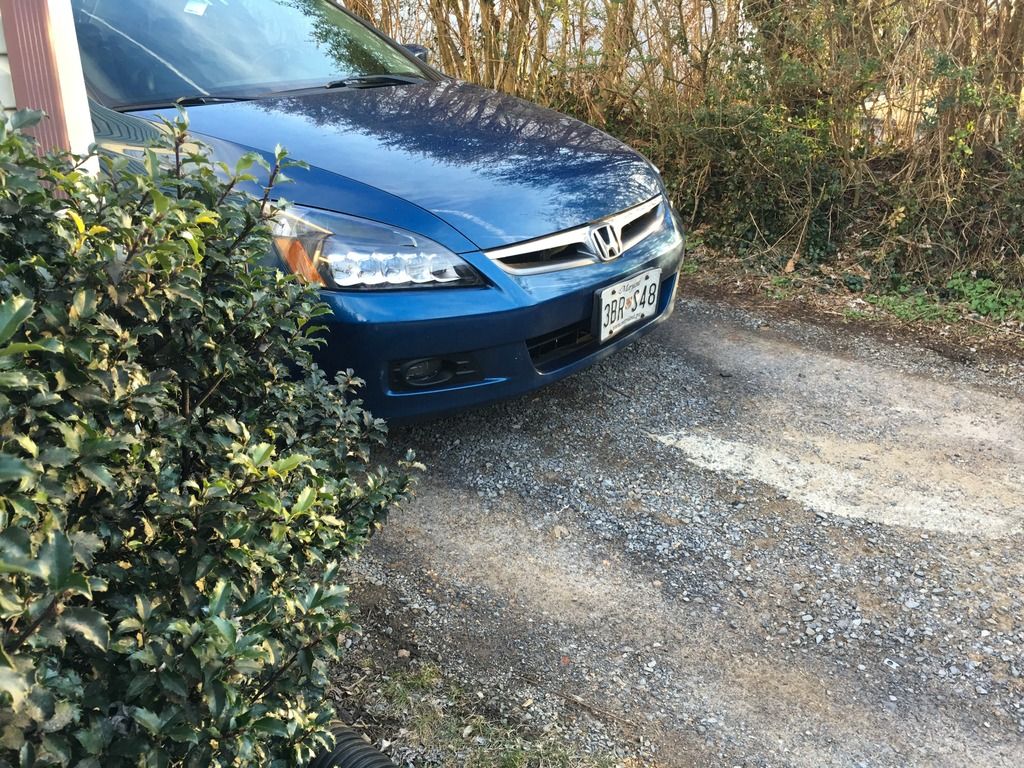

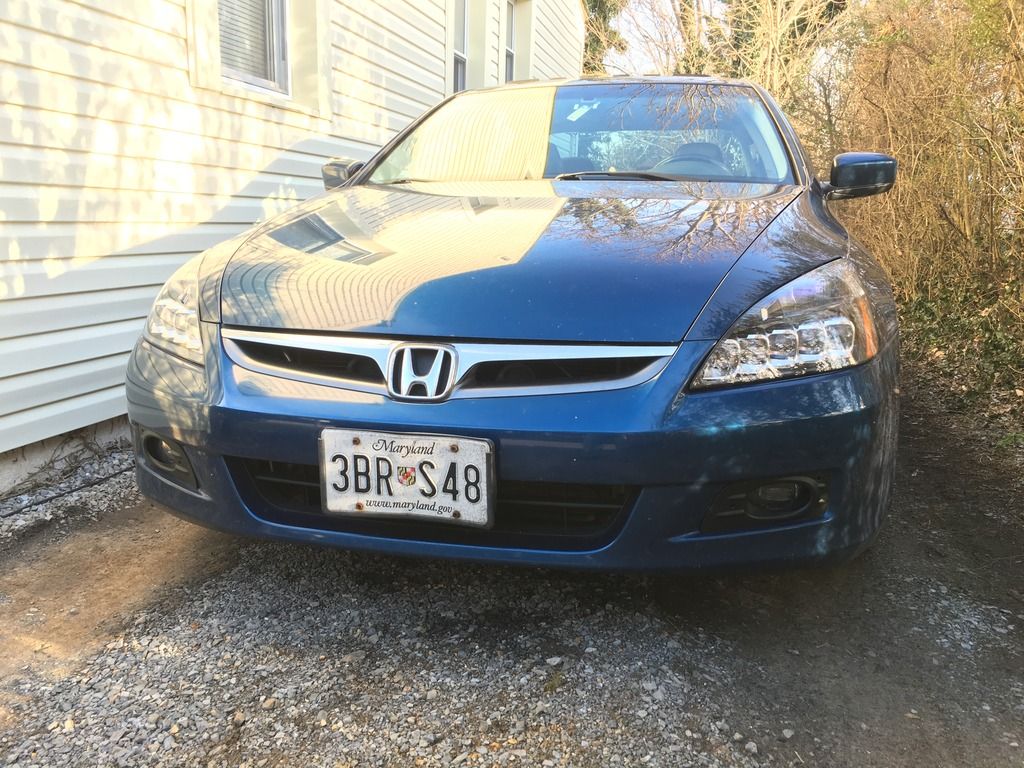

    Took a break today to do some work on the car

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Dar-Dar, xXCiviXx, iShift_6 and 4 others like this.
  17. Nix

    Nix J├Âtunn Moderator

    Messages:
    10,765
    Location:
    Lew-vul, KY
    Body Style:
    It's A Fast Pig!
    Wow, those look awesome. Car has a much more angry look to it, like the eyes are narrowed to slits.

    ethlar likes this.
  18. ethlar
    • Staff

    ethlar Grumpy Moderator

    Messages:
    4,153
    Location:
    TX
    Vehicle Model:
    TLX 3.5 SH-AWD Tech
    Body Style:
    Sedan
    now if only she could keep up with you on the dragon, imagine that in your rear view the whole way

  19. webby
    • Staff
    • 2018 Toys For Tots

    webby Administrator

    Messages:
    49,523
    Glad you got them installed man. They look great.

    ethlar likes this.
  20. iShift_6

    iShift_6 Well-Known Member

    Messages:
    91
    Location:
    Sitting in Traffic
    Vehicle Model:
    Civic Si
    Body Style:
    Sedan
    Those look awesome. I love how the silver of the MDX shroud falls inline with the grille. Makes for a great look.
    Really wish I could have used the chrome trim from the TLX ones on mine.
    Again looks awesome.

    ethlar likes this.
