DIY R18 P2R TBS with gasket Installation tips!

Discussion in 'Intake & Exhaust DIY' started by RobSBP, Dec 24, 2013.

  1. RobSBP

    RobSBP Well-Known Member

    Messages:
    413
    Google "P2R PowerRevRacing TB Spacers, gaskets, etc" for DIY.

  2. RobSBP

    RobSBP Well-Known Member

    Messages:
    413
    How it's coming?

  3. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
    @RobSBP I havent driven since friday due to the snow, so i havent had a chance yet. The way its looking, probably wednesday at the earliest :(

    What did you use to cut the gasket? Just a normal knife? It seems too hard for that, but i dont have a dremmel tool or anything

  4. RobSBP

    RobSBP Well-Known Member

    Messages:
    413
    The easiest way to do this is to angle the blade at 45 and 135 degree to make 1-2mm deep channel.

    VNPP likes this.
  5. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe

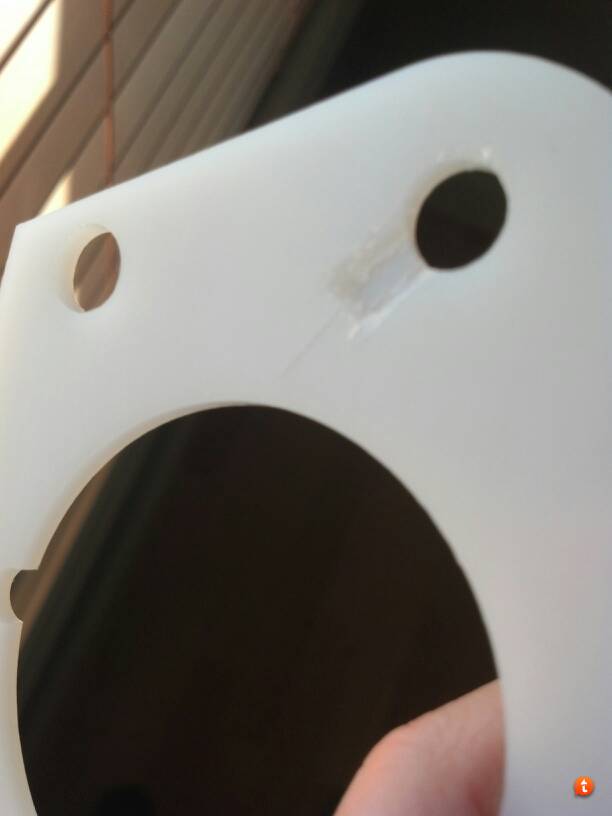

    Should be doing the install this afternoon. Im gonna cut the gasket now, @RobSBP ill post a picture so you can see if it looks good

    Pauly99to17 likes this.
  6. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
  7. RobSBP

    RobSBP Well-Known Member

    Messages:
    413

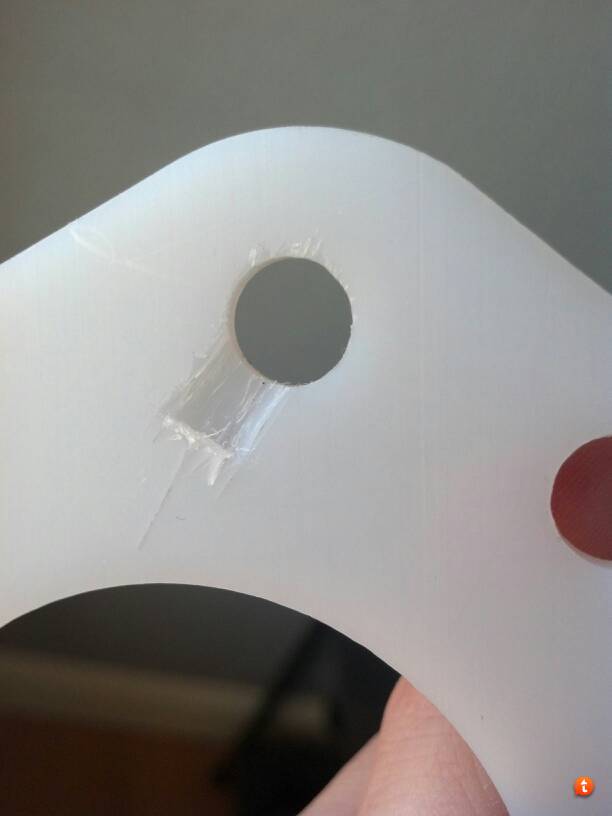

    Make the channel just a bit longer then you are all set. Maybe another 2mm just to be safe.

    When you install it, toque all bolts as tight as when you remove it.

    Pauly99to17 likes this.
  8. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
    So im sitting here with my engine open and i noticed there's no stock gasket for the other side? Was i supposed to order two or something?

  9. RobSBP

    RobSBP Well-Known Member

    Messages:
    413
    Stock only come with one orange o-ring on top of intake manifold. Use the mod plastic gasket on top of the spacer.

  10. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
  11. RobSBP

    RobSBP Well-Known Member

    Messages:
    413
    Yes, leave it alone.

    Pauly99to17 likes this.
  12. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
    Thanks @RobSBP id be stuck if it wasnt for you!

  13. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
    Got it on w/o a problem! No warning lights @Pauly99to17

    Pauly99to17 likes this.
  14. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,174
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    Yay! Mine is ordered and in the process of being delivered. :) @FB2Chris

    Got pics of install?

    FB2Chris likes this.
  15. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
    I dont know if its in my head or not, but i feel like theres a slight change in throttle response down low, but you wont regret buying it! :D

    I didnt get any pics, but once you know your pretty much just making a sandwich its easy.. didnt have to disconnect a single hose!

    Pauly99to17 likes this.
  16. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,174
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    Must look something like this. ???


  17. RobSBP

    RobSBP Well-Known Member

    Messages:
    413
    Yes, something like that.

  18. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,174
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    How did you make the notch without going through? Which tool did you use?

  19. VNPP

    VNPP Well-Known Member

    Messages:
    987
    Location:
    Rolla, MO
    Vehicle Model:
    Civic LX
    Body Style:
    FG3 Coupe
    I used a regular utility knife, and just started shaving the plastic. I made the notch a little farther than in the picture though

    Pauly99to17 likes this.
  20. Pauly99to17

    Pauly99to17 Well-Known Member

    Messages:
    9,174
    Location:
    Ville de Quebec
    Vehicle Model:
    2012 LX
    Body Style:
    Dyno Blue Pearl Sedan (FB2)
    I will be doing this on the weekend. Did you take off the cowel to get in there to do this or was there enough room? Also, which side does the white gasket go on? The side closest to driver side or passenger side? Thanks.
