2012 Civic Audio Wiring Guide & Pinouts For Factory Radio

B

basstoy

Well-Known Member
4
2
xXCiviXx said:
Anyone know where to get wiring harnesses for pre and post amp connectors? Figured it'd be easier to get those two, splice RCAs into pre amp harness and run those to my amps then run aftermarket amp output back to stock post amp connector so i dont have to run new wires to all my speakers.

Main reason I want the harnesses for those points is so i dont have to cut any wires and if I ever need to take my aftermarket system out it makes that a whole lots easier too.

PS would love a source that ships to Canada or sells in Canada
Click to expand...
would love this also... looked on metra online and its a no go....

Sleepingpanda

Sleepingpanda

Kung-Fu Panda
1,089
1,448
Boston, MA
Vehicle Model
Civic Si
Body Style
Sedan
arivera0809 said:
If I have a LX model would their still be a factory amp ?
Click to expand...


does it say "premium audio" on your radio. or do you have a factory subwoofer in the back? if you answered NO to any of these then NO. you do not have the external amp

xXCiviXx

xXCiviXx

Well-Known Member
890
657
Calgary, AB, Canada
Vehicle Model
Si
Body Style
Coupe
Factory amps should be located under the steering wheel for all models that have premium audio if I'm not mistaken. If it's not premium audio, then it's a powered head unit

Hillstones

Hillstones

Well-Known Member
204
136
Valencia, CA
Vehicle Model
Maxima Platinum
Body Style
Sedan
LX models have the basic stereo, without an external amp. Only EX and above coupes and all Si (sedans and coupes) have the lousy premium audio system.

ohmsburn76

ohmsburn76

Well-Known Member
8
4
Pickerington, Ohio
Vehicle Model
SI
Body Style
sedan
I meant to post in this thread......
ohmsburn76 said:

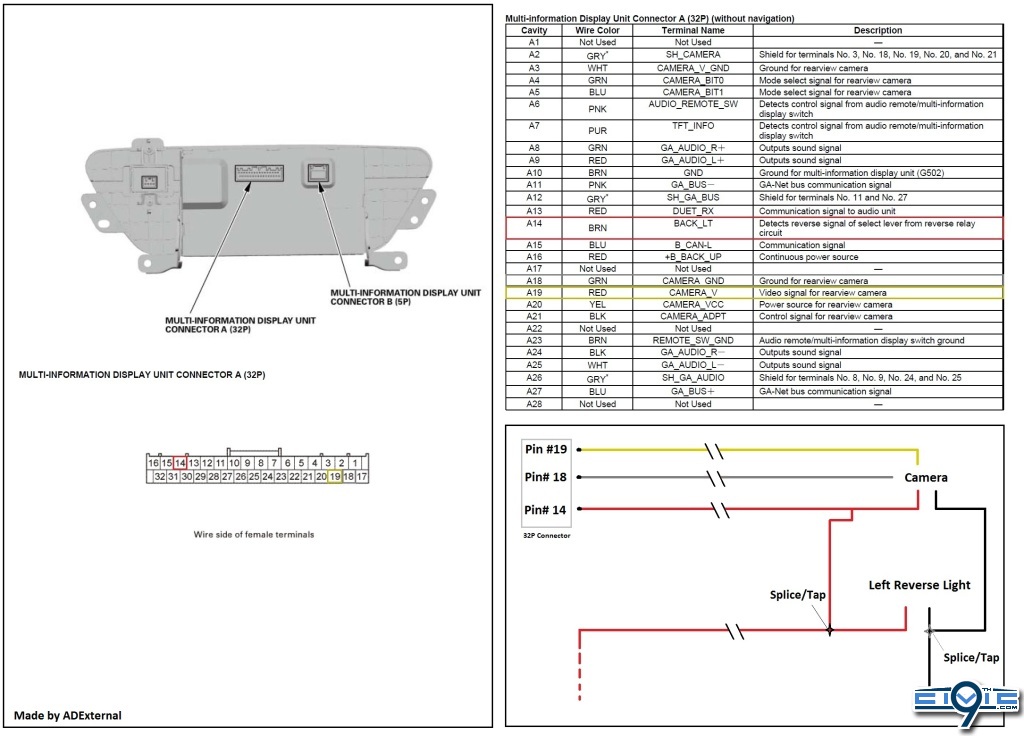

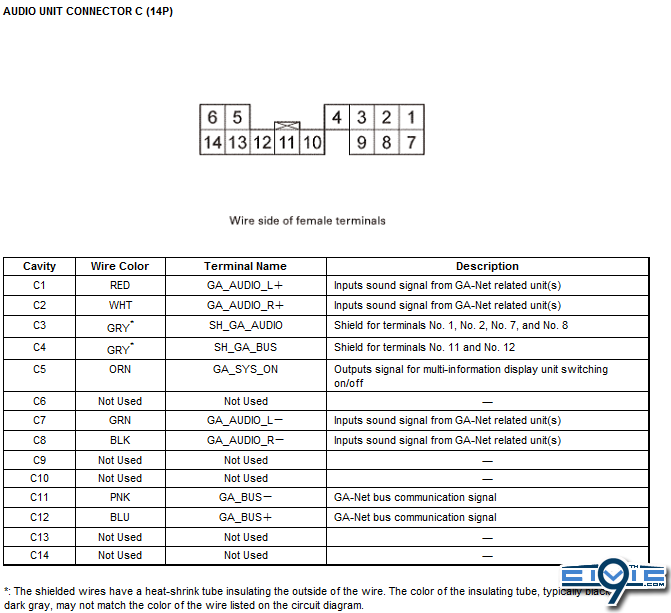

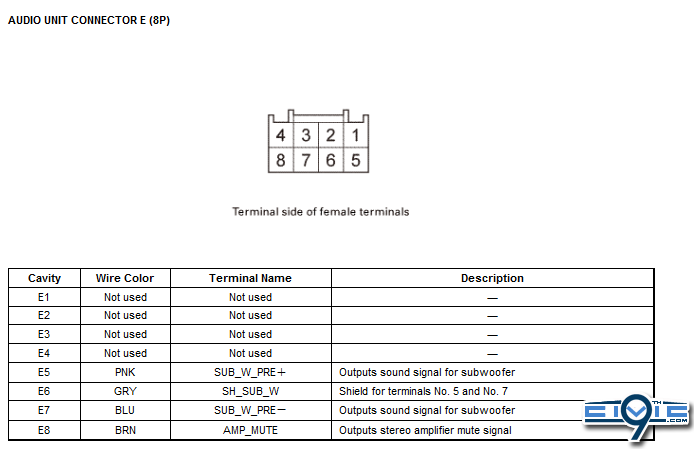

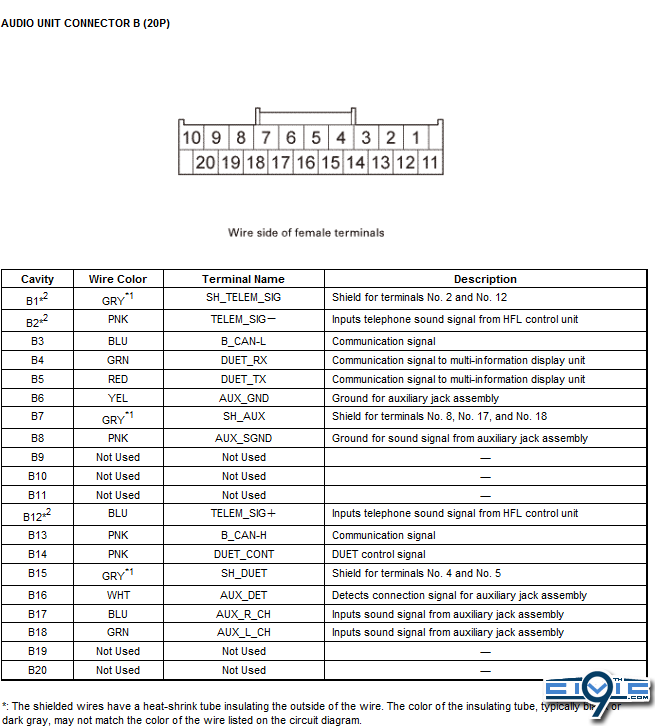

Thanks Webby. I want to bump this pin out schematic. I was able to do my install last weekend. With a little help from a Crutchfield master sheet for dismantling my dash. (Props to guys on live chat to send that to me in less than 5 minutes) The pin out was amazing. I was able to find the remote and sub +/- out with no problems (PRE AMP). I was able to solder (right in the dash) my remote turn on and a set of female RCAs (not a LOC ) to the correct wires. It was a one and done for me. This was my first attempt at a custom box install. I still need to get it tuned...it a touch loud. Anyway, using my factory radio, factory amp for my mids and highs. Everything works as is should

Heres what i used for my RCA's (http://www.sonicelectronix.com/item_67780_Rockford-Fosgate-RFIF2SW.html) (I simply just soldered the positives and negatives together and then to the sub +/- in the appropriate wire harness., again thank you guys at Crutchfield live chat for that advice too)

View attachment 48461 View attachment 48462

View attachment 48461 View attachment 48462
Click to expand...

ohmsburn76

ohmsburn76

Well-Known Member
8
4
Pickerington, Ohio
Vehicle Model
SI
Body Style
sedan
I hate to just rip into my dash again just for some pics, but as soon as i have a reason to get back in there (second amp for rest of my speakers) I'll def get some snaps. Honestly since this was my first run (and first Si 9th gen ) I wanted to make sure it worked before I plastered DIY pictures all over the place.

1

13blacksedan

Well-Known Member
266
80
I only say this cause in the 9 months I have been a member I have seen a dozen questions with people wanting to do this. It would be nice for new members to have link with a how to. I would have liked to see one myself before I had someone do it for me.

ohmsburn76

ohmsburn76

Well-Known Member
8
4
Pickerington, Ohio
Vehicle Model
SI
Body Style
sedan

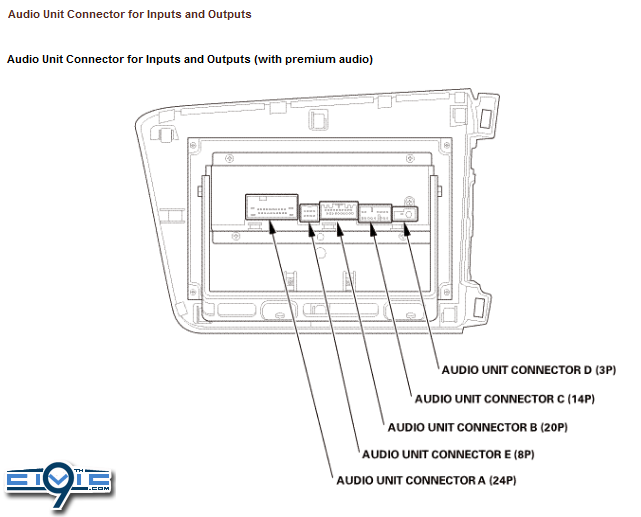

From all that i have researched, the only way to get "pre amp" is you need to get to the wire harness between the head unit and factory amp. Again, i am no expert, but from what i have read from all the forums, the amp has a built in cross over. Even using a LOC, you may not get the best result unless get in there before the amp. I'll see what i can come up with this weekend. I actually and taking my amp and box out as i have to drop my car off at a body shop. Someone rear ended me a couple weeks ago and the Insurance company FINALLY approved my estimate. It was actually the last week in June when it happened.

xXCiviXx

xXCiviXx

Well-Known Member
890
657
Calgary, AB, Canada
Vehicle Model
Si
Body Style
Coupe
ohmsburn76 said:
From all that i have researched, the only way to get "pre amp" is you need to get to the wire harness between the head unit and factory amp. Again, i am no expert, but from what i have read from all the forums, the amp has a built in cross over. Even using a LOC, you may not get the best result unless get in there before the amp. I'll see what i can come up with this weekend. I actually and taking my amp and box out as i have to drop my car off at a body shop. Someone rear ended me a couple weeks ago and the Insurance company FINALLY approved my estimate. It was actually the last week in June when it happened.
Click to expand...
Exactly!! Use the preamp and get a full signal and you can hear everything all around you instead of just in the front

ohmsburn76

ohmsburn76

Well-Known Member
8
4
Pickerington, Ohio
Vehicle Model
SI
Body Style
sedan
Got my car back today, was stuck with a 2015 Jetta.... Nice car but not my Si. While the car was at the shop, i was able to get my LED strip installed behind the face of the box. Its "o-k"... Not my total vision but close, need to find more flexible strips to allow me to get a full glow effect. But i dont think its horrible for my first custom sub box.

I

IdaSi

Member
10
0

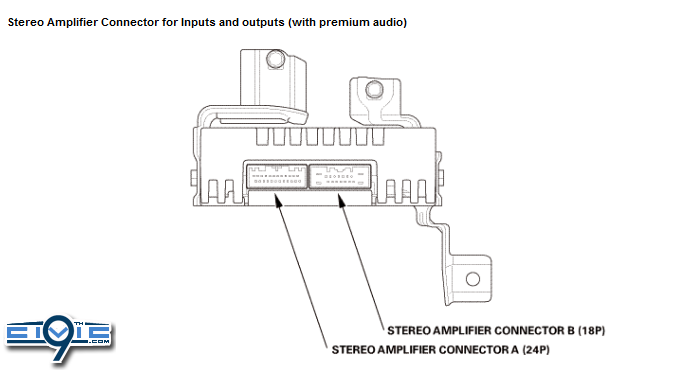

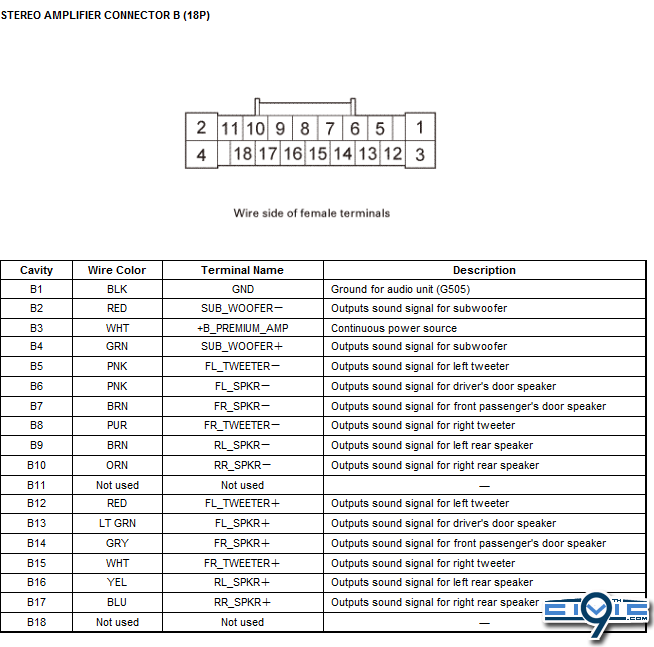

Does anybody know where, or even if, you can buy the female/male connectors for the 18pin and 24pin amplifier connections? The closest thing I found was a few Metra connectors for the Honda Fit, but I don't know if they are the same.
