JonnyRotten
Well-Known Member
Doin the same vangster
Photos Official Lowered Sedan Pics Thread.. :)
- Thread starter PapiFlyy
- Start date
stormtrooper
Well-Known Member
- 252
- 161
Installed these Megan EZ Street Coilovers about a week ago. Have 17x9 wheel with 235/45/17 using +45mm offset.
JAYBLS
Well-Known Member
- 701
- 475
Holy **** those are some big *** tires.
Vahag Chakerian
Well-Known Member
I love that chunky set up!! You having any trouble rubbing ?
stormtrooper
Well-Known Member
- 252
- 161
The stock tires on Civic Si are 215/45/17 so all I did was go wider on the width to accommodate the wheel to 235/45/17.

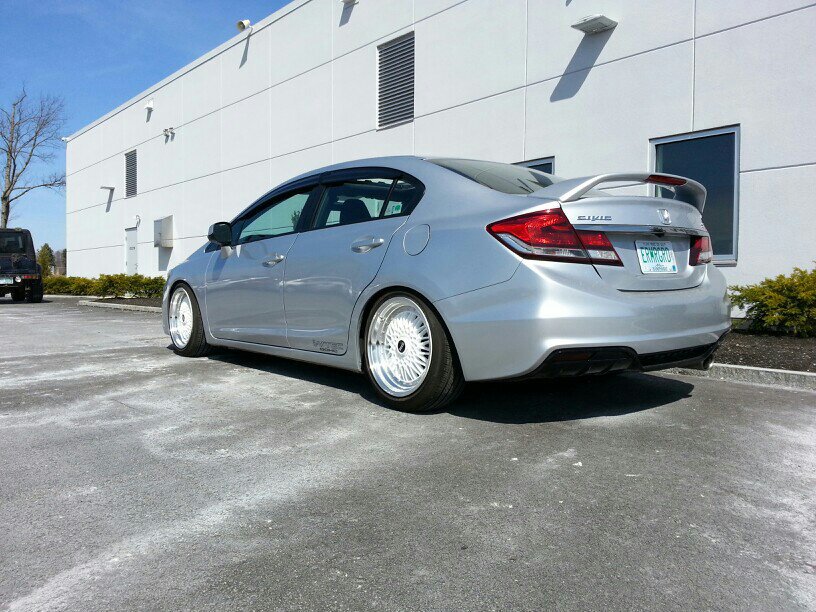

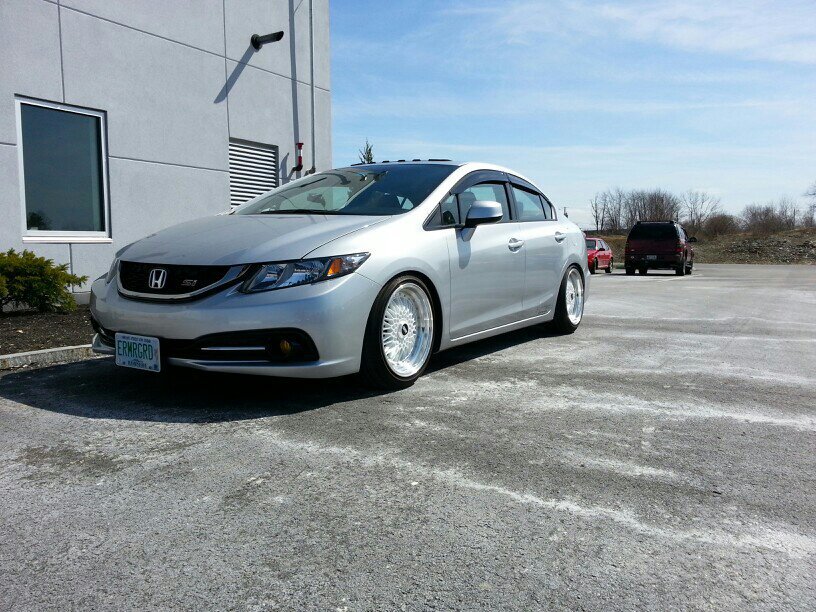

No rubbing while turning. When I was doing test fitments this is the lowest I could go before I would start rubbing. This is how the car looks from an angle.
JAYBLS
Well-Known Member
- 701
- 475
No, you did not "just go wider on the width." You kept the same aspect ratio, which is the sidewall height as a percentage of the tread width. If you have the same aspect ratio and a wider tread section, you have a bigger diameter tire. In your case, you went from a 24.62" overall diameter and 3.81" sidewall height to a 25.33" overall diameter and a 5.16" sidewall height. That is a significant difference. Your tires are huge.
stormtrooper
Well-Known Member
- 252
- 161
I agree.
NoMoreNissans
Well-Known Member
i think it looks badass. as long as the tires stay clean and black
- Staff
- #2,129
- 52,105
- 22,314
3.81 to 4.16, not 5.16.
He gained essentially 3/8" sidewall height over stock.
He gained essentially 3/8" sidewall height over stock.
status3000
Well-Known Member
megan coils and still have alote to go lower if i like
JAYBLS
Well-Known Member
- 701
- 475
Ya. I must have accidentally bit the 5 instead of the 4. 3/8" difference in sidewall height is significant.
PMMcivicFB2
Well-Known Member
Agreed.
stormtrooper
Well-Known Member
- 252
- 161
With my car I couldn't go any lower then the picture I posted. When me and a friend were doing the install (he installed KSport coilovers on his car) when we were doing test fitments it would rub for any lower height. I still want ground clearance because this is my daily driver. I think the reason I couldn't go any lower is because the wheel & tire height, width, and diameter and much more significant then the stock Si (fb6) wheel & tire height, width, and diameter. But I believe @JAYBLS & @webby could probably explain this more accurately.
- Staff
- #2,134
- 52,105
- 22,314
That explains it. Getting wider wheels/tires will limit how low you can go. The only way to go lower would be increasing the camber /-----\ of the wheels to keep them from hitting the fenders. Or shaving/rolling fenders.
JAYBLS
Well-Known Member
- 701
- 475
I think your ride height looks good where it is.
stormtrooper
Well-Known Member
- 252
- 161
Yeah, I don't want to go any lower I still have road clearance.
status3000
Well-Known Member

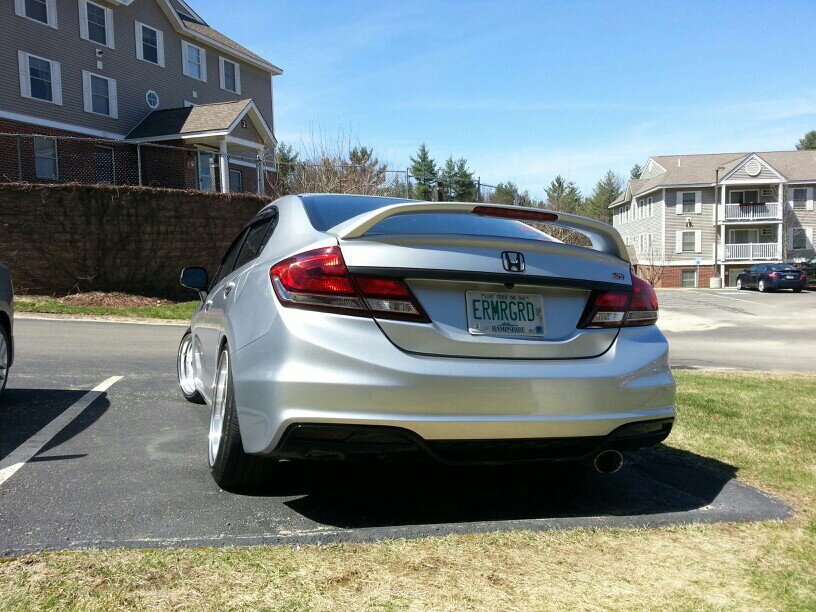

decided to go lower front and backAttachments
-
silver04v
Well-Known Member
- 390
- 233
On buddy club coils. Nearly maxed out with gsp camber arms. Trying to dial it in and maybe go a touch lower but need to give the fenders some room in front.
kennyjames
Well-Known Member
- 173
- 88
