323's Build

Dar-Dar said:
The small 10mm? It's best to use a handle socket driver so there will be little torque and less risk of breaking a bolt.
Click to expand...
One of the 12mm that hold the fuel rail to the manifold. Now the bolt is stuck in the manifold...I need a beer

I really wasn't going that hard on it, I think it was because I was using an extension and bent it on accident

Pics of my progress

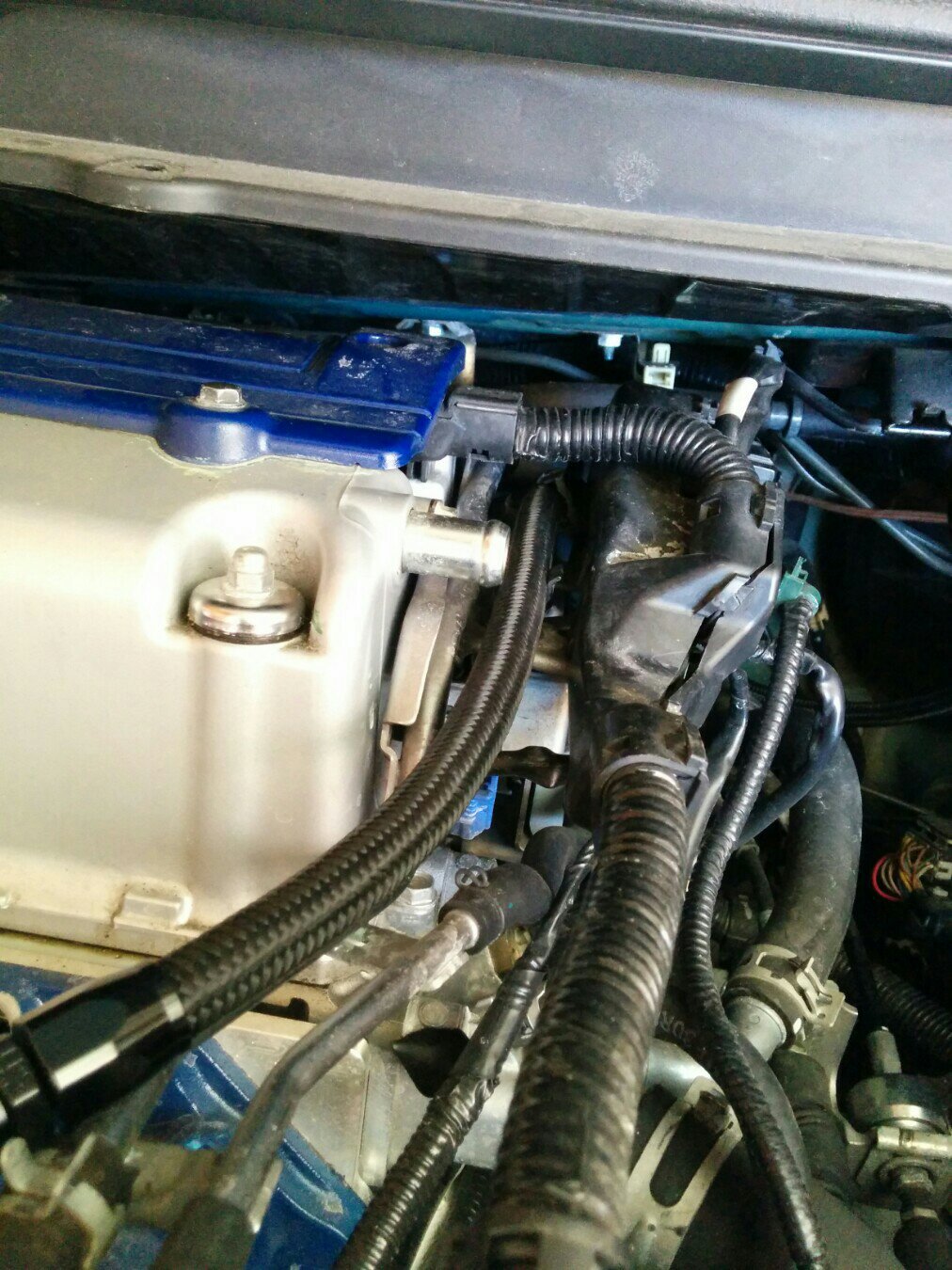

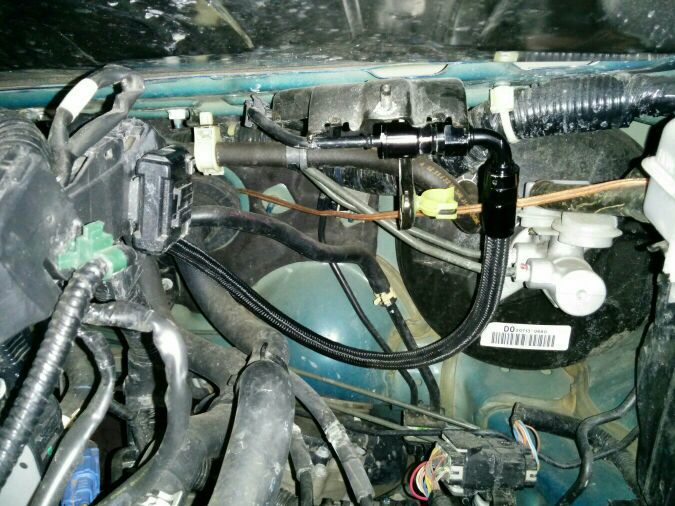

Fuel line

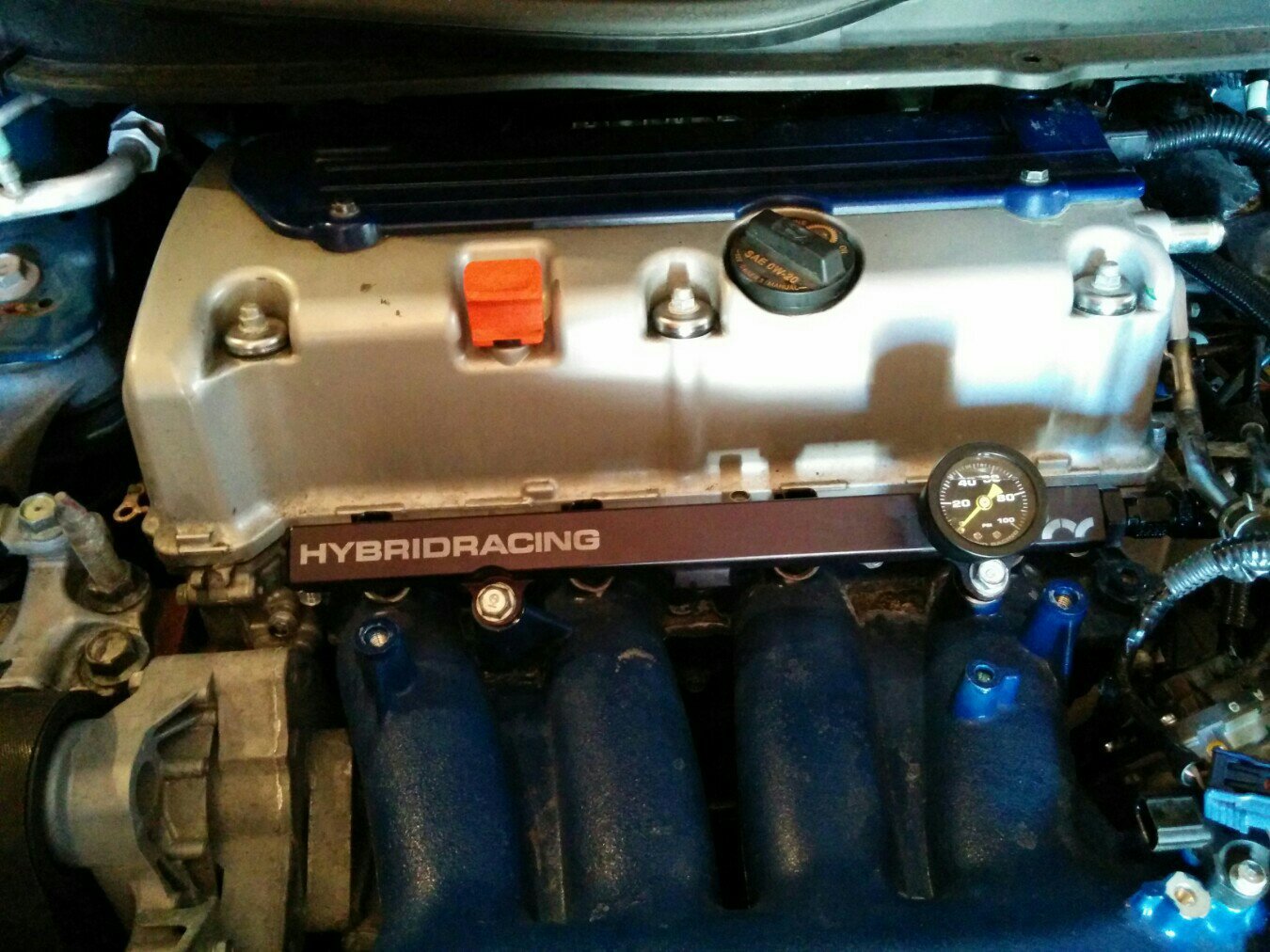

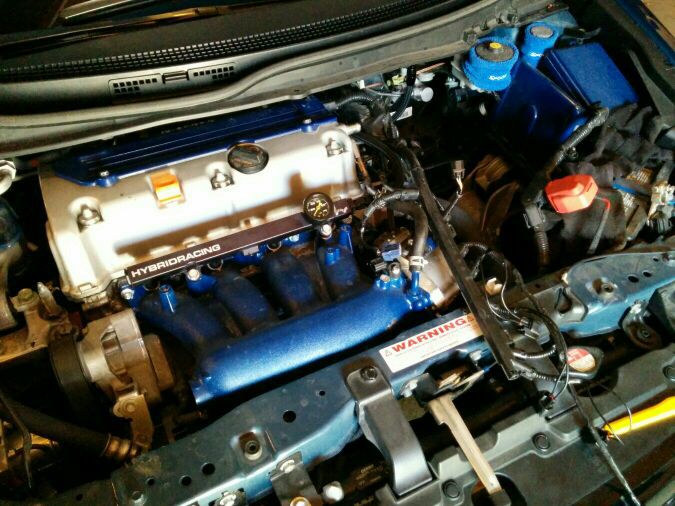

Rail installed

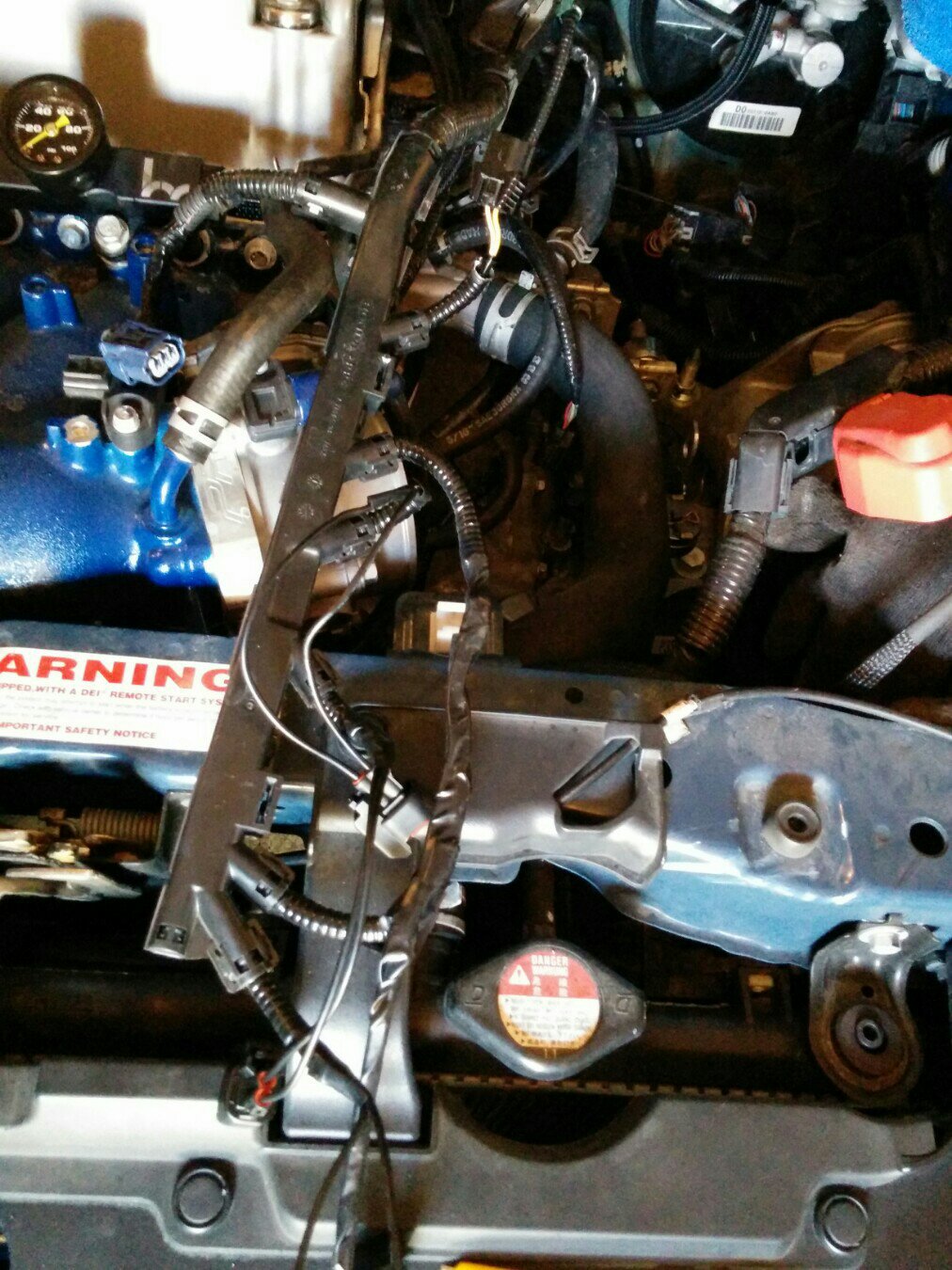

Injector clips spliced in

Is that a quick connect on the fuel line that then accepts a an fitting? Where did you get that?

Car is fine, running good with the new injectors.... Except when I turn on the headlights, then my A/F ratio goes really lean... I'm guessing the ground i'm using for the injectors isn't good... Any other ideas?

323 said:
Car is fine, running good with the new injectors.... Except when I turn on the headlights, then my A/F ratio goes really lean... I'm guessing the ground i'm using for the injectors isn't good... Any other ideas?
Click to expand...

You moved the grounds, right? Go back to the bolts in the cover?

squiggy said:
You moved the grounds, right? Go back to the bolts in the cover?
Click to expand...
Did that today, wasn't the issue though.

I changed the latency values (or "dead times") for the new injectors, but I found out I also had to change a value in flashpro called "current injector test pressure".

So basically, the latency values were right, but the pressure value was wrong. So when I turned on the headlights, the battery was putting out 14v instead of the usual 12v, and although the ecu was compensating for the wrong value at 12v, the ecu couldn't compensate enough for the wrong value at 14v...I hope that makes sense.

Finally some action around here! hahahah, coming to the dragon in september? Time to prove your mettle man!

Nix said:
Finally some action around here! hahahah, coming to the dragon in september? Time to prove your mettle man!
Click to expand...
Can't know about the dragon yet, it's too far away still but I'll let you know when it gets closer
